This product is legacy and no longer actively supported.

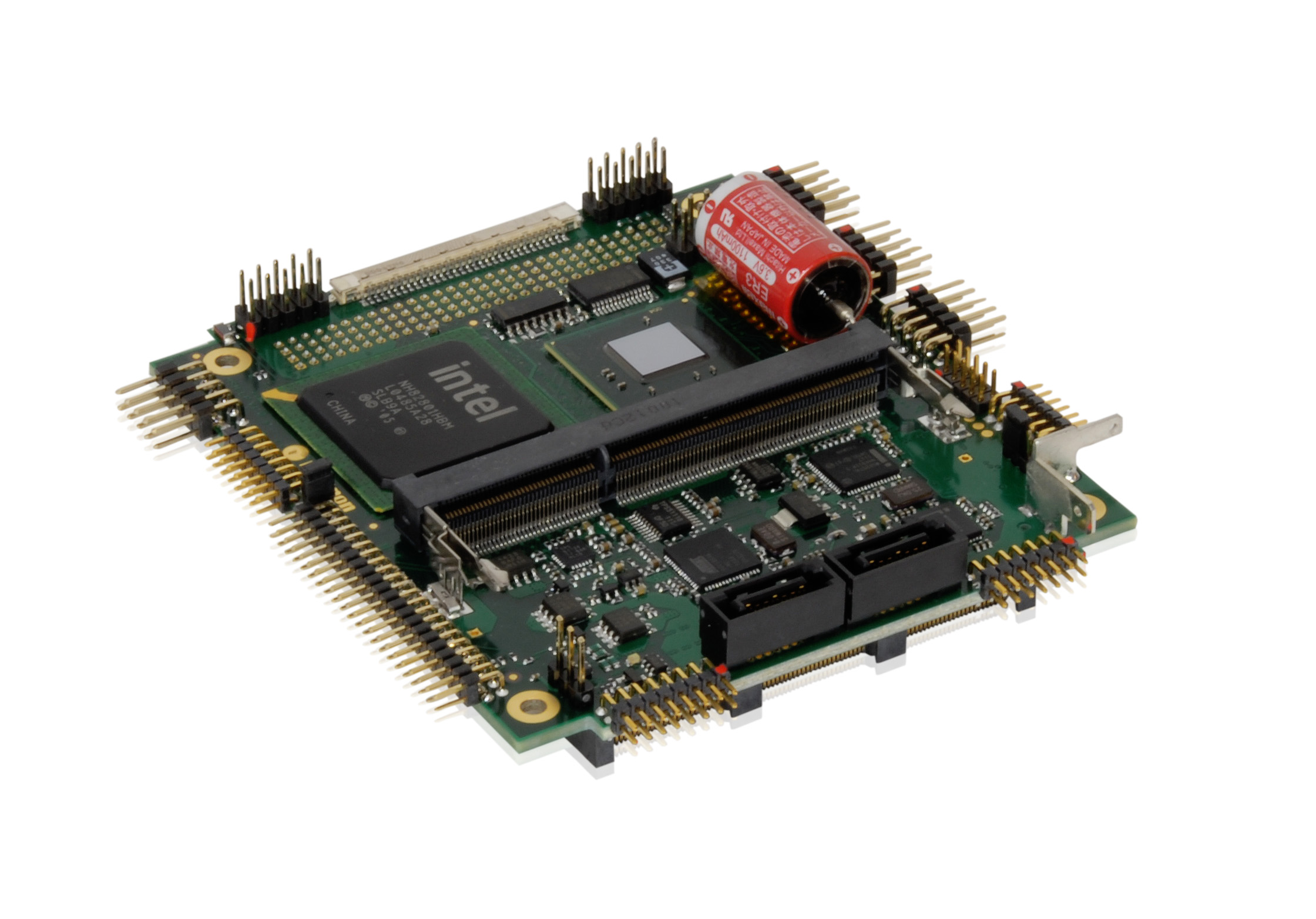

MSM-LP
PCI/104-Express™ SBC with Intel® Atom™ processor D525 / D425
- USB, SATA, PATA, COM, 2x Gbit LAN, DDR3
- Highest Dual-Core energy for harsh environments
Product Information
The MICROSPACE® MSM-LP is based on the Intel® Atom™ D425 with hyper-threading or with the Dual-Core D525. With this new PCI/104-Express single board computer we offer you an energy-efficient platform for harsh environment conditions. Thus, it is the ideal solution both for the upgrade of existing applications with the discontinued Intel® 855 chip sets as well as new applications in the automation and transportation markets and all other application areas that rely on extremely energy-efficient designs.
Technical data
| CPU Clock | Intel® Atom™ D525 (Dual Core)/1.8GHz or D425/1.8GHz |
|---|---|
| Controller | IO-Controller: Intel® 82801HM |
| Bus type | PCI Express-Bus: Yes, on the bottom / PCI: Option on the bottom |
| DRAM | Up to 4BG DDR3 SO-DIMM |
| Graphics | Video Memory: up to 256 MB (UMA) / LCD Interface: LVDS up to 1366x768 18bpp / CRT Interface: up to 2048x1536 @60Hz |
