MPOD Mix Crate 19" 8U

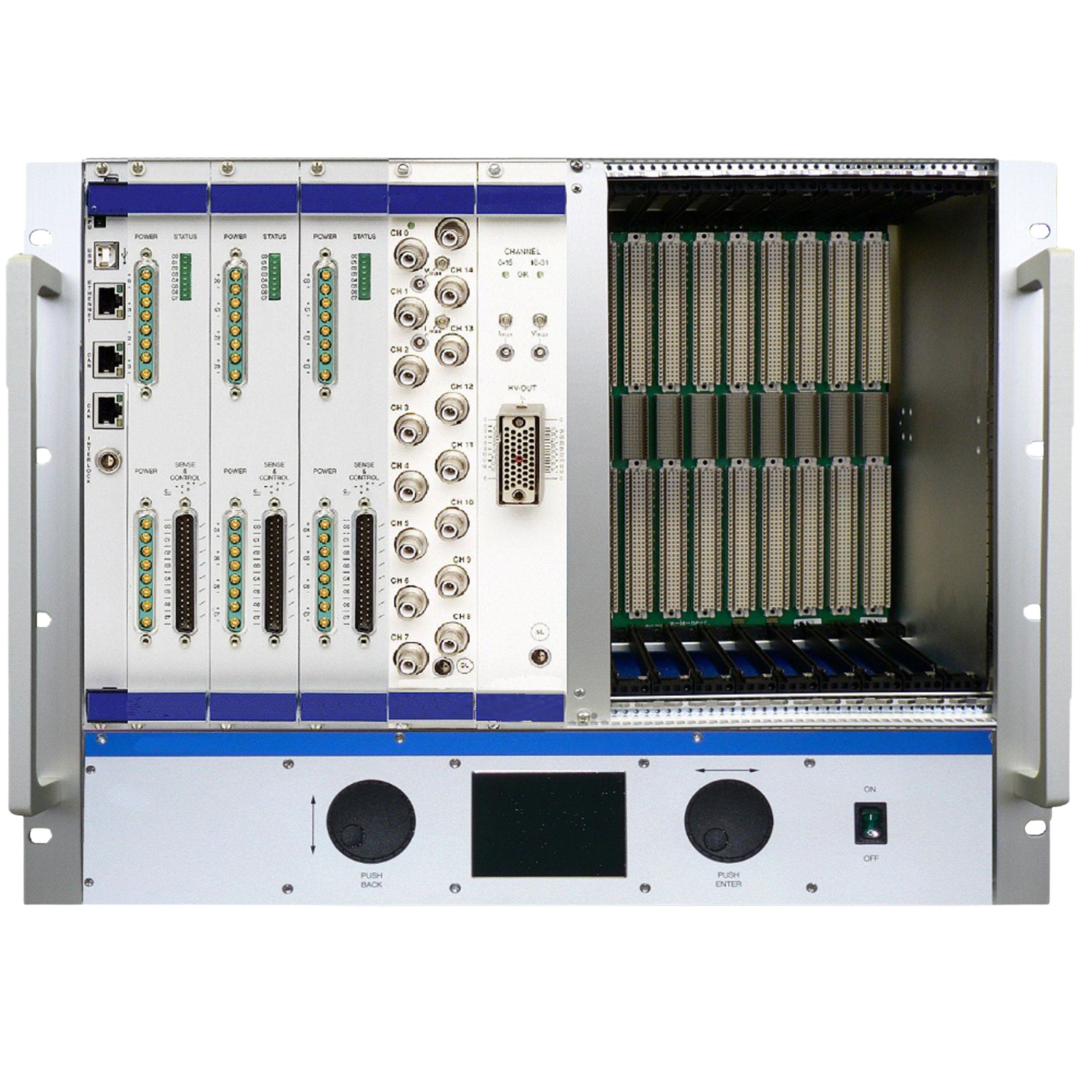

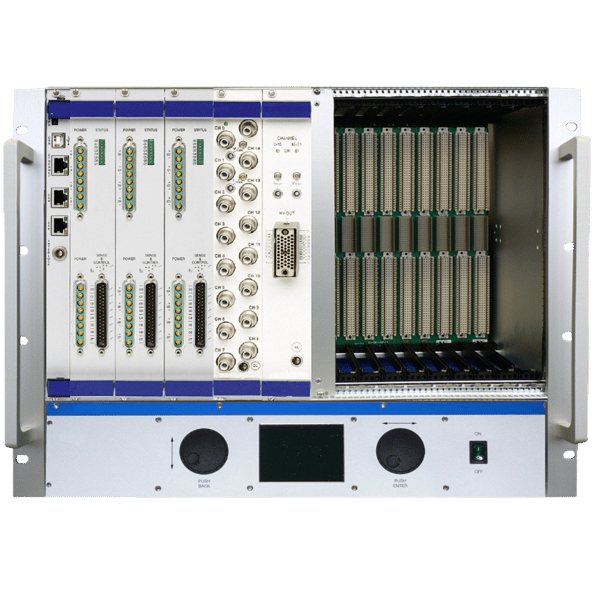

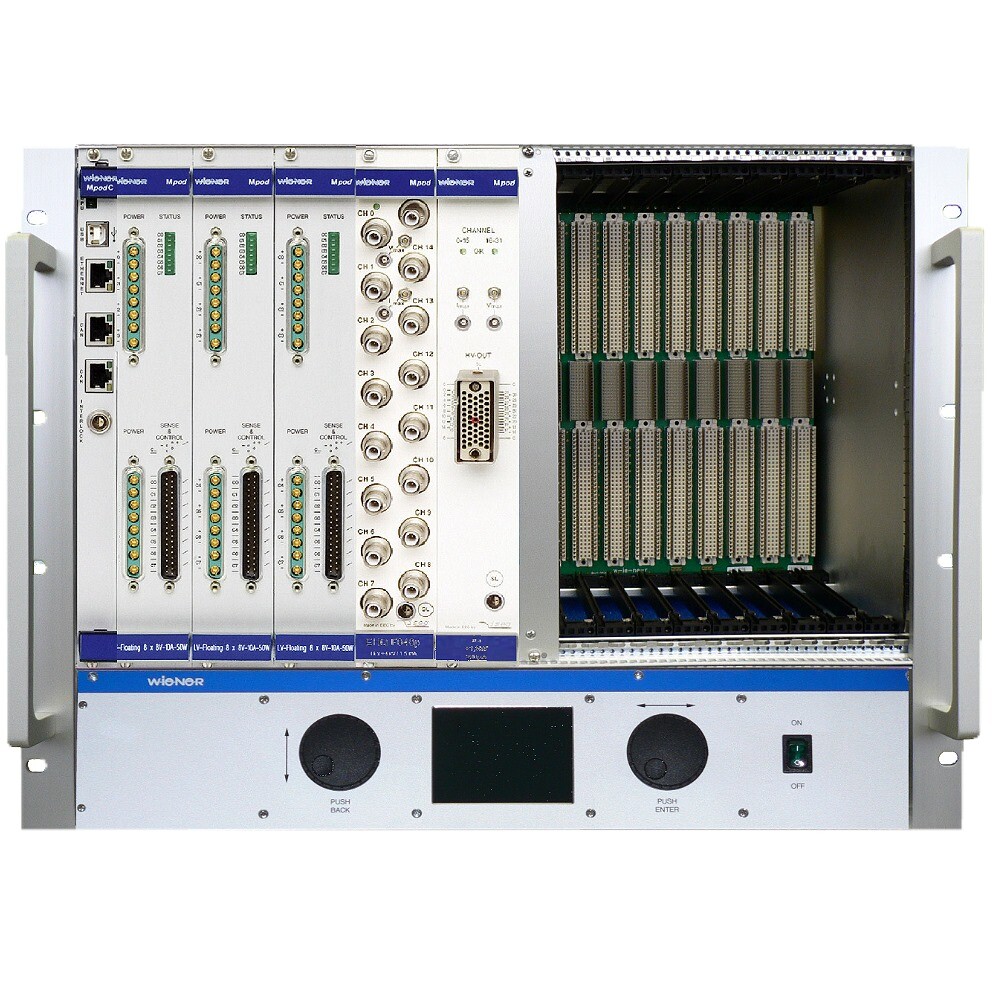

Modular 19″ 8U chassis with up to 10 HV/LV slots, supports integrated backplanes (VME, cPCI), front or rear connectors, Ethernet/CAN/USB control, optional LCD – for power and DAQ.
Specifications
- 19″ rack-mountable bin with slots for up to 10 HV/LV modules
- Supports integrated backplanes (e.g., VME, VME64x, cPCI, custom)
- Dual mounting options: front or rear LV/HV connectors
- Optional LCD screen with rotary/push-button for local control
- Power supply based on UEP6021 tech: low noise, high reliability
- Voltage range: 0.5 kV–6 kV HV modules; up to 50 W/channel LV
The MPOD EC/LX with Integrated Bus is a high-density, modular power supply system that combines data acquisition (DAQ) and power delivery. It supports VME, VME64x, cPCI, or custom backplanes (3U–6U), making it an efficient all-in-one solution where rear transition modules aren't needed.
Features
| Compliance | Safety: CE EN 60950, VDE 0805, ISO 380, UL 1950, C22.2.950 EMC: EN 55022 Class B (conducted & radiated), EN 61000 series Power factor correction, auto-range AC input (90–265 VAC) CE compliant with industrial-grade build quality Designed for lab and field DAQ applications Fully supports European and international electrical standards |
| Power & Efficiency | Rated DC output: 600 W to <3000 W (300 W for MPOD micro) High conversion efficiency: 75% to 85%, depending on modules Sine-wave input current: 16 A (suffix H), 32 A (suffix K) Auto-ranging input voltage: 94–265 VAC Stable monotonic rise time: 50 ms Long service life: >100,000 h electronics @40 °C |
| Protection Features | Overvoltage protection: crowbar trip at 125% of nominal DC Off: within 5 ms for major deviations or thermal events Adjustable voltage/current limits per channel Temperature shutdown: triggered at 125 °C (heat sinks) Outputs discharged safely after trip-off Programmable fault responses for voltage, current, fan fail |
| Management & Control | Integrated controller with Ethernet, CANbus, USB interfaces OPC server support over TCP/IP SNMP and Web-based monitoring via iCS or ISEG CC24 controller Remote and local monitoring with optional LCD interface Channel-level monitoring and control with 12–20-bit resolution Interlock input and software trip for enhanced safety |
| Design & Components | Rugged 19″ rack-compatible chassis with modular fan tray Module dimensions: 6U × 8PU, 220 mm deep Supports up to 480 HV or 80 LV channels per mainframe Mix-and-match HV and LV modules Optional dust filter for harsh environments Compact form factor with integrated DAQ capabilities |
| Mechanical | Dimensions: 19″ × 460 mm (depth) × 8U (bottom air) or 9U (front air) Weight: approx. 20 kg depending on configuration Tool-less fan and PSU removal Rear/backplane integration reduces the need for extra crates Vibration-resistant construction Industrial-grade connectors for high-density cabling |
Downloads
Datasheets
MPOD Mix Crate Datasheet
[ mpod-mix-crate-datasheet.pdf, 384.57 KB, Aug.04.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
