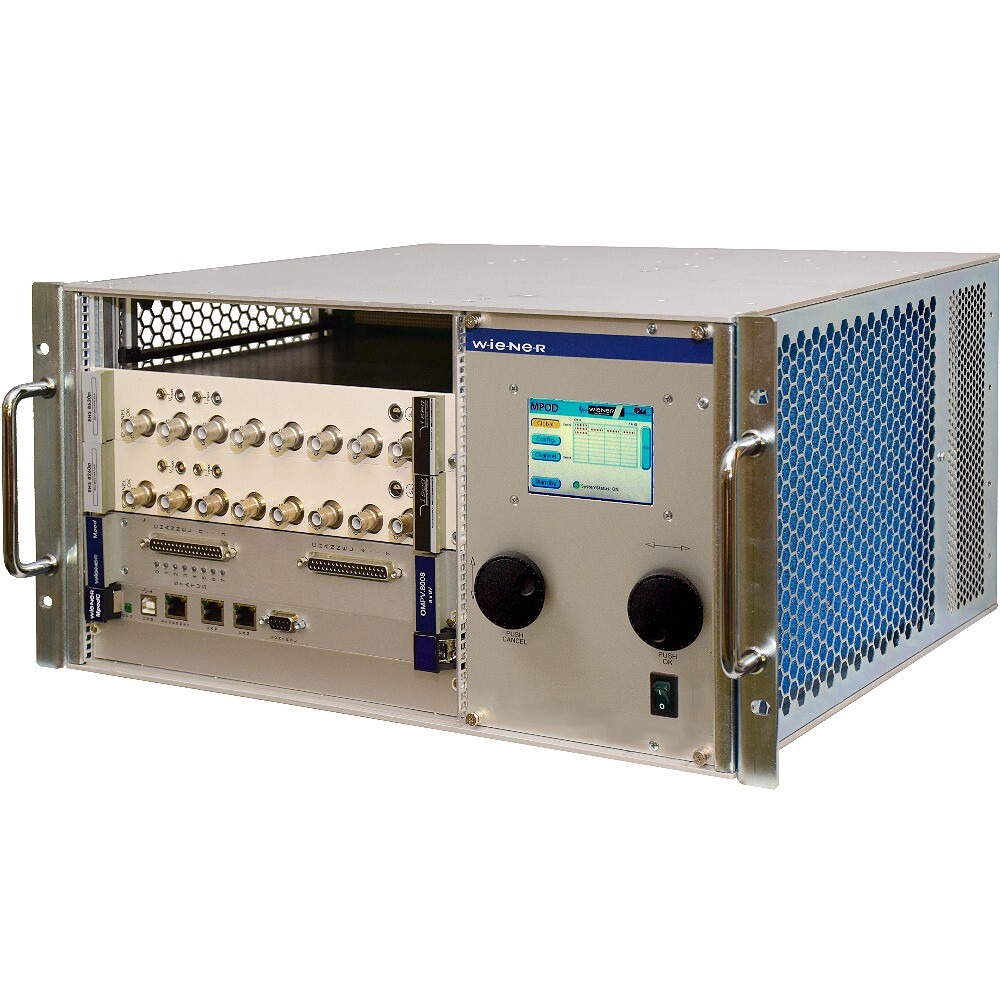

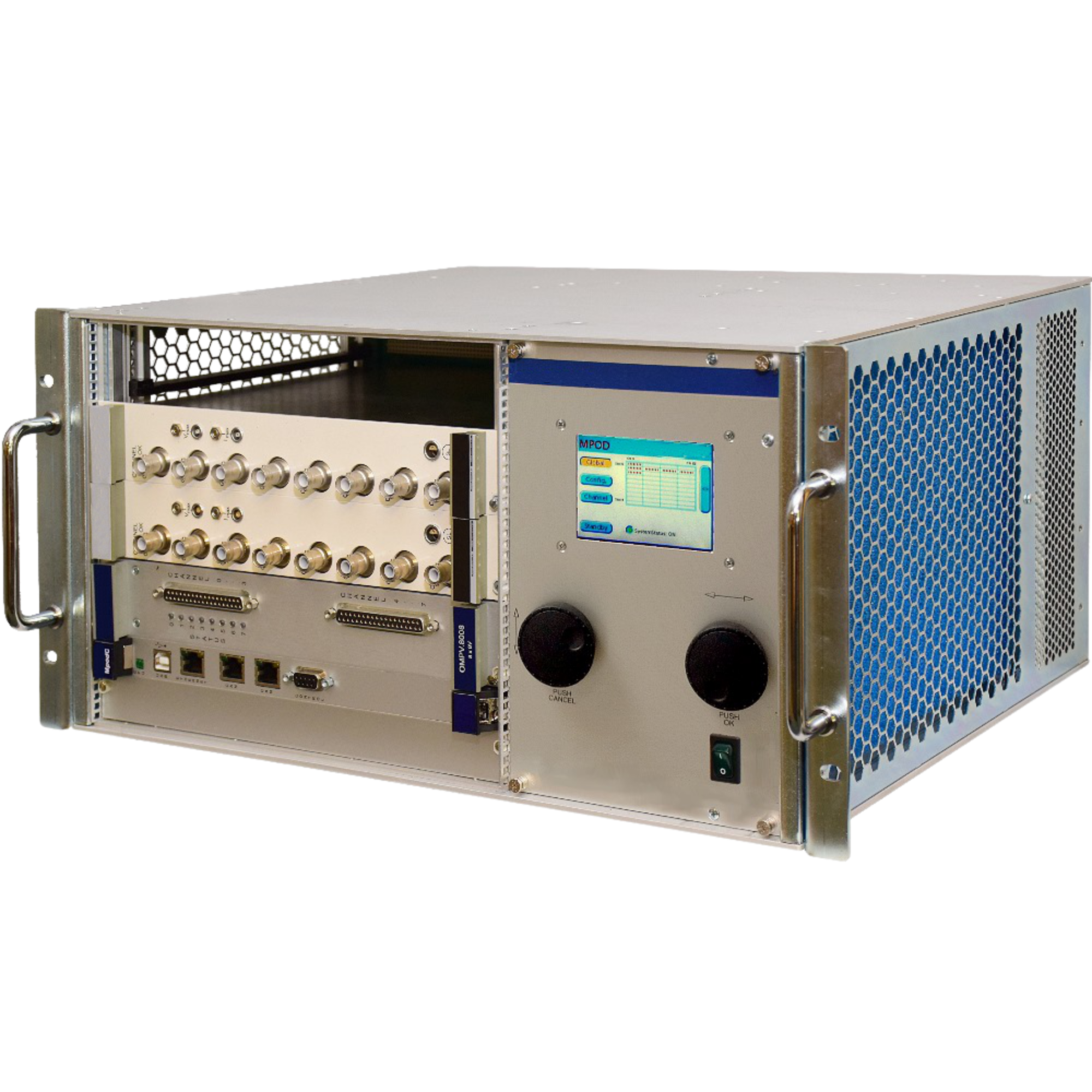

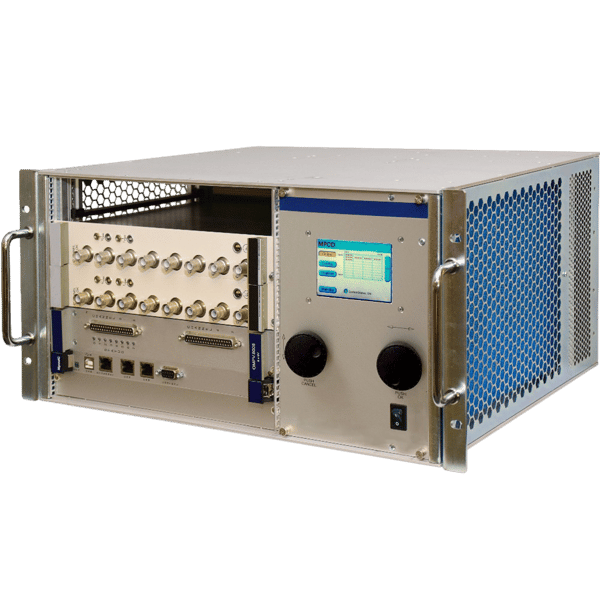

MPOD Mini Crate 19" 5U

Compact 19″ 5U mainframe for up to 4 HV/LV modules, modular front/rear connections, Ethernet and CAN control, ideal for space-constrained high-voltage applications in labs or test setups.

Modular single-slot MPOD system
Supports HV and LV output modules
Ethernet and CAN remote control
Optional front display
Output at front or rear panel

Request product Download datasheet

Product Information

The MPOD Micro-1 is a compact, single-slot power supply unit for high-voltage (HV) or low-voltage (LV) applications. It’s ideal for labs, test benches, and industrial environments needing precise, remotely controlled voltage distribution.

Technical support

Technical data

Compliance	Built to MPOD modular system standards Floating or common ground configurations Safety-tested high-voltage architecture Conforms to relevant EMI/EMC guidelines Meets industrial reliability requirements Designed for long-term stability
Power & Efficiency	Primary HV power: 300 W Output up to 20 kV / 15 mA per channel Ultra-low ripple & noise (<10 mVpp) Resonant sine-wave inverter for high efficiency Modular channel scalability Optimized for low EMI
Protection Features	Hardware voltage & current limits Fast current trip per channel Software-controlled protection logic Integrated safety loop Optional per-channel inhibit Power fault detection
Management & Control	Full remote control (Ethernet/CAN) 16- or 21-bit resolution for V/I settings Per-channel monitoring & feedback Configurable trip thresholds Easy module replacement Optional GUI software
Design & Components	Modular high-density architecture SHV/REDEL connectors based on channel count Up to 48 channels per module Passive cooling design Compact 6U housing Optional backplane types: HV/LV, HV-only, LV-only

Downloads

Variants

Select variants here

MQA4E2400A2S

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixA2 and C13 90° Powercord for EU SCHUKO Connection

MQA4E2400A2T

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixA2 and C13 90° Powercord for US / Japan Connection

MQA4E2400R13

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for UK Connection

MQA4E2400R1M

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 Powercord for VRC Connection

MQA4E2400R1S

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for EU SCHUKO Connection

MQA4E2400R1T

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for US / Japan Connection

MQA4E2403A2S

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant 03A2 and C13 90° Powercord for EU SCHUKO Connection

MQA4E2403R1S

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant 03R1 and C13 90° Powercord for EU SCHUKO Connection

MQA4E2403R1T

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant 03R1 and C13 90° Powercord for US / Japan Connection

MQA4E2403R1Y

Mpod - Mpod mini Series with Mpod HV/LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant 03R1 and C13 lock Powercord for US NEMA 5-15P Connection

MQB4E2400R1M

Mpod - Mpod mini Series with Mpod LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 Powercord for VRC Connection

MQB4E2400R1S

Mpod - Mpod mini Series with Mpod LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for EU SCHUKO Connection

MQB4E2401R1S

Mpod - Mpod mini Series with Mpod LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant 01R1 and C13 90° Powercord for EU SCHUKO Connection

MQB4E2401R1T

Mpod - Mpod mini Series with Mpod LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant 01R1 and C13 90° Powercord for US / Japan Connection

MQB4E2401R1U

Mpod - Mpod mini Series with Mpod LV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant 01R1 and C13 90° Powercord for CH Connection

MQC4E2400A2S

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixA2 and C13 90° Powercord for EU SCHUKO Connection

MQC4E2400A2T

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixA2 and C13 90° Powercord for US / Japan Connection

MQC4E2400R1M

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 Powercord for VRC Connection

MQC4E2400R1S

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for EU SCHUKO Connection

MQC4E2400R1T

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for US / Japan Connection

MQC4E2400R1Y

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 lock Powercord for US NEMA 5-15P Connection

MQC4E2402A1S

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixA1 and C13 90° Powercord for EU SCHUKO Connection

MQC4E2402R1M

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 Powercord for VRC Connection

MQC4E2402R1S

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for EU SCHUKO Connection

MQC4E2402R1T

Mpod - Mpod mini Series with Mpod HV Backplane, 4 Slot, 5 HE and Mpod mini Powersupply variant unbekannt laut MatrixR1 and C13 90° Powercord for US / Japan Connection
