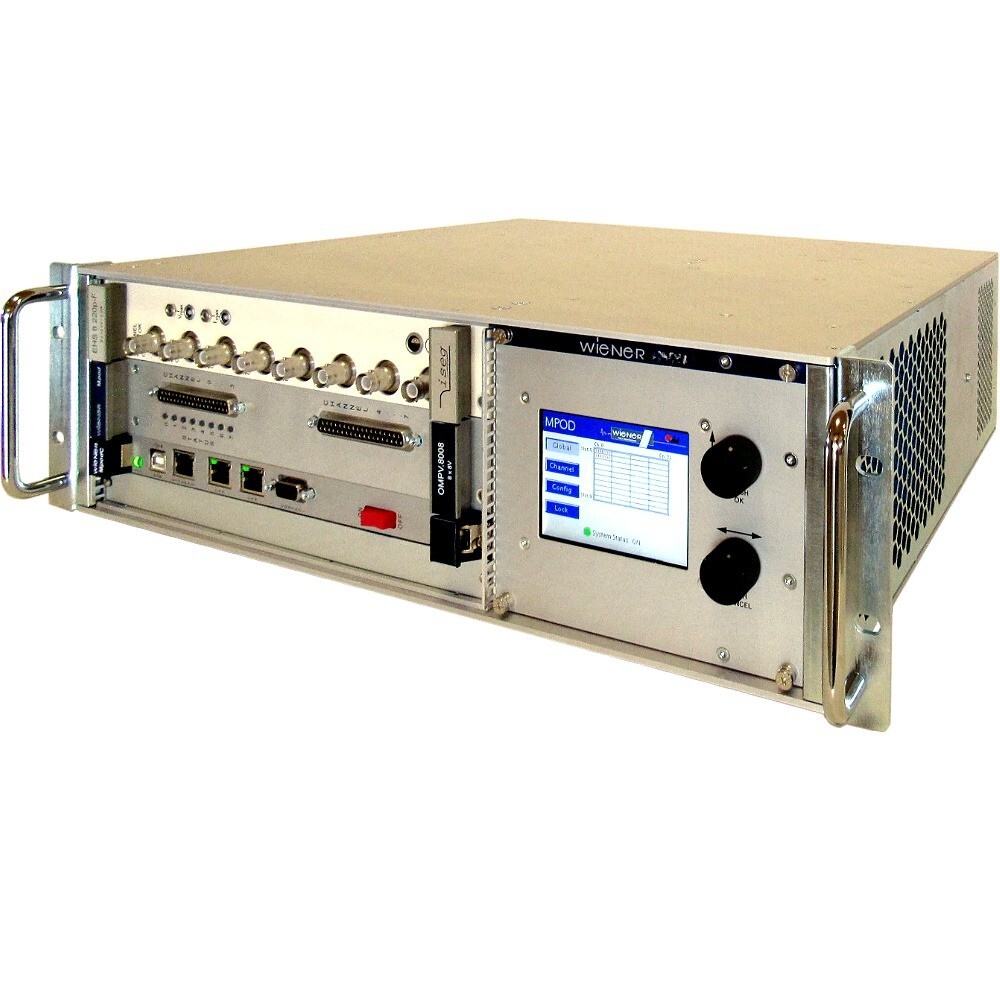

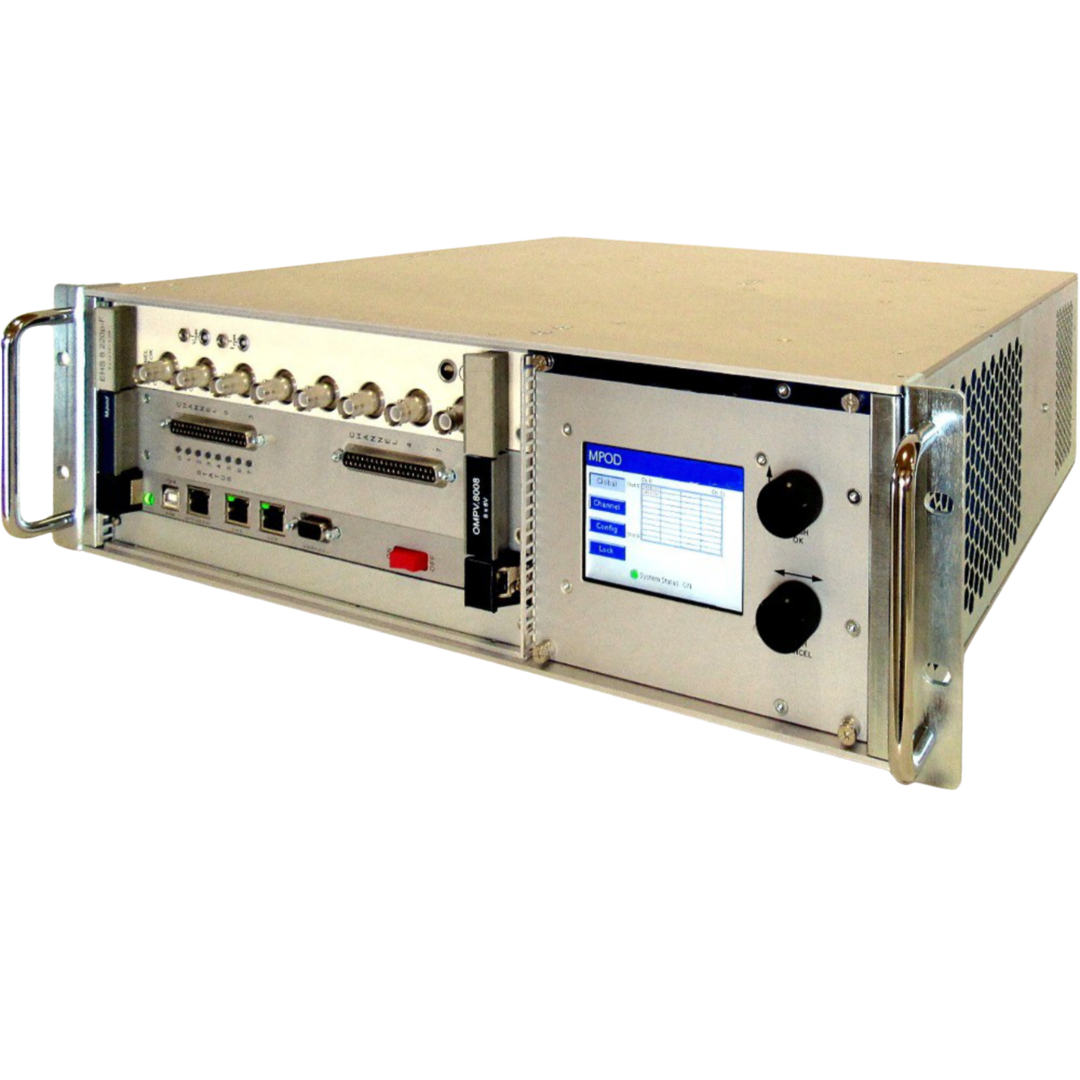

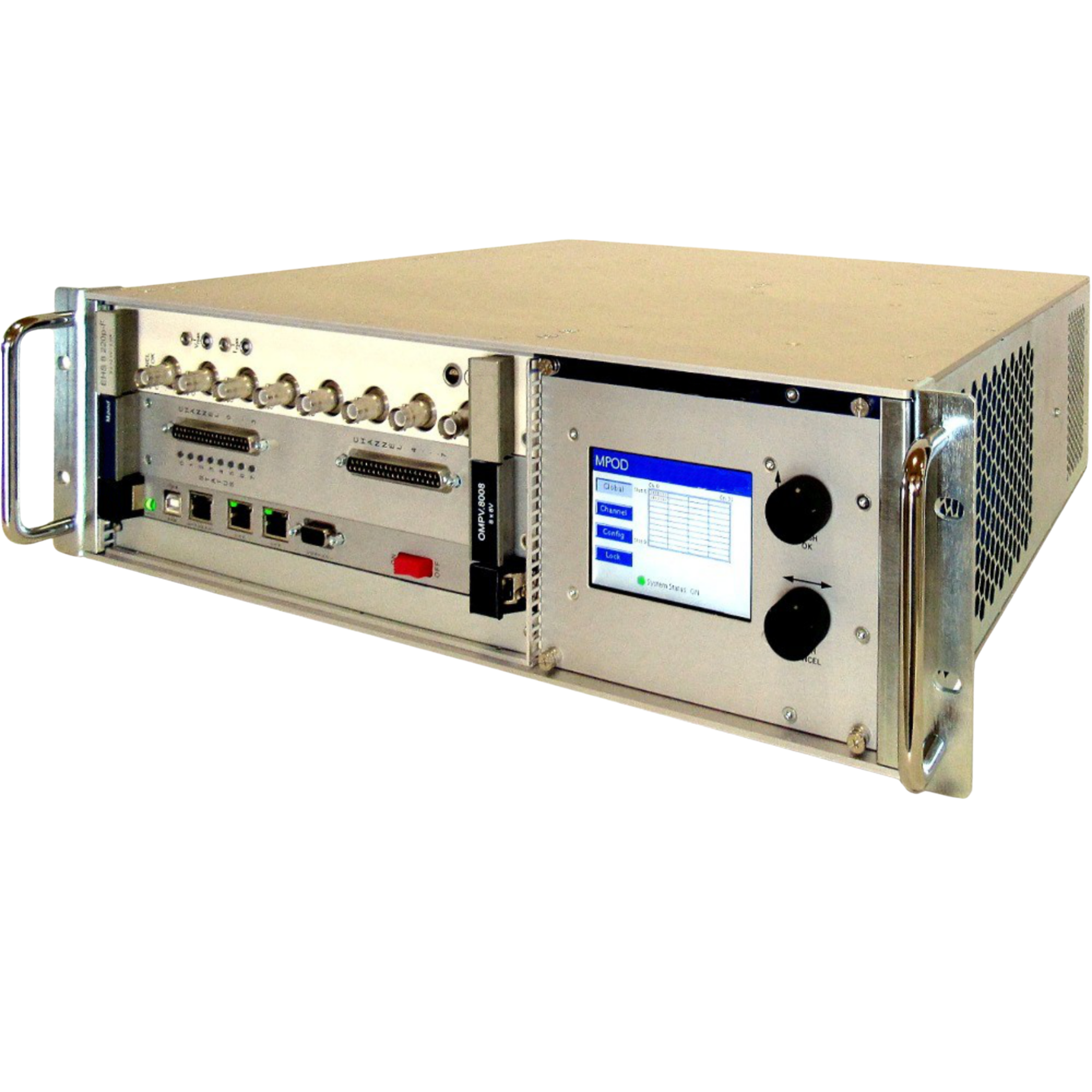

MPOD Micro-2 Crate 19" 3U
Ultra-compact 19″ 3U crate with 2 module slots, up to 300 W output, front or rear connectors, optional display – perfect for small-scale or distributed HV/LV power needs.
- 2 slots for plug-in power modules
- Output: High Voltage (HV), Low Voltage (LV), or mixed (HV/LV)
- Primary HV power: up to 300 W (depending on model)
- Output direction: Front / Rear configurable
- Graphic display: optional (LX variants)
Product Information
The MPOD Micro-2 series is a compact 2-slot modular power crate system for high-voltage (HV), low-voltage (LV), or mixed applications. It supports flexible output options from front or rear and is available with or without a graphic display. The Micro-2 series delivers up to 300 W primary power and is ideal for distributed or space-constrained installations in scientific and industrial environments.
Technical data
| Compliance | CE certified RoHS compliant Designed to meet relevant EMC and safety standards for industrial equipment |
|---|---|
| Power & Efficiency | Primary HV power up to 300 W for HV and mixed models High-efficiency power conversion design Optimized for low power loss in distributed systems Low standby power consumption |
| Protection Features | Overvoltage protection Overcurrent protection Short-circuit protection per channel Thermal monitoring and shutdown |
| Management & Control | Remote control via Ethernet interface Status monitoring per channel LX versions with integrated graphical display for local control SNMP and WebGUI support for advanced system management |
| Design & Components | Modular architecture with hot-swappable slots Passive backplane design for improved reliability Compact size and low noise operation Supports mixed HV/LV configurations |
