MPOD Micro-1 Crate Datasheet
380.12 KB | April 21, 2026

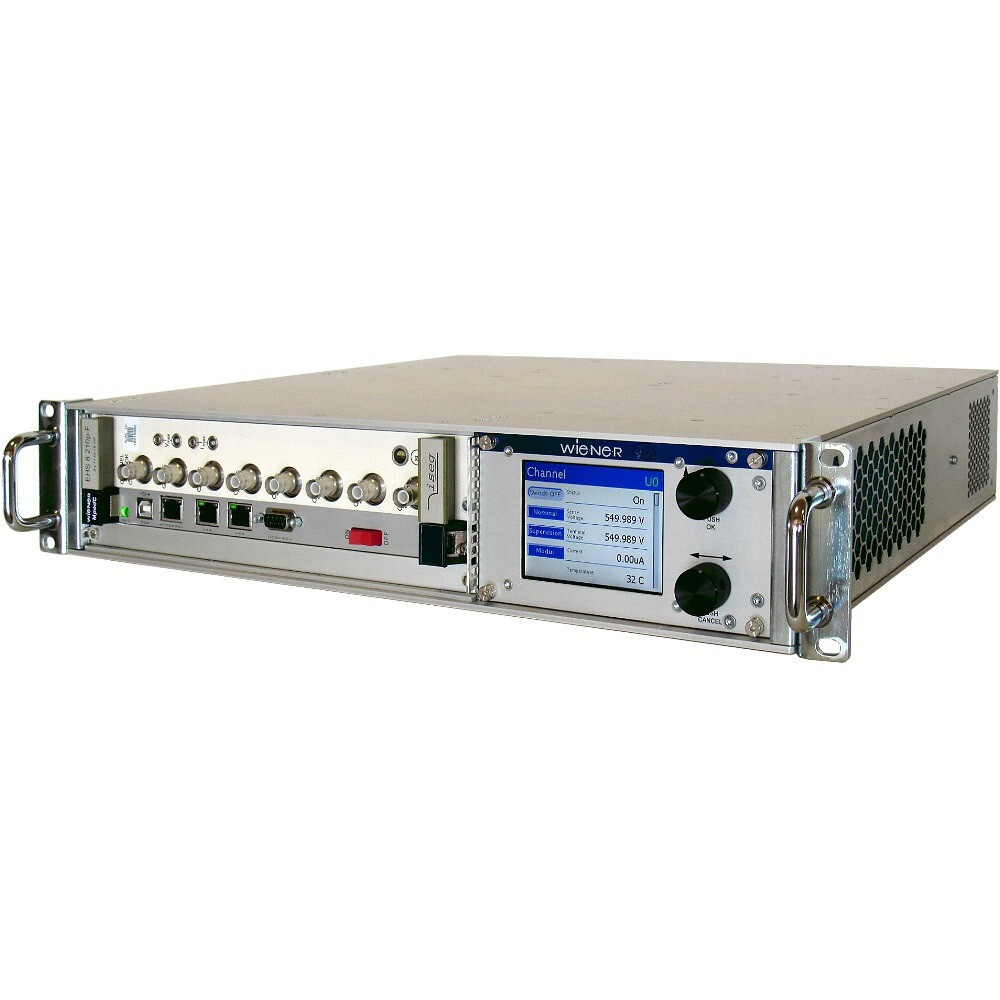

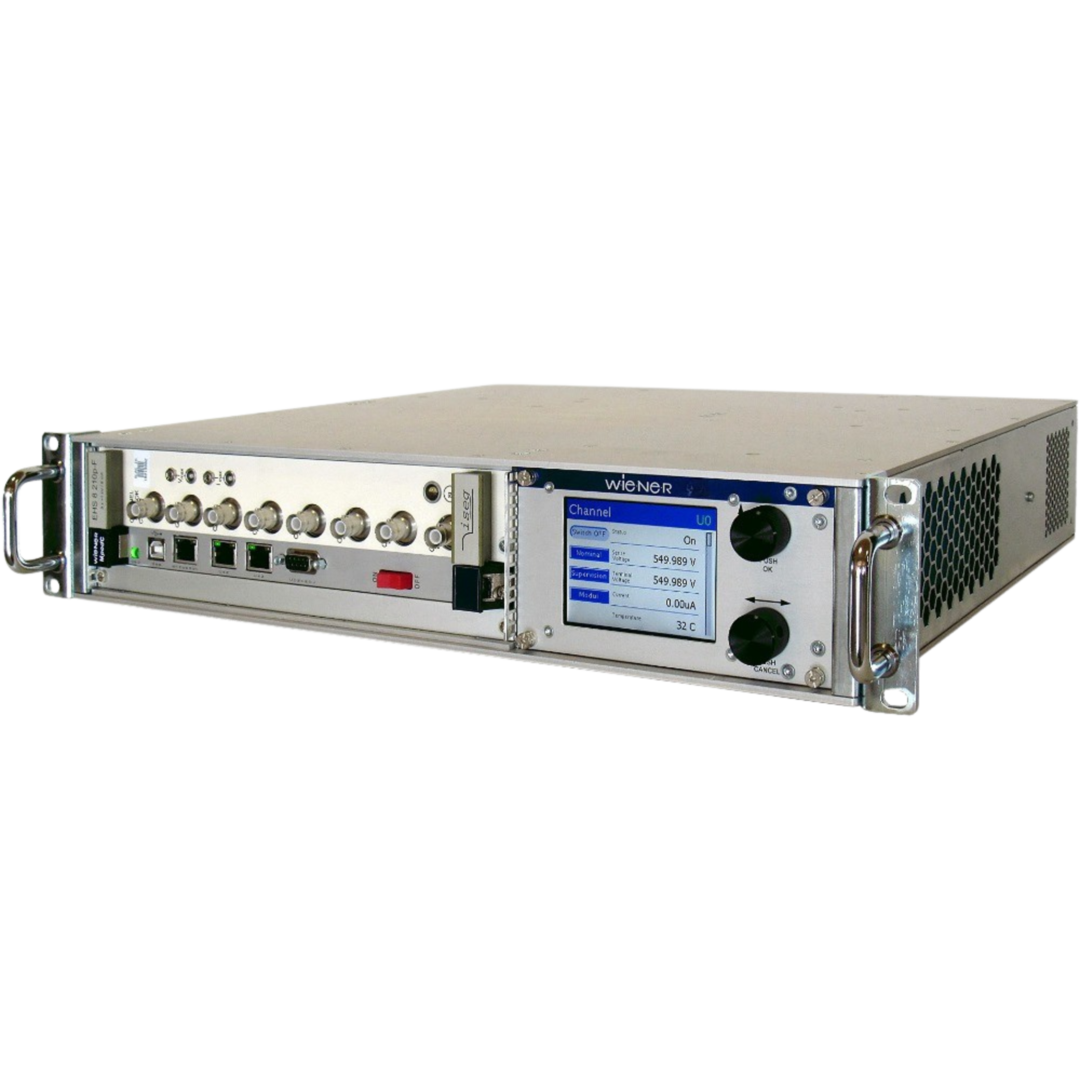

MPOD Micro-1 Crate 19" 2U
The MPOD Micro-1 2U is a 19" compact crate designed as the smallest and most cost-effective solution within the flexible WIENER MPOD power supply series.
- 19″ × 1.5U micro-bin chassis with cage for 1 HV or LV module
- Desktop, rack-mount, or micro tower installation
- New, reinforced mechanical design for improved stability and airflow
- Optional front panel display with local control
- Dimensions: 482 mm × 178 mm × 480 mm (W × H × D)
Product Information
The MPOD Micro-1 is WIENER’s most compact and cost-effective chassis for high- and low-voltage multi-channel power supply applications. Designed for test setups, labs, or space-constrained installations, the Micro-1 supports one HV or LV plug-in module and features a full-function MPOD controller with Ethernet, USB2, and CAN-bus interfaces. Despite its small size, the crate offers powerful performance, extensive monitoring, and rugged design with optional local display and control.
Technical data
| Compliance | Modular high/low voltage power supply crate according to MPOD standard CE-compliant with full EMI/EMC certification Designed to meet international safety standards (CE EN 60950, ISO 380, UL 1950, etc.) Wide-range AC input with power factor correction (94 – 265 V) |
|---|---|
| Power & Efficiency | Integrated primary power supply: – up to 600 W for LV – up to 100 W for HV AC input: 90–265 V (rated 106–230 VAC ±15 %) Efficiency: 75 % – 85 % (module dependent) Supports high voltage (up to 20 kV) and low voltage (up to 120 V) modules Very low ripple and noise, high stability and precision Output stability: 10 mV / 0.1 % (24 h), 25 mV / 0.3 % (6 Monate) |
| Protection Features | Overvoltage, overcurrent, overtemperature, and undervoltage protection Hardware crowbar overvoltage protection at 125 % of nominal voltage Fast DC-off within 5 ms on fault condition Programmable limits per output channel Airflow monitored with fault shutdown at >125 °C |
| Management & Control | Controller with Ethernet 10/100, CAN-bus, and USB-2 interface SNMP, OPC server, DHCP support, integrated web-server Optional: ISEG CC24 controller with Linux OS, iCS web service, EPICS IOC All channels individually controllable and monitorable Local display and manual control (optional) |
| Design & Components | Redesigned chassis for improved airflow and mechanical stability Integrated cooling fan with side-to-side airflow and air filter No use of aluminum electrolytic capacitors in sensitive components Long service life: – Electronics >100 000 h (40 °C) – Blowers >65 000 h (40 °C), >100 000 h (25 °C) |
Variants
Select variants here
MPA1B2301R1S
MPA1B2301R1S
Mpod - Mpod micro Series with Mpod HV/LV Backplane, 1 Slot, 2 HE and Mpod micro Powersupply Powersupply variant 01R1 and C13 90° Powercord for EU SCHUKO Connection
MPB1B2300R1S
MPB1B2300R1S
Mpod - Mpod micro Series with Mpod LV Backplane, 1 Slot, 2 HE and Mpod micro Powersupply Powersupply variant 00R1 and C13 90° Powercord for EU SCHUKO Connection
MPC1B2300R1M
MPC1B2300R1M
Mpod - Mpod micro Series with Mpod HV Backplane, 1 Slot, 2 HE and Mpod micro Powersupply Powersupply variant 00R1 and C13 Powercord for VRC Connection
MPC1B2300R1S
MPC1B2300R1S
Mpod - Mpod micro Series with Mpod HV Backplane, 1 Slot, 2 HE and Mpod micro Powersupply Powersupply variant 00R1 and C13 90° Powercord for EU SCHUKO Connection
MPC1B2301R1S
MPC1B2301R1S
Mpod - Mpod micro Series with Mpod HV Backplane, 1 Slot, 2 HE and Mpod micro Powersupply Powersupply variant 01R1 and C13 90° Powercord for EU SCHUKO Connection
