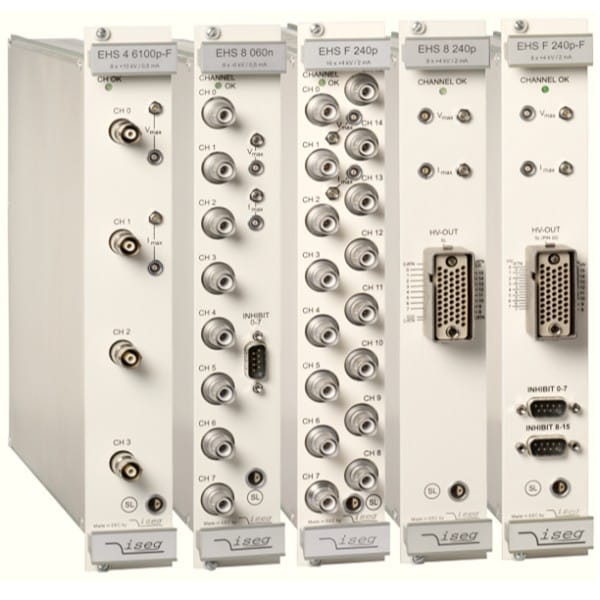

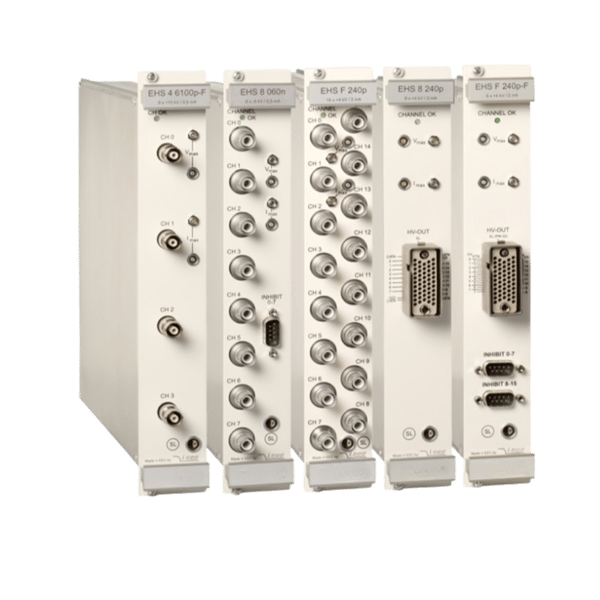

MPOD High Voltage Module
- Output power: up to 600 W
- Input voltage: 12 V DC to 70 V DC (nominal 28 V / 48 V)
- Dimensions: 100.0 mm x 168.5 mm x 19.56 mm
- Protection: OVP, UVP, OCP, OTP
- Control: I²C and Micro-USB interface
Product Information
Rugged, high-efficiency 600 W power supply module designed for VPX systems. Compliant with VITA 62 and MIL-STD standards, it features wide input voltage range, advanced protection mechanisms, and robust mechanical design.
Technical data
| Compliance | Modular high-voltage system according to MPOD standard Designed and tested according to highest safety and reliability standards Floating or common ground output configurations |
|---|---|
| Power & Efficiency | Voltages up to 20 kV, currents up to 15 mA per channel Low ripple and noise (typically <10 mVpp, high precision series <5 mVpp) Sine-wave resonance inverter technology for highest efficiency and minimal interference |
| Protection Features | Hardware current and voltage limits per module Fast hardware current trip or software-controlled trip per channel Safety loop and optional individual channel inhibit function |
| Management & Control | Fully remote controllable per channel via CAN-bus or Ethernet 16 or 21-bit resolution for voltage setting and measurement 16 or 21-bit resolution for current measurement Individual monitoring and control for each channel |
| Design & Components | High-density modular design with up to 48 channels per module Modules with 4, 8, 16, 24, 32, or 48 channels Output connectors: SHV (for 4/8/12 channels), SHV or REDEL multipin (16 channels), REDEL multipin (32/48 channels) |
