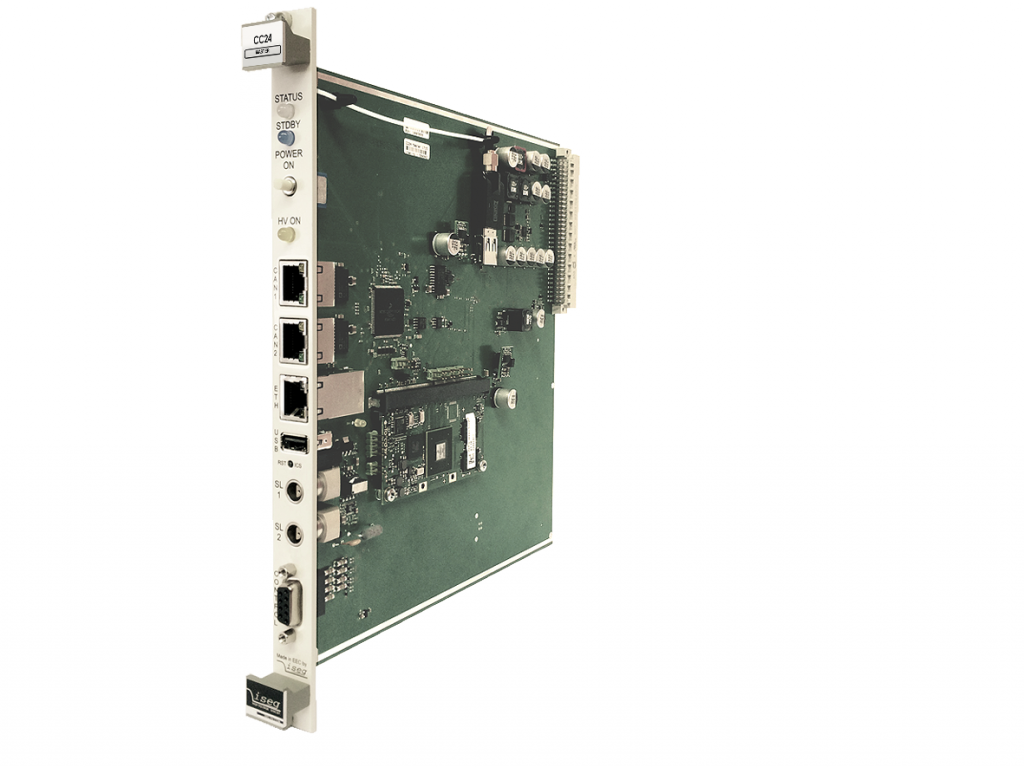

MPOD Controller CC24 LV, HV or both
- Master (CC24) / Slave (CC23) versions available
- Embedded Linux-Server with iCS control system (Master version)
- Two independent CAN extension ports (for Slave connection)
- Ethernet and WiFi connectivity, WiFi unplugable
- Controls crate and module functions
Product Information
The iseg CC 24/23 series is an intelligent embedded Linux system with a preinstalled iseg Communication Server (iCS). It includes various preconfigured services such as EPICS, Web-Control, SNMP, OPC/UA, and more. The web applications iCScontrol (for control) and iCSconfig (for configuration) allow easy hardware access via browser, also on mobile devices. Native software solutions are also available.
Technical data
| Compliance | RoHS CE UL-94 Conflict Minerals REACH (Source: Chapter 4 "Technical Data", page 11 of the PDF) |
|---|---|
| Power & Efficiency | No specific efficiency rating provided (as it is a controller module). Power is supplied via the crate – no standalone power input. In case of power failure (without UPS): fast ramp-down of all high voltages at 1,000% ramp rate to ensure safety. In case of power failure (with UPS): controlled ramp-down at 2% per second, approx. 50 seconds from maximum voltage. |
| Protection Features | AC line power fail protection (with and without UPS) Digital inputs for: Crate Enable (blocks high voltage if signal is inactive) Crate Fast Off (immediate high-voltage shutdown without ramp) Safety Loop: current break immediately disables high voltage output |
| Design & Components | CPU: Freescale iMX6 Quad-Core 996 MHz RAM: 1 GB DDR3 Flash Memory: 4 GB Embedded Linux with iCS Interfaces: Ethernet, CAN, USB, D-SUB-9 (Control), Safety-Loop Configurable digital I/Os Web-based configuration via iCScontrol & iCSconfig |
| Mechanical | Dimensions: 220 mm / 4 HP / 6U, MMS Eurocassette Weight: 650 g Operating Conditions: Temperature: 10 – 40 °C Storage: –20 – 85 °C Humidity: 30 – 70%, non-condensing |
