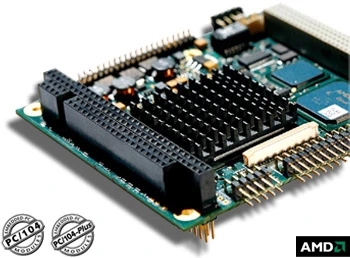

MOPSlcdLX This product is legacy
AMD™ LX800 500 MHz FANLESS, DDR-SODIMM, CRT/LCD, 2xCOM, 2xUSB, LPT/IDE/LAN, 16 Bit ISA I/O support (ISA & PCI)
Specifications
- Extreme low power fanless PC/104-Plus™, 500MHz AMD™ LX800
- PC/104-Plus™ card for ISA and PCI I/O card expansion
- With 16Bit I/O and memory support
- FULL Featured embedded SBC (USB, COM, LAN, etc.)
THE ultimate low power machine on PC/104-Plus™ - 500MHz CPU @ 0.9 W!!!
The MOPSlcdLX (Minimized Open PC System) with its 500 MHz AMD™ LX800 processor offers high reliability and performance at low power consumption - only passive cooling if at all - no moving parts. The PC/104-Plus™ (ISA & PCI signals) enables applications with wide choice ISA I/O or high PCI I/O performance requirements.
The MOPSlcdLX is a high integrated CPU board which includes in addition to the standard interfaces a PCI graphic, a 10/100 MBit Ethernet and 2x USB interfaces. A watchdog timer and a realtime clock are standard. The SO-DIMM socket enables this board to be equipped with up to 1 GByte of DDR-RAM.
The lower socket is used as JILI (LVDS) interface for connecting LCD flatpanels. The on chip Graphics+ Controller supports CRT & TFT. A Kontron chipDISK (IDE compatible flash disk) with capacity up to 1GB can be plugged directly onto the 2.5" harddisk interface. All MOPS PC/104 boards are Plug&Work compatible, which considerably reduces the time to market. All MOPS PC/104 provide the same pinout for keyboard,COM1 and COM2,44pin IDE, 2xUSB, LPT as well as LAN. This is the common MOPS-family feature, which eases the upgradeability enormously within the Kontron MOPS PC/104-products.
Features
| CPU | AMD LX800™ |
| DRAM socket | DDR-RAM-SODIMM socket |
| Graphics Controller | onchip engine with shared VRAM |
| Main Memory | up to 1 GByte DDR-RAM |
| Graphics | Panel/CRT, CRT & JILI Interface |
| Ethernet | 10/100 Base T Ethernet |
| Ethernet Controller | Intel® 82551 ER |
| USB | 2 x USB 2.0 |
| Legacy Support | Legacy support |
| Hard Disk | 1 x EIDE Interface, 44 pin header, UDMA-33 |
| Interface | Floppy Interface |
| Keyboard | Keyboard Controller |
| Mouse | PS/2 Mouse Controller |
| Serial | 2 x RS232C |
| Darkboot/Lanboot | DarkBoot, LAN Boot (PXE) |
| Watchdog | Watchdog |
| Real Time Clock | Real Time Clock |
| Dimensions (H x W x D) | 96 x 90 mm (3.8 x 3.6”) |
| Power Supply | 5V only |
| ISA | PC/104 ISA (full 16 Bit I/O and memory support) |
| PCI | PC/104+ PCI |
| Expansion | PC/104 ISA (full 16 Bit I/O and memory support) PC/104+ PCI |
| Temperature | Operation: 0° to 60° C (with appropriate airflow) Storage: -10° to 85° C *Ask about wider temperature ranges |
| Humidity | Operation: 10% to 90% Storage: 5% to 95% (non condensing) |
| Cooling | fanless |
| CPU Clock | up to 500 MHz |
| Chipset | AMD CS5536A |
| Graphics Memory | on chip shared 8-256 MByte VRAM UMA |
| Power Consumption | approx. 7W - low power |
| Special Features | JIDA-Support, JRC-Support, |
| Parallel Port | Enhanced Printer Port |
| Flash Disk | A Kontron chipDISK (IDE compatible flash disk) with capacity up to 1GB can be plugged directly onto the 2.5“ harddisk interface. |
Downloads
Datasheets
MOPSlcdLX Datasheet
Datasheet for MOPSlcdLX with low power AMD� LX800.
[ datasheet_mopslcdlx_with_amd_lx800.pdf, 616.79 KB, Aug.31.2017 ]
Manuals
MOPSlcdLX Software Guide
[ ktd-s0006-b_mops-lx_softwareguide.pdf, 848.8 KB, Sep.11.2017 ]
MOPSlcdLX User´s Guide
[ ktd-s0005-c_mops-lx_usersguide.pdf, 687.62 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
DDR1 SODIMM 256MB
97007-2560-00-0 |
DDR1 SDRAM, 256MB, 200pin, different Speed | more | |
|
DDR1 SODIMM 512MB
97007-5120-00-0 |
DDR1 SDRAM, 512MB, 200pin, different Speed | more | |
|
DDR1 SODIMM 1GB
1060-2550 |
DDR1 SDRAM, 1GB, 200pin, different Speed | more | |
|
PC/104-SK-PLUS3, ATX size
01010-0000-00-3 |
|
PC/104 StarterKit for every MOPS PC/104 includes all cables, floppy drive and power supply unit. | more |
|
KAB-SBC-SET1
96002-0000-00-1 |
KAB-SBC-SET1, cable set for any SBC: PS/2 keyboard, IDE, one serial port, PS/2 mouse, 10/100 LAN and USB. Please refer for a table of use to: Downloads > Cable Specifications. | more | |
|

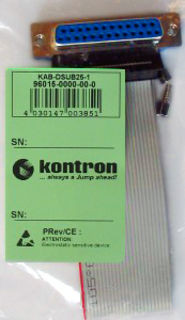

KAB-DSUB25-1
96015-0000-00-0 |
|
Cable, one side DSUB25 female connector, other side for 26 pin header - for LPT | more |
|
KAB-DSUB9-2
96017-0000-00-0 |
|
KAB-DSUB9-2, DSUB9 male Connector to 10 pin Header cable, DSUB COM port cable | more |
|
KAB-MOPS-ETN1
96048-0000-00-0 |
|
KAB-MOPS-ETN1, Ethernet cable for MOPS | more |
|
KAB-IDE-2MM
96021-0000-00-0 |
|
KAB-IDE-2MM, IDE adapter cable for MOPS (2 mm to 2 mm; 44 pin) | more |
|
KAB-KB-PS2
96060-0000-00-0 |
|
KAB-KB-PS2, PS/2-Keyboard adapter for MOPS | more |
|

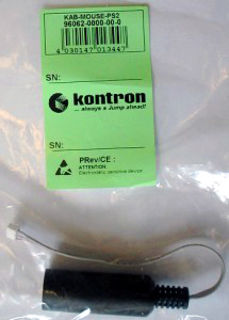

KAB-MOUSE-PS2
96062-0000-00-0 |
|
KAB-MOUSE-PS2, PS/2-Mouse connector to 4 pin socket cable on MOPS boards | more |
|
KAB-USB-1
96054-0000-00-0 |
|
Adapter cable from 4pin molex connector to USB-Port | more |
|

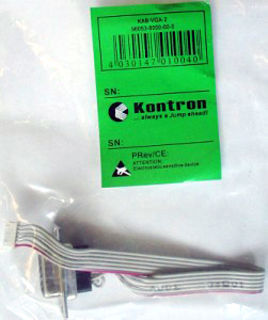

KAB-VGA-2
96053-0000-00-0 |
|
Adapter cable from molex connector to CRT (15 pin DSUB) connector | more |
|

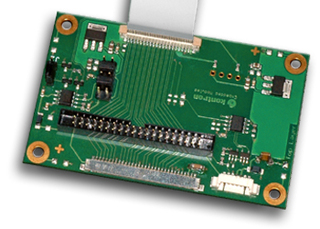

KAB-ADAPT-LVDS
61032 |
|
Evaluation Board to adapt LVDS flatpanels via JILI cable. | more |
|

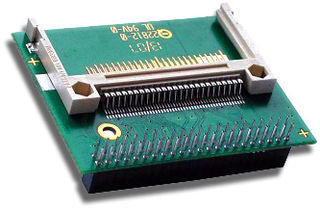

CF-CARD-Adapter MOPSlcdLX
40404 |
|
CF-CARD to IDE (44pin) interface | more |
|
chipDISK/1000-IDE
08001-1000-00-1 |
chipDISK/1000-IDE, IDE compatible flash harddisk with 1GByte | more |
