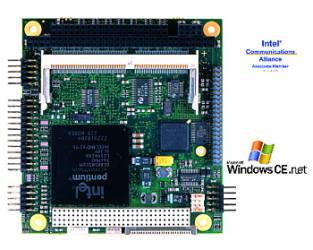

MOPS/686+ Datasheet PC/104 with Pentium MMX
220.71 KB | March 26, 2026
This product is legacy and no longer actively supported.
MOPS/686+ - EOL announced
Intel® Pentium® MMX 166/266MHz, Intel®-LAN, USB, PC/104+ and options
- <font color="#3333ff"><b>Mobile Intel® Pentium® MMX processor 166 MHz (fanless)</b></font> or
- <font color="#3333ff"><b>Mobile Intel® Pentium® MMX processor 266 MHz (fan)</b></font>
- SODIMM-SDRAM-socket, for up to 256 MByte SDRAM
- 10/100 MBit Ethernet (Intel® 82551ER)
- USB, 2xCOM, LPT, Keyboard, EIDE,
MOPS/686+ - High Performing PC/104 with REAL Pentium® MMX
MOPS (Minimized Open PC System) PC/104 products represent the "Proven PC Platform for Instant Solutions". Each MOPS module is characterized by the same pinout for keyboard, COM1 and COM2, 44-pin IDE, LPT, and 1st LAN. These homogeneous features facilitate easy upgrades within the MOPS PC/104 product family. The onboard JIPA-Interface (JUMPtec Intelligent Panel Adaption) simplifies the connection of displays. It automatically recognizes which display are connected and independently sets all video parameters.
All MOPS-PC/104 are plug-and-work enabled to further reduce time-to-market.
Downloads
Driver
ALi bus master IDE driver; supports DMA/UltraDMA features
948.16 KB | March 26, 2026
The Kontron Windows XP Embedded Solution Pack is an add-on to Microsoft Windows XP Embedded and its primary tool Target Designer. The solution pack includes Video Drivers, Ethernet Drivers and the JIDA32 Library API.
0 B | March 26, 2026
Supplemental add-on
2.86 MB | March 26, 2026
to the Windows NT Embedded Solution Pack. Includes non-essentials like the PowerPoint Viewer KDF.
Intel® Network Adapter Driver - Win98
1.49 MB | March 26, 2026
Windows® NT Embedded Solution Pack. Includes KDFs, Drivers and BSPs.
804.49 KB | March 26, 2026
Intel Linux driver for the 8255xER. Supports 2.2.x and 2.4.x kernels.
113.04 KB | March 26, 2026
Windows® CE Driver Solution Pack 2.8
9.51 MB | March 26, 2026
Supports CE 6.0 (incl. R3), 5.0 and 4.2. Please, contact your local Kontron sales representative for further information and the required installation key.
Service
MOPS/686+ Certificate
232.61 KB | March 26, 2026
MOPS/686+ Test Report
710.64 KB | March 26, 2026
Ethernet Remote Target Setup documentation.
34.67 KB | March 26, 2026
MOPS/686+ - new revision Test Report
115.49 KB | March 26, 2026
PASCAL source code for JIDA access.
2.96 KB | March 26, 2026
Crisis Recovery Disk
376.92 KB | March 26, 2026
Crisis Recovery Disk
381.07 KB | March 26, 2026
