This product is legacy and no longer actively supported.

Medi Client IIA 150 (EOL)

Panel PC with plastic housing

  • EN 60601-1 compliant
  • Robust, light and easy-to-clean plastic housing
  • 15.0" TFT display
  • Fanless cooling concept
  • Scalable processor performance with Intel® Atom™

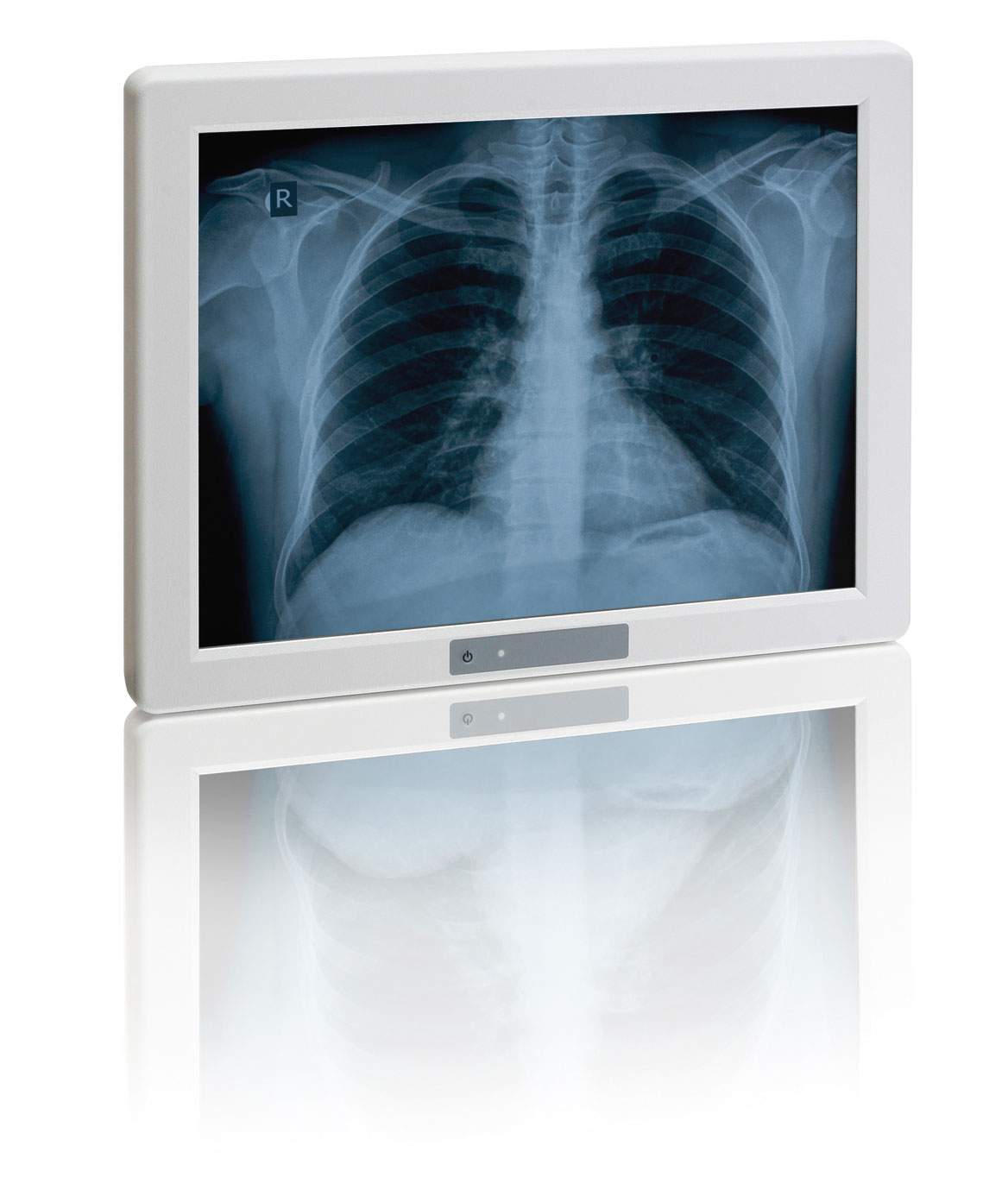

Product Thumbnail

Flexible HMI for every case

Kontron’s Medi Client IIA offers medical OEMs a highly reliable platform with flexible mounting options and the longevity required by the medical industry.
The touch screen of the medical Panel PC offers sharp graphics on a high contrast TFT display. The front panel of the medical Panel PC offers IP65 protection. The extremely tough and light plastic housing (ABS UL94V0) is scratch proof, corrosion resistant and chemical resistant for long life and easy cleaning. VESA arm mounting makes the Kontron Medi Client IIA easy-to integrate for a wide spectrum of cost-sensitive OEM medical applications that require sharp graphics and intuitive user interfaces in a space-saving, robust design.
The Kontron Medi Client IIA is equipped with Intel® Atom™ processor 1.6 GHz. The dual Ethernet (10/100/1000), dual USB2.0 and serial (RS232 opt. RS422/RS485) interfaces making it the ideal Panel PC for a wide range of medical applications.
With its low power consumption and low heat dissipation, the new Medi Client IIA is also perfectly suited for mobile, battery driven all-in-one Point-of-Care applications, such as mobile nursing stations and bedside terminals in hospitals or health centers.

Product Image 1

Technical data

Dimensions (H x W x D)286x363x62 mm
Display15.0"
I/O Standard2x USB, 1x RS232 (RS422/485 optional), 2xLAN 10/100/1000
ProcessorIntel® Atom™ 1.6 GHz
Weightca. 3.3. kg

Downloads

Datasheet

PDF

Datasheet Medi Client IIA

581.27 KB | March 26, 2026

Manuals

PDF

General Safety Instruction

628.88 KB | March 26, 2026

PDF

Quick Manual for Windows CE 6.0 used on B649 board

1.43 MB | March 26, 2026

PDF

Quick Manual for Linux used on B649 board

86.29 KB | March 26, 2026

PDF

Manual Medi Client IIA

1.6 MB | March 26, 2026

Driver

ZIP

Touch driver

854.86 KB | March 26, 2026

ZIP

SJA1000 CAN Driver

723.53 KB | March 26, 2026

ZIP

SJA1000 CAN driver

6.5 MB | March 26, 2026

ZIP-2

LAN

12.07 MB | March 26, 2026

LAN Driver

EXE

Chipset

2.52 MB | March 26, 2026

Chipset driver

ZIP

Video

18.39 MB | March 26, 2026

Video Driver for Micro Client IIA

ZIP

TPM Driver

2.58 MB | March 26, 2026

TPM driver

ZIP

Touch Driver

1.61 MB | March 26, 2026

EXE

Audio Driver

30.73 MB | March 26, 2026

Service

PDF

Kontron Services Brochure

8.9 MB | March 26, 2026

PDF

Dimensions Medi Client IIA 150

214.43 KB | March 26, 2026

PDF

Technical Manual_B649

107.65 KB | March 26, 2026

PDF

Declaration of Conformity RoHS

468.63 KB | March 26, 2026

This download is gated and requires special permissions. Please contact your Kontron representative for access.

PDF

Manual Supervision

304.29 KB | March 26, 2026

PDF

Notice of Authorization UL

49.65 KB | March 26, 2026

This download is gated and requires special permissions. Please contact your Kontron representative for access.

PDF

Declaration of Conformity CE

683.71 KB | March 26, 2026

This download is gated and requires special permissions. Please contact your Kontron representative for access.
