SYMKLOUD MS 1300 Datasheet
1.47 MB | March 26, 2026
This product is legacy and no longer actively supported.

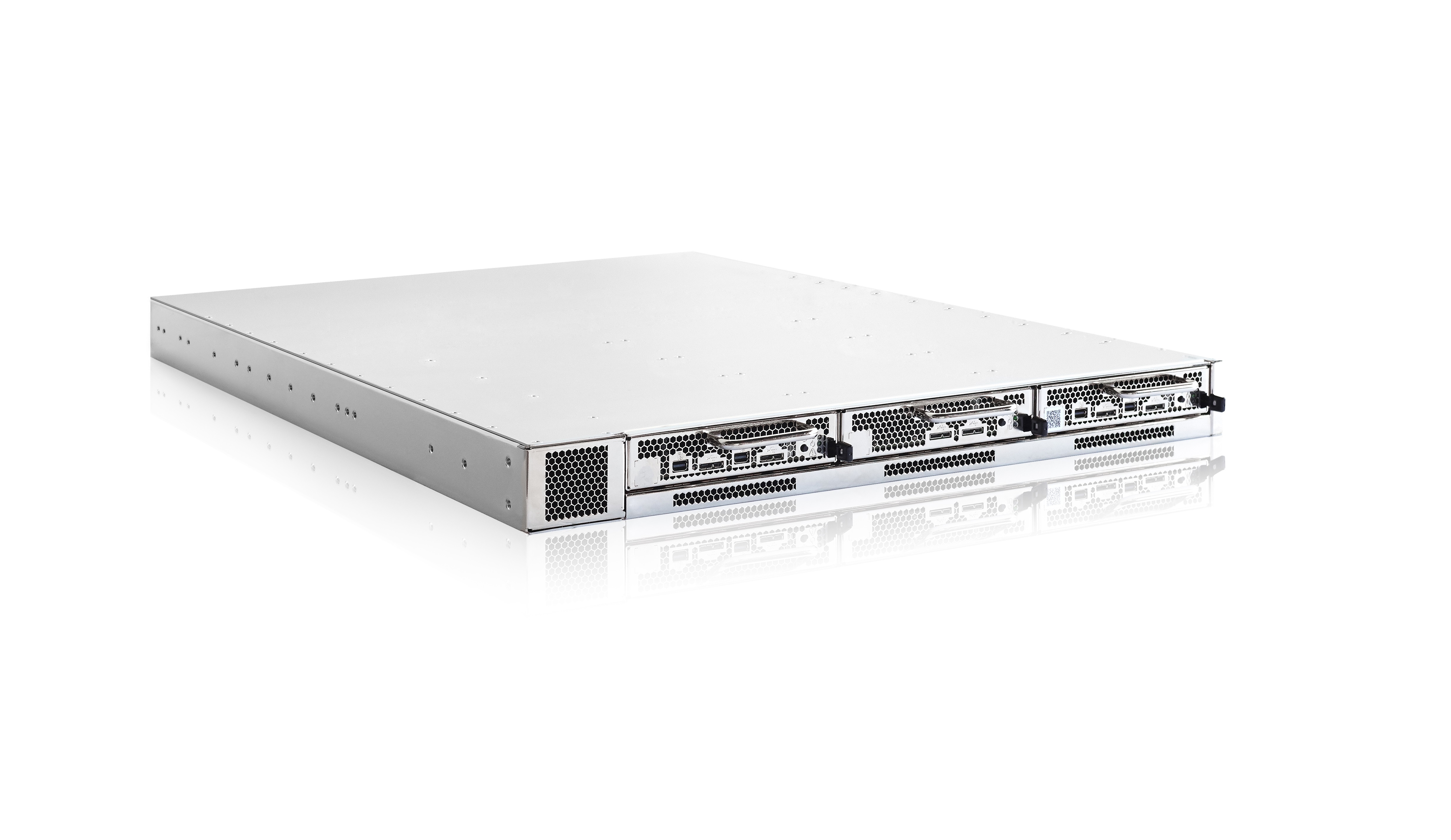

SYMKLOUD MS1300
1U modular, high density platform for video/OTT and cloud infrastructure
- Converged switching and compute options
- Mix and match scalable Intel-based modular server nodes (3 per 1U)
- Single hot-swappable switch: multiple data/control plane speed options
- High availability (HA) design (1U - 24" depth)
- OPEX savings from overall power efficiencies
Product Information
Based on the same design concept as its larger counterpart, the MS2900 Series, the MS-1300 is a 1U platform that supports three modular server nodes and one modular switch (1GbE to the fabric). With three MSP8050 modular servers – each with two independent Intel® Xeon® E3-1578L v5 processors and Intel® Iris™ Pro Graphics P580 graphics processors – the MS-1300 can stream up to 90 HD video workloads (1080p-to-1080p/AVC-to-HEVC) at 30fps.
Downloads
Software
MSH8900 Switch NOS (SMBStaX)
5.62 MB | March 26, 2026
MSH8900 switch NOS version 2.25
MS29xx OneClick Update Bundle: (ShMC Only v3.00)
35.6 MB | March 26, 2026
IMPORTANT NOTE:
Due to a limitation in the maximum bundle-size on older releases,
MSH8900 and MSH891x with ShMC versions less than those listed
below must first be updated using this bundle.
Due to a limitation in the maximum bundle-size on older releases,
MSH8900 and MSH891x with ShMC versions less than those listed
below must first be updated using this bundle.
MS29xx OneCLick Update (Current Release) : Royal Elfin (v3.19.00)
149.68 MB | March 26, 2026
IMPORTANT NOTE: Due to a limitation in the maximum bundle-size on previous releases,
MSH8900 with ShMC v2.xx and MSH891x with ShMC 1.xx (or older) must first be updated
using the 'ShMC-Only v3.00 bundle'.
Release Notes
MSH8900 with ShMC v2.xx and MSH891x with ShMC 1.xx (or older) must first be updated
using the 'ShMC-Only v3.00 bundle'.
Release Notes
MS29xx OneCLick Update (Previous Release) : Quartz Elfin (v3.18.00)
148.69 MB | March 26, 2026
IMPORTANT NOTE: Due to a limitation in the maximum bundle-size on previous releases,
MSH8900 with ShMC v2.xx and MSH891x with ShMC 1.xx (or older) must first be updated
using the 'ShMC-Only v3.00 bundle'.
Release Notes
MSH8900 with ShMC v2.xx and MSH891x with ShMC 1.xx (or older) must first be updated
using the 'ShMC-Only v3.00 bundle'.
Release Notes
