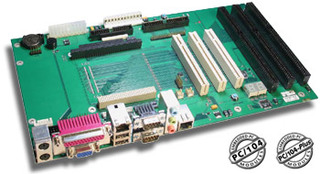

PC/104-SK-PLUS3, ATX size This product is legacy

PC/104 StarterKit for every MOPS PC/104 includes all cables, floppy drive and power supply unit.

Specifications

Offers 3x ISA and 3x PCI-Bus slots electrically coupled
ATX sized and full featured connector type array
MOPS and speedMOPSlcd Modules fit perfectly on it
Plug-in your standard desktop devices - like keyboard, mouse, USB, floppy, IDE, LPT, COM1+2, CRT, RJ45
Inclusive mains adapter 110-230 V AC
Inclusive cables and blue plastic suitcase

Download Datasheet

Kickstart with PC/104 and PC/104-Plus™ CPU modules

This StarterKit allows to mount any MOPS PC/104 inclusive PC/104(ISA) and PC/104-Plus™ (PCI) extensions. ISA and PCI Slotcards can be tested with the MOPS PC/104 and of course individual PC/104 I/O modules can be mounted for testing the target hardware.

This StarterKit comes equipped with PC/104-ISAPCI-1 adapterboard, power supply, floppy drive, all cables, but without CPU and without graphic I/O board!

Please choose from the MOPS PC/104 CPU modules what suits you best:

MOPSlcdLX with LX800 super low power

Features

ISA	PC/104, ISA

PCI	PC/104, PCI-Bus

Interface

3.5“ floppy drive interface

Applicable Motherboards

PC/104 StarterKit for every MOPS PC/104

Additional

Includes all cables, floppy drive and power supply unit (Mains adapter 110-230 V AC)

Special Features

MOPS and speedMOPSlcd-Modules fit perfectly on it

I/Os	Plug for keyboard, mouse, USB, floppy, IDE, LPT, COM1+2, CRT, RJ45 connection

Temperature

Operation: 0° to 60°C
Storage: -10° to 85°C
*Ask about wider temperature ranges

Humidity

Operation: 10% to 90%
Storage: 5% to 95% (non condensing)

Downloads

Datasheets

PC/104-SK-PLUS3, ATX size, Datasheet
Datasheet for the Starter Kit PC/104-SK-PLUS3, ATX size
[ d_pc104_sk_plus3.pdf, 234.54 KB, Aug.31.2017 ]

Manuals

PC/104-SK-PLUS3, ATX size, Manual
[ ada9k113.pdf, 425.07 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
