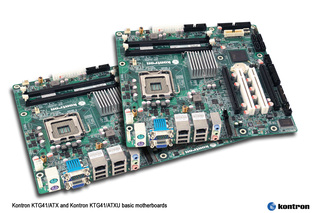

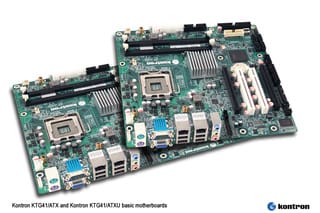

KTG41/ATX This product is legacy

KTG41/ATX, 2x Marvell 88E8071 GB Lan and 5x PCI

Specifications

Intel® Core™2 Duo, Intel® Core™2 Quad and Intel® Celeron® processor
Intel® G41 + ICH7R Chipset
Intel® GMA X4500 Graphics Controller
DirectX 10 support
PCI-Express X16 Support
PCI-Express X4 Support
5x PCI slot
Up to256MB on board graphics memory
Up to 2x 10/100/1000 Mbps Ethernet
8x USB 2.0, 2x RS232C
4x SATA150/300 Controller with RAID 0/1/10
High definition audio
TPM (Trusted Platform Module) support (optional)

Download Datasheet

1x PCI-Express 16X Support, 5 x PCI, 1x PCI-Express 4X, 8x USB & 4x SATA

The Intel® G41 Express Chipset, when combined with the Intel® Core™2 processor family, delivers new technologies and innovative capabilities. With major advancements in video, graphics, responsiveness and scalability, the Intel® G41 Express Chipset enables scalability and performance for industrial computing.

The Intel® G41 Express Chipset, with the next-generation Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500), includes built-in support for smooth high-definition video playback.

Downloads

Datasheets

KTG41 - Datasheet
[ ktg41-family_datasheet.pdf, 700.46 KB, Aug.31.2017 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

BIOS

KTD-00664 BIOS tools Package User Manual
[ ktd-00664-k-bios-tools-package-user-manual.pdf, 65.87 KB, Nov.27.2013 ]

BIOS Tools Package v6.5
(Included BF.exe updated 09-03-2011)
[ bios-tools-package-v6-5.zip, 2.5 MB, Apr.20.2023 ]

Mechanical Drawings

Bracket IO
[ 1027-3819-bracket-io-50030-1p-20090316.pdf, 187.56 KB, Nov.27.2013 ]
