KT780/ATX This product is legacy

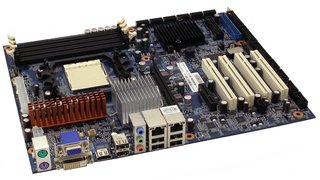

ATX motherboarrd with AMD Athlon™64 & AMD Phenom™ Single to Quad Core CPUs

Specifications

AMD Athlon™64 & AMD Phenom™ Single to Quad Core
AMD RS780 + SB700 Chipset
HYPER TRANPORT 3.0
ATI Radeon HD 3200 Graphics Controller
DirectX 10 support
Unified Video Decoder (UVD) supporting both Blu-ray and HD-DVD
PCI-Express X16 2.0 Support
PCI-Express X4 2.0 Support
4x PCI slot
Up to256MB on board graphics memory
DVI, CRT, HDMI (optional)
Up to 2x 10/100/1000 Mbps Ethernet
12x USB 2.0, 2x RS232C
1x PATA133 and 6x SATA150/300 IDE Controller with RAID 0/1/10
High definition audio
TPM (Trusted Platform Module) Onboard

Download Datasheet

1x PCI-Express 16X 2.0 Support, 4 x PCI, 1x PCI-Express 4X, 12x USB & 6x SATA

The Kontron motherboard is a new product line with main focus on performance and price.

This new line offers longevity, less complex - more basic features, faster release - @ release of chipset and of course Kontron quality and support.

The new integrated graphics processor (IGP) is based on ATI Radeon HD 3200 which supports DirectX 10

Features

Processor

AMD Athlon™64 & AMD Phenom™ Single to Quad Core

Form Factor

ATX

BIOS	AMI with ACPI 3.0 support

Chipset

AMD RS780D+SB700

Front Side Bus

n/a

PCI

PCI Express / PCI support

1x PCI-e X4 / PCI-e X16

Graphics Controller

ATI Radeon 3200

Ethernet

Ethernet Controller

Marvell 88E8055

Audio Controller

Realtek ALC888 7.1/7.2 HD Audio codec

Graphics

LVDS connector onboard

Flash Onboard

n/a

Parallel Port

Thru LPT

IEEE 1394 Firewire

n/a

Watchdog

Hard Disk

6x SATAII (RAID 0,1,10)

USB

Dimensions (H x W x D)

"12" x 9.6"

Main Memory

DDR2 240 pin DIMM

Downloads

Datasheets

KT780 - Datasheet
[ kt780atx.pdf, 234.01 KB, Aug.31.2017 ]

Manuals

KTD-00765 KT780/ATX User Manual
[ ktd-00765-d-kt780atx-user-manual.pdf, 1.39 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

BIOS

KT780 BIOS v. 013
[ kt780-bios013.zip, 1.2 MB, Nov.27.2013 ]

KTD-00664 BIOS tools Package User Manual
[ ktd-00664-k-bios-tools-package-user-manual.pdf, 65.87 KB, Nov.27.2013 ]

BIOS Tools Package v6.5
(Included BF.exe updated 09-03-2011)
[ bios-tools-package-v6-5.zip, 2.5 MB, Apr.20.2023 ]

Chipset Drivers

KT780 Chipset&Graphics Driver Vista CD 1027-1947
[ kt780-chipsetandgraphics-driver-vista.zip, 87.03 MB, Jul.03.2018 ]

KT780 Chipset&Graphics Driver WinXP_Win2000 CD 1027-1947
[ kt780-chipsetandgraphics-driver-winxp_win2000.zip, 154 MB, Jul.03.2018 ]

Ethernet Drivers

KT780 Lan Driver CD 1027-1947
[ kt780-lan-driver.zip, 1.03 MB, Jul.03.2018 ]

Sound Drivers

KT780 Audio Driver WinXP_2000_2003 CD 1027-1947
[ kt780-audio-driver-winxp_2000_2003.zip, 29.05 MB, Jul.03.2018 ]

KT780 Audio Driver Vista CD 1027-1947
[ kt780-audio-driver-vista.zip, 26.53 MB, Jul.03.2018 ]

White Papers

White Paper - Basic Motherboards
[ whitepaper-high-end-graphics-for-embedded-computing_eng.pdf, 316.43 KB, Nov.27.2013 ]

Cable Specifications

PN 821017 Cable COM2 100mm 2.54
[ 821017-cable-com2-100mm-2-54.pdf, 140.44 KB, Apr.20.2023 ]

PN 821016 Cable COM2 200mm 2.54
[ 821016-cable-com2-200mm-2-54.pdf, 184.86 KB, Apr.20.2023 ]

PN 821007 Cable Ribbon HDD 550mm
[ 821007-cable-ribbon-hdd-550mm.pdf, 179.84 KB, Oct.26.2023 ]

PN 1022-2177 Cable Audio Open-end 2.54mm
[ 1022-2177-cable-audio-open-end-2-54mm.pdf, 215.19 KB, Apr.20.2023 ]

PN 1022-2178 Cable Feature Open-end 2.54mm
[ 1022-2178-cable-feature-open-end-2-54mm.pdf, 174.93 KB, Apr.20.2023 ]

PN 821042 Cable Front Panel Open-End
[ 821042-cable-front-panel-open-end.pdf, 164.37 KB, Oct.26.2023 ]

PN 821401 Bracket Dual USB Cable
[ 821401-bracket-dual-usb-cable.pdf, 240.34 KB, Oct.26.2023 ]

PN 821018 Cable HDD UDMA-100
[ 821018-cable-hdd-udma-100.pdf, 169.82 KB, Oct.26.2023 ]

PN 821035 Cable SATA 500mm
[ 821035-cable-sata-500mm.pdf, 172.8 KB, Oct.26.2023 ]

PN 821036 Cable COM2 100mm Bracket
[ 821036-cable-com2-100mm-bracket.pdf, 178.78 KB, Oct.26.2023 ]

PN 821038 Cable COM x2 Bracket 300mm
[ 821038-cable-com-x2-bracket-300mm.pdf, 195.68 KB, Oct.26.2023 ]

PN 821031 Cable LPT 2.54mm 400mm
[ 821031-cable-lpt-2-54mm-400mm.pdf, 184.27 KB, Oct.26.2023 ]

Mechanical Drawings

1022-6499 IO Bracket KT780
[ 1022-6499-io-bracket-kt780.pdf, 162.34 KB, Nov.27.2013 ]

KT780/ATX 3D drawing STP
[ kt780_24072008_stp.zip, 2.35 MB, Nov.27.2013 ]

RAID Drivers

KT780 Raid Driver CD 1027-1947
[ kt780-raid-driver.zip, 63.18 MB, Jul.03.2018 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

KT-PCIe-DVI-HDMI
820957

Low Profile PCI-Express Add-On card Applicable KT690/mITX & KT780/ATX motherboards
