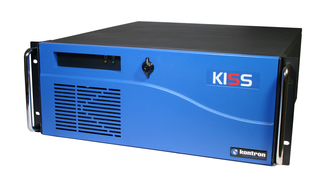

KISS 4U KT965/ATX This product is legacy

Core 2 Duo Support

Specifications

One Chassis , unbelieveable features
Rackmount, Desktop or Tower
Supporting Core 2 Duo
Up to 8 GB Memory
Hot swap Chassis Fans
Slide rail capable
Raid 5 or 0/1 subsystem KISS Stor ( 3/2 Hot Swap SATA Harddrives)
Ultra Low Noise Powersupplies
PC Condition Monitoring
Redundant AC power supply

Download Datasheet

KISS Designed in Germany

Kontrons Industrial Silent Server.KISS closes the gap between IPC and SERVER, KISS is the ideal System for Server applications in Industrial environment, transportation and Medical applications.Tremendous features make KISS 4U ready for your requierements.

Features

CPU	Core 2 Duo , Quad Core

Chipset

Q965 + Intel ICH8DO

Approvals

Connectivity

Front: 2* USB 2.0, REAR: COM1,VGA,Line in , Line out,6* USB 2.0, PS/2 M+K,2* LAN 10/100/1000

Cooling

2 * Hot swap chassis fans

Dimensions (H x W x D)

4U x 19inch x 472mm

Drives

2*3,5 bay , 3*5,25 bay, 1* Slim bay, 1* 3,5 internal

Free Slots

5* PCI 32 bit, 1 x PCI_e x 16, 1 x PCI_e x 4

Front Side Bus

533/800/1066 MHz

Main Memory

Up to 8 GB DDR 2

Mounting

Rack Mount, Desktop, Tower

Power Supply

AC wide range 300W, 24 V DC, 48 V DC, AC redundant

System Monitoring

by PCCM

Temperature

Operating: 0-50 Degrees/C

Verified OS

Windows XP, VISTA

Weight

~ 13 kg

Downloads

Datasheets

Data Sheet KISS 4U KT965
[ datasheet_kiss-4u-kt-965-atx.pdf, 488.15 KB, Aug.31.2017 ]

Manuals

Benutzerhandbuch KISS 4U
[ kiss_4u_benutzerhandbuch_v1_10.pdf, 1.19 MB, Sep.11.2017 ]

User Manual KISS 4U
[ kiss_4u_user-manual_v1_10.pdf, 1.17 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

BIOS

BIOS Tools Package v6.5
(Included BF.exe updated 09-03-2011)
[ bios-tools-package-v6-5.zip, 2.5 MB, Apr.20.2023 ]

KTD-00664 BIOS tools Package User Manual
[ ktd-00664-k-bios-tools-package-user-manual.pdf, 65.87 KB, Nov.27.2013 ]

KT965 BIOS version 0.21
[ kt965-bios021.zip, 909.47 KB, Nov.27.2013 ]

Board Support Packages

KT965 Windows XP Embedded BSP 2008-01-09
[ kt965_windows_xp_embedded.zip, 27.78 MB, Nov.27.2013 ]

Chipset Drivers

KT965 Chipset Driver
DriverCD_PN_91600556
[ chipset.zip, 2.1 MB, Jul.03.2018 ]

Ethernet Drivers

KT965 Lan Driver
DriverCD_PN_91600556
[ lan.zip, 15.63 MB, Jul.03.2018 ]

LAN Linux Driver up to Linux 2.6.18
(Use r8169 driver for newer Linux version)
[ r1000_v105a_20070227.zip, 0 B, Jul.03.2018 ]

Sound Drivers

KT965 Audio driver Vista
Driver CD PN 91600556
[ kt965-audio-vista-91600556.zip, 18.65 MB, Jul.03.2018 ]

KT965 Audio Driver Vista-Win7 R253
This driver has not yet been qualified for KT965.
[ kt965-audio-driver-vista-win7-r253.zip, 78.85 MB, Jul.03.2018 ]

KT965 Audio XP Driver
DriverCD_PN_91600556
[ kt965-audio-xp-91600556.zip, 26 MB, Jul.03.2018 ]

Video Drivers

KT-VPT KT965 Graphic Driver XP/2K
Used for KT965 family of Motherboards to fix the onboard CRT, ADD2-CRT and ADD2-DVI so that displays always turns on if selected in Graphic Driver.
[ kt-vpt-kt965-v1005.zip, 20.26 MB, Nov.27.2013 ]

KT965 Graphics Driver
DriverCD_PN_91600556
[ graphics.zip, 63.63 MB, Nov.27.2013 ]

Software

Demo version PC Condition Monitoring [restrictions apply]
[ demo-version-pccm1-5-23.zip, 11.5 MB, Apr.20.2023 ]

Mechanical Drawings

Out Line Dimensions KISS 4U
[ outline_dimensions_kiss.pdf, 51.1 KB, Nov.27.2013 ]

RAID Drivers

KT965 Raid Driver
DriverCD_PN_91600556
[ raid.zip, 5.54 MB, Jul.03.2018 ]

Ordering Guide

KISS 4U Configuration Guide
[ kiss-4u_configuration-guides.pdf, 55.72 KB, Nov.27.2013 ]

KR-4101-KT965 North American Ordering Guide
[ kr-4101-kt965-2-16-12.pdf, 2.37 MB, Nov.27.2013 ]

Test Reports

Temperature Test Report KISS 4U KT965 Q6600 [restrictions apply]
[ test-report-klima-kiss-4u-kt965-q6600.pdf, 2.16 MB, Nov.27.2013 ]

Declaration of Conformity KISS 4 U KT965
[ ce_doc_kiss_4u_kt965-x_2-a0e8-2xxx.pdf, 217.12 KB, Nov.27.2013 ]

EMC TEST REPORT KISS 4U KT965 [restrictions apply]
[ emc_test_report_kiss_4u_kt965_.pdf, 1.54 MB, Nov.27.2013 ]

Safety Report KISS 4U KT965 [restrictions apply]
[ safety_report_kiss_4u_kt965.pdf, 427.49 KB, Nov.27.2013 ]

Windows

WINDOWS7_License_terms_Kontron
[ windows7_license_terms_kontron.pdf, 134.57 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
