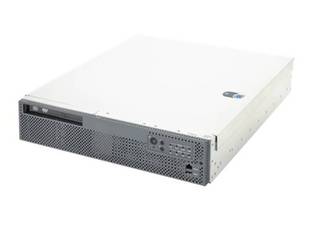

Carrier Grade Server TIGH2U This product is legacy
2U Carrier Grade Server for Telecom and Data Center Applications
Specifications
- NEBS-3 / ETSI compliant
- Long life support (3 years)
- Short depth, ruggedized 2U chassis
- Dual, redundant AC or DC power option
- Telco alarm management
- Hardware RAID option
- Download Deployment CD
Performance and energy efficiency in a rugged, carrier-grade design
Shipping since 2008, the Carrier Grade Server TIGH2U is a NEBS-3 and ETSI-compliant 2U carrier-grade rack-mount server. It features the Intel® Xeon® processor 5400 series (with 45nm technology) to provide breakthrough performance and energy efficiency for compute- and I/O-intensive applications and workloads.
This server is an excellent choice for the demanding environment and limited space of the central office and high availability data centers. It enables Original Equipment Manufacturers (OEMs) and Telecom Equipment Manufacturers (TEMs) to create specialized, value-added solutions for a variety of telecom applications including unified messaging, Services over IP (SoIP), call control, media and signaling gateways, and operational system support.
The TIGH2U is designed to be fire-resistant and to withstand extreme heat, humidity, altitude and zone 4 earthquake shock. Advanced server management and telco alarm management features provide visual, audible (optional) and System Network Management Protocol (SNMP) event indications of faults, consistent with the rigid requirements of the telecom central office environment.
This server is an excellent choice for the demanding environment and limited space of the central office and high availability data centers. It enables Original Equipment Manufacturers (OEMs) and Telecom Equipment Manufacturers (TEMs) to create specialized, value-added solutions for a variety of telecom applications including unified messaging, Services over IP (SoIP), call control, media and signaling gateways, and operational system support.
The TIGH2U is designed to be fire-resistant and to withstand extreme heat, humidity, altitude and zone 4 earthquake shock. Advanced server management and telco alarm management features provide visual, audible (optional) and System Network Management Protocol (SNMP) event indications of faults, consistent with the rigid requirements of the telecom central office environment.
Features
| Power Supply | Dual-redundant 600W AC or DC hot-swap power supply (2nd power supply optional) |
| CPU | Dual socket support for Quad-Core Intel® Xeon® Processors E5440 (2.83GHz, 80W) and L5410 (2.33GHz, 50W) |
| Main Memory | Eight FB-DIMM slots (240-pin DDR2-533/667 MHz); Maximum 64GB memory (non-mirrored mode) |
| PCI Express / PCI support | Up to five PCI slots for flexibility and additional I/O---Low-profile riser supports two PCIe x4 slots; Full-height, full-length riser supports three slots (two PCIe x4 [or 1 PCIe x8] and one PCI-X); additional full-height riser options for PCI-X |
| Dimensions (H x W x D) | 3.45 inches (87.6 mm) x 17.14 inches (435.3 mm) x 20 inches (508 mm) |
| Rear I/O | Two rear-panel GbE NIC (Cu) ports, upgradeable to 20 GbE ports (max) based on PCI configuration and optional I/O modules |
| Drive bays internal | Drive trays for up to six hot-swap 2.5-inch SAS hard disk drives; Additional bay supports optical drive (purchased separately) |
| Management | Telco Alarm Management (std); Remote Management Module (optional) |
| Flash | Flash storage capability supports specified solid state drives (purchased separately) |
| Alarm Card | Telco Alarm Management - front-panel feature supports central office alarm systems |
| I/O Expansion Type | Optional I/O modules enable additional external SAS storage or two additional GbE NIC (Cu) ports on rear panel |
| RAID | Software RAID 0,1,10 supported (std); Hardware RAID 5 supported as optional module |
| Chipset | Intel® 5000P Memory Controller and ESB2-E I/O Controller chipset; 1333 MHz front side bus |
| Front Bezel | Standard gray bezel; customizable bezel available (optional) |
| Hot Swap | Hot-swap, redundant power supplies; hot-swap hard drives |
