KTUS15/mITX Datasheet
1 MB | March 26, 2026
This product is legacy and no longer actively supported.

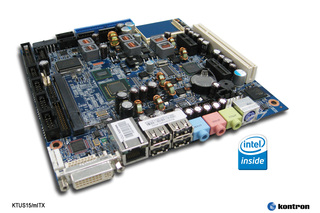

KTUS15/mITX - 1.1 Basic
Intel® Atom™ Z510 processor based Embedded Mini-ITX board. 1.1 GHz BGA CPU. Ultra Low Power
- Intel® Atom™ Z510 processor 1.1 GHz BGA CPU
- Intel® US15 Embedded Chipset
- FSB 400
- 1x DDR2 200 pins DIMM
- 2x PCI-Express 1x
1x LAN, 2x COM, LVDS, DVI-D, 2x PCI-Express x1, 2x SDIO
The Kontron KTUS15/mITX is a new long life mITX motherboard based on the latest Intel® US15 Embedded Chipset that supports the ultra low power Intel® Atom™ Processors.
