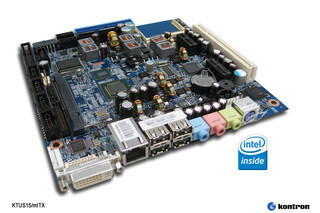

KTUS15/mITX - 1.6 Std

Intel® Atom™ Z530 processor based Embedded Mini-ITX board. 1.6 GHz BGA CPU. Ultra Low Power. Only 2,3 W TDP and SDIO Onboard

Intel® Atom™ Z530 processor 1.6 GHz BGA CPU
Intel® US15 Embedded Chipset
FSB 533
1x DDR2 200 pins DIMM
2x PCI-Express 1x

Request product

1x LAN, 2x SATA300/150, 2x COM, LVDS, CRT, 2x PCI-Express x1, 2x SDIO

The Kontron KTUS15/mITX is a new long life mITX motherboard based on the latest Intel® US15 Embedded Chipset that supports the ultra low power Intel® Atom™ Processors.

Technical support

Technical data

Form Factor	Mini-ITX
Dimensions (H x W x D)	"6.7" x "6.7" (170 mm x 170 mm)
CPU	Intel® Atom™ Z530, 1,6GHz
Chipset	Intel® US15W
Main Memory	up to 2 GByte DDR2 200pins SO-DIMM (max 1x 2GB)

Downloads

Accessories

Select accessories here

COM port Cable, 100mm

821017

COM port Cable, 2.54mm, 100mm long

COM port Cable, 200mm

821016

COM port cable, 2.54mm, 200mm long

Cable HDD UDMA-100

821018

Cable HDD UDMA-100

SATA Cable 500mm

821035

SATA Cable 500mm long

Feature Open-End Cable

821041

Feature Open-End Cable

Front Panel Open-End Cable

821042

Front Panel Open-End Cable

Audio Open-End Cable

821043

Audio Open-End Cable

LVDS Open-End Cable

821515

LVDS Open-End Cable 540mm

AUO G121SN01 Cable

821518

Cable for AUO G121SN01

LCD Cable for LG.Philips LM150X08

821520

LCD cable for LG.Philips LM150X08

LCD LVDS Cable for JAE FI-S20

1027-2631

LCD LVDS Cable for JAE FI-S20 w. pull tab (i.e. for Sharp LQ104S1LG21)

LVDS 1:1 Cable

1027-3591

LVDS 1:1 cable, 2x 40 pin connector, 405mm

Power Out Cable

1027-3669

Power Out Cable

USB Bracket

821401

USB Bracket

DVI-CRT Adapter

822001

DVI-CRT adapter

LDI (Large Display Interface) Evaluation Kit

820971

LDI Evaluation Kit contains of: 820975 LDI module, 821521 Evaluation Cable Kit and 1027-3591 LVDS Cable 2x40p conn 405 mm
