Intel Pentium Processor E2160
1030-5510
Intel Pentium Processor E2160, 1.80GHz, dual Core,
1MB Cache, 800MHz FSB, 65W, LGA775, Embedded
This product is legacy and no longer actively supported.

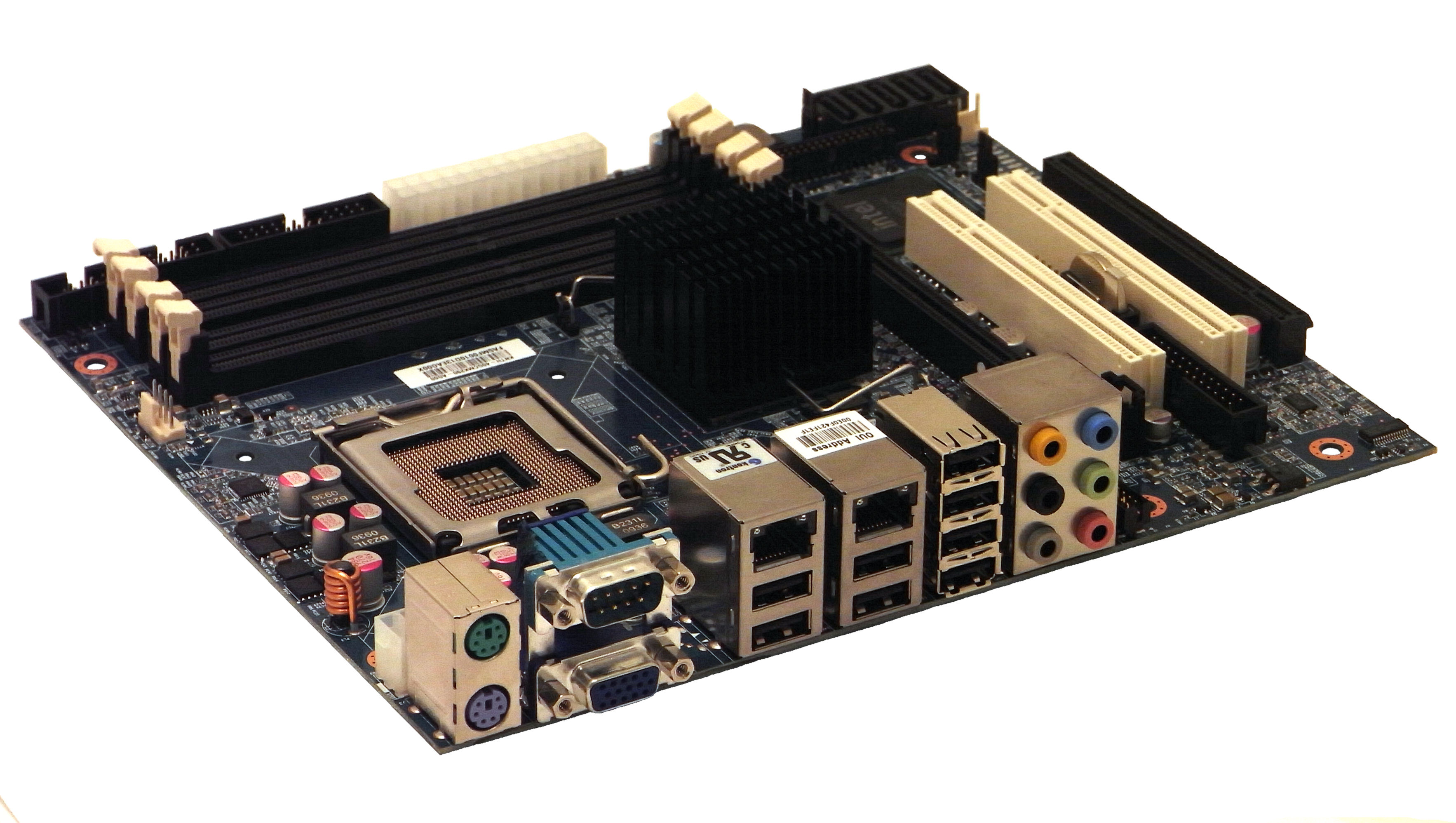

KTQ45/FLEX
Intel® Core™2 Duo & Intel® Core™2 Quad desktop processor support incl. E8400 and Q9650. Available now!
- Intel® Core™2 Duo & Intel® Core™2 Quad desktop processor support incl. E8400 and Q9650
- Long term available embedded Flex motherboard
- Intel® Q45 + ICH10DO Embedded Chipset
- Intel® GMA 4500 graphics
- Flat panel support via ADD2-cards (DVI, LVDS & HDMI)
2 x Intel® Gigabit Ethernet, one with Intel® AMT 5.0 support Up to 8 GB DDR3, 4 pcs. DIMM 240 pin, 5x SATA150/SATA300 w. RAID 0/1/5/10, HD Audio, 12x USB 2.0
The Intel® Q45 Express Chipset, when combined with the Intel® Core™2 processor family, delivers innovative capabilities and energy-efficient performance for industrial platforms.
The new technologies featured in the Intel Q45 Express chipset are an Intel® Trusted Platform Module (Intel® TPM) and enhancements to Intel® Active Management Technology release 5.0 which include: Remote Alerts, secured access in Microsoft* NAP* environments, Access Monitor, Fast Call for Help, and Remote Scheduled Maintenance.
The new technologies featured in the Intel Q45 Express chipset are an Intel® Trusted Platform Module (Intel® TPM) and enhancements to Intel® Active Management Technology release 5.0 which include: Remote Alerts, secured access in Microsoft* NAP* environments, Access Monitor, Fast Call for Help, and Remote Scheduled Maintenance.
Technical data
| Form Factor | Flex-ATX |
|---|---|
| Dimensions (H x W x D) | 9" x 7,5" 22,86 cm x 19,05 cm |
| CPU | Supports Intel® Celeron Processor 440, 2.00GHz Intel® Celeron Processor E1500, 2.20GHz, dual Core Intel® Pentium Processor E2160, 1.80GHz, dual Core Intel® Pentium Processor E5300, 2.60GHz, dual Core Intel® Core™ Duo Processor E4300, 1.80GHz, dual Core Intel® Core™ 2 Duo Processor E6400, 2.13GHz, dual Core Intel® Core™ 2 Duo Processor E7400, 2.80GHz, dual Core Intel® Core™ 2 Duo Processor E8400, 3.00GHz, dual Core Intel® Core™ 2 Quad Processor Q9400, 2.66GHz, quad Core |
| Chipset | Intel Q45 ICH10DO |
| Main Memory | up to 8 GB DDR3 DIMM-240 (max. 4x 2GB) |
Downloads
Loading...
Variants
Select variants here
Accessories
Select accessories here
DDR3, 1GB, 1066MHZ, PC3-8500 DIMM
1054-2766
DDR3, 1GB, 240P, 1066MHZ, PC3-8500 DIMM
DDR3-1333 DIMM 1GB ECC
1060-2476
DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM
DDR3, 1GB, 1600MHZ
1054-3706
DDR3, 1GB, 240P, 1600MHZ, PC3-12800 DIMM
DDR3, 2GB, 1066MHZ, PC3-8500 DIMM
1054-2768
DDR3, 2GB, 240P, 1066MHZ, PC3-8500 DIMM
DDR3-1333 DIMM 2GB
1060-2492
DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM
DDR3-1600 DIMM 2GB
1060-2498
DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM
DDR3-1066 DIMM 4GB
1060-2490
DDR3, 4GB, 240P, 1066MHZ, PC3-8500 DIMM
DDR3-1333 DIMM 4GB
1060-2494
DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM
DDR3-1600 DIMM 4GB
1060-2500
DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM
LGA775 Cooler for KT965-, KTQ45- and KTG41-family
823141
Socket775 Active Cooler for the KTQ45, KTG41 & KT965 family of Motherboards
COM port Cable, 100mm
821017
COM port Cable, 2.54mm, 100mm long
COM port Cable, 200mm
821016
COM port cable, 2.54mm, 200mm long
SATA Cable 500mm
821035
SATA Cable 500mm long
Feature Open-End Cable
821041
Feature Open-End Cable
Front Panel Open-End Cable
821042
Front Panel Open-End Cable
Audio Open-End Cable
821043
Audio Open-End Cable
KT-PCIe-DVI-HDMI-I
820977
Low profile DVI/HDMI module for Intel® GM45, Q45 or G41 chipset based system
Cable COM2 100mm Bracket
821036
Cable COM2 100mm Bracket
USB Bracket
821401
USB Bracket
LVDS Connector for cable
910000005
LVDS Connector for cable
