Datasheet KT690/mITX (BGA)
997.07 KB | March 26, 2026
This product is legacy and no longer actively supported.
KT690/mITX (BGA) - dual core

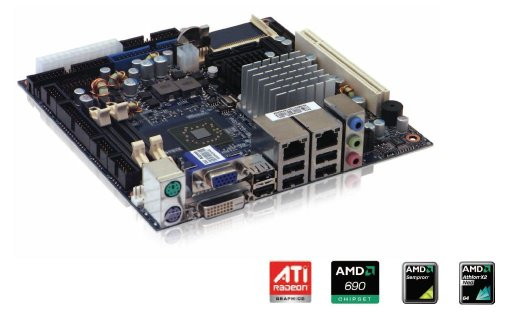

KT690/mITX (BGA) with AMD Athlon X2 Neo dual core CPU (BGA) 2 x 1.5 GHz and integrated ATI Radeon graphics
- Improved price-performance ratio
- Long-term availability
- AMD Athlon X2 Neo dual core CPU 2 x 1.5 GHz
- AMD M690T + SB600 Embedded Chipset
- Solid CAPs for enhanced lifetime & MTBF
The Kontron KT690/mITX (BGA) is a new long life mITX motherboard with improved price-performance-ratio! It features the latest AMD M690T + SB600 Embedded Chipset
The Kontron KT690/mITX is a new long life mITX motherboard based on the latest AMD M690T + SB600 Embedded Chipset that supports the latest high-performance low power AMD CPUs
