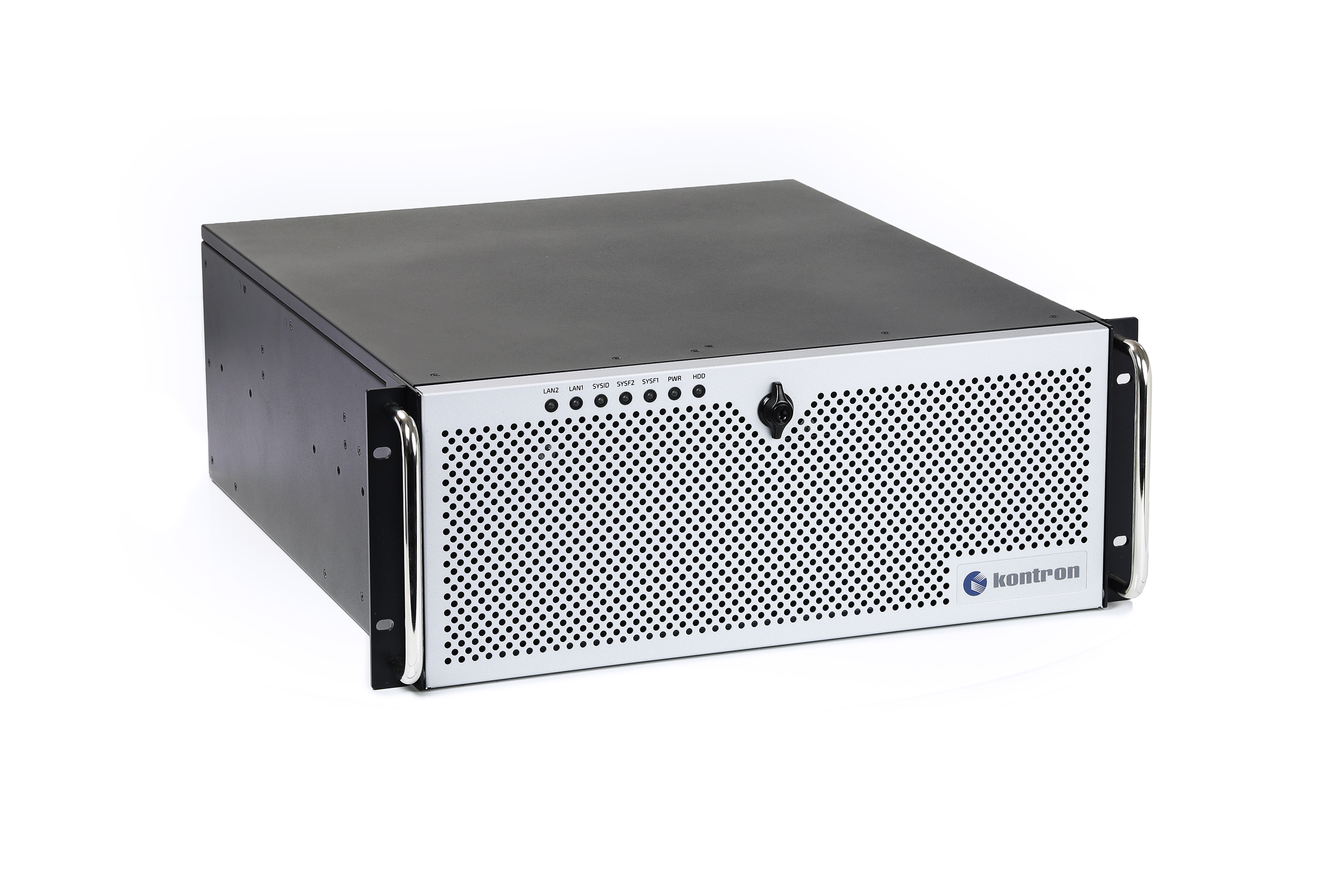

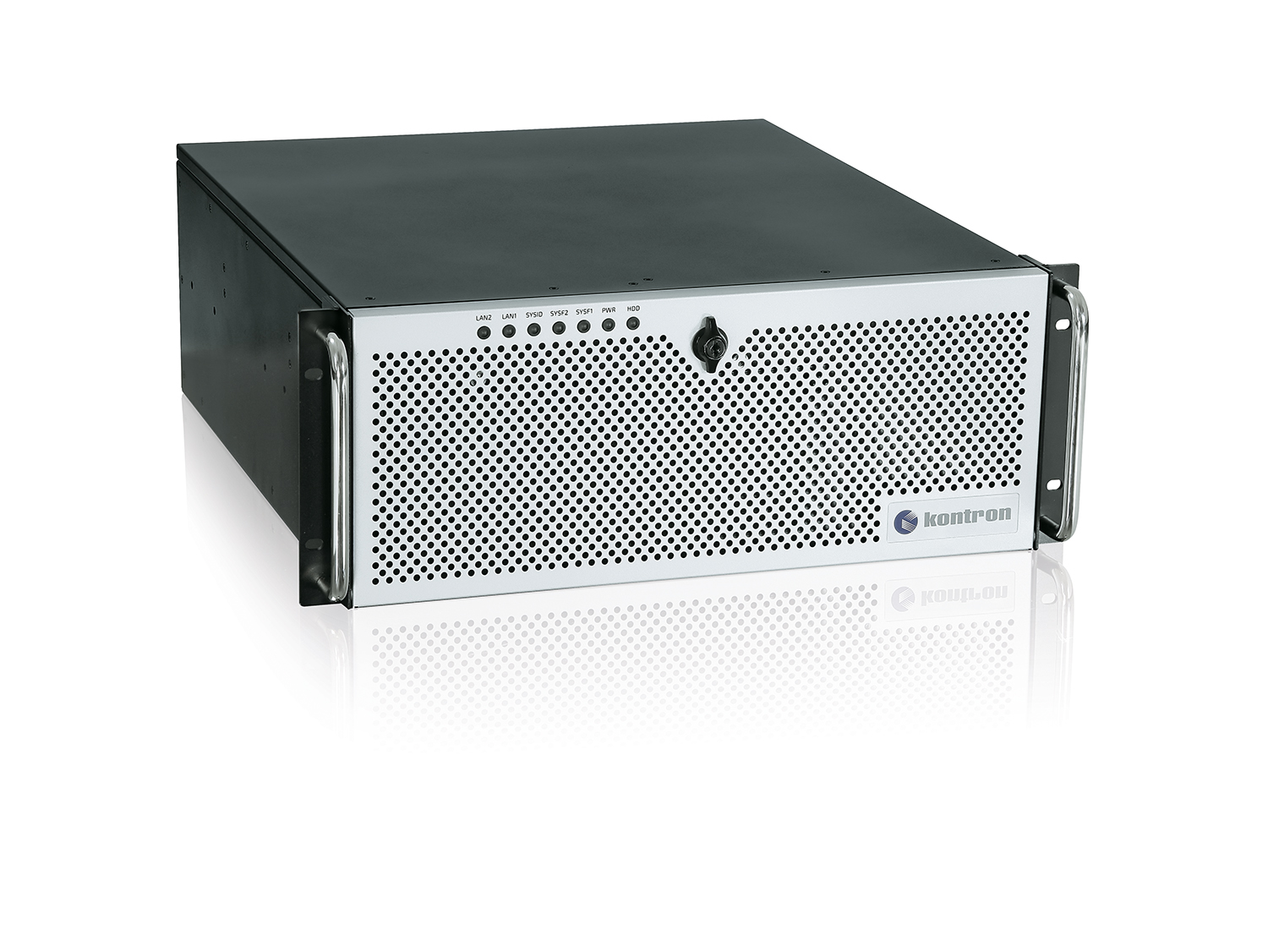

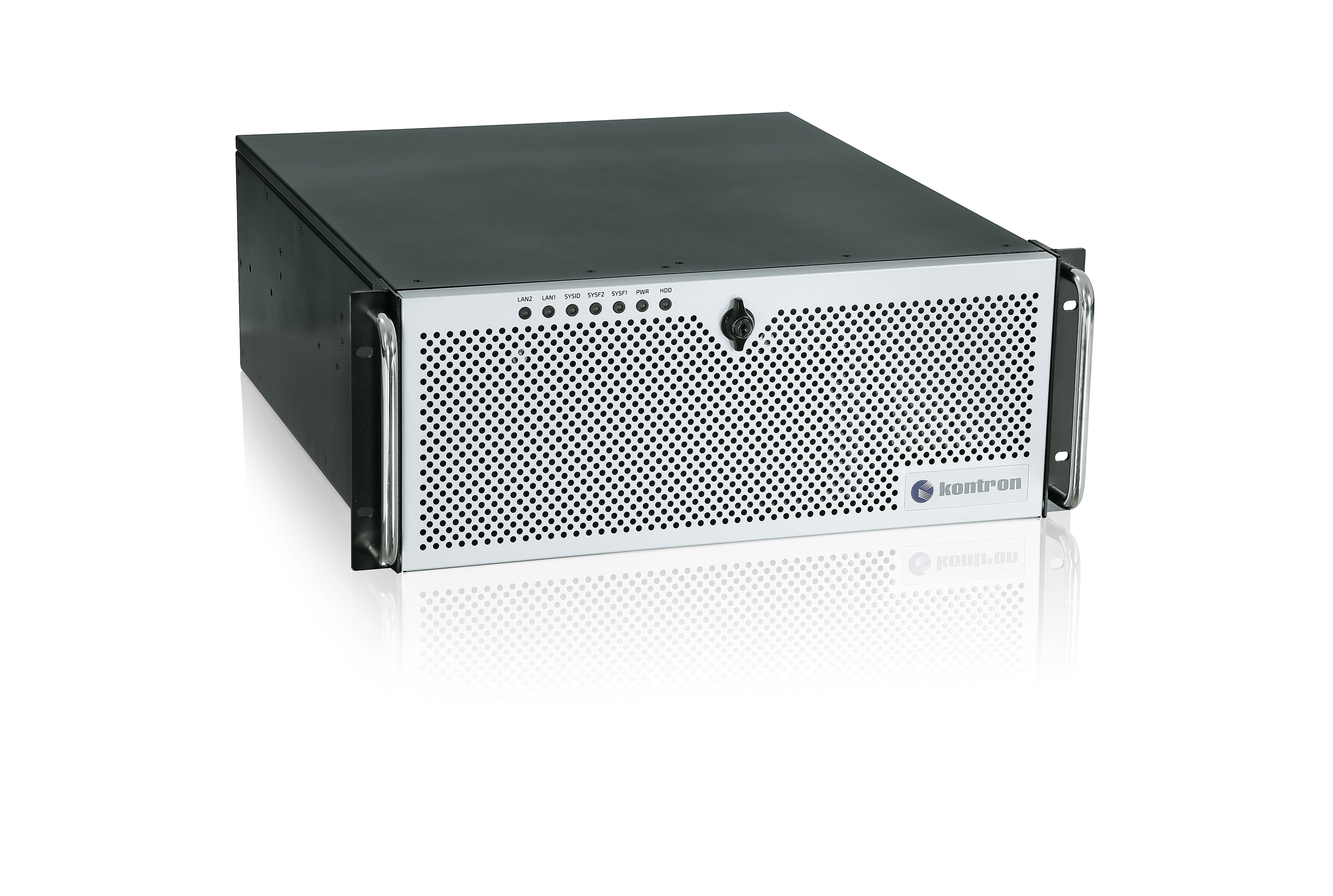

KISS 4U V3 SKX This product is legacy
High performance 4U Rackmount Server for AI applications with Dual Intel® Xeon® SP processors
Mouseover Zoom loading...
Specifications
- Industrial grade for challenging environments – robust, reliable and sustainable
- High processing capability with Dual Intel® Xeon® SP processors
- Low noise level: <= 35dBA
- Modular and flexible concept for easy customization
- Long-term availability (5+ years)

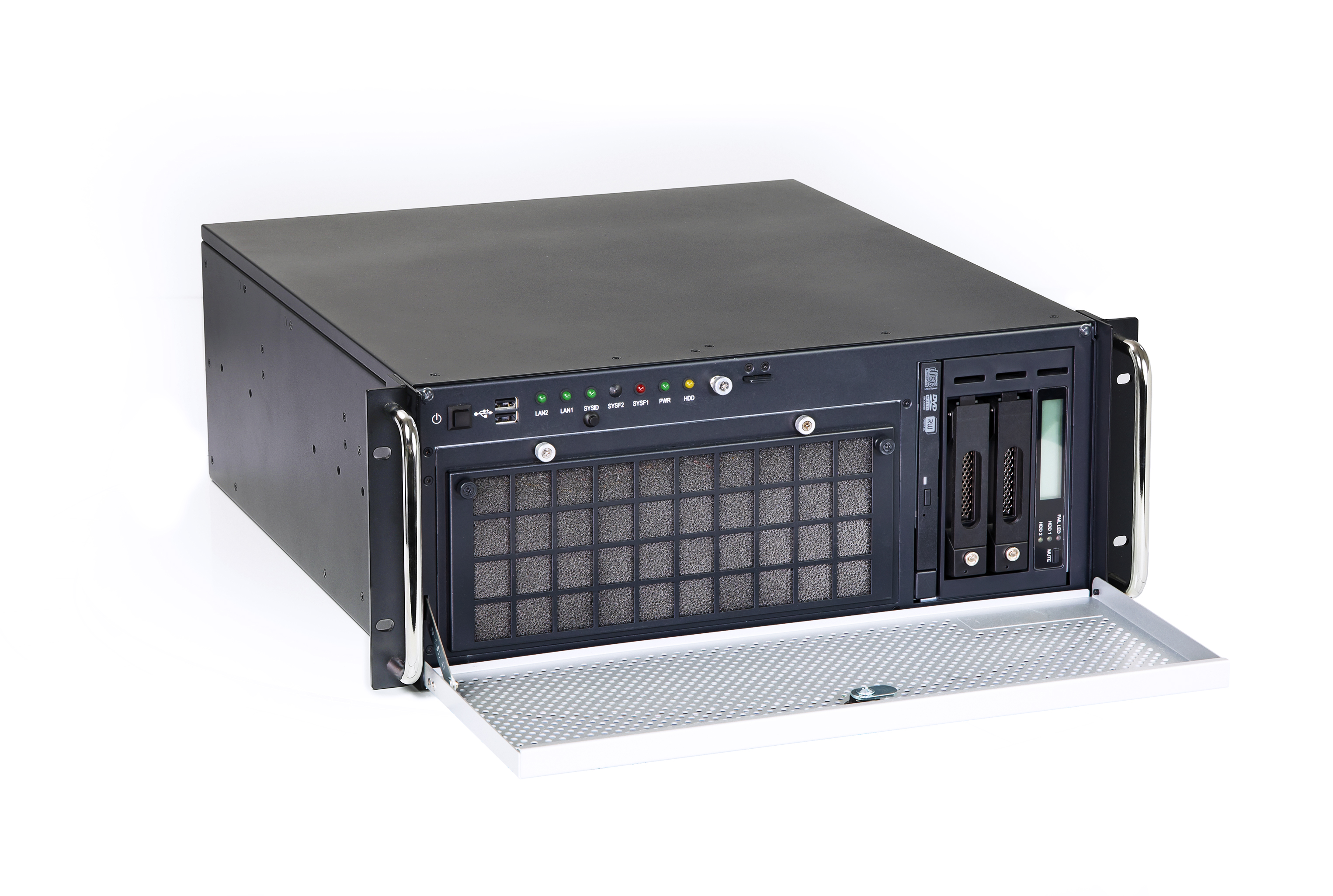

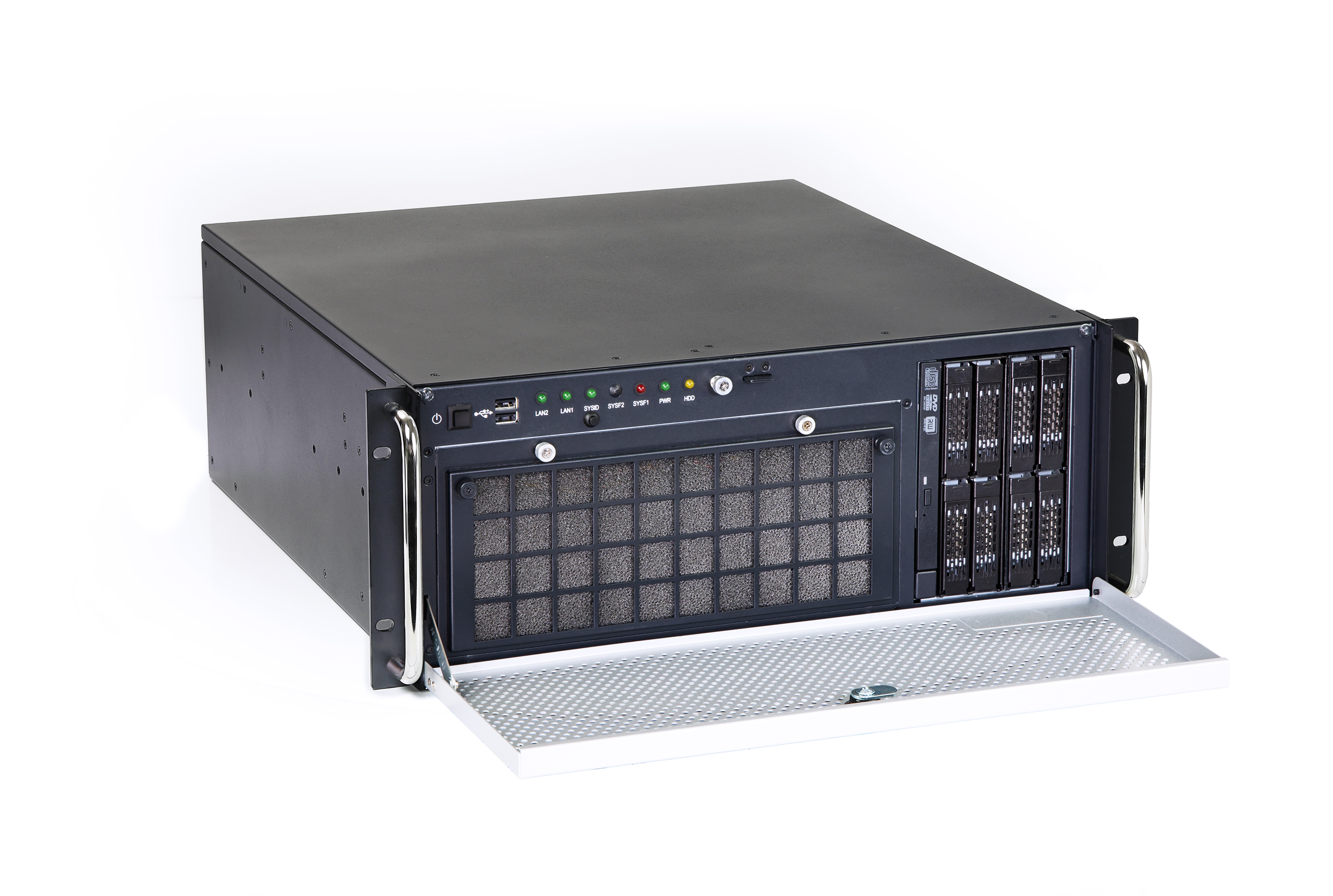

- Tool-free replacement of fans, filter mats, or hard disk drives in the removable tray
- Microsoft Azure certified, TSN functionality optionally
Kontron’s KISS high performance rackmount servers are designed and tested for challenging environments, and are therefore the perfect fit for high temperature and mechanical stress conditions. Industrial grade design, in combination with high processing performance allows industrial applications requiring high performance and storage capabilities, e.g. high-end image processing and SCADA/MES applications.
The new KISS high performance rackmount servers are ideally suited even for complex computing tasks such as ‘Artificial Intelligence’ (AI) and machine learning based on processing and analytics of a huge amount of data. Efficient thermal concepts, maintenance-free and customizable designs, high performance computing and graphics power enable 24/7 operation and long-term deployment.
The KISS 4U V3 SKX relies upon two CPUs with powerful processors of the Intel® Xeon® SP series, which can be equipped with twelve DIMM DDR4-2666 modules and up to 768 GB RAM and ECC support.
A high degree of customization is facilitated through features like removable drives and various expansion cards.
More Information for 'AI Applications in Healthcare and Automation': visit AI Applications
Features
| 19" Rack Mounting | 4U |
| Altitude | 5000 m operating |
| Approvals | CE,FCC,NRTL(UL 62368-1),CB(IEC 62368-1) |
| Available Extensions | 3 x PCI_e 3.0 x16 (x16 link) 2 x PCIe 3.0 x16 (single at x16, dual at x8/x8) 2 x PCIe 3.0 x16 (x8 link) |
| Chipset | C621 |
| Common Features | Flexible Customisation, up to 3 double widht GPU cards |
| CPU | 2 x Intel® Xeon® SP series |
| Dimensions (H x W x D) | 177 x 482 x 472 mm (4U x 19" x 18.58") |
| DRAM speed | 2400 Mhz |
| Drives | 2x 5.25” SATA drive bays 1x 2.5”/3.5” SATA drive internal 1x M.2 socket 3 supporting up to Type 22110 PCI_e Gen 3 and 4 and SATA mode 4x U.2 connectors RAID support |
| Humidity | 10 % to 93 % @40 °C, non-condensing |
| Main Memory | 12x DIMM DDR4-2400 up to 712 GByte ECC support |
| MTBF | > 50.000 h |
| Operating System | Windows 10 64 Bit LTSC others on request |
| Operation Temperature | 0 °C to +45 °C continuous operation |
| Power Supply | 100-240 V AC 850 W (80+), 100-240 VAC 1200 W,others on request |
| Rear I/O | 2x USB 3.1Gen 2 (1x Type-C™ and 1x Type-A), 4x USB 3.1 Gen 1 ports, 2x USB 2.0 ports (1x USB port supports USB BIOS Flashback), 1x USB BIOS Flashback button, 1x PS/2 KB/M, 2x RJ45 LAN, 1x Optical S/PDIF out port, 8-channel Audio VGA port with Bracket Aspeed (AST2500) blocks one slot |
| Shock | Operating: 15 G 11 ms duration Non-operating: 30 G 11 ms duration |
| Vibration | Operating: 15 G 11 ms duration Non-operating: 30 G 11 ms duration |
| Weight | Approx. 22 kg |
| RAID | On board RAID , RAID by RAID controler card, DA235 ord DA 225 including HW RAID controller in the drive bay |
| IPMI | IPMI by BMC |
