This product is legacy and no longer actively supported.

KISS 4U Q57

powered by the new Intel® Core™ i7, i5, and i3 processors

  • Supporting I3,I5,I7 CPUs
  • Up to 16 GB DDR 3
  • 4 COM ports
  • 12 x USB 2.0
  • Vpro(AMT)6.0

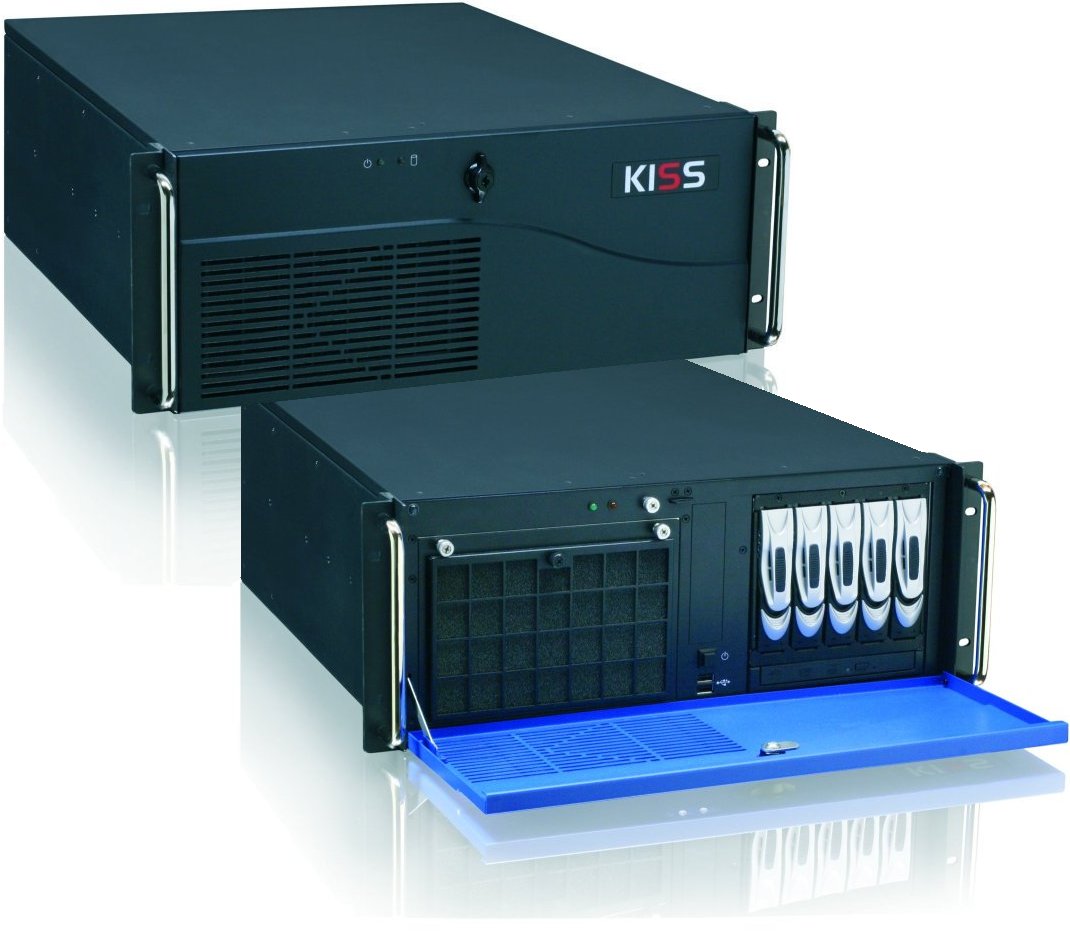

Product Thumbnail

Product Information

Kontron’s latest high-performance industrial server is based on embedded ATX motherboard Q57. With a front-side bus of up to 1.333 MHz and up to 8 GByte DDR3 SDRAM, the Kontron KISS 4U Q57 accelerates computing intensive embedded applications such as test and measurement, image processing, process control and video surveillance in i.e. energy, medical, automation or transportation market segments.
Product Image 1

Technical data

CPUi3,i5,i7
ChipsetIntel® Q57 (Ibex Peak)
ApprovalsCE
ConnectivityFront: 2* USB 2.0, REAR: PS/2 mouse port/Keyb.,2 COM ports,1 VGA port,1 DVI-I port (DVI-D signal only),2 RJ45 LAN ports,ports,Mic-in, line-in and line-out jacks
Cooling2 * Hot swap chassis fans

Downloads

Datasheet

PDF

KISS 4U Q57

8.24 MB | March 26, 2026

Manuals

PDF

General Safety Instruction

628.88 KB | March 26, 2026

PDF

Presentation KISS 4U V2

2.62 MB | March 26, 2026

PDF

User Manual ATX Motherboard PT630_KON

14.21 MB | March 26, 2026

PDF

User Manual KISS 4UV2

2.45 MB | March 26, 2026

PDF

Benutzerhandbuch KISS 4UV2

2.27 MB | March 26, 2026

Software

PDF

WINDOWS7_License_terms_Kontron

134.57 KB | March 26, 2026

Service

PDF

Kontron Services Brochure

8.9 MB | March 26, 2026

PDF

Temperature Test Report KISS 4U Q57

2.73 MB | March 26, 2026

PDF

EMC Test Report KISS 4U Q57

3.1 MB | March 26, 2026

PDF

Outline dimensions KISS 4U_V2

168.71 KB | March 26, 2026

PDF

Test Report Schock and Vibration KISS 4U Q57

3.45 MB | March 26, 2026

PDF

Safety Test Report KISS 4U Q57

1.41 MB | March 26, 2026

PDF

Declaration of Conformity KISS 4U Q57

527.94 KB | March 26, 2026

PDF

Configuration Guides KISS 4U V2

190.22 KB | March 26, 2026
