Overview KISS 2U Variants
17.18 KB | March 26, 2026
This product is legacy and no longer actively supported.

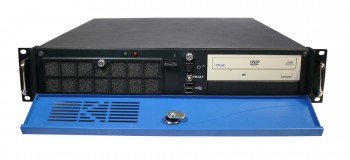

KISS 2U
Super Silent 2 U System,Intel®Core 2Duo ,PCI Express.Suitable for Industrial, Military, Transportation , Medical applications
- Supporting Quad Core CPUs
- PCI Express *16 Slot
- PCI Express *4 Slot
- 3 * PCI 32 Bit Slots
- PICMG 1.3
2 U Industrial Server with redundant Power Supply , RAID 1 Hot swap sub system
The KISS 2U provides numerous customer options with an especially low installation height (88,90mm) and is extremely quiet (<35dbA), scalable, RoHS compliant, has long term availability all in a ruggedized platform.
The KISS 2U features PICMG 1.3 and PICMG 1.0 single board computer or Flex ATX motherboard support and due to the flexible design provides Multi Core and PCI-Express-based solutions. In both the Flex ATX and PICMG1.3 designs, the KISS 2U server offers performance currently up to Intel® Quad Core Q9500 or Intel Core Solo Celeron 440, Intel 945GM Chipset, 533 MHz FSB and up to 4 GB DDR2 memory. Intel® Quad Core processors provide up to tfoer times the performance, when compared to the Intel® Pentium® M processors, at a given GHz clock rate and can be as low as 31 Watts.
The KISS 2U features PICMG 1.3 and PICMG 1.0 single board computer or Flex ATX motherboard support and due to the flexible design provides Multi Core and PCI-Express-based solutions. In both the Flex ATX and PICMG1.3 designs, the KISS 2U server offers performance currently up to Intel® Quad Core Q9500 or Intel Core Solo Celeron 440, Intel 945GM Chipset, 533 MHz FSB and up to 4 GB DDR2 memory. Intel® Quad Core processors provide up to tfoer times the performance, when compared to the Intel® Pentium® M processors, at a given GHz clock rate and can be as low as 31 Watts.
Downloads
Service
Temperature Test Report KISS 2U PCI 760
671.12 KB | March 26, 2026
KISS 2U KR-2201 PCI-960 North America Ordering Guide 9-9-09
63.04 KB | March 26, 2026
Declaration of Conformity KISS 2 U 986LCD
335.33 KB | March 26, 2026
KISS KR-2101-986LCD North America Ordering Guide 9-9-09
55.44 KB | March 26, 2026
Safety Test Report KISS 2U 986LCD
431.84 KB | March 26, 2026
Temperature Testreport KISS 2 U 886LCD-MFlex
415.71 KB | March 26, 2026
Temperature Testreport KISS 2U BP PCI 960
412.87 KB | March 26, 2026
EMC TEST REPORT_KISS2U_PCI960
3.93 MB | March 26, 2026
Declaration of Conformity_KISS 2 U_PCI 960
90.07 KB | March 26, 2026
Safety TEST REPORT_2U_KISS_PCI960
1.27 MB | March 26, 2026
Declaration of Conformity_KISS 2U PCI 955
217.53 KB | March 26, 2026
Declaration of Conformity_KISS 2U 886LCD-MFlex
193.07 KB | March 26, 2026
Temperature Testreport KISS 2 U 986LCD-M_mITX
387.97 KB | March 26, 2026
Test Report Noise_KISS 2U 886 Flex
144.48 KB | March 26, 2026
Service Plan & Acc North America Ordering Guide 2-19-09
8.61 KB | March 26, 2026
