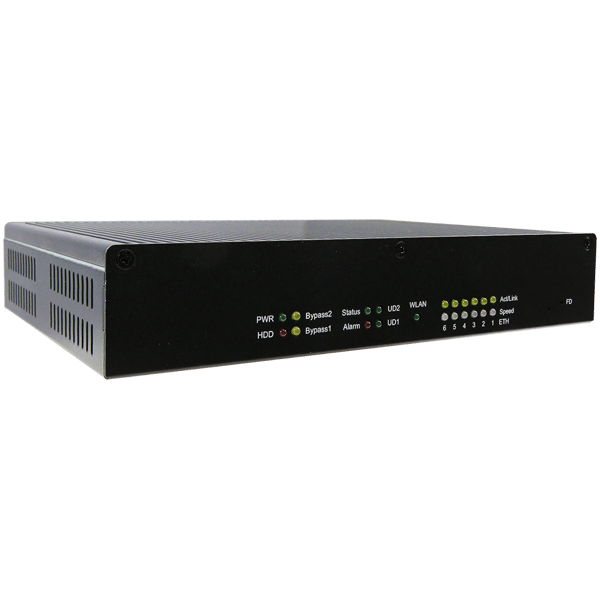

KBox N-11x
Fanless Network Security Appliance with Intel® Denverton Processor
- 6x GbE LAN for Ethernet
- 2 pairs of LAN bypass functionality support
- 2x USB 3.0, 1x RS232 for peripheral connection
- 1x 2.5” SATA 3.0 HDD / SSD for storage
- 1x M.2 Key A, 1x M.2 Key B, 1x mSATA / mPCIe for expansion
LAN Bypass Function Support
Two Pairs of LAN Bypass Support
Kontron's KBox N-11x is a fanless network security appliance based on Intel® Denverton SoC Processor. Equipped with six GbE LAN ports of which four support two pairs of LAN bypass functionality, the KBox N-11x can instantly pass the link to the next available paths in case of a single point of network failure. It is therefore suitable for the enterprises who want to build a network redundancy to ensure maximum uptime and availability for network-based applications.
Flexible Expansion
The KBox N-11x reserves two M.2 sockets and one mSATA / mPCIe socket, allowing additional features to the Ethernert switch, for example, wireless connection, SSD storage, video output or other possible peripheral ports.
Technical data
| Processor | Intel® Atom® C3338 (Dual Core, 4M Cache, up to 2.20 GHz, FCBGA1310, 9 W TDP) Intel® Atom® C3538 (Quad Core, 8M Cache, up to 2.10 GHz, FCBGA1310, 15 W TDP) |
|---|---|
| Main Memory | 1x DDR4 1866 UDIMM Socket (Atom® C3338 model, low-profile RAM allowed) 2x DDR4 1866 UDIMM Socket (Atom® C3538 model, low-profile RAM allowed) |
| Ethernet | 6x GbE LAN (RJ45 on rear, LAN3 & LAN4 Bypass, LAN5 & LAN6 Bypass) LAN3 ~ LAN6: Intel® Denverton SoC Ethernet Controller LAN1 & LAN2: Intel® I210-AT |
| USB | 2x USB 3.0 (Type A on rear) |
| Serial | 1x RS232 (RJ45 on rear, console redirection support) |
