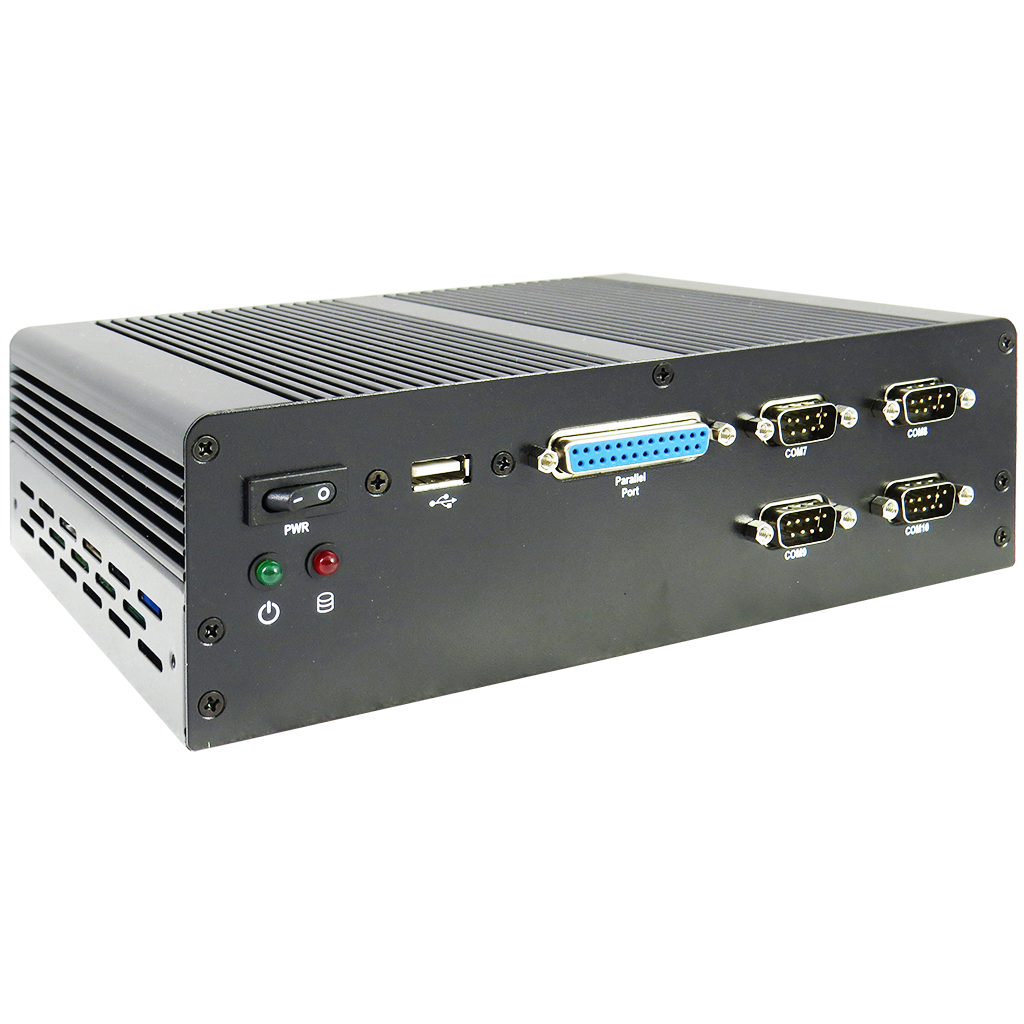

KBox M-100
Fanless Industrial Box PC with Intel® Celeron® J1900 Processor
KBox M-100 Industrial Box PC Datasheet
3.08 MB | March 26, 2026
KBox M-100
Fanless Industrial Box PC with Intel® Celeron® J1900 Processor
- 1x HDMI, 1x VGA for display output
- 2x GbE LAN for Ethernet
- 1x USB 3.0, 5x USB 2.0, 2x RS232/422/485, 8x RS232, 1x Parallel Port for peripherals
- 1x 2.5” SATA 2.0 HDD / SSD Slot, 1x mSATA for storage
- Extended input voltage range
Great Variety of I/O Interfaces
Power-efficient Platform
Kontron's KBox M-100 is a fanless industrial box PC ideal for heavy-duty applications. This embedded hardware platform is designed with Intel® Celeron® J1900 processor which boasts both excellent performance and energy efficiency.
A Great Variety and Amount of I/O Interfaces
The KBox M-100 is supported with 2x DDR3L SO-DIMM. Featured are 2x 2.5" HDD (SATA), 2x GbE LAN, 1x USB 3.0, 5x USB 2.0, 1x HDMI, 1x VGA, 10x COM and 1x Parallel Port.
Fanless and Rugged Design
The KBox M-100 provides high performance, reliability for harsh environments, noiseless operation and is highly suited to a wide range of industrial applications.
Technical data
| Processor | Intel® Celeron® J1900 (Quad Core, 2M Cache, up to 2.42 GHz, FCBGA1170, 10 W TDP) |
|---|---|
| Main Memory | 2x DDR3L 1333 SO-DIMM up to 8 GByte |
| Graphics Controller | Intel® HD Graphics |
| Display | 1x HDMI (on rear, 1920 x 1080 @ 60 Hz) 1x VGA (on rear, 2560 x 1600 @ 60 Hz) Dual display support |
| Audio Controller | Realtek ALC662 |
