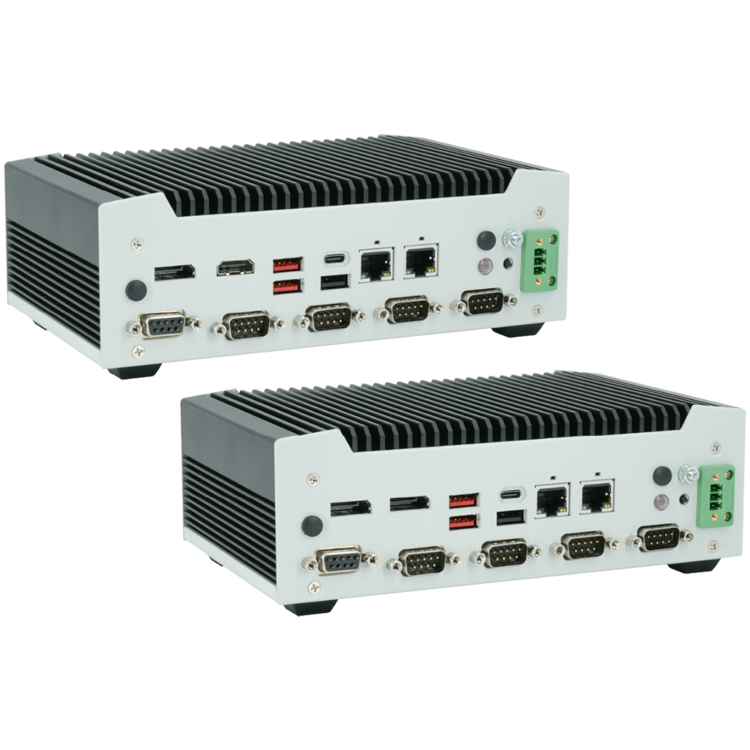

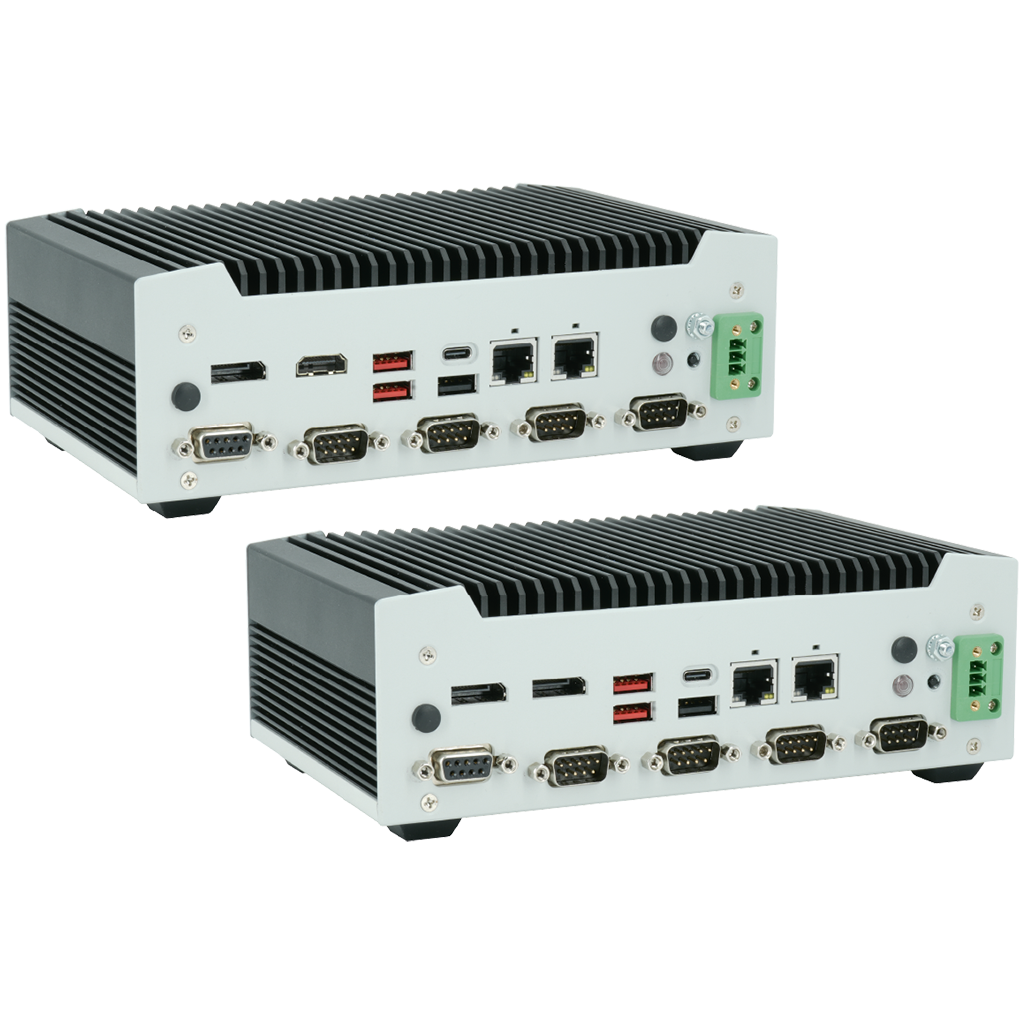

KBox E-430-AML/ADN/AMH/ADH New
Fanless Industrial Computer with Intel® Atom® x7000RE Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Specifications
- 4 COM ports and 8 digital I/O channels for industrial sensing and controlling
- Rugged design against environmental disturbances, such as dust, vibration & shock
- Hardware-based protection against malware and sophisticated cyberattacks
- Wide voltage input range to apply to di erent power supply conditions
- Multiple mounting options to accommodate to di erent application scenarios
Ideal for Intelligent Industry 4.0, Edge Computing & Industrial IoT Applications
KBox E-430-AML/ADN/AMH/ADH is a fanless industrial computer platform powered by Intel® Atom® x7000RE Series (codenamed Amston Lake), Intel® Core™ i3 N-Series and Intel® N-Series Series (codenamed Alder Lake N) processors integrated with Intel® UHD Graphics Gen12 as well as support for a next-gen high-speed DDR5 memory. Thus, it can deliver upgraded performance, enhanced media transcoding and faster AI inference for intelligent Industry 4.0, edge computing and Industrial IoT applications. In addition, the system supports two 2.5 GbE LAN ports as well as expansion possibilities for Wi-Fi and WWAN (3G, 4G or 5G) for optimized bandwidth utilization and flexible network integration.

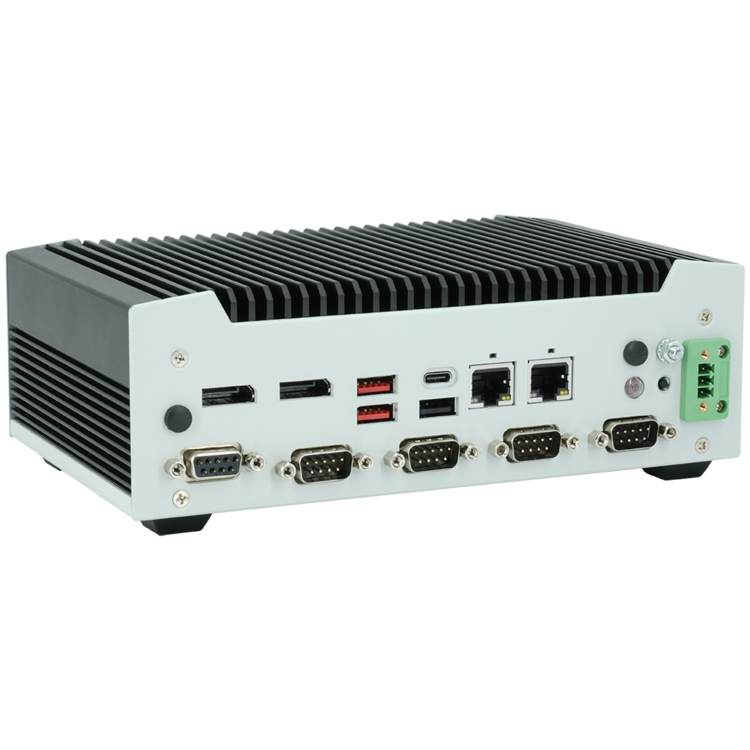

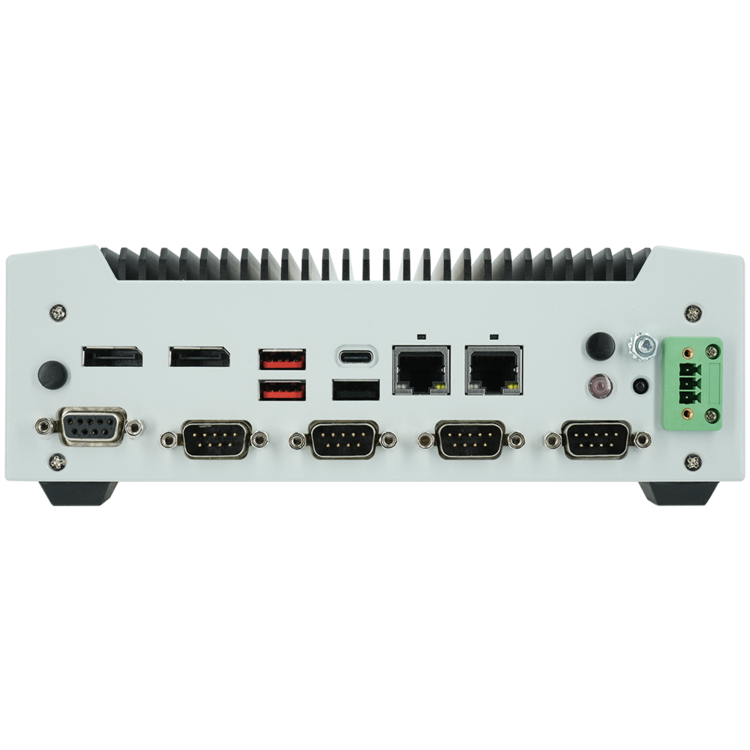

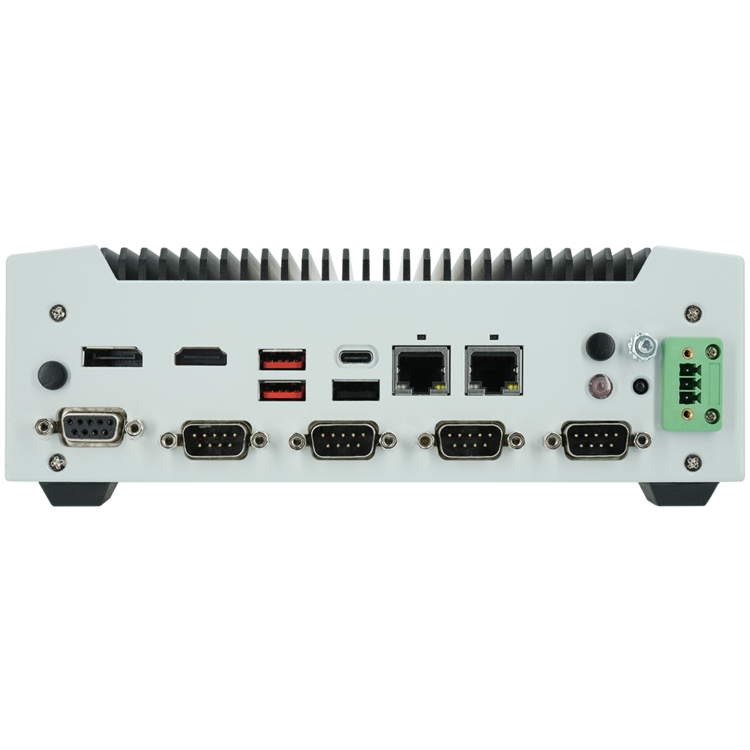

The computer has two video output I/O configurations. KBox E-430-AML/ADN has two DisplayPort connectors on the front I/O panel for convenient multiple display setups; KBox E-430-AMH/ADH has one HDMI connector and one DisplayPort connector on the front I/O panel to apply to two mainstream video interfaces for maximum application possibilities. In addition, both have an USB Type-C connector that supports DisplayPort Alt Mode to provide a one-cable solution for an USB-C touch monitor.
Features
| Processor | Intel® Atom® x7211RE (Dual Core, 6M Cache, 1.0 / 3.2 GHz, 6 W TDP) Intel® Atom® x7433RE (Quad Core, 6M Cache, 1.5 / 3.4 GHz, 9 W TDP) Intel® Atom® x7835RE (Octa Core, 6M Cache, 1.3 / 3.6 GHz, 12 W TDP) Intel® Core™ i3-N305 (Octa Core, 6M Cache, 1.8 / 3.8 GHz, 15 W TDP) Intel® N97 (Quad Core, 6M Cache, 2.0 / 3.6 GHz, 12 W TDP) |
| Main Memory | 1x DDR5 4800 SO-DIMM up to 16 GByte |
| Graphics Controller | Intel® UHD Graphics Gen12 |
| Display | 3x DP (4096 x 2160 @ 60 Hz, 2x Full-size, 1x USB-C, KBox E-430-AML/ADN) 2x DP (4096 x 2160 @ 60 Hz, 1x Full-size, 1x USB-C, KBox E-430-AMH/ADH) 1x HDMI 2.0 (4096 x 2160 @ 60 Hz, KBox E-430-AMH/ADH) Triple Display |
| Ethernet | 2x 2.5 GbE LAN (RJ45, Intel® I226-V/IT) TSN support for models with Atom® processors |
| USB | 2x USB 3.2 Gen 2 Type A 1x USB 3.2 Gen 2 Type C (w/ DP & PD 5 V / 3 A, except Atom® x7000RE) 1x USB 3.2 Gen 1 Type C (w/ DP & PD 5 V / 3 A, only Atom® x7000RE) 1x USB 2.0 Type A |
| Serial Ports | 4x RS232/422/485 (2x Tx/Rx only in RS232, DB9) |
| DIO | 1x 8-bit DIO (DB9 Female, 4x DI + 4x DO) |
| SATA | 1x 2.5” SATA 3.0 HDD / SSD support |
| Expansion | 1x M.2 Key B (Type 2242 / 3042 / 3052 / 2280, w/ PCIe x1 / USB 2.0 / UIM) 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi (Atom® x7000RE does not support CNVi)) 1x M.2 Key M (Type 2280, w/ SATA 3.0 (default) / PCIe x1 (optional)) 1x SIM Card Holder (optional, by header) |
| Input Voltage | DC 9 V ~ 36 V |
| Power connector | 3-pin Terminal Block |
| BIOS | AMI uEFI BIOS w/ 256 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Voltages, Temperatures |
| Real Time Clock | Processor integrated RTC |
| Security | TPM 2.0 Support (Infineon SLB 9672) |
| Cooling | Passive |
| Operating System | Windows 11, Windows 10, Linux |
| Housing | Aluminum metal house |
| Dimensions (W x H x D) | 205 mm x 65.5 mm x 126.6 mm / 8.07" x 2.58" x 4.98" |
| Weight | 2,000 g / 4.41 lb |
| Mounting | Vertical / horizontal DIN-rail mount Vertical / horizontal wall mount Vertical / horizontal VESA mount (75 mm x 75 mm) Desktop |
| Operating Temperature | 0 °C ~ 50 °C / 32 °F ~ 122 °F (Standard) -40 °C ~ 65 °C / -40 °F ~ 149 °F (Extended) |
| Storage Temperature | -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard) -55 °C ~ 85 °C / -67 °F ~ 185 °F (Extended) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B, ICES Class B, UKCA |
