KBox E-310-AMH/ADH
Fanless Industrial Computer with Intel® Atom® x7000RE Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Specifications
Coming soon- Upgraded processing and graphics performance + faster AI inference capability
- Rugged design against environmental disturbances, such as dust, vibration & shock
- Hardware-based protection against malware and sophisticated cyberattacks
- Wide voltage input range to apply to di fferent power supply conditions
- Convertible to a computing box module to transform into a panel PC
Paired with Kontron Dispalay Module to Transform into a Panel PC
KBox E-310-AMH/ADH is a fanles industrial computer powered by Intel® Atom® x7000RE Series (codenamed Amston Lake), Intel® Core™ i3 N-Series and Intel® N-Series Series (codenamed Alder Lake N) processors with integrated Graphics and AI acceleration features. It can deliver upgraded performance, enhanced media transcoding and faster AI inference for intelligent Industry 4.0, edge computing and industrial IoT applications.
KBox E-310-AMH/ADH featurs a special mechanical design allowing it to be converted to a computing box module that can be mounted on any of Kontron’s display modules to transform into a panel PC. System integrators and application developers can benefit from the design to develop two possible applciations based on one platform. In addition, they can easily address specific display size and aspect ratio requirements tailored for a particular application or use case when integrating a panel PC.
Click here for the information about the modular panel PC into which KBox E-310-AMH/ADH is integrated.
Features
| Processor | Intel® Atom® x7211RE (Dual Core, 6M Cache, 1.0 / 3.2 GHz, 6 W TDP) Intel® Atom® x7433RE (Quad Core, 6M Cache, 1.5 / 3.4 GHz, 9 W TDP) Intel® Core™ i3-N305 (Octa Core, 6M Cache, 1.8 / 3.8 GHz, 15 W TDP) Intel® N97 (Quad Core, 6M Cache, 2.0 / 3.6 GHz, 12 W TDP) |
| Main Memory | 1x DDR5 4800 SO-DIMM up to 16 GByte |
| Graphics Controller | Intel® UHD Graphics Gen12 |

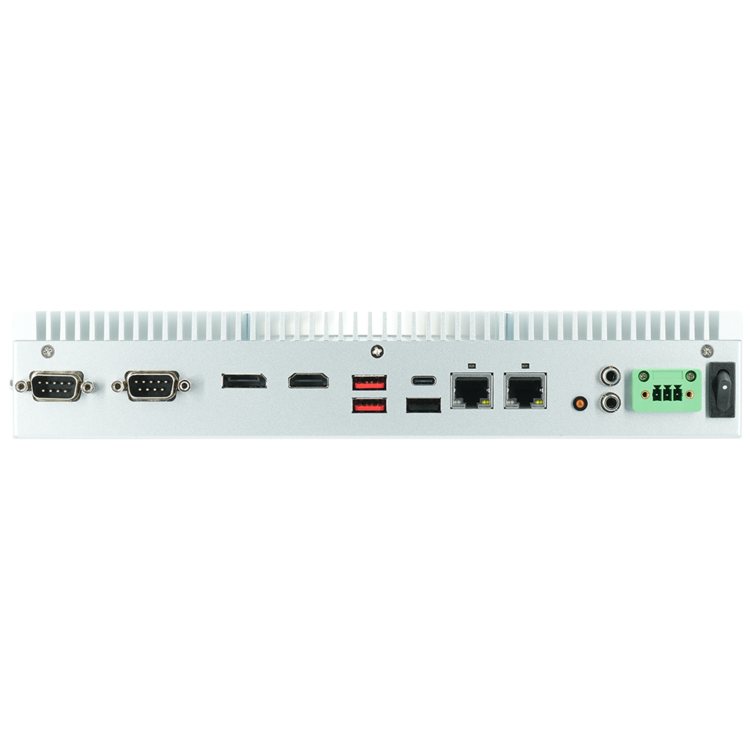

| Display | 2x DP (4096 x 2160 @ 60 Hz, 1x Full-size DP + 1x DP USB-C on front) 1x HDMI 2.0 (4096 x 2160 @ 60 Hz, on front) Triple Display support |
| Audio CODEC | TSI 92HD91B |
| Audio Interface | 1x Line-out (on front) 1x Mic-in (on front) |
| Ethernet | 2x 2.5 GbE LAN (RJ45 on front, Intel® I226-V/IT) TSN support for models with Atom® processors |
| USB | 2x USB 3.2 Gen 2 Type A (on front) 1x USB 3.2 Gen 2 Type C (on front, w/ DP & PD 5 V / 3 A, except Atom® x7000RE) 1x USB 3.2 Gen 1 Type C (on front, w/ DP & PD 5 V / 3 A, only Atom® x7000RE) 2x USB 2.0 (1x Type A on front, 1x Type A on left) |

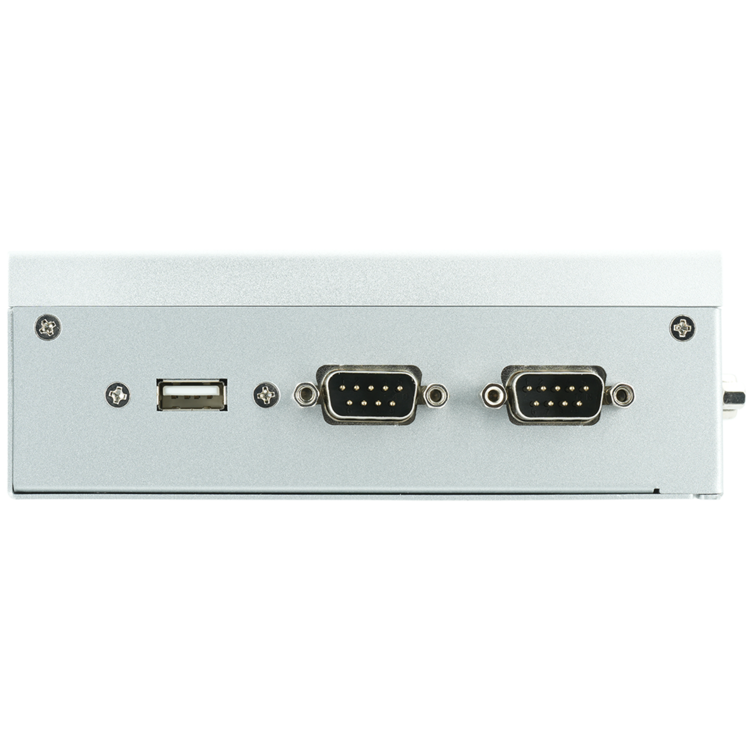

| Serial Ports | 2x RS232(full signal)/422/485 (DB9 on left, COM3 & COM4) 2x RS232(Tx/Rx only)/422/485 (DB9 on front, COM1 & COM2) |
| SATA | 1x 2.5” SATA 3.0 HDD / SSD |
| Expansion | 1x M.2 Key B (Type 2242 / 3042 / 3052 / 2280, w/ PCIe x1 / USB 2.0 / UIM) 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi (Atom® x7000RE does not support CNVi)) 1x M.2 Key M (Type 2280, w/ SATA 3.0 (default) / PCIe x1 (optional)) 1x SIM Card Holder (optional, by header) |
| Input Voltage | DC 9 V ~ 36 V |
| Power connector | 3-pin Terminal Block (on front) |
| BIOS | AMI uEFI BIOS w/ 256 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Voltages, Temperatures |
| Real Time Clock | Processor integrated RTC |
| Security | dTPM 2.0 (Infineon SLB 9672) |
| Cooling | Passive |
| Operating System | Windows 11, Windows 10, Linux |
| Housing | Metal Chassis + Aluminum Heatsink |
| Dimensions (W x H x D) | 275.0 mm x 48.0 mm x 140.0 mm / 10.83“ x 1.89” x 5.51” |
| Weight | 1,900 g / 4.19 lb |
| Mounting | VESA Mount (100 mm x 100 mm) Desktop Mounting on Kontron Display Module (a paired bottom cover required) |
| Operating Temperature | 0 °C ~ 50 °C / 32 °F ~ 122 °F (Standard) -30 °C ~ 70 °C / -22 °F ~ 158 °F (Extended) |
| Storage Temperature | -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard) -55 °C ~ 85 °C / -67 °F ~ 185 °F (Extended) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B, ICES Class B, UKCA Class B |
