KBox E-100 Series
Fanless Box PC with Intel® Atom® E3800 Series & Celeron® J1900 Processors
- 1x HDMI, 1x VGA for display output
- 2x GbE LAN for Ethernet
- 1x USB 3.2 Gen 1, 4x USB 2.0, 2x RS232/422/485, 2x RS232, 1x DIO for peripherals
- 1x 2.5” SATA 2.0 HDD / SSD Slot, up to 1x mSATA for storage
- Up to 2x mPCIe for expansion
Fanless, Rugged & Extended Temperature
Power-efficient Platform
Kontron's KBox E-100 Series is a fanless box PC powered by Intel® Atom® E3800 Series & Celeron® J1900 SoC Processors which deliver required performance and power efficiency.

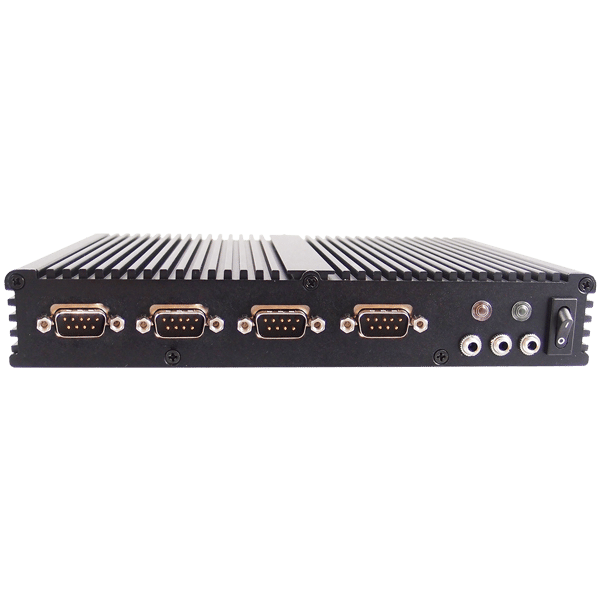

Easy to Connect More Serial Devices
The most eye-catching feature is its four serial ports located on the front I/O panel, which makes easy to connect several serial devices, for example, PLCs, sensors, meters, motors, barcode readers and operator displays in automation application; cameras, sensors and card readers in surveillance application.
Rugged & Fanless
Enclosed within a rugged case, the KBox E-100 Series has great protection against EMI, and ambient temperature. Also it is integrated with passive cooling design for quiet operation. An extended temperature model is available for harsh temperature conditions.
Technical data
| Processor | Intel® Atom® E3845 (Quad Core, 2M Cache, 1.91 GHz, FCBGA1170, 10 W TDP) Intel® Celeron® J1900 (Quad Core, 2M Cache, 2.0 / 2.42 GHz, FCBGA1170, 10 W TDP) |
|---|---|
| Main Memory | 1x DDR3L 1333 MT/S SO-DIMM up to 8 GByte |
| Graphics Controller | Intel® HD Graphics |
| Display | 1x HDMI (on rear, 1920 x 1080 @ 60 Hz) 1x VGA (on rear, 2560 x 1600 @ 60 Hz) Dual display support |
| Audio Controller | Realtek ALC888S |
