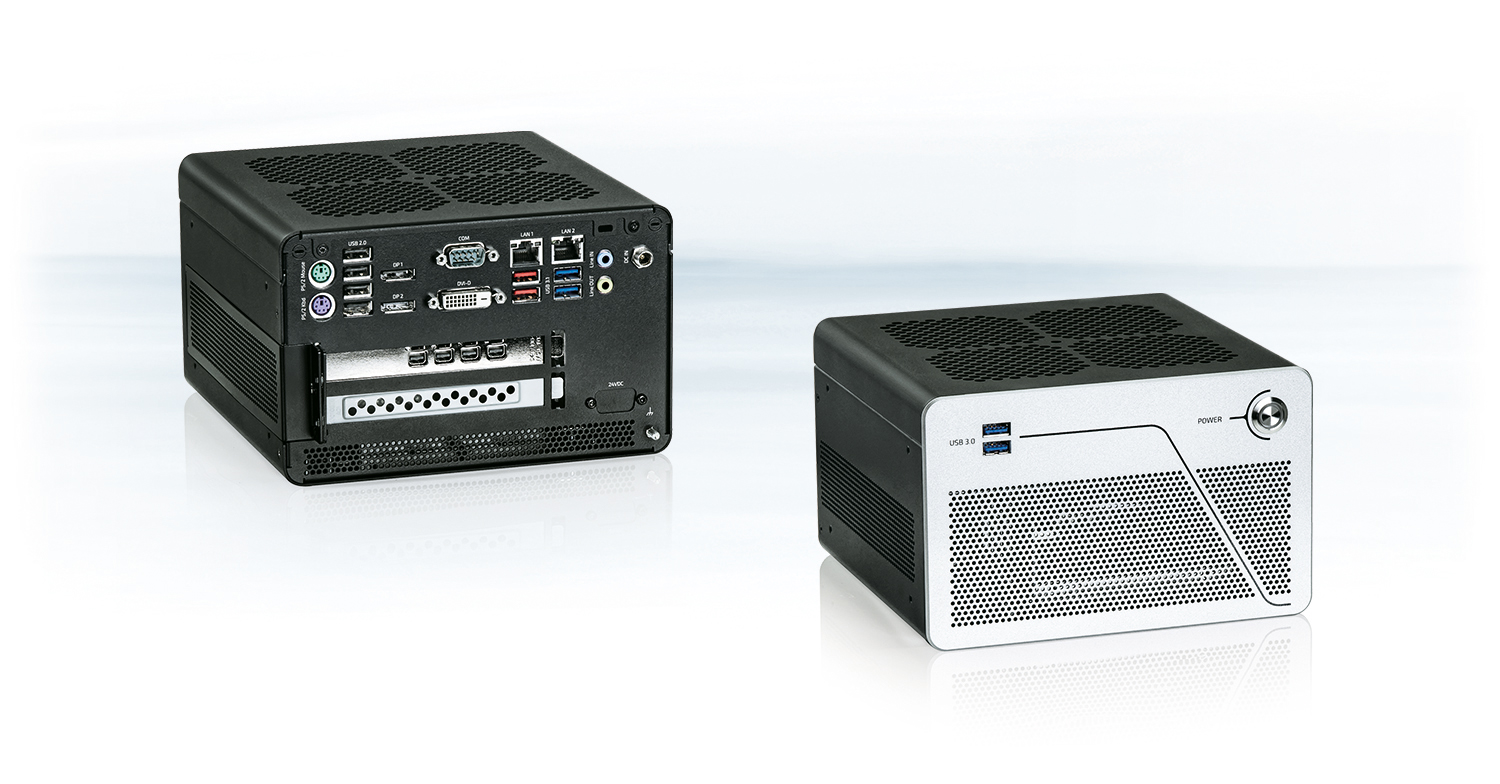

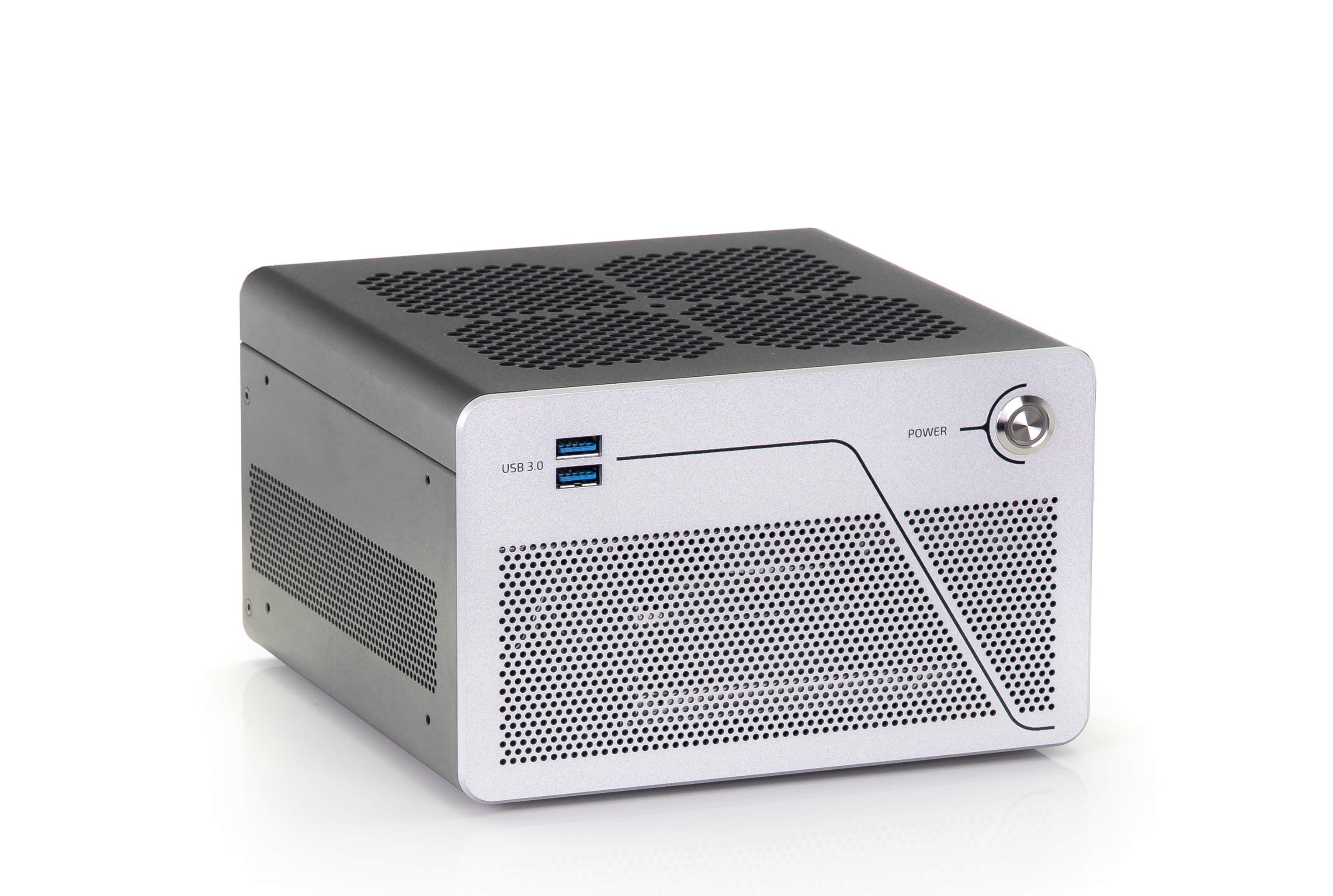

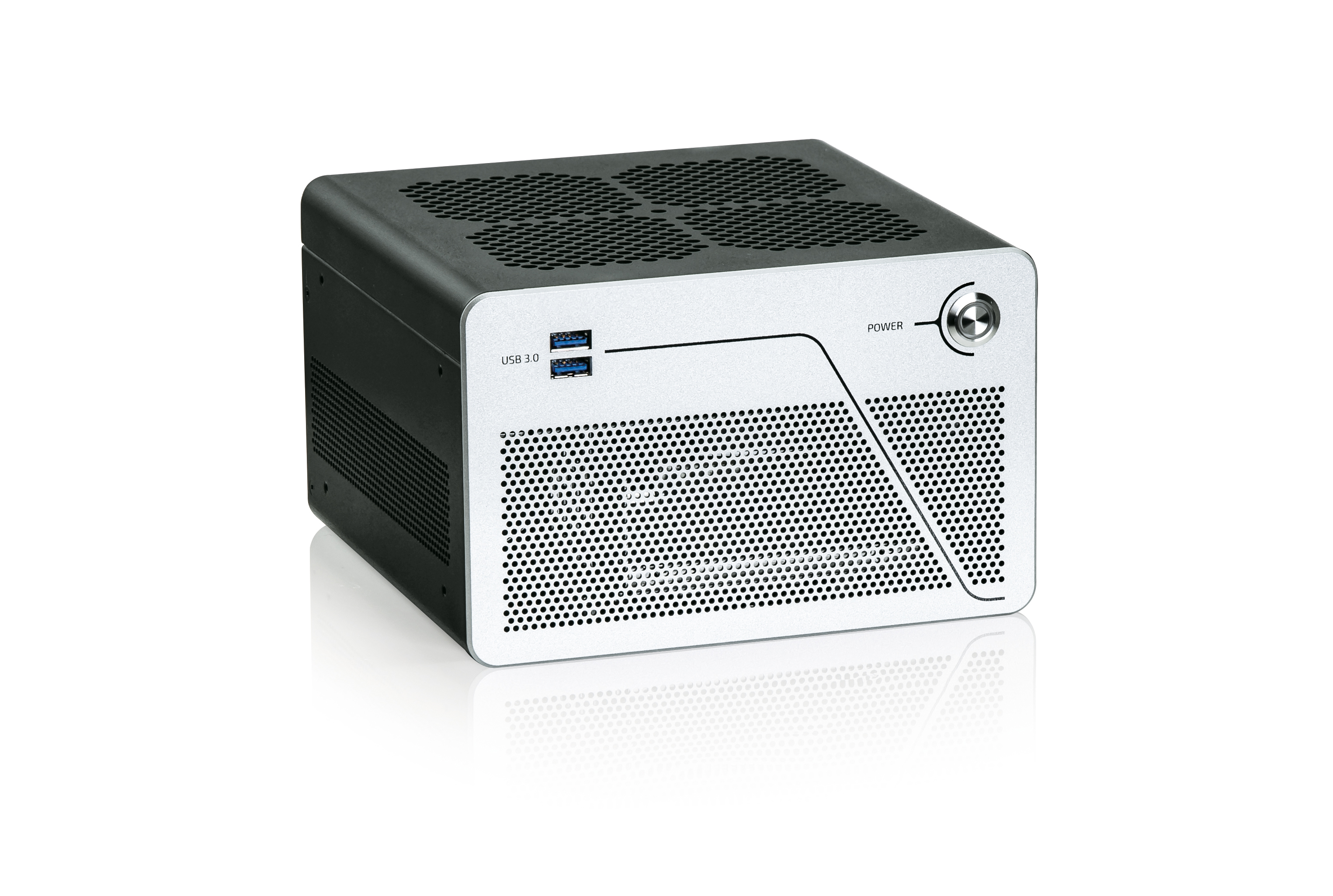

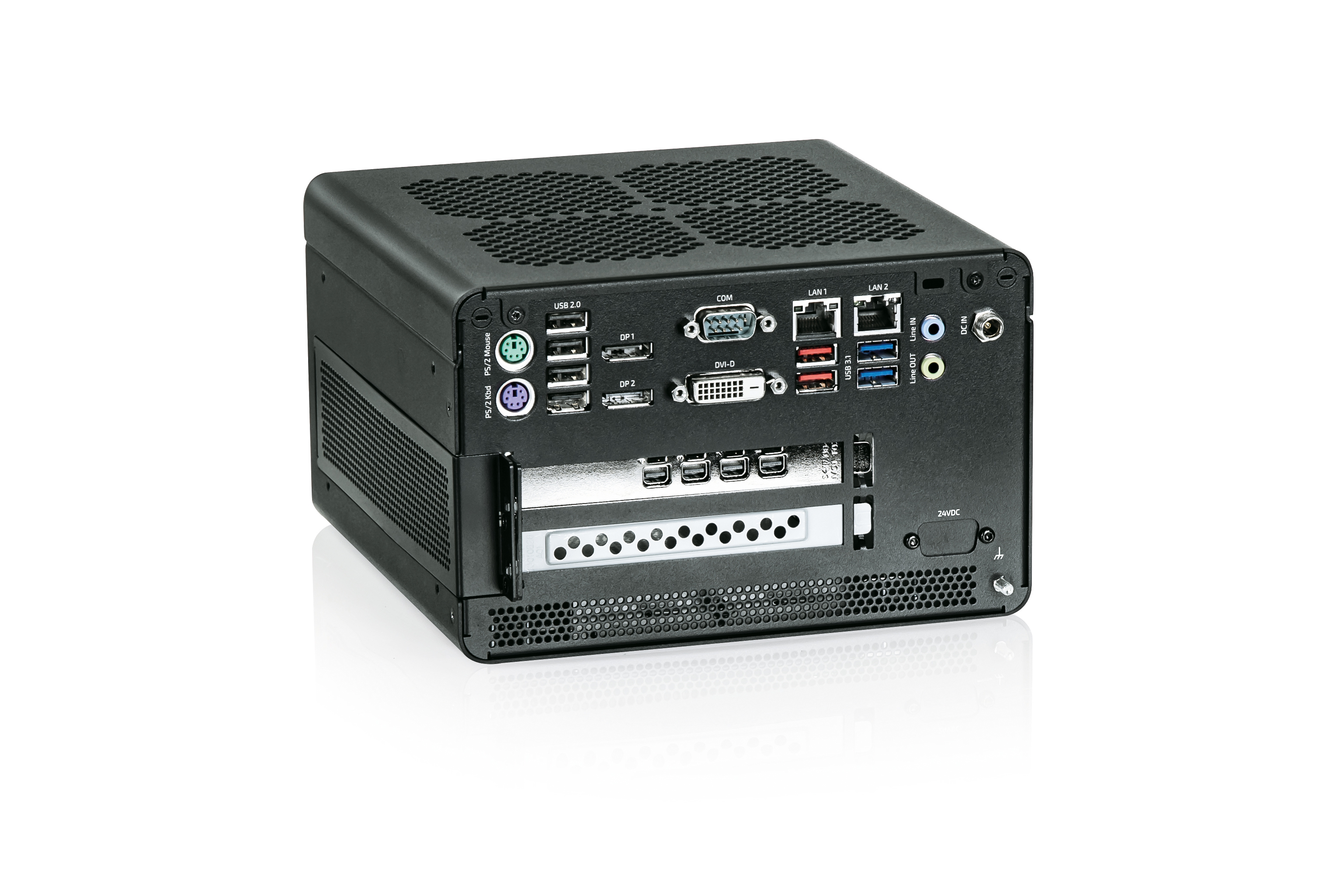

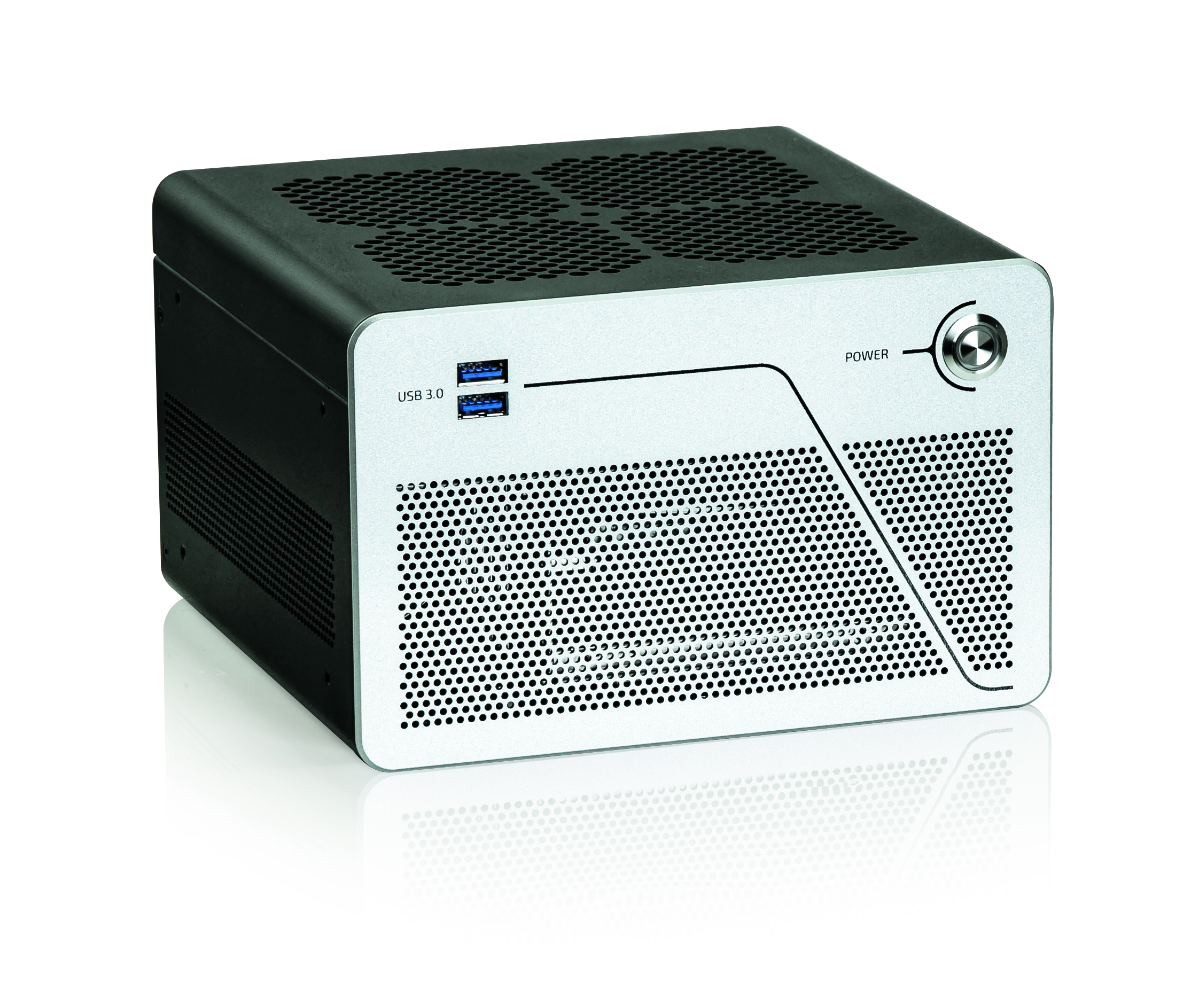

KBox B-202-CFL

High Performance Embedded Box PC with 8th/9th Generation Intel® Core™ processor and wide expansion capabilities
Mouseover Zoom loading...
  • High processing capability: up to 9th Gen Intel® Core™ i7/i5/i3 (Socket LGA1151, max. 65 W TDP)
  • Raid functionality with up to four storage devices
  • Two PCIe expansion slots for graphics, network cards or other PCIe cards
  • WiFi functionality
  • Low noise design
  • Removable 2.5“ SSD
Download Datasheet

The KBox B-202-CFL offers high performance with maximum expandability and low noise level (maximum 34 dB(A)). The embedded Box-PC with Intel® Core™ 9th generation processors, which with up to eight processor cores provide a performance boost with constant power dissipation. Thus, the KBox B-202-CFL effortlessly handles computationally complex processes and large amounts of data.

Among the highlights are the expansion options, which include up to two PCIe x8 cards or one PCIe x16, so that graphics, network or other PCIe cards can be easily added. This makes the KBox B-202-CFL ideal for demanding applications such as high-end image processing, SCADA/ MES applications, artificial intelligence and machine learning.

In addition, it is EN55032 Class B certified, which means it meets stricter RFI limits than Class A. This makes it suitable not only for use in industrial environments, but also for use in residential and business areas or in their immediate vicinity. Along with its modern design this makes the KBox B-202-CFL the ideal computer for architecture and graphics offices as well as music studios.

The core of the KBox B-202-CFL is a motherboard in the Mini-ITX form factor (170x170 mm) with a CPU with up to eight processor cores: Depending on requirements, Intel® Core™ i3/i5/i7 processors of the eighth or ninth generation can be selected.



KBox B_202_CFL_20190926_datasheet
[ kbox-b-202-cfl_20200227_datasheet.pdf, 529.88 KB, Feb.28.2020 ]


KBox B-202-CFL User Guide
Rev. 1.2 Dec. 17, 2020
[ kbox-b202-cfl-user-guide-rev-1.3-2021-02-17.pdf, 4.22 MB, Feb.18.2021 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Tech Specs K-Box
[ techspecs_embedded-box-pc_web_us_kontron.pdf, 2.79 MB, Nov.13.2018 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
