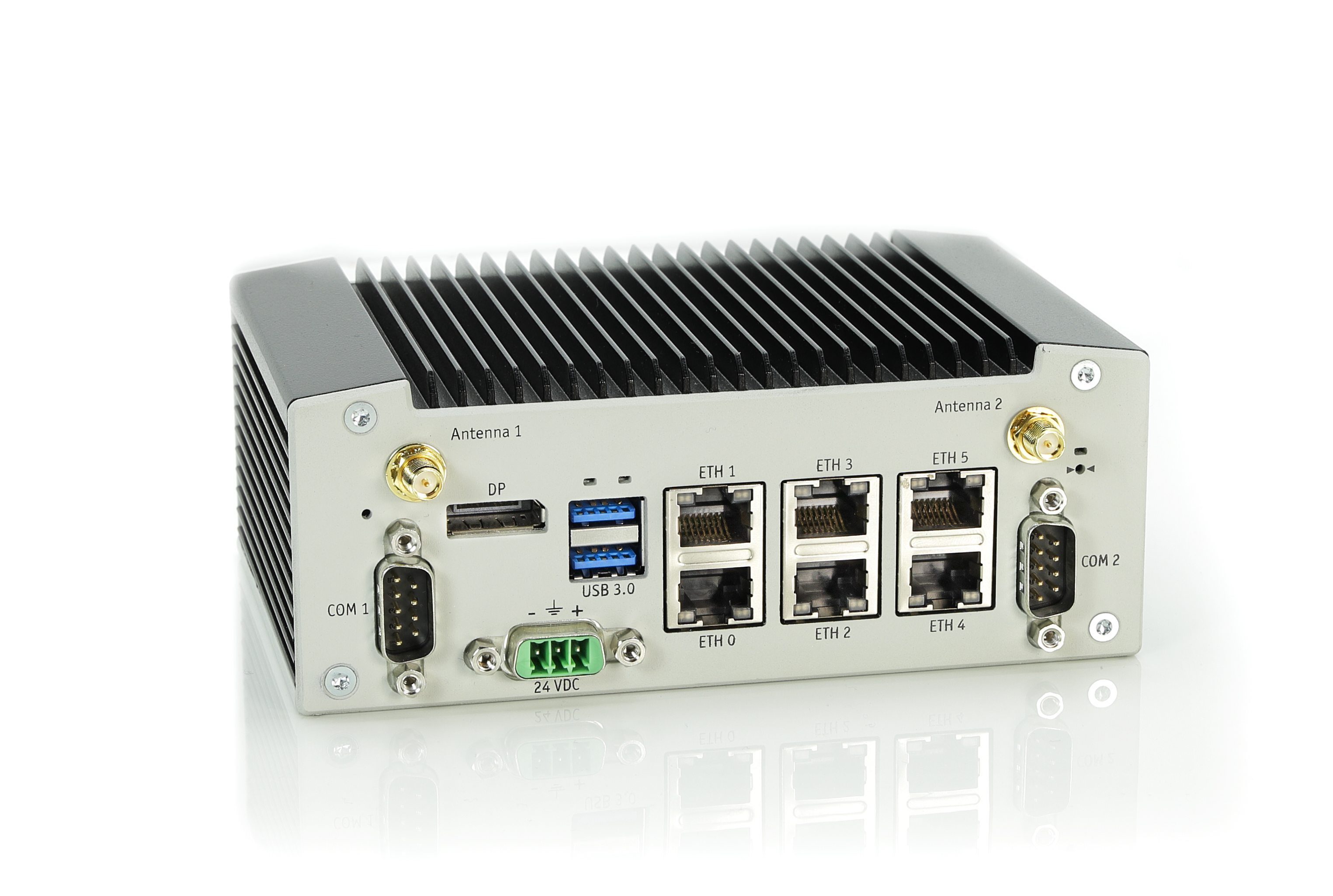

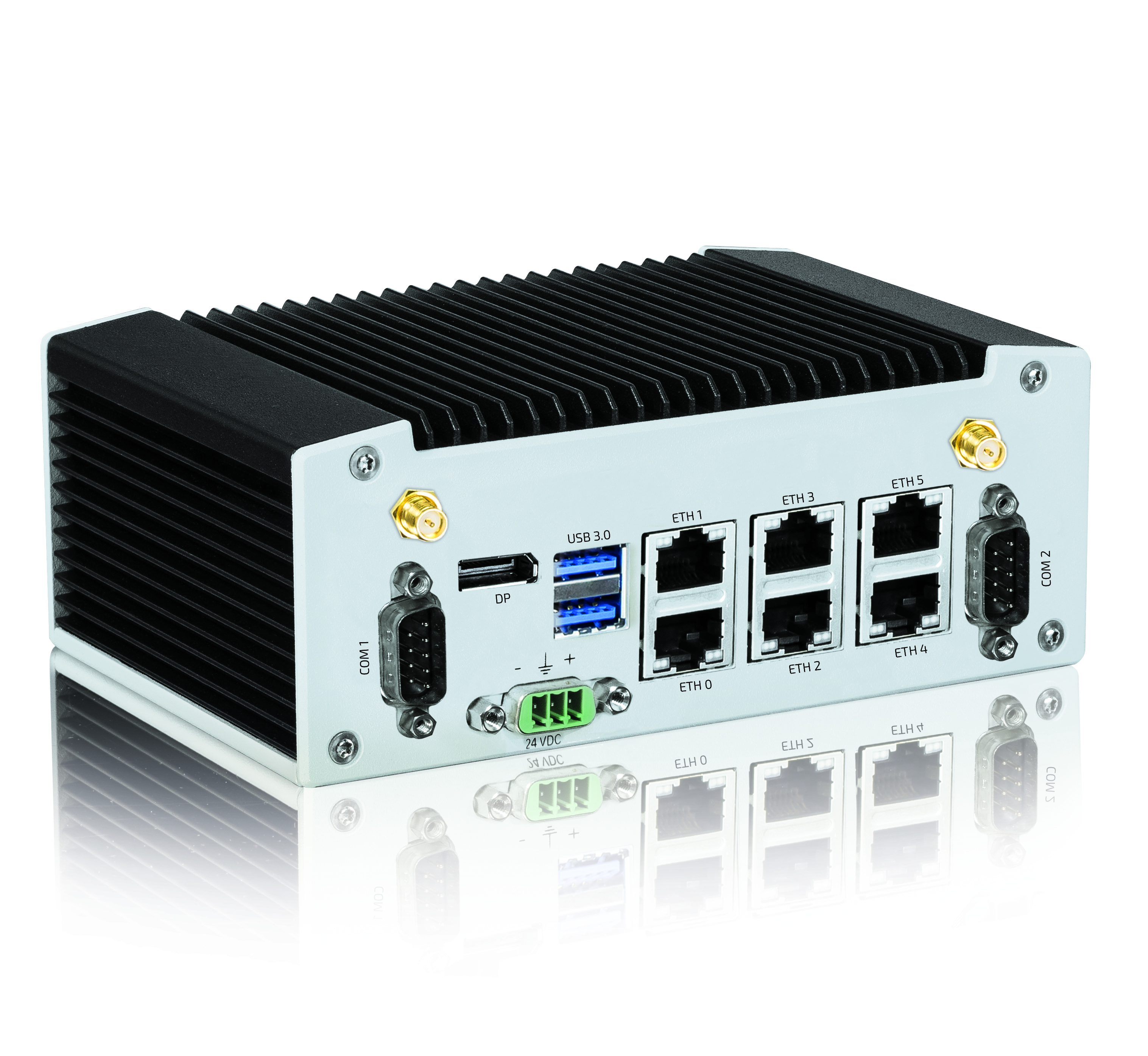

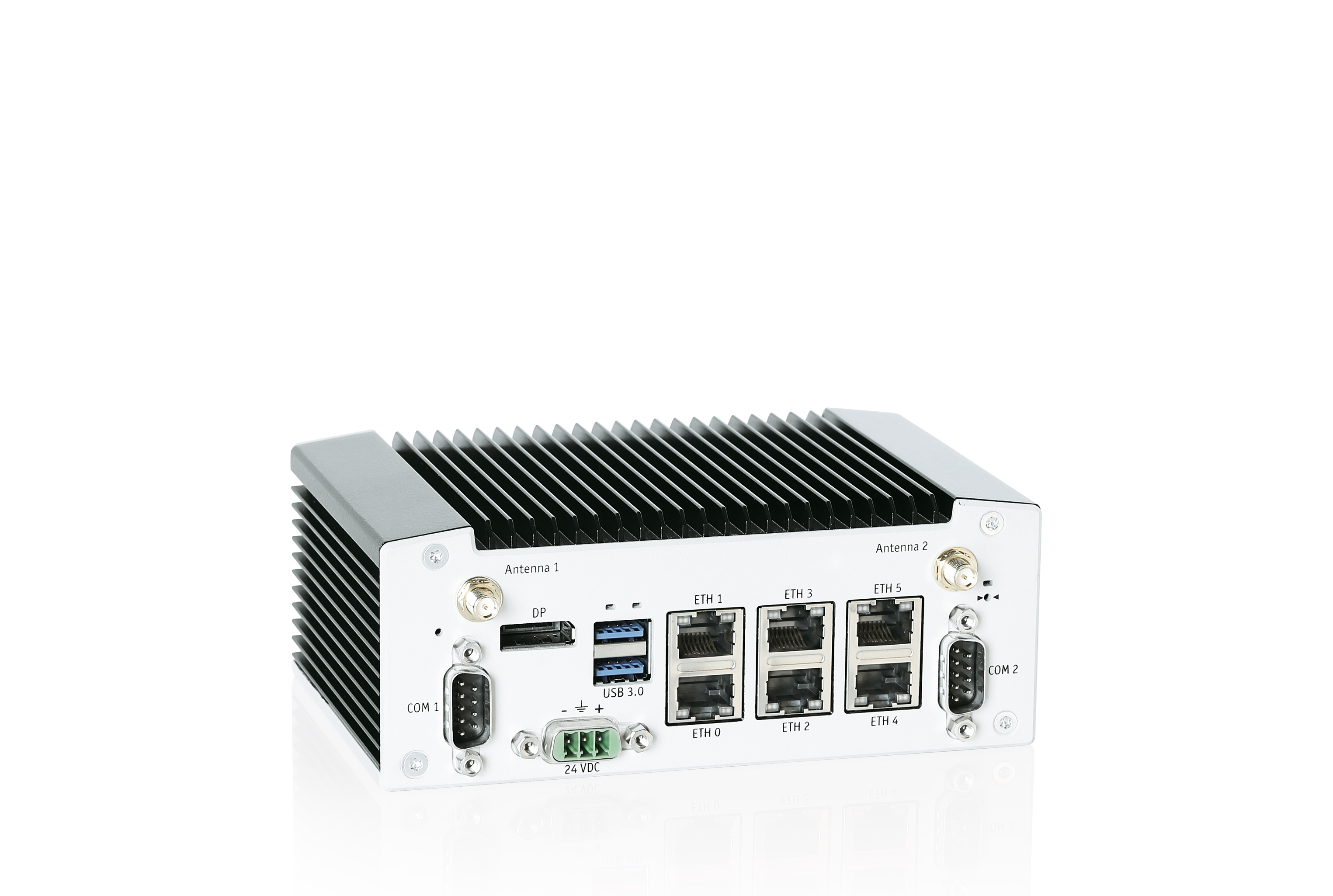

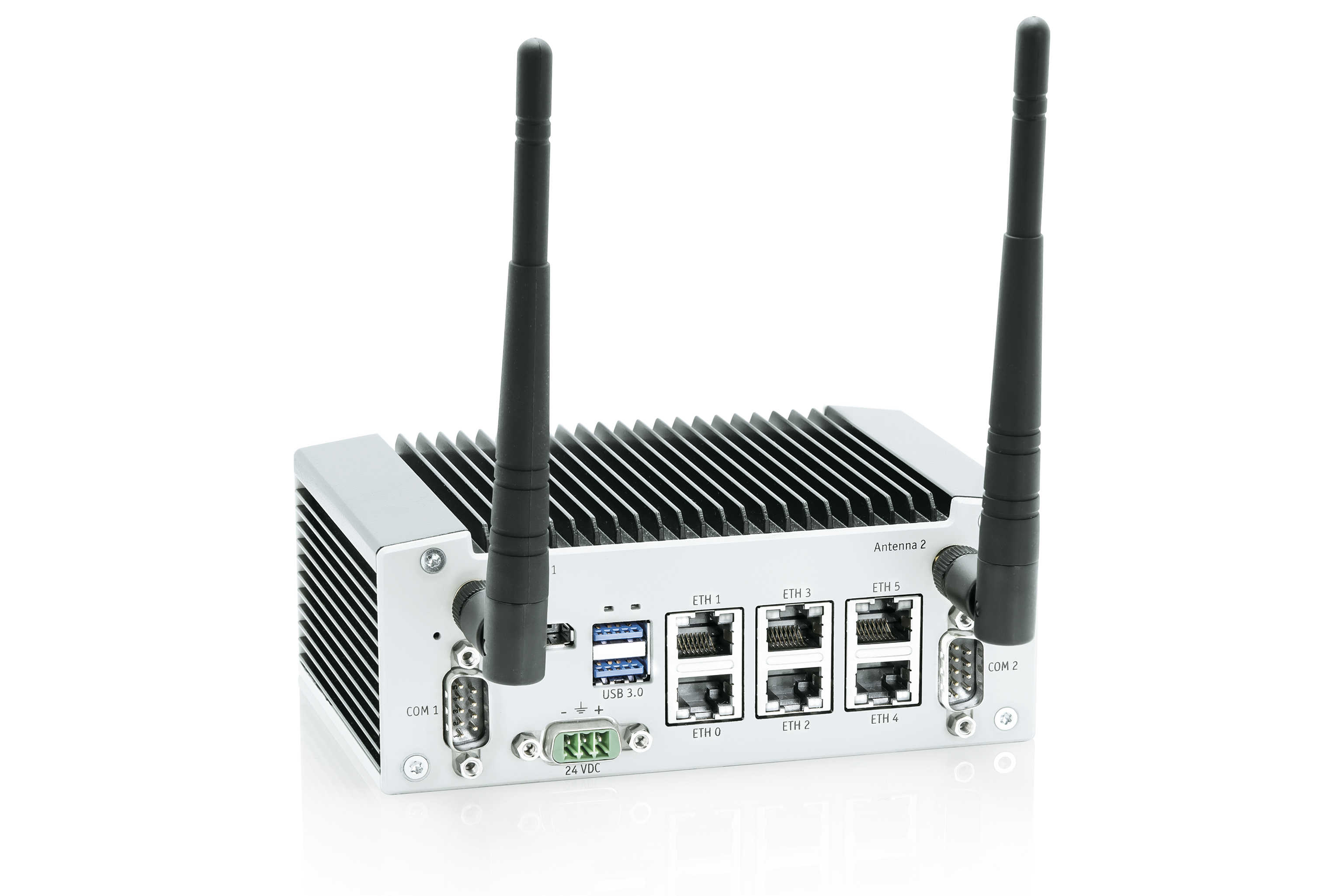

KBox A-230-LS This product is legacy
Industrial Computer Platform for networks with Time Sensitive Networking TSN capability
Mouseover Zoom loading...
Specifications
- NXP Dual Cortex A72 LS1028 processor
- 4x 10/100/1000 MBit ETH TSN Switch ports (2500 MBit support on request)
- 1x 10/100/1000 MBit TSN CPU port and 1x GbE ETH
- Up to 4GByte DDR3L memory
- Maintenance-free operation
Based on the NXP Dual Cortex processor LS1028A the KBox A-230-LS is a TSN (Time Sensitive Networking) Industrial Box PC. This KBox is equipped with a SMARC module and has five TSN-capable 1GB Ethernet ports which meet IEEE 802.1 TSN specifications.
Integrated GPU and LCD controller in the CPU make Human Machine Interface (HMI) systems possible.
It is designed to run continuously and fully qualified for industrial operation. The two Arm®v8 cores support real-time processing for industrial control, as well as virtual machines for edge computing in the IoT.
The A-230-LS is maintenance-free with no battery and no fan. It supports the security solution Kontron APPROTECT based on the Wibu-Systems CodeMeter® technology and provides copy protection to fully safeguard customers' IP, as well as reverse engineering protection with hardware based encryption.
Features
| CPU | NXP Dual Cortex A72 LS1028A |
| Capacity | 4 GByte |
| Ports | 1x Display Port with DP++ |
| USB | 1x USB 3.0, 1x USB 2.0 |
| Ethernet | 4x GbE TSN Switch ports, 1x GbE TSN, 1x GbE |
| Flash | up to 64 GByte onboard fl ash (eMMC) |
| Mini-PCI | 1x miniPCIe socket full/half-size modules with miniSIM Card support 1x miniPCIe/mSATA socket full/half-size modules |
| Watchdog | Watchdog support |
| Security | Kontron APPROTECT based on Wibu-Systems CodeMeter® |
| Input Voltage | 24 VDC (+/- 20 %) |
| Housing | Aluminum housing |
| Mounting | DIN RAIL, Desktop, Wall, Cabinet |
| Dimensions (H x W x D) | 58 x 150 x 100 mm (2.23” x 5.91” x 3.94”) |
| Weight | Approx. 1.0 kg (2.2 lbs) |
| Operation Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
| Humidity rel. | 93 % @ 40 °C (non-condensing) |
| Vibration | acc. IEC 60068-2-6, 5 -500 Hz, 1G |
| Shock | acc. IEC 60068-2-27, half sine, 15 g, 11 ms |
| EMC | CE, FCC |
