KBox A-151-EKL

Industrial computer for low-power IoT edge applications with Intel Atom® x6000 or Celeron® processorss
Mouseover Zoom loading...
Specifications
  • Performance-hungry and low-power applications with Intel Atom® x6000 or Celeron® processors
  • Broad range of interfaces with WIFI and 4G/5G option
  • Flexible system expansion via I/O door
  • Passive cooling concept, option for extended temperature range
  • Optional: Hardened and secure Linux®-based KontronOS operating system, KontronGrid fleet management solution
Download Datasheet

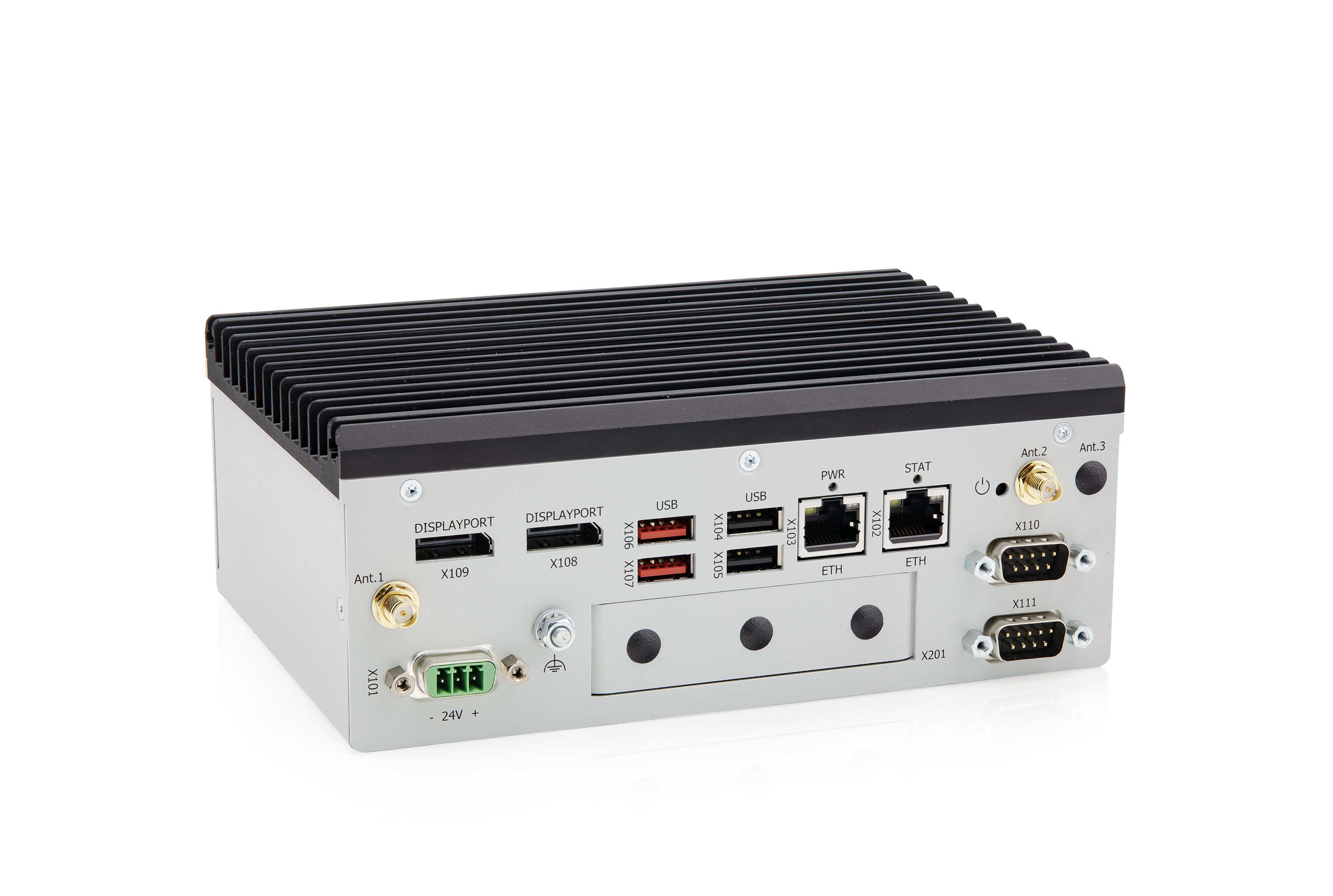

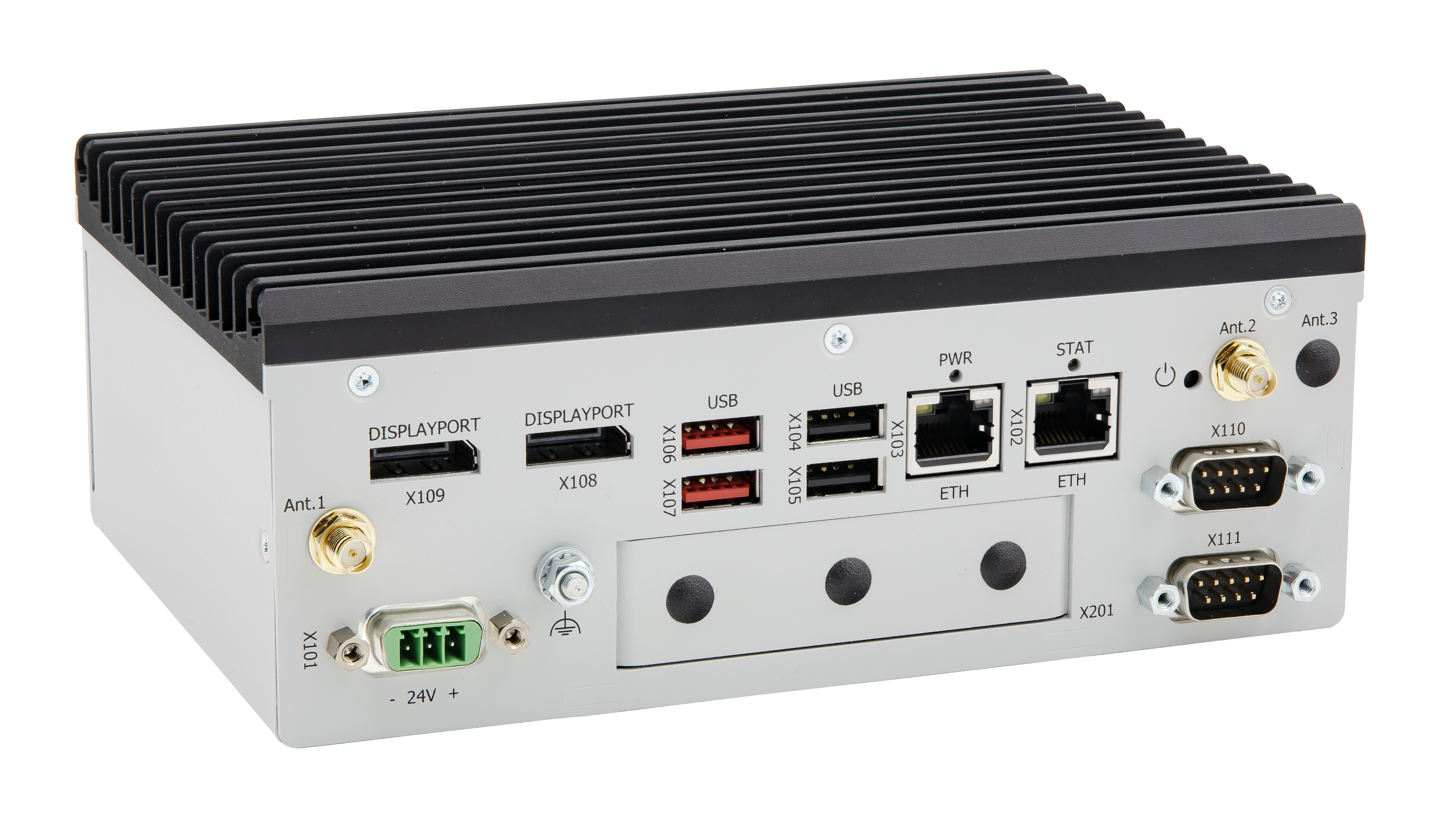

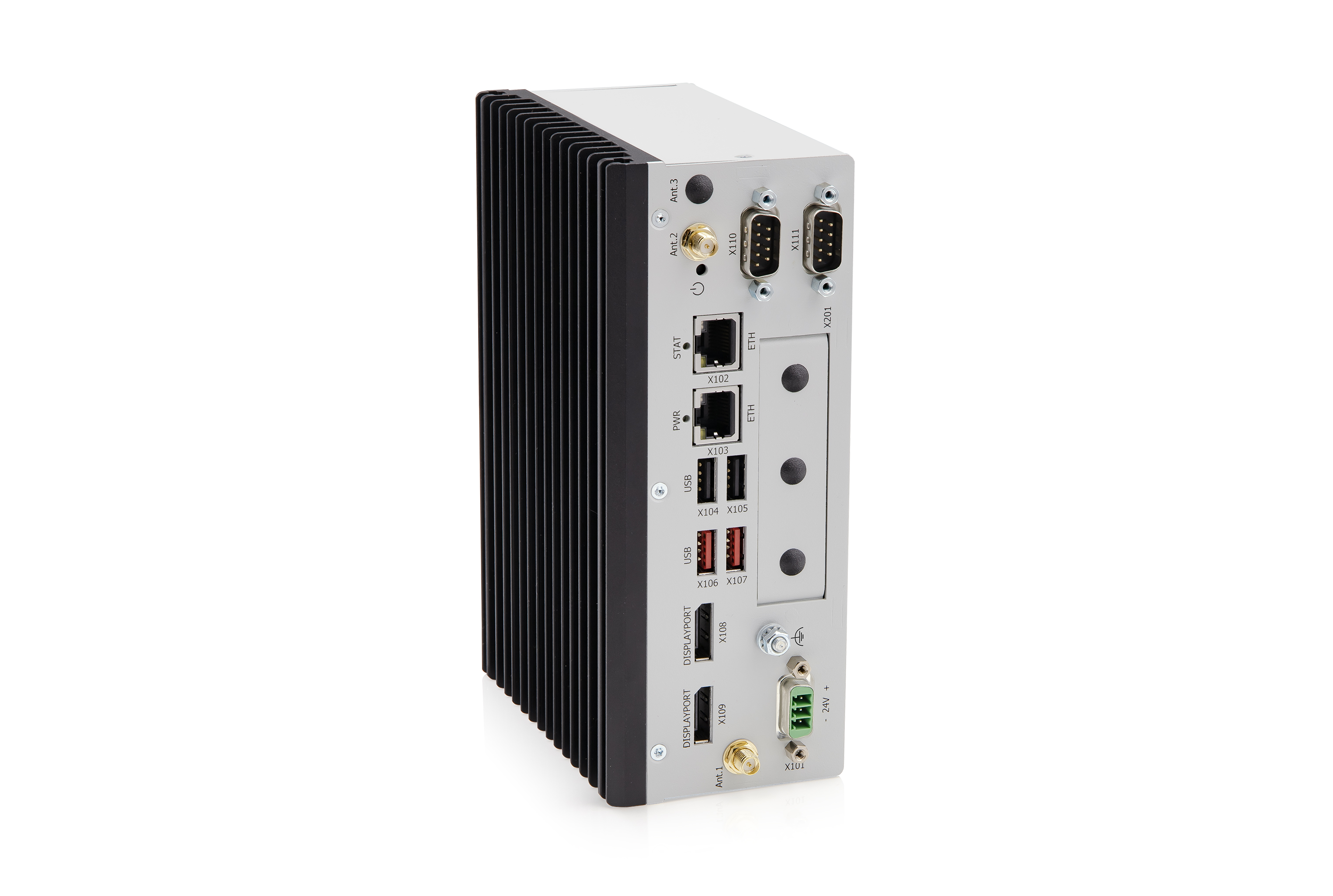

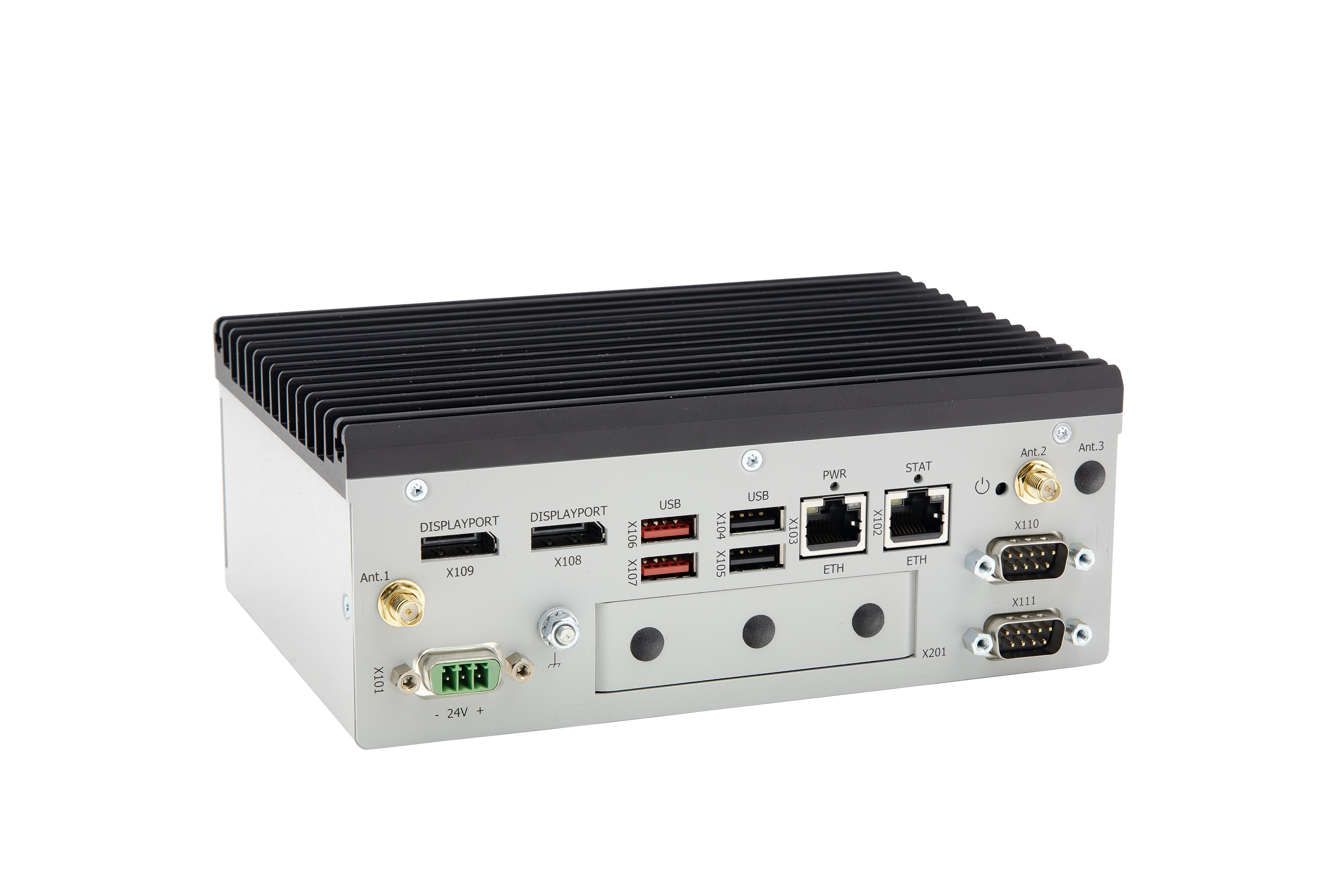

Based on Intel Atom® x6000 or Celeron® processors, the KBox A-151-EKL offers sufficient computing and graphics performance for IoT edge applications. As a special feature, the system has an expansion slot on the front (I/O Door), which can be used to expand the KBox A-151-EKL with additional functionalities such as fieldbuses, interfaces for graphics, serial or digital I/Os and Ethernet interfaces. Optionally, 4G/5G or WiFi 6 connectivity can also be added to the system.

The KBox A-151-EKL is specifically designed for performance-hungry low-power IoT gateway applications in industrial environments. Based on Intel Atom® x6425RE / x6212RE or Intel® Celeron® processor J6413 with up to four processing cores as well as a maximum memory expansion of 32 GB, the new Box PC supports OEM manufacturers and system integrators in realizing the full potential of their IoT infrastructures.

To meet the increased cyber security requirements, Kontron offers the hardened and secure Linux®-based KontronOS operating system and the KontronGrid fleet management solution for managing and simplifying the roll-out of container applications on edge devices.

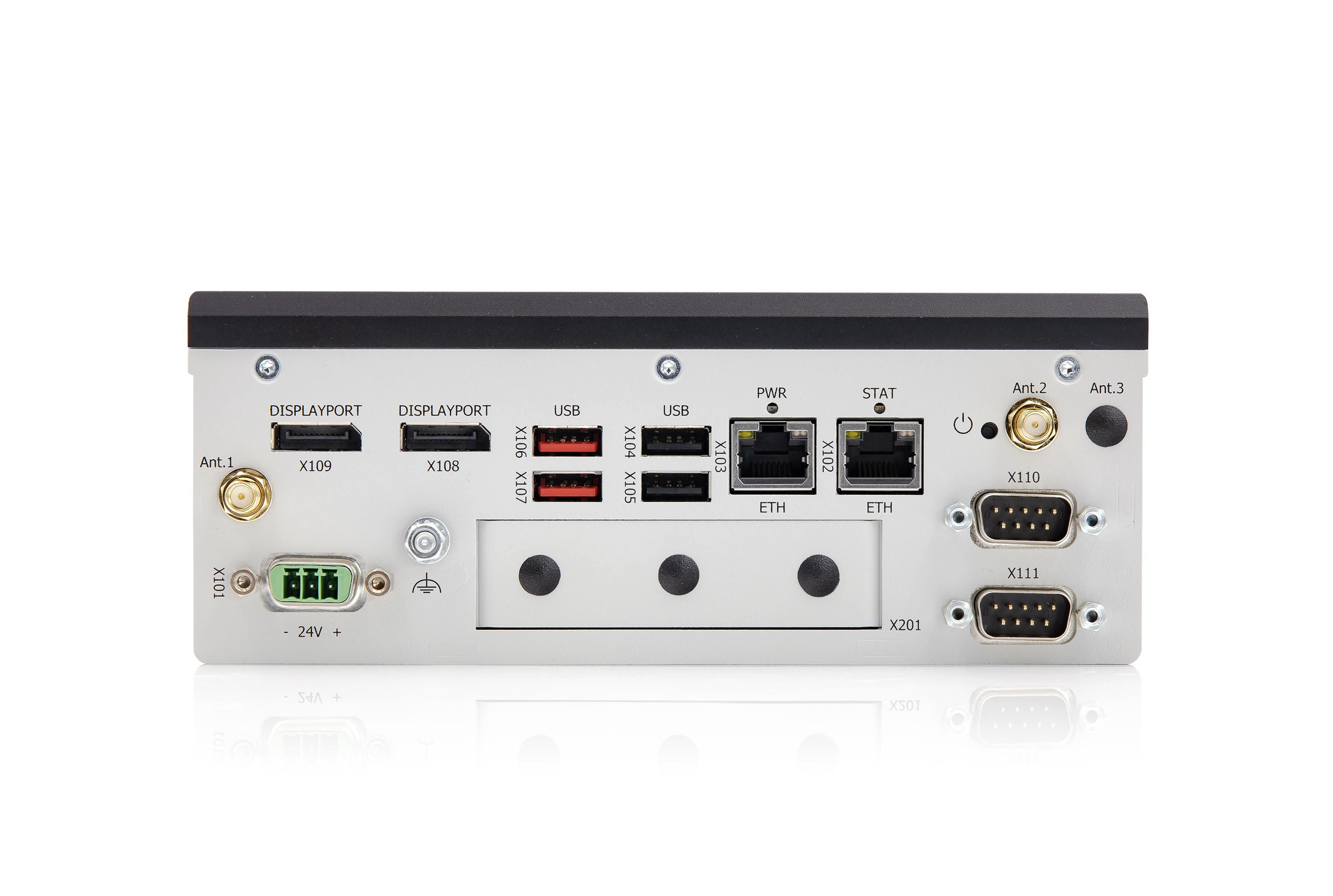

In addition to two DisplayPorts and two 2.5 GbE interfaces with TSN functionality, the new KBox A-151-EKL also features two USB 3.2 and two USB 2.0 as well as two RS232/422/485 interfaces .

A wide range of functionalities can be added to the system by means of the three M.2 expansion slots, which can also be used for integrating fieldbuses and wireless technology such as 4G/5G or even WiFi 6 connectivity, in addition to integrating NVMe SSDs. The majority of system expansions are made accessible via the new expansion slot (I/O Door) located on the front of the system.

The fanless, robust system design guarantees an extended service life and high system availability even in harsh industrial environments. The KBox A-151-EKL can be operated in the range from 0 °C to +60 °C or optionally in the extended temperature range between -40 °C and +60 °C. The Box PC can be easily integrated into a wide range of industrial environments by means of DIN rail mounting or wall mounting.



Downloads

Datasheets

Datasheet KBox A-151-EKL_Aug 2023
[ kbox-a-151-ekl_datasheet.pdf, 793.69 KB, Nov.13.2024 ]

Manuals

KBox A-151-EKL User Guide
Rev 1.3 Jun. 27, 2024
[ kbox-a-151-ekl_user-guide_rev-1-3_2024-06-27.pdf, 4.02 MB, Jun.27.2024 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Tech Spec Sheet

Tech Specs K-Box
[ techspecs_embedded-box-pc_web_us_kontron.pdf, 2.79 MB, Nov.13.2018 ]
