KBox A-150-KBL

DIN Rail Industrial Computer platform for powerful process control and optimization with Intel® Core™ 7th generation processors
Mouseover Zoom loading...
  • High performance with Intel® Core™ 7th generation processors and Intel® Celeron® 3965U processor
  • Fanless cooling

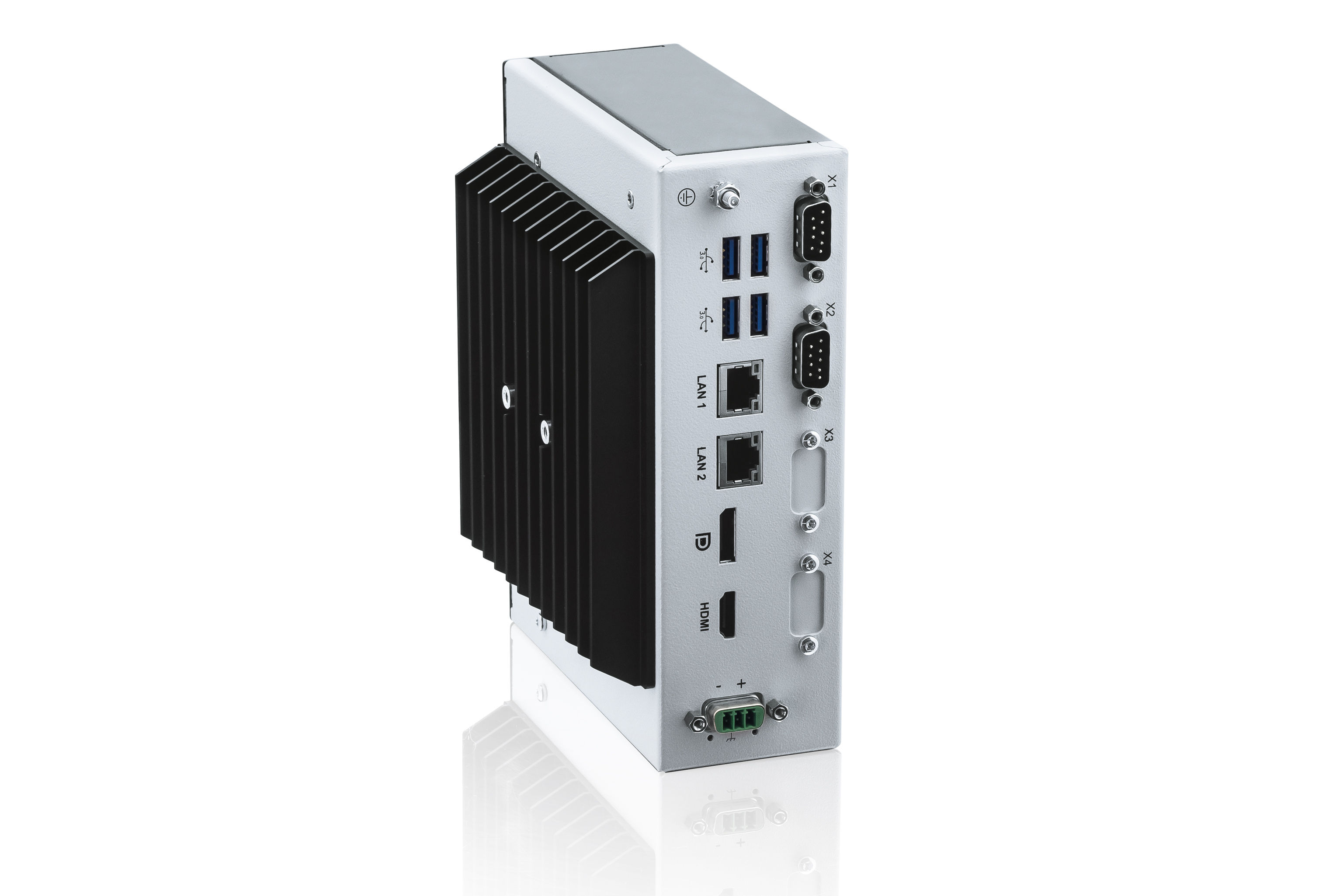

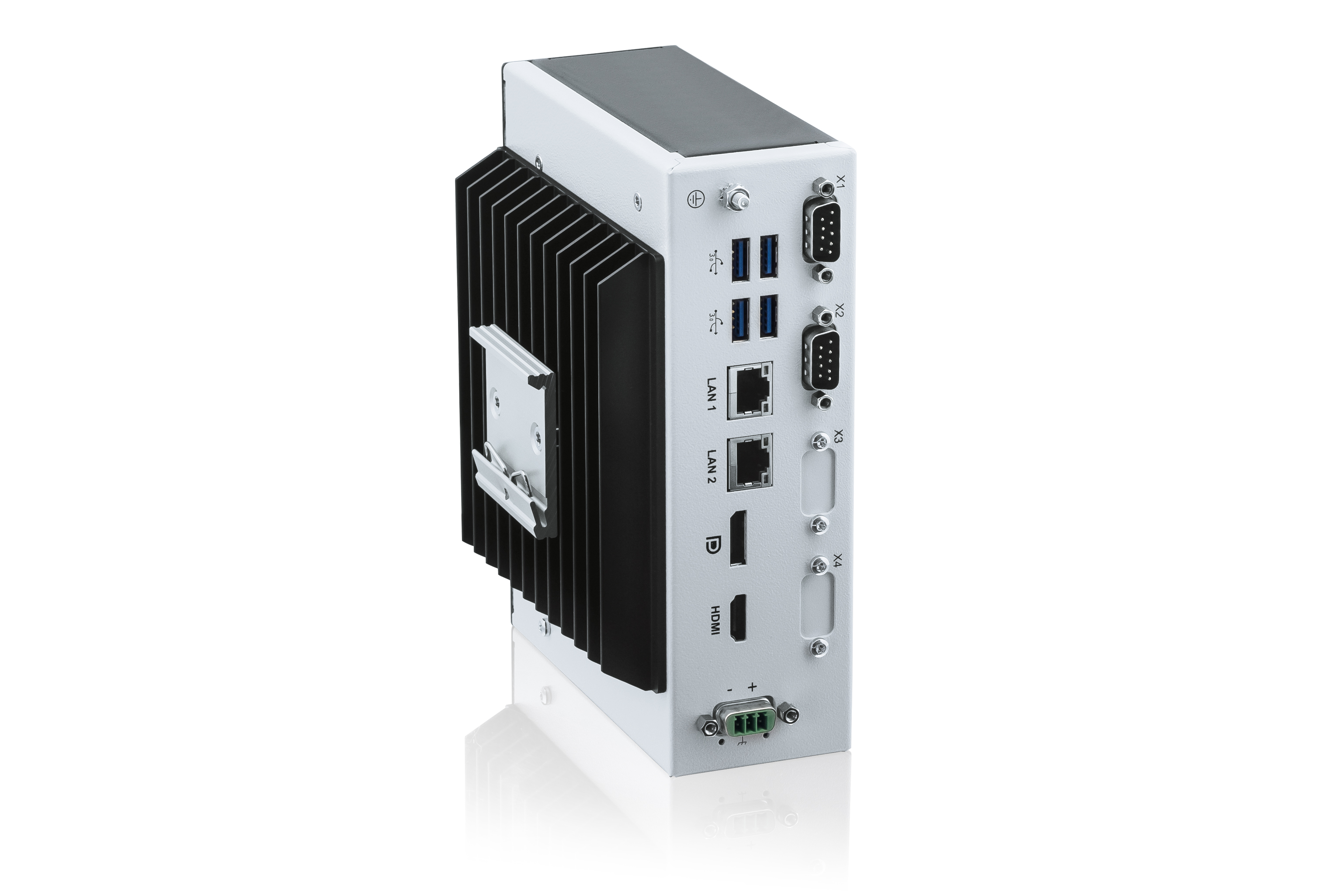

  • Flexible DIN rail mounting option with rotatable heat sink
  • Wide range of interfaces and expansion options
Download Datasheet

Developed specifically for control cabinet applications the new KBox A-150-KBL offers flexible DIN Rail mounting positions even when space is limited. The fanless design ensures a significantly prolonged lifespan and high system availability. The KBox A-150-KBL offers high processor performance at low power dissipation with Intel® Core™ 7th generation processors and Intel® Celeron® 3965U processor.

The KBox A-150-KBL supports Kontron's Security Solution APPROTECT based on WIBU Systems technology on request. In tandem with a specifically developed software framework, it provides full IP and copy/reverse engineering protection through its optional WIBU-Systems security chip. The KBox A-150-KBL is Microsoft® Azure certified. This means the hardware is tested and verified and can be integrated into Microsoft® Azure IoT Services.


Processor Intel® Core™ i5-7300U
2.6 GHz/3.5 GHz (Burst)
Main Memory Up to 16 GB Max. with 2x DDR4 2133 SODIMM
Audio Optional
Interface 4x USB 3.0
2x LAN (GbE)
1x DP
2x COM ( RS 232, RS422, RS485, BIOS configurable)
Expansion Slots 1x mPCIe
Operating System Windows 10 IoT Enterprise (64 bit)
Linux Ubunto 16.xx (64 bit)
Mounting DIN Rail
Weight Approx. ~1 kg (~2.2 lbs.)



KBox A-150-KBL_20180410_datasheet
[ kbox-a-150-kbl_datasheet.pdf, 1.96 MB, Sep.04.2023 ]


KBox A-150-KBL User Guide
Rev 1.5 Sept. 15. 2023
[ kbox-a-150-kbl_user-guide_rev-1-5_2023-09-06.pdf, 3.9 MB, Sep.15.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Tech Specs K-Box
[ techspecs_embedded-box-pc_web_us_kontron.pdf, 2.79 MB, Nov.13.2018 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
