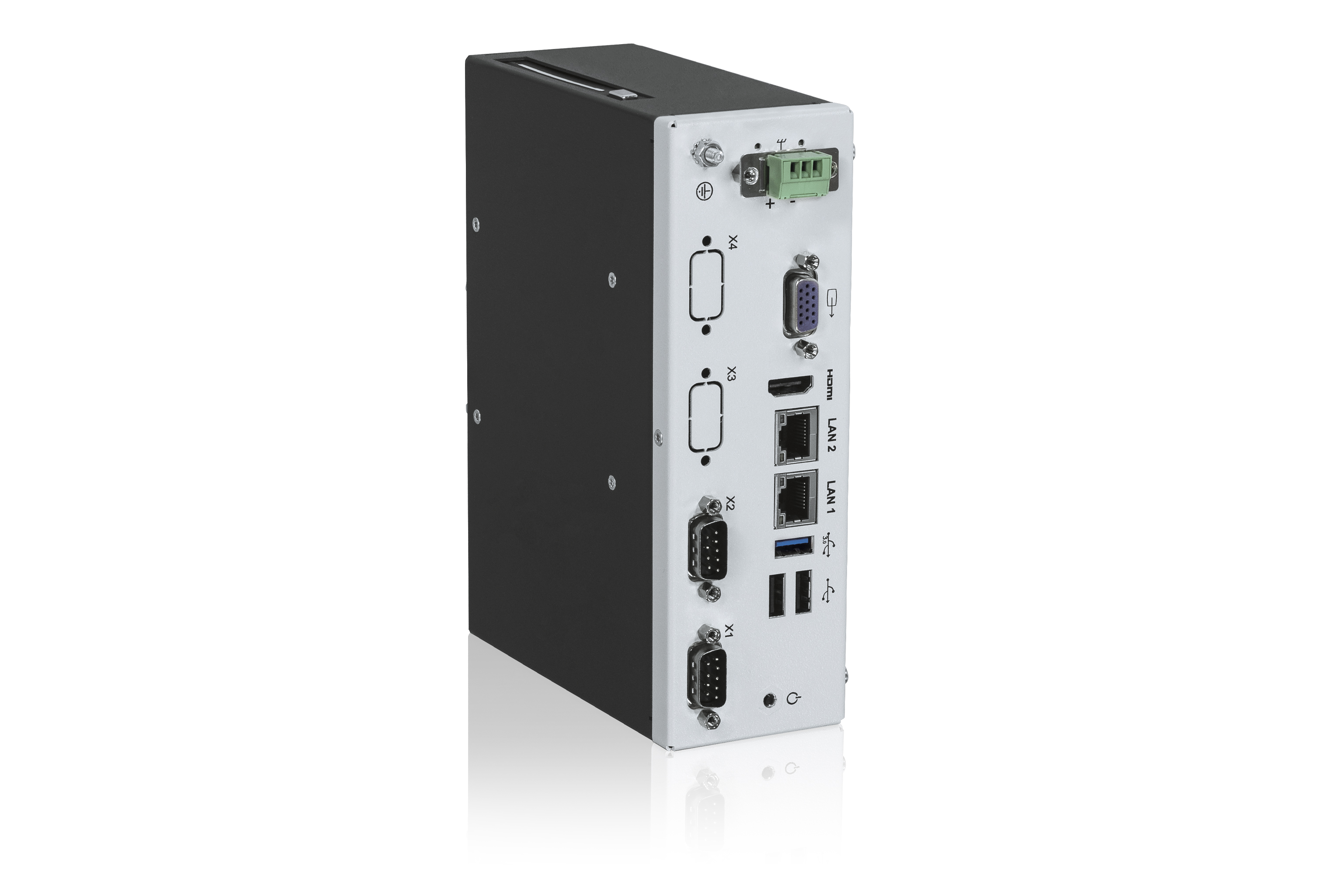

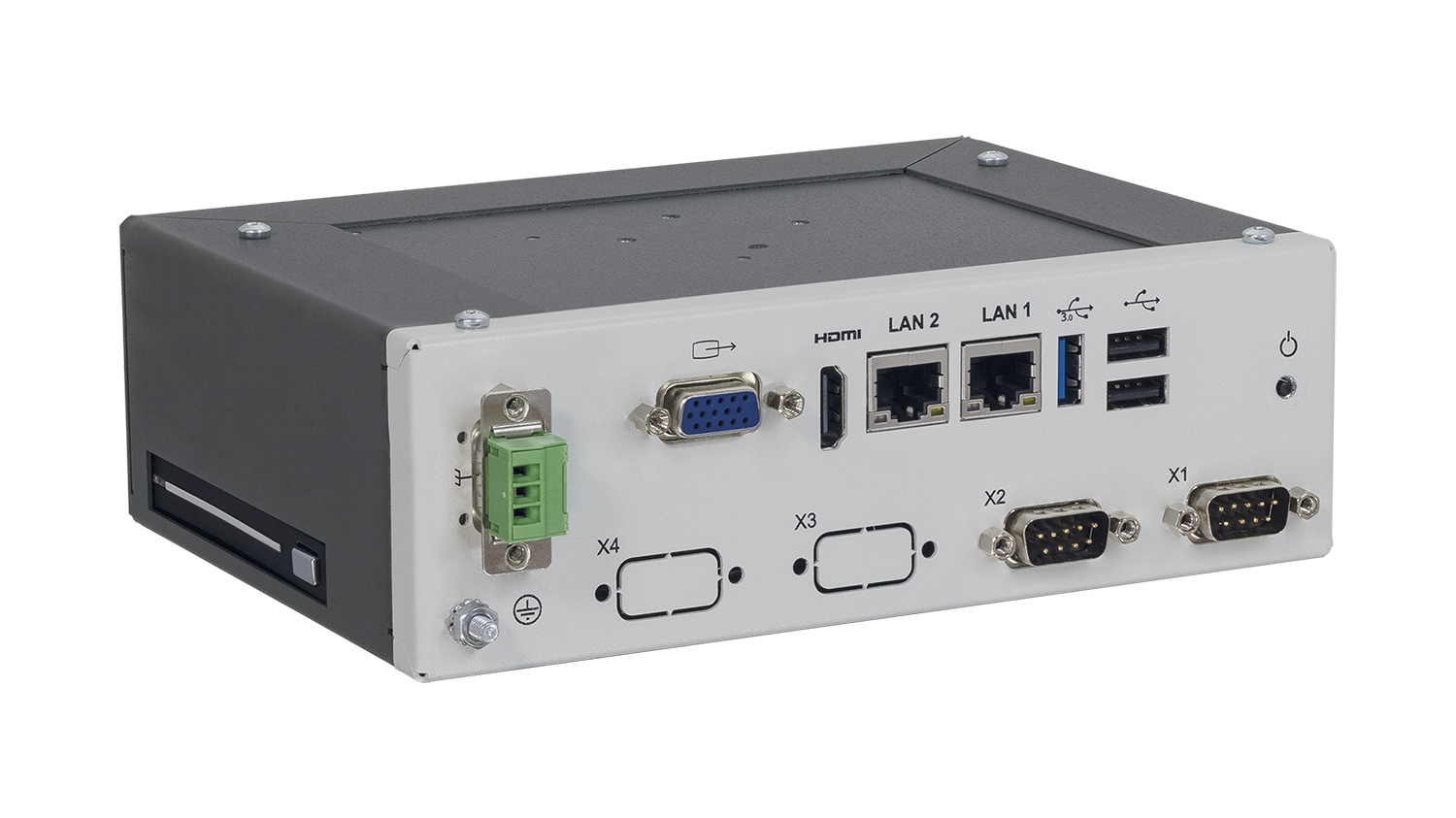

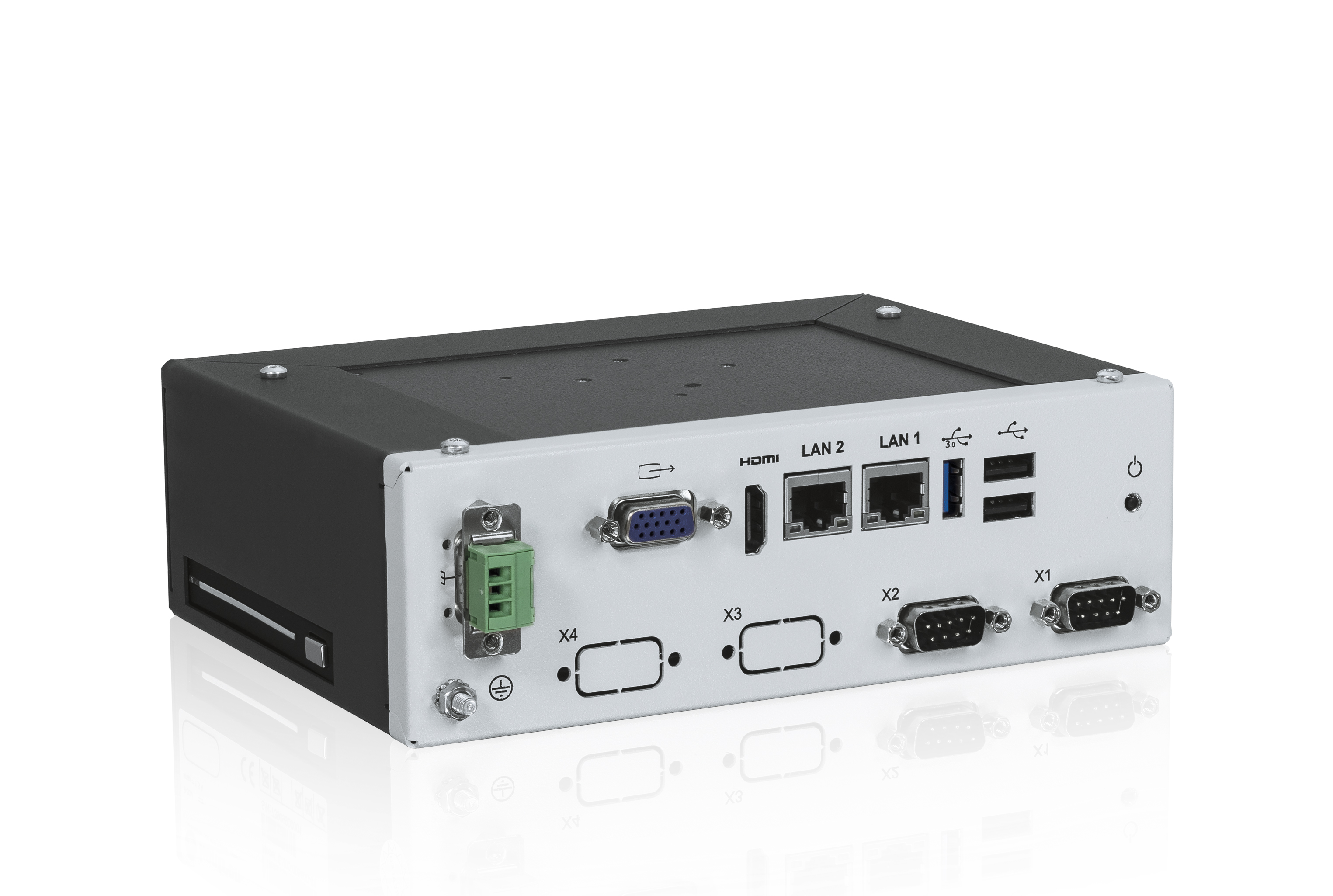

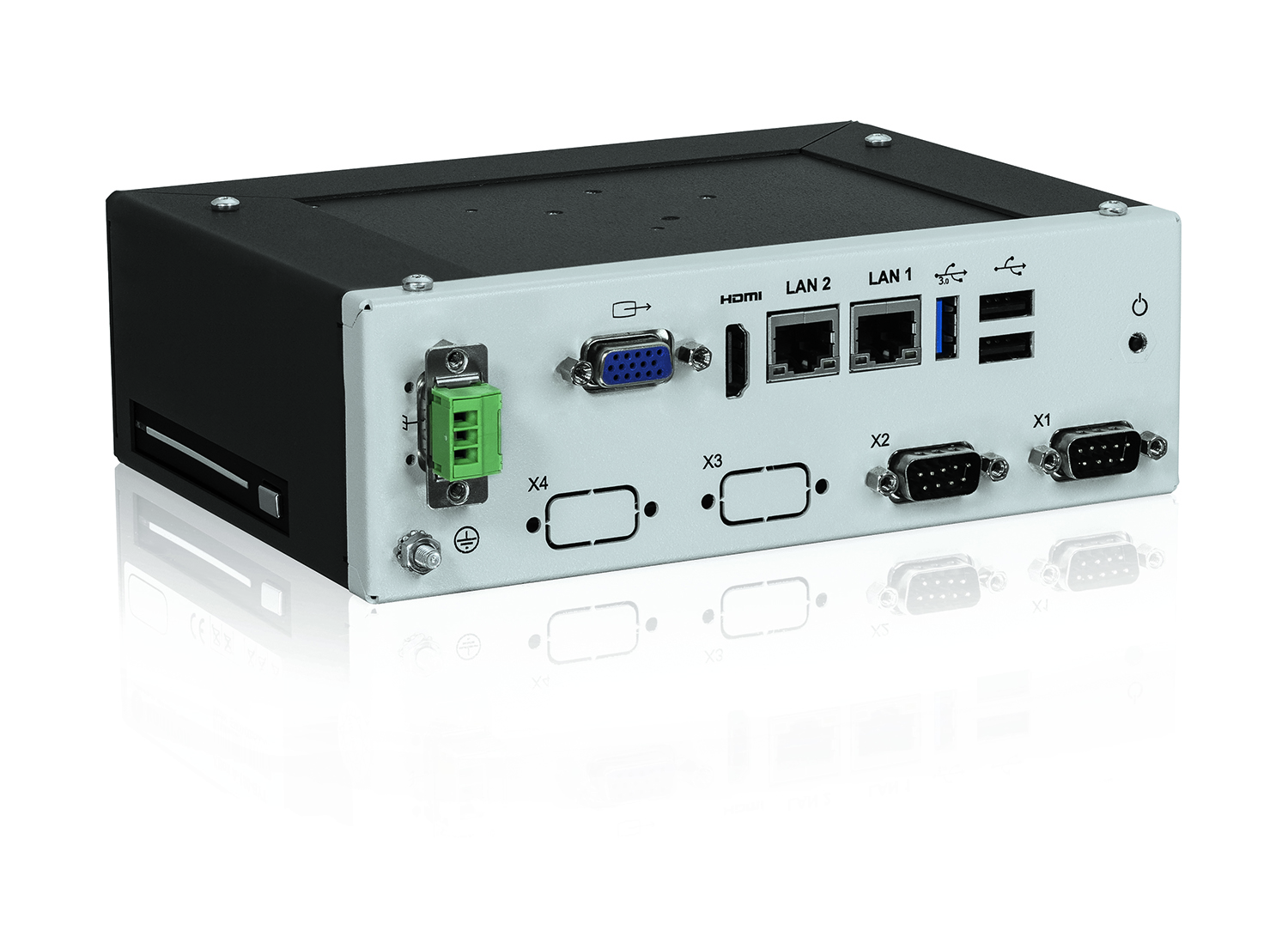

KBox A-150-BYT

DIN Rail Industrial Computer Platform for control & process optimization with Intel® Celeron® J1900 Quad Core processor
Mouseover Zoom loading...
  • Intel® Celeron® J1900 Quad Core processor
  • Fanless passive cooling, turnable heatsink optional
  • Flexible DIN RAIL mounting
  • Broad range of interfaces and expansion capabilities
  • Supports Kontron APPROTECT based on WIBU Systems technology optionally
Download Datasheet

Developed specifically for control cabinet applications the new KBox A-150-BYT with a turnable heatsink offers flexible DIN Rail mounting positions even when space is limited. The fanless design ensures a significantly prolonged lifespan and high system availability. The KBox A-150-BYT offers high processor performance at low power dissipation by an Intel® Celeron® J1900 Quad Core processor.

The KBox A-150-BYT supports Kontron's Security Solution APPROTECT based on WIBU Systems technology on request. In tandem with a specifically developed software framework, it provides full IP and copy/reverse engineering protection through its optional WIBU-Systems security chip. The KBox A-150-BYT is Microsoft® Azure certified. This means the hardware is tested and verified and can be integrated into Microsoft® Azure IoT Services.


Processor Intel® BayTrail Celeron® Quad Core J1900
2.0 GHz/2.4 GHz (Burst)
Main Memory 1x DDR-3L 1333 SODIMM 4 GB RAM (up to 8 GB Max.)
Graphics Intel® HD Graphics
Audio Realtek ALC 662
Interface 2x USB 2.0
1x USB 3.0
2x LAN (GbE)
1x VGA
2x COM ( RS 232, RS422, RS485, BIOS configurable)
Operating System Windows 7 for embedded systems (32 bit/64bit) and Windows 7 (WES) (64 bit)
Windows 8.1 Pro (32 bit/64 bit)
Windows 10 IoT Enterprise (64 bit)
Linux ubunto 16.xx
Mounting DIN Rail
Weight Approx. ~1 kg (~2.2 lbs.)



KBox A-150-BYT_20180410_datasheet
[ kbox-a-150-byt_20190114_datasheet.pdf, 1.44 MB, Sep.04.2023 ]


KBox A-150-BYT User Guide
Rev 1.4, Sept. 15. 2023
[ kbox-a-150-byt_user-guide_rev-1-4_2023-09-06.pdf, 2.96 MB, Sep.15.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Tech Specs K-Box
[ techspecs_embedded-box-pc_web_us_kontron.pdf, 2.79 MB, Nov.13.2018 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
