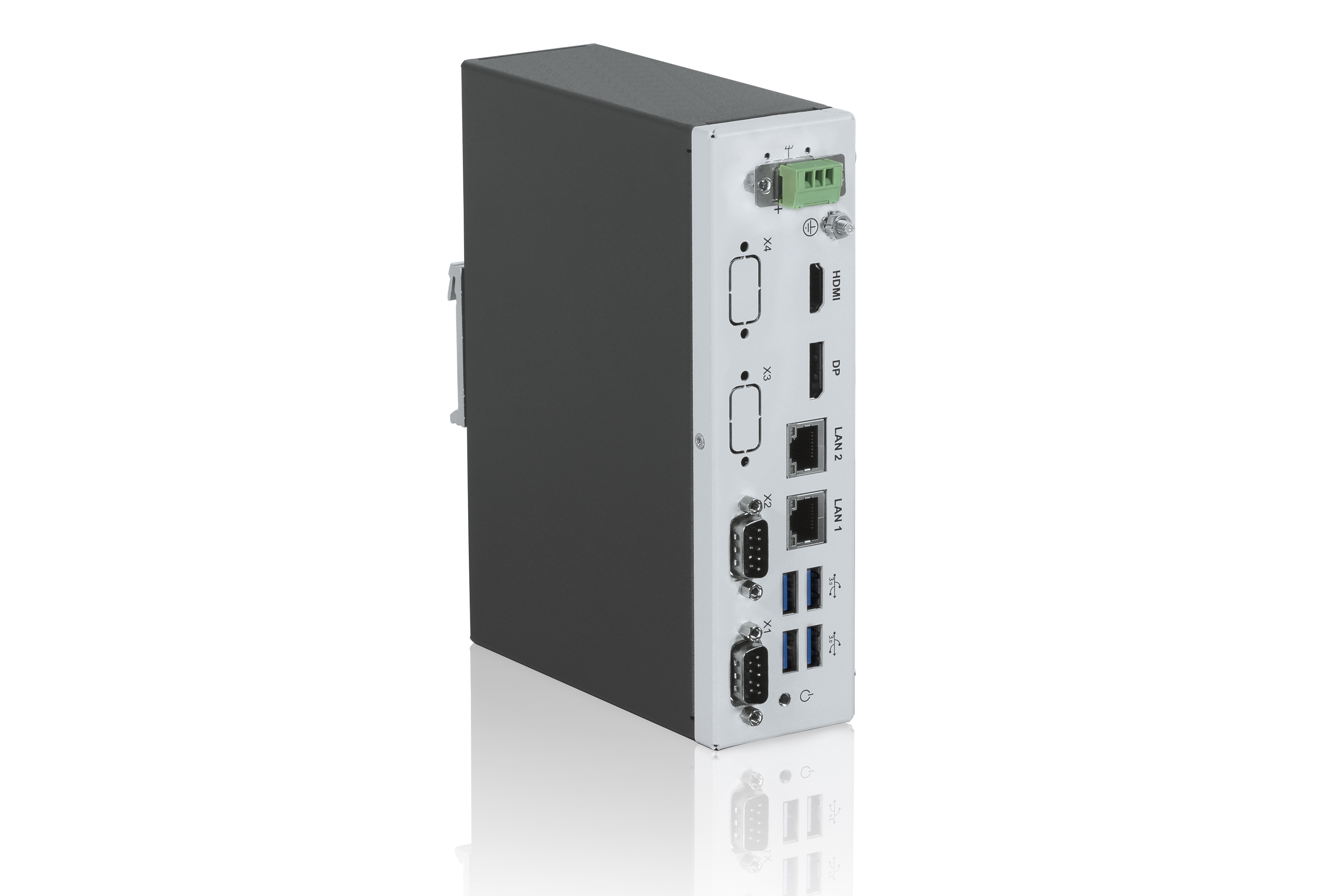

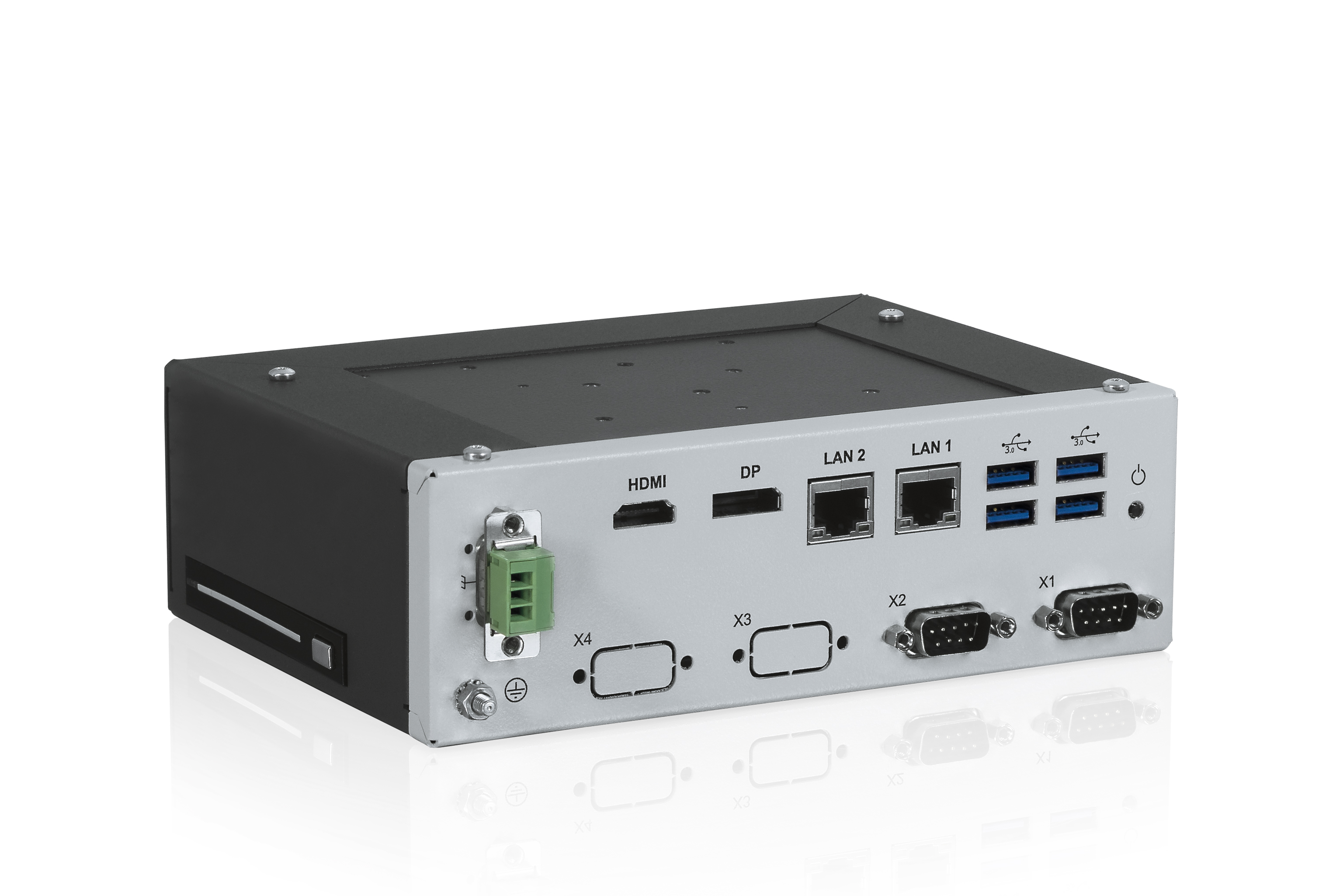

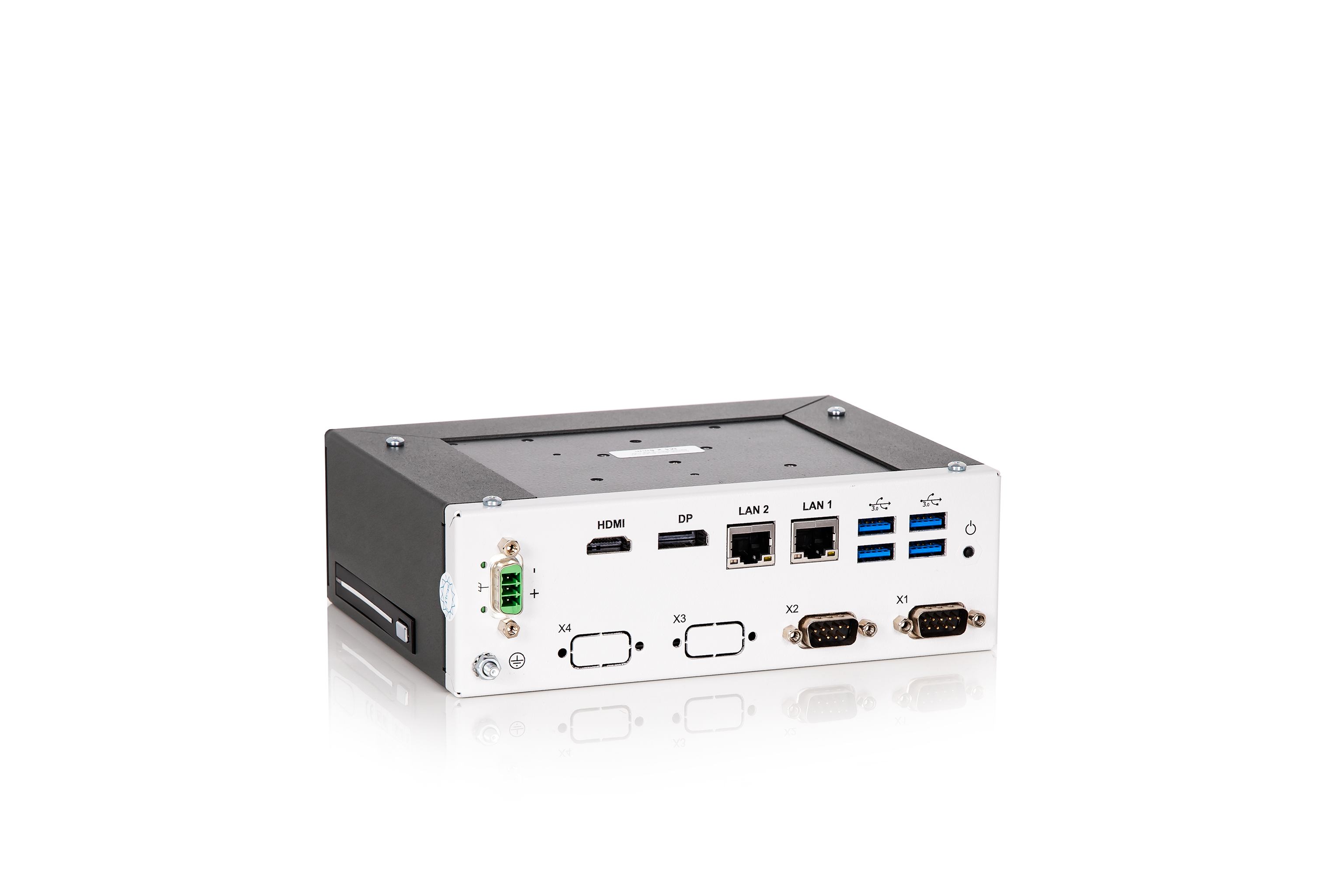

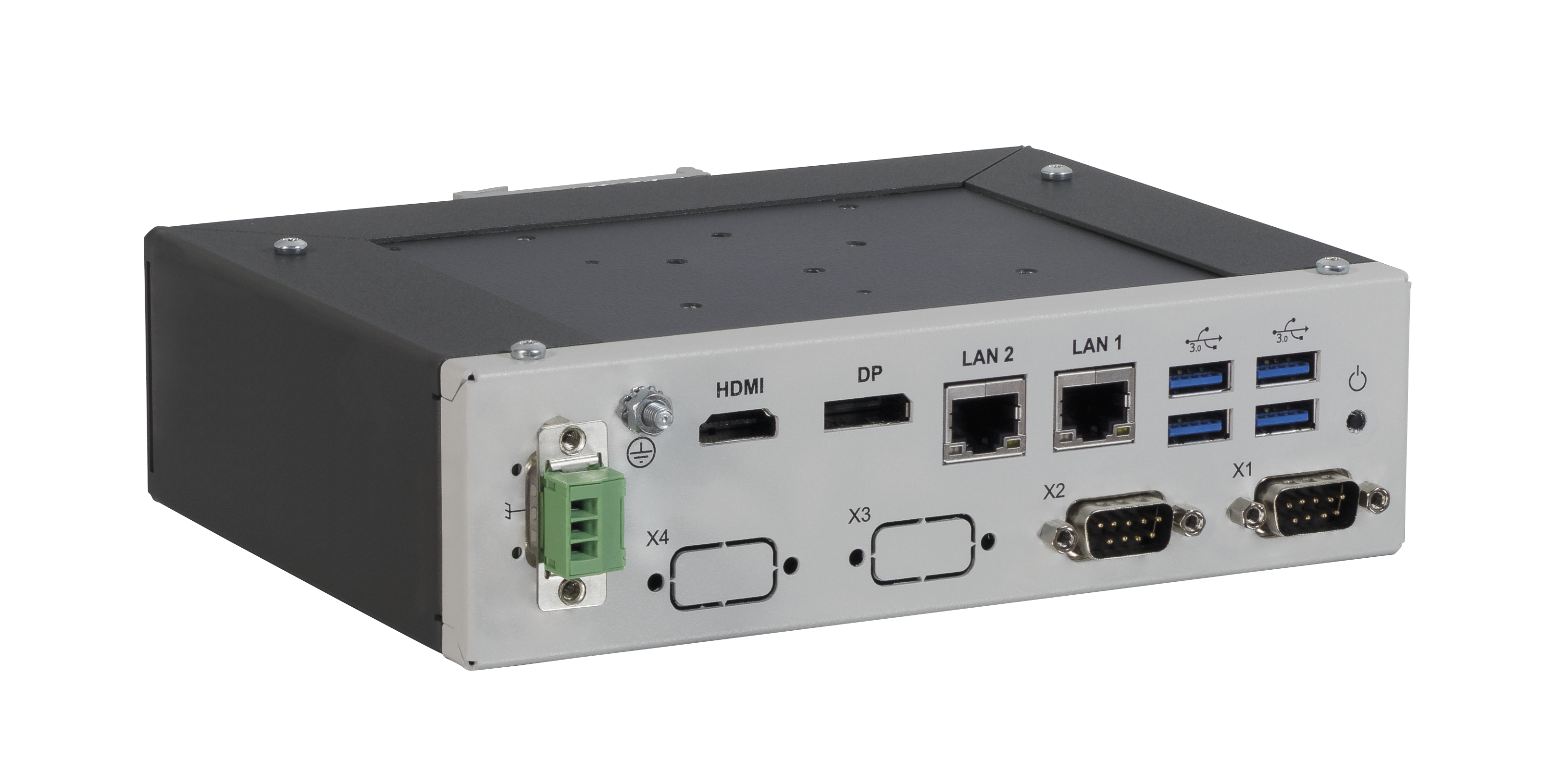

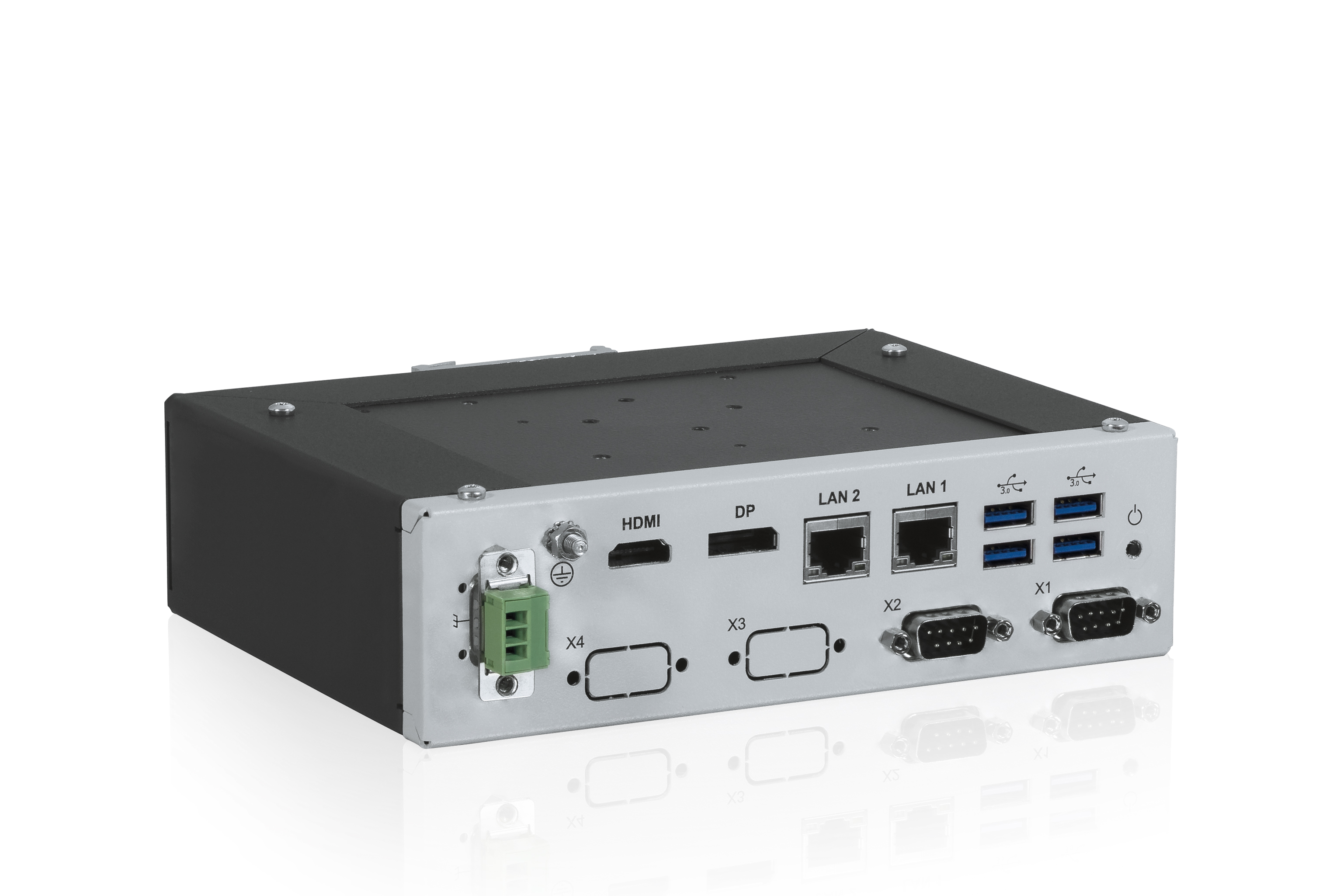

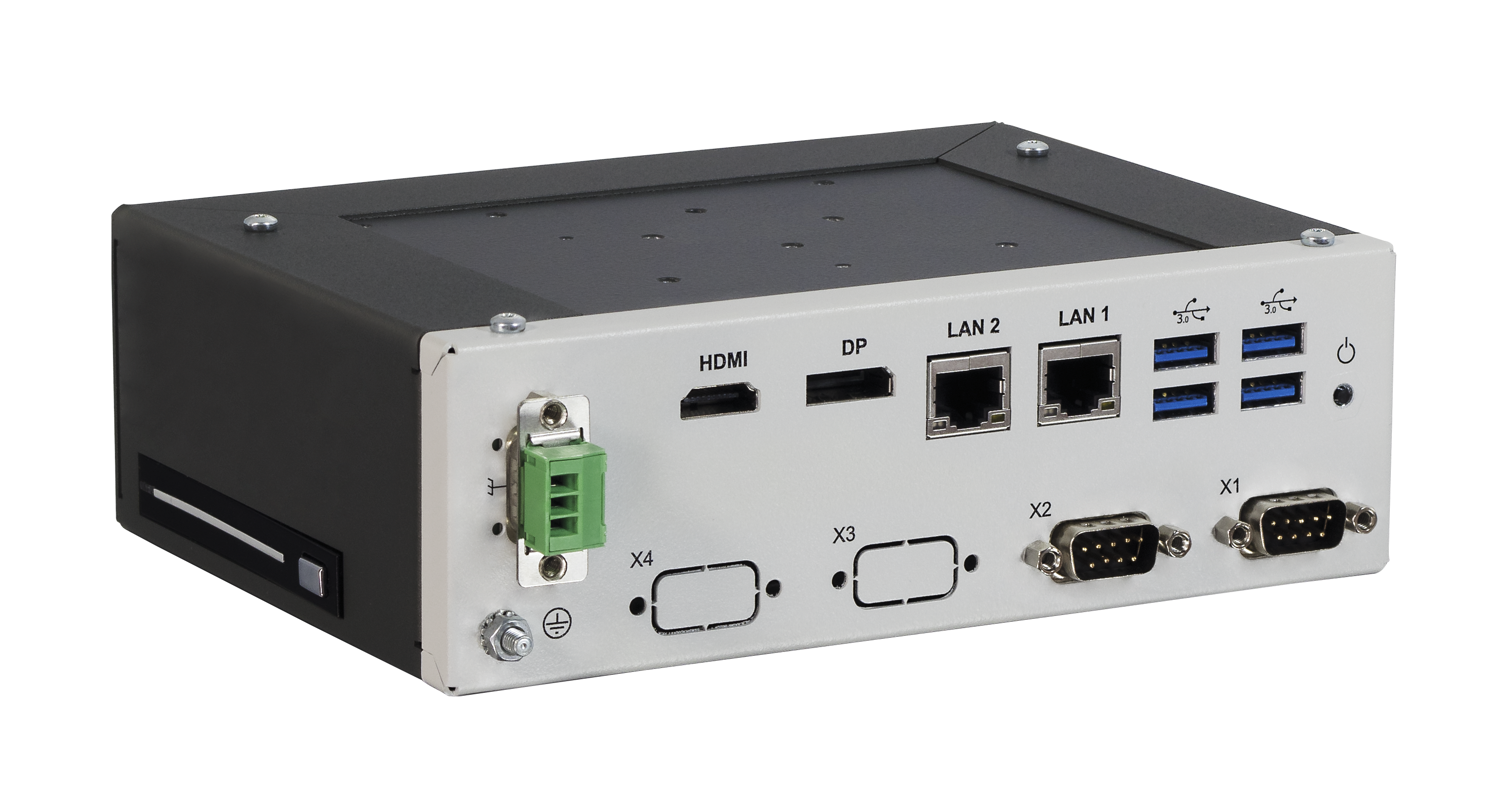

KBox A-150-APL

DIN Rail Industrial Computer platform for process control and optimization with the latest Intel Atom® X, J and N series processors

Mouseover Zoom loading...

Specifications

High performance with Intel® Pentium® Quad Core™ N4200, J3455 or X-E39xx processor
Fanless cooling
Flexible DIN rail mounting option with rotatable heat sink
Wide range of interfaces and expansion options

Download Datasheet

Developed specifically for control cabinet applications the new KBox A-150-APL offers flexible DIN Rail mounting positions even when space is limited. The fanless design ensures a significantly prolonged lifespan and high system availability. The KBox A-150-APL offers high processor performance at low power dissipation with the latest Intel Atom® X, J and N series processors.

Features

Processor

Intel® Pentium® Quad Core™ N4200
1.1 GHz /2.5 GHz (Burst)

Main Memory

Up to 16 GB Max. with 2x DDR3L 1867 SODIMM

Audio

Optional

Interface

4x USB 3.0
2x LAN (GbE)
1x HDMI
1x DP
2x COM ( RS 232, RS422, RS485, BIOS configurable)
2x COM (RS232 option)

Expansion Slots

1x mPCIe

Operating System

Windows 10 IoT Enterprise (64 bit)
Linux Ubuntu 16.xx (64 bit)

BIOS	AMI uEFI BIOS, Aptio V5

Mounting

DIN Rail

Weight

Approx. ~1 kg (~2.2 lbs.)
