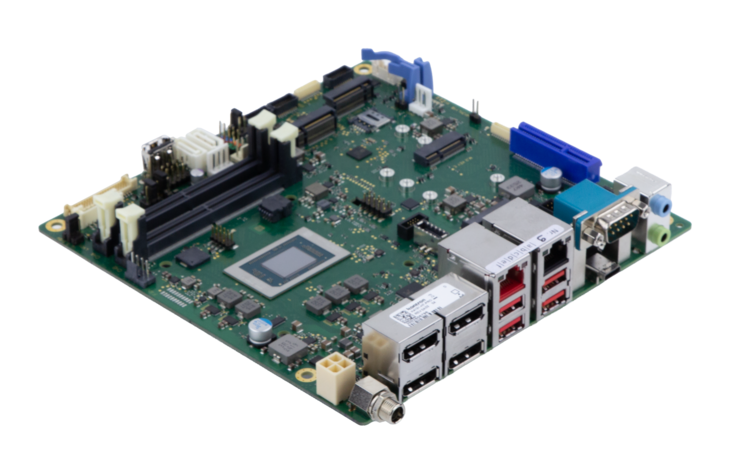

K4131-P mITX

The K4131-Px mITX Industrial Motherboard is based on AMD Ryzen™ AI Embedded processors, delivering high computing performance combined with integrated AI acceleration for demanding industrial applications. Featuring AMD Radeon™ RDNA 3.5 graphics integrated within the SoC, the platform enables advanced visual performance and supports complex multi-display configurations.

With support for up to four independent display outputs, including DisplayPort™ V2.0, USB4® / DisplayPort™ Alt Mode, embedded DisplayPort™ V1.4 with up to 4K resolution, and dual-channel 24-bit LVDS, the K4131-Px provides exceptional flexibility for modern HMI, visualization, and edge-AI systems. An integrated NPU delivering more than 50 TOPs further enhances AI inference capabilities directly at the edge.

Designed for scalability and system expansion, the motherboard offers multiple M.2 sockets, including M.2 Key-M, Key-B, and Key-E, supporting NVMe storage as well as wireless and expansion modules. A comprehensive set of I/O interfaces is available, including dual LAN with 1GbE and 5GbE support with Teaming, USB4® Type-C, USB 3.2 Gen 2, multiple COM ports, and GPIO, enabling seamless integration into a wide range of industrial systems.

Engineered for 24/7 continuous operation and supporting an extended operating temperature range from -10 °C to +60 °C, the K4131-Px meets the reliability requirements of industrial environments. It is ideally suited for a broad range of vertical markets, including industrial automation, AI-enabled edge computing, digital signage, and intelligent embedded systems.

Benefits of Kontron motherboards:

• Highest quality through German engineering and production
• Strict lifecycle management and reliable product maintenance
• Comprehensive feature and tool set
• Excellent technical support
• Beneficial total-cost-of-ownership
