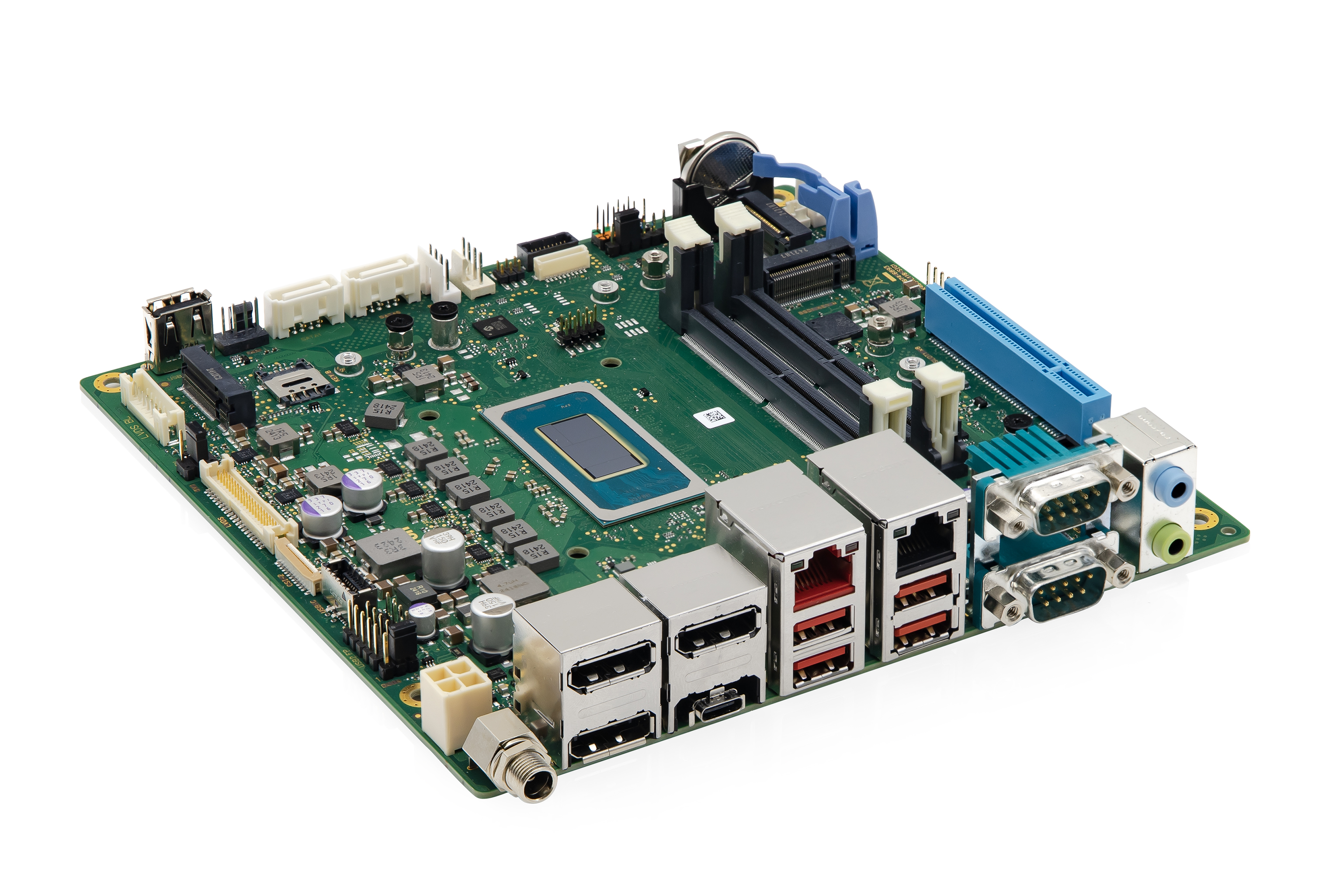

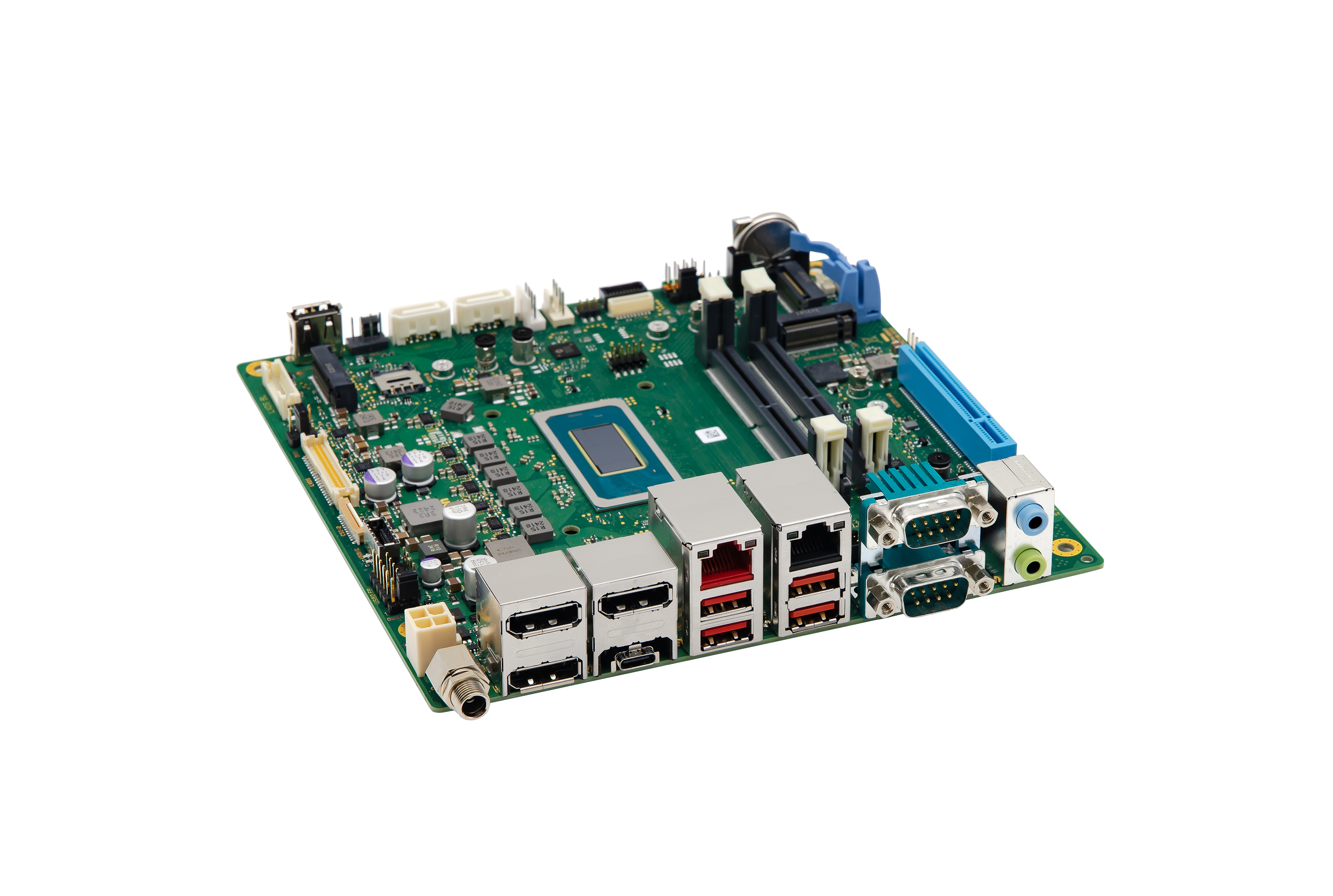

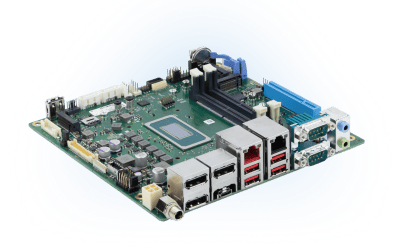

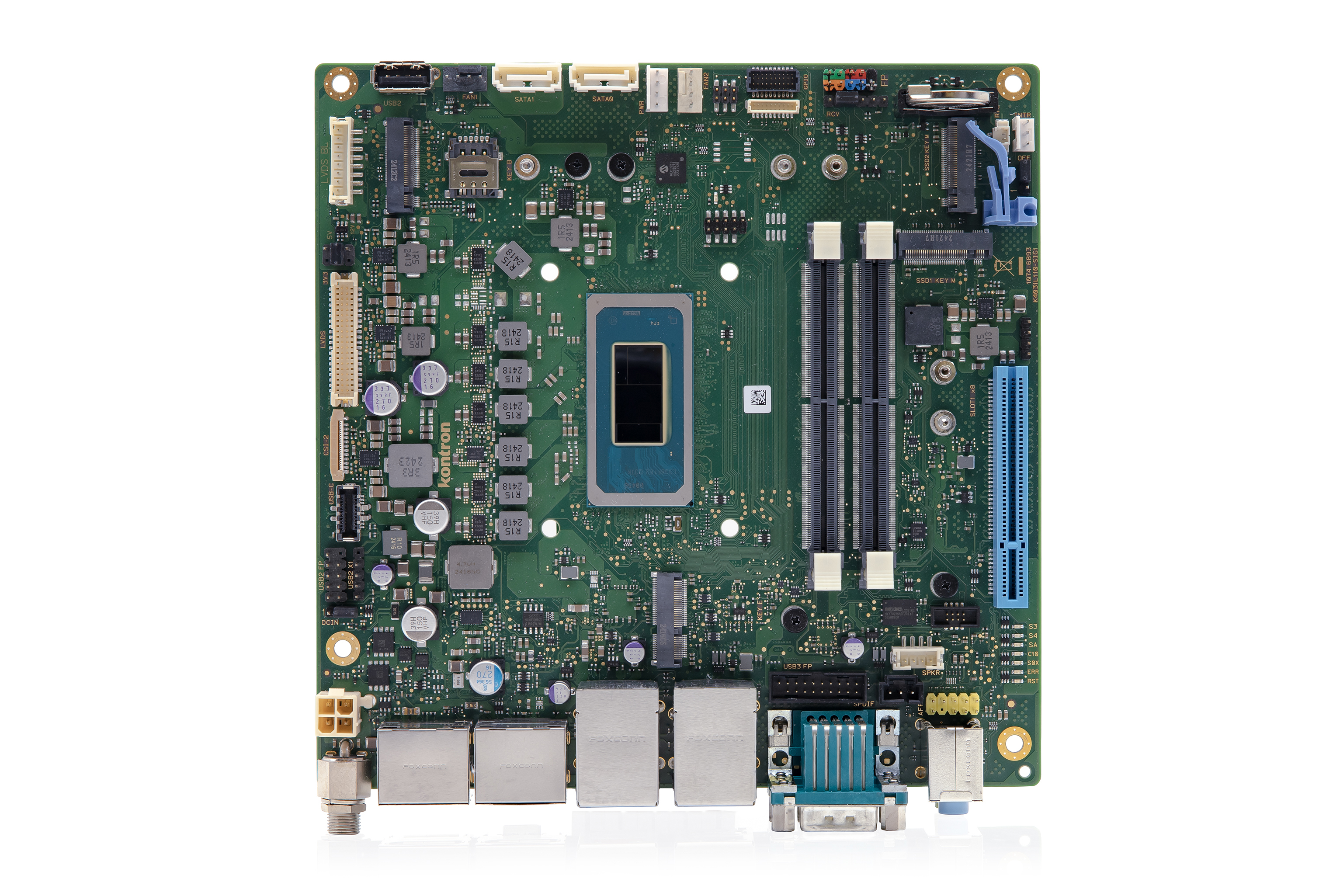

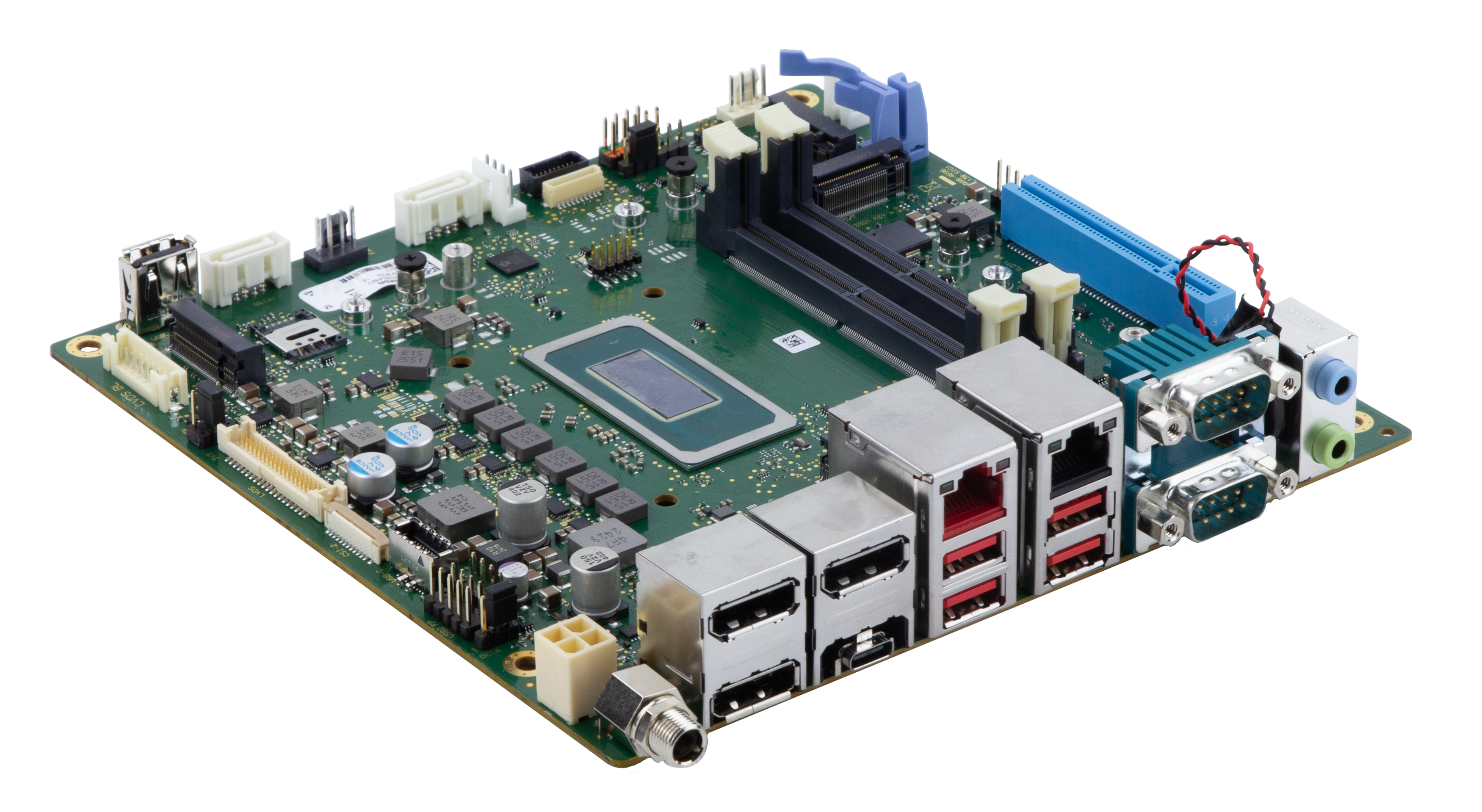

K4031-H mITX
Industrial Motherboard supporting Intel® Core™ Ultra 7 & 5 Processors Meteor Lake H
- Latest DDR5 memory technology for best-in-class system performance
- Intel® Arc™ GPU with up to eight Xe cores (up to 128 graphics execution units)
- Up to four concurrent 4K60 HDR displays or two 8K displays
- Dual Channel LVDS (24 Bit) and eDP V1.4b (4K) onboard
- New integrated NPU for dedicated AI acceleration with up to 20x performance/watt improvement
Product Information
The K4031-H mITX Industrial Motherboard is based on latest Intel® Core™ Ultra processors with advanced graphics capabilities through Intel® Arc™ architecture with up to 128 execution units. With support for up to four independent
4K displays or dual 8K outputs, the K4031-H offers outstanding visual capabilities through a versatile mix of Display-
Port™, USB Type-C with TB4/USB4®, embedded DisplayPort™ and dual-channel 24-bit LVDS interfaces.

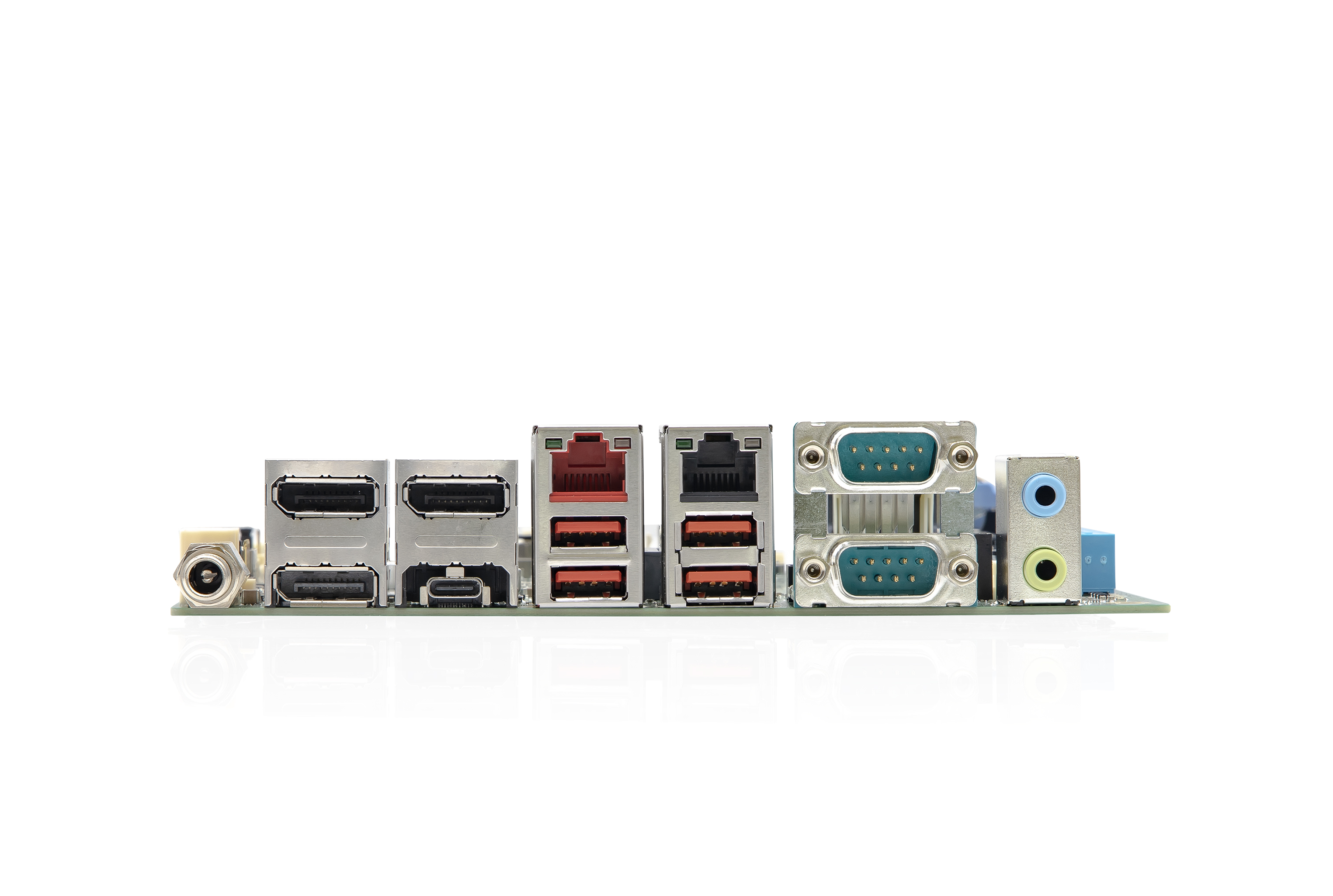

Designed for flexibility and scalability, the board features four M.2 slots for storage and wireless connectivity, along with a rich set of I/O options including GPIO, dual COM ports, USB 3.2 Gen2 and TB4 /USB4™. Built for 24/7 continuous operation and validated for enhanced temperature ranges up to 60 °C, the K4031-H is ideally suited for a wide range of vertical markets — from industrial automation to digital signage and medical systems.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Technical data
| Processor | Intel® Core™ Ultra 7 155H Intel® Core™ Ultra 5 125H Intel® NPU* integrated (up to 11 TOPS) , Intel® GNA 3.5 |
|---|---|
| Chipset | K4031-H2: Intel® Core™ Ultra 5 125H K4031-H5: Intel® Core™ Ultra 7 155H |
| Main Memory | DDR5 5600 SDRAM 2x SO DIMM socket, up to 96 GByte memory, non-ECC |
| Graphics Controller | Intel® Arc™ GPU with up to 8 Xe-cores |
| Display | 1x TB4/USB4® (DP2.1 up to UHBR20 8K) 3x DP V1.4a up to 8K 1x USB-C with DPoC via header (USB Key-A) 1x eDP V1.4b up to 5K, 1x Dual-Channel 24bit LVDS |
Downloads
Technical Specification
Motherboard and SMARTCASE™ Tech Specs
8.28 MB | March 26, 2026
White Paper
Modules and Motherboards WP
