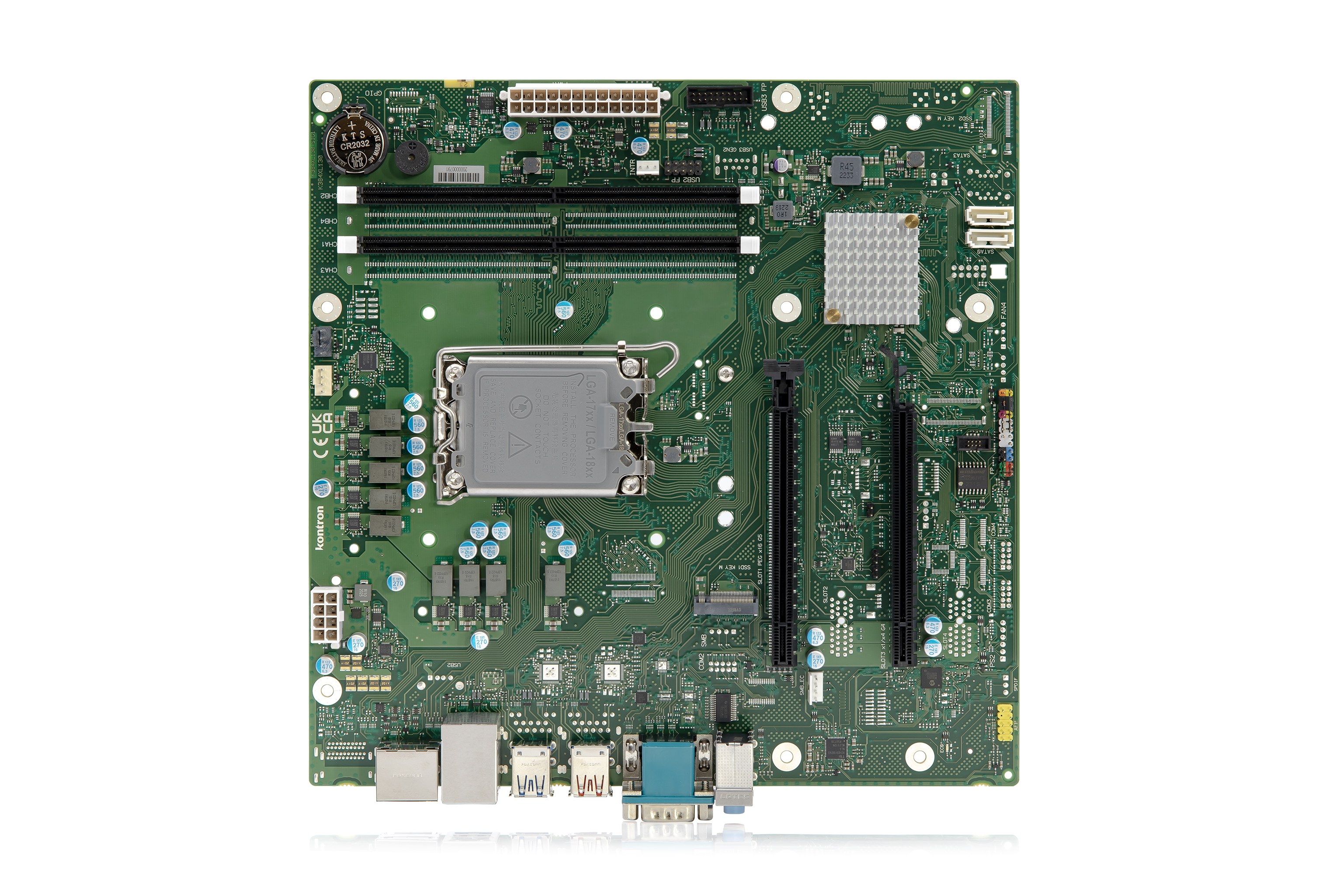

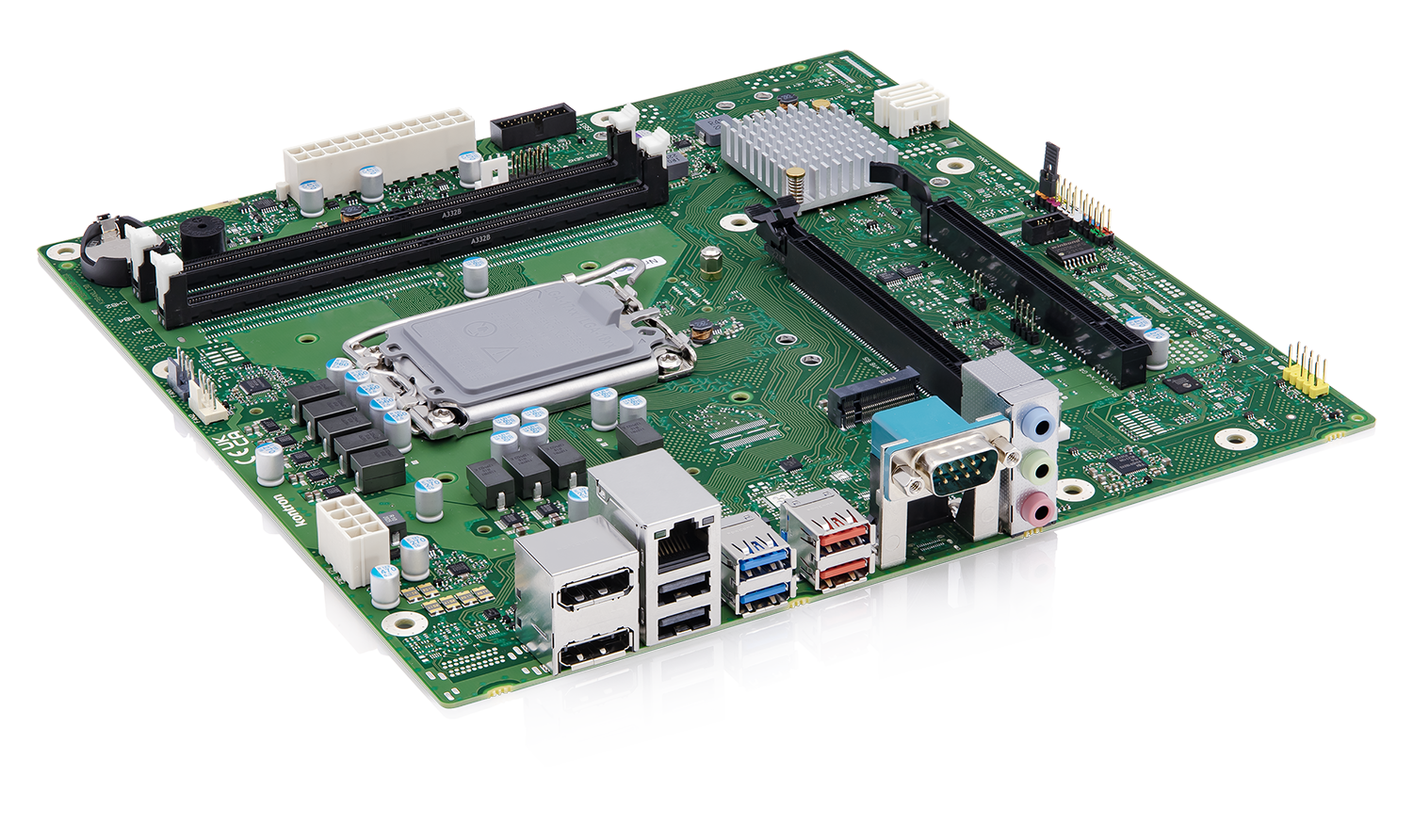

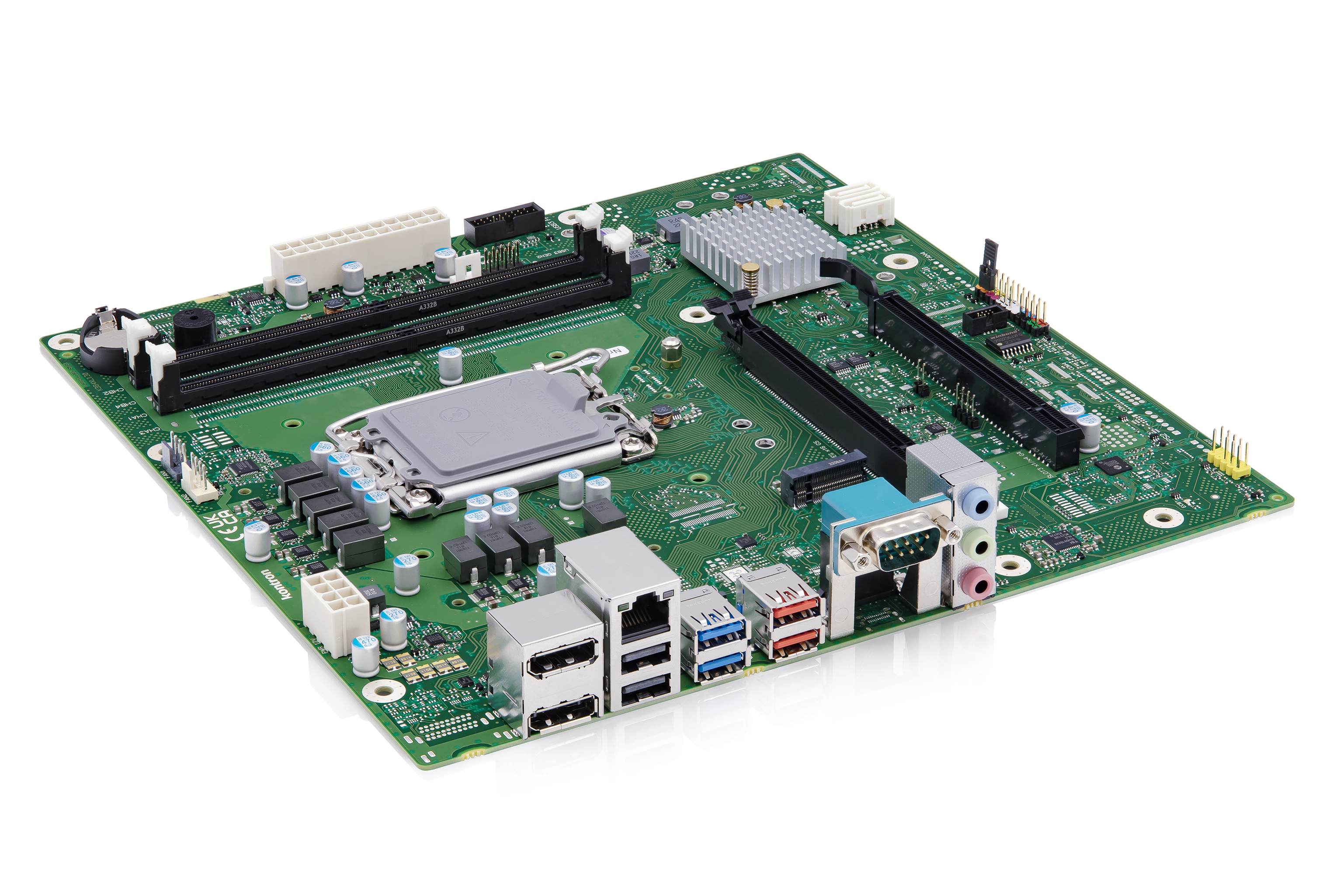

K3843-B2 µATX
Extended Lifecycle Motherboard supporting Intel® Core™ Processors (14th Gen/Series 2)
- Cost-effective iB660 platform
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Graphics 7xx driven by Xe Architecture
- M.2 2280 Key-M SSD socket onboard

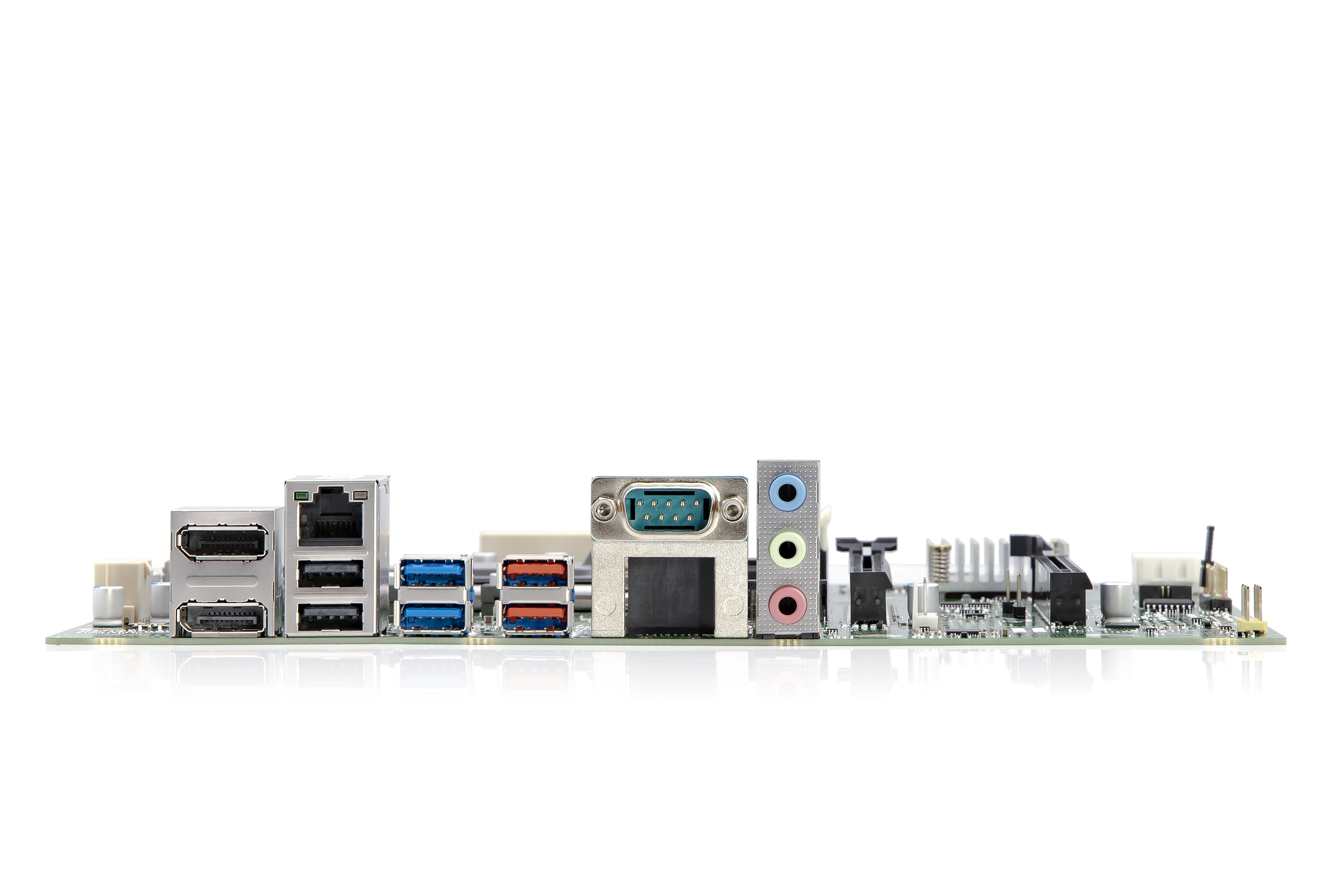

- Powerful USB 3.2 Gen2, 1x COM (RS-232)
Product Information
The Extended Lifecycle Motherboard K3843-B2 μATX is equipped with the highly performant Intel® B660 Chipset. It also offers a multitude of supporting processors such as the Intel® Core™ processors (12th/13th/14th Gen/Series 2) and the Intel® Pentium®/Intel® Celeron® processor series. Designed and approved for 24/7 continuous operation.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Download CPU Compatibility List
Technical data
| Processor | Intel® Core™ Processors (12th/13th/14th Gen/Series 2) Intel® Pentium®/Intel® Celeron® processor series |
|---|---|
| Chipset | Intel® B660 Chipset |
| Main Memory | 2x DDR5-4800 DIMM Sockets up to 96 Gbyte, Dual Channel, non-ECC Effective memory speed of DDR5-4800 modules according Intel® specification: 1x DIMM per channel = max. DDR5-4400 |
| Graphics Controller | Intel® UHD Graphics 7xx (depends on installed processor) |
| Display | 2x DPP V1.4a up to 8K |
Downloads
Technical Specification
Motherboard and SMARTCASE™ Tech Specs
8.28 MB | March 26, 2026
White Paper
Modules and Motherboards WP
