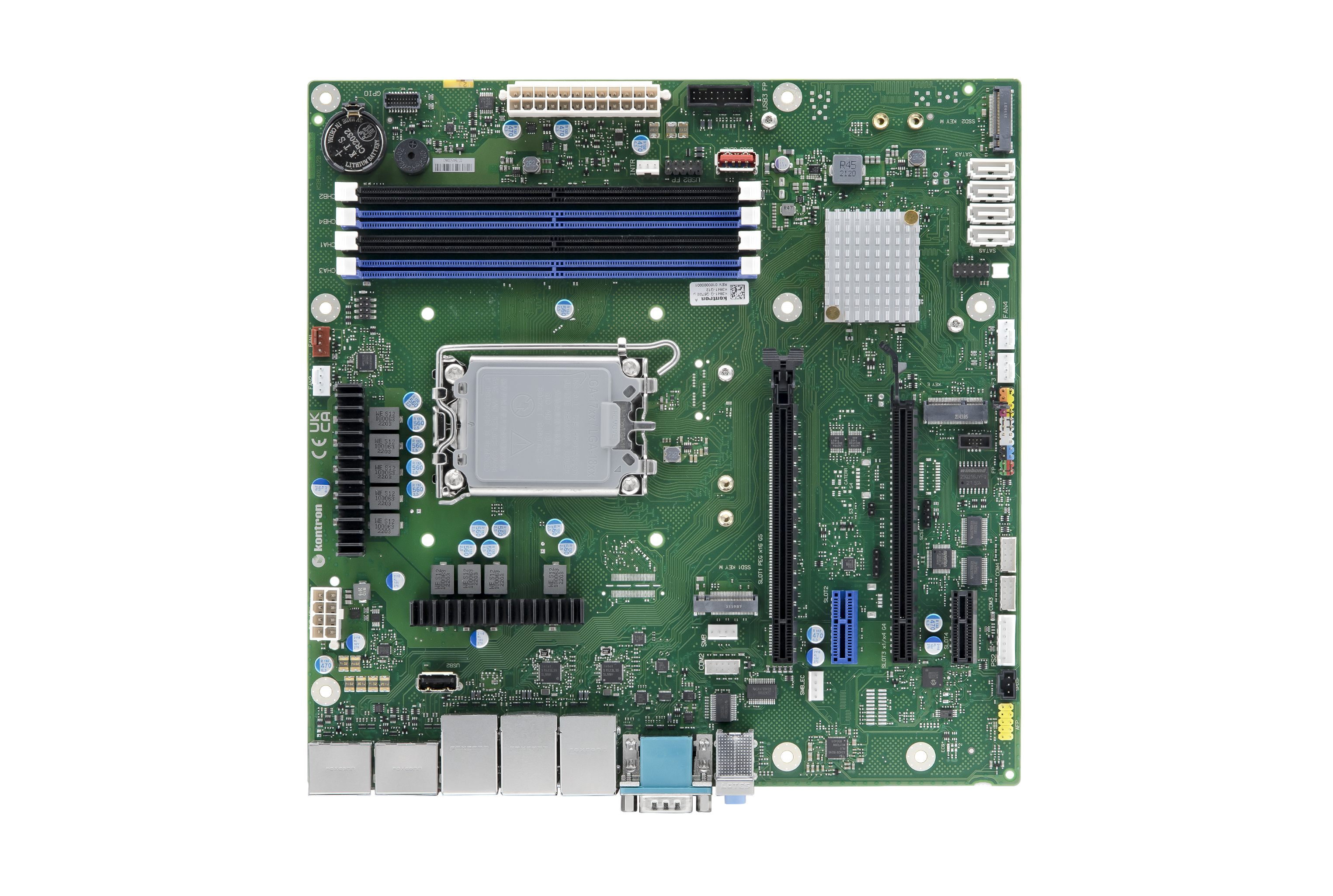

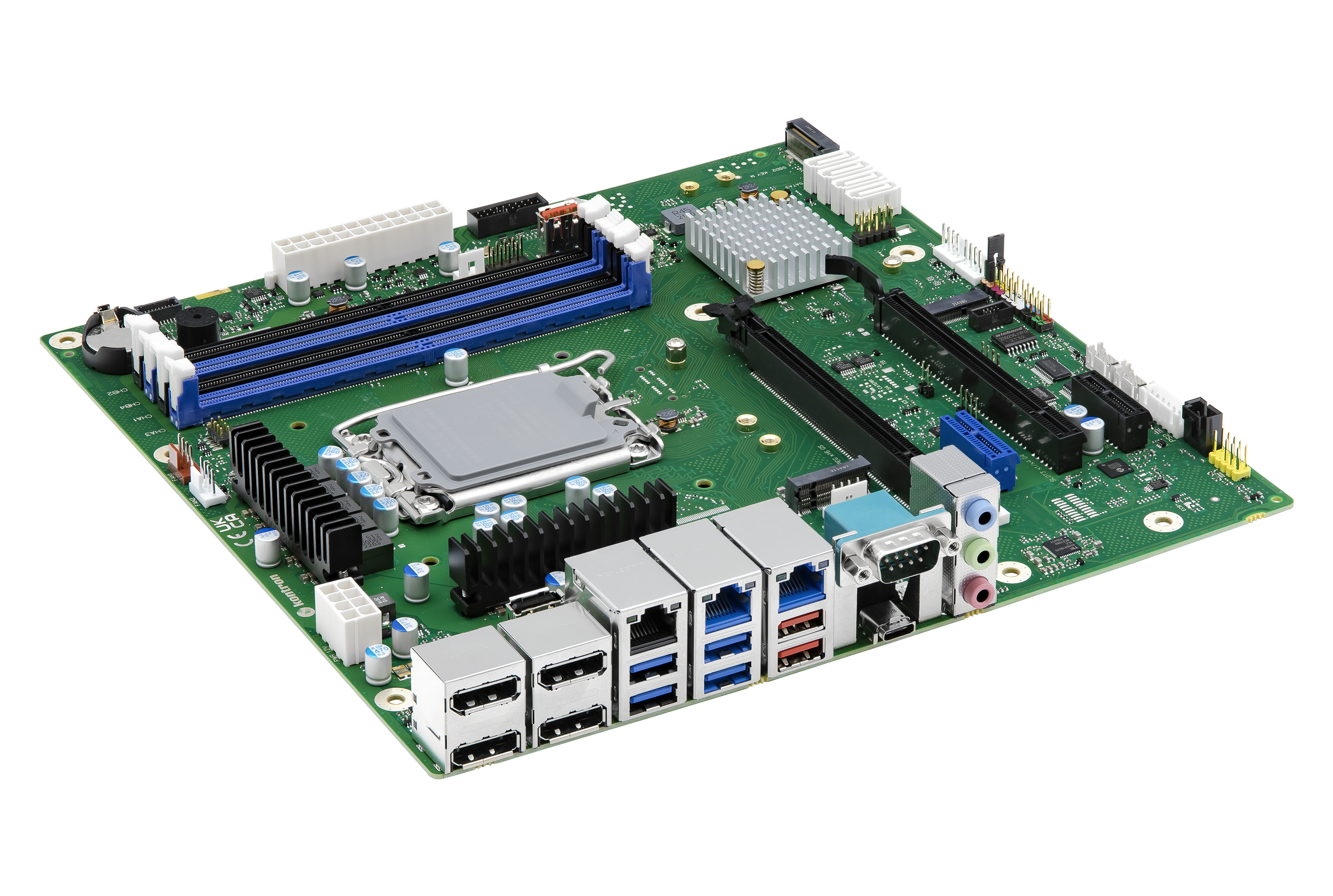

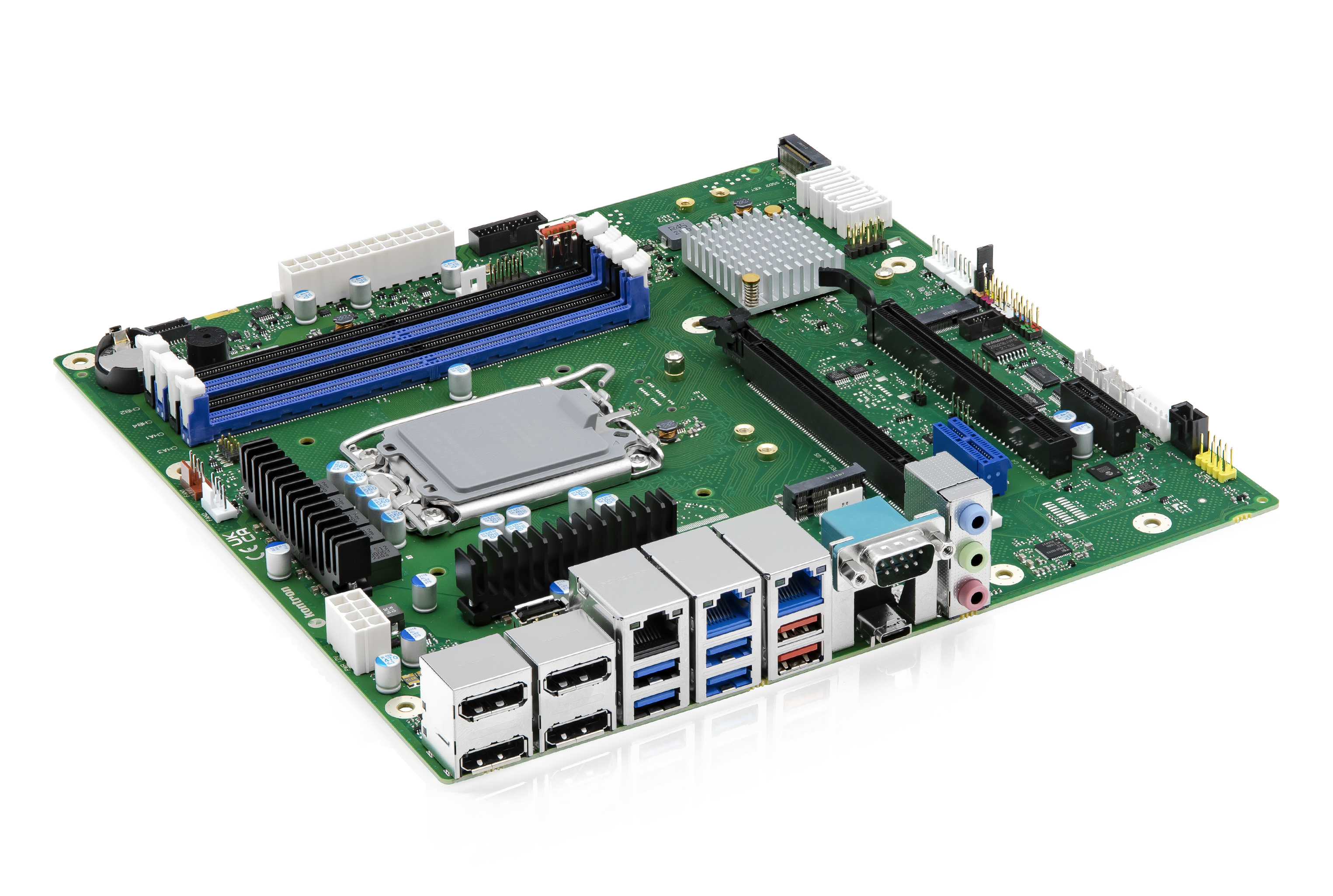

K3841-Q µATX
Industrial Motherboard supporting Intel® Core™ Processors (14th Gen/Series 2)
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Graphics 7xx driven by Xe Architecture
- Triple LAN 1GbE/2.5GbE incl. Teaming and TSN support
- Dual M.2 Key-M SSD & single M.2 Key-E WLAN sockets onboard

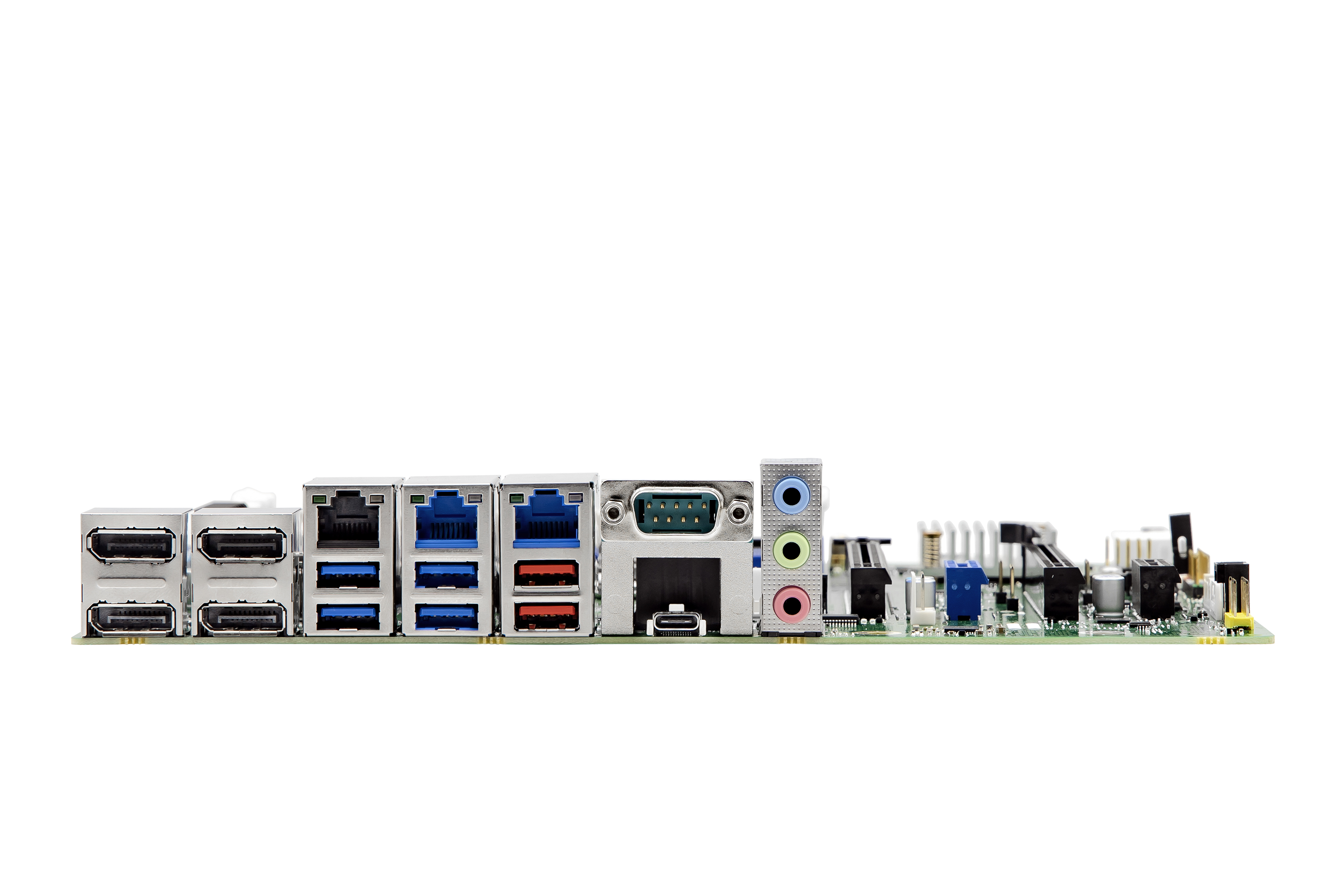

- Powerful USB 3.2 Gen 2/Type-C, 4x COM, GPIO
Product Information
The industrial motherboard K3841-Q μATX is equipped with the highly performant Intel® Q670E Chipset and offers a multitude of supporting processors such as Intel® Core™ processors (12th/13th/14th Gen/Series 2) and the Intel® Pentium®/Intel® Celeron® processor series. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60°C the K3841-Q μATX provides high functionality and fits perfect with special requirements of certain markets. It offers iAMT-based Out-of-Band Management features. Besides, K3841-Q provides TSN and Realtime support (TCC) for specific industrial applications.
Benefits of Kontron motherboards:
- Highest quality through German engineering and production
- Strict lifecycle management and reliable product maintenance
- Comprehensive feature and tool set
- Excellent technical support
- Beneficial total-cost-of-ownership
Download CPU Compatibility List
Technical data
| Processor | Intel® Core™ Processors (12th/13th/14th Gen./Series 2) Intel® Pentium®/Intel® Celeron® processor series |
|---|---|
| Chipset | Intel® Q670E Chipset |
| Main Memory | 4x DDR5-4800 DIMM Sockets up to 192 Gbyte, Dual Channel, non-ECC |
| Graphics Controller | Intel® UHD Graphics 7xx (depends on installed processor) |
| Display | 4x DPP V1.4a |
