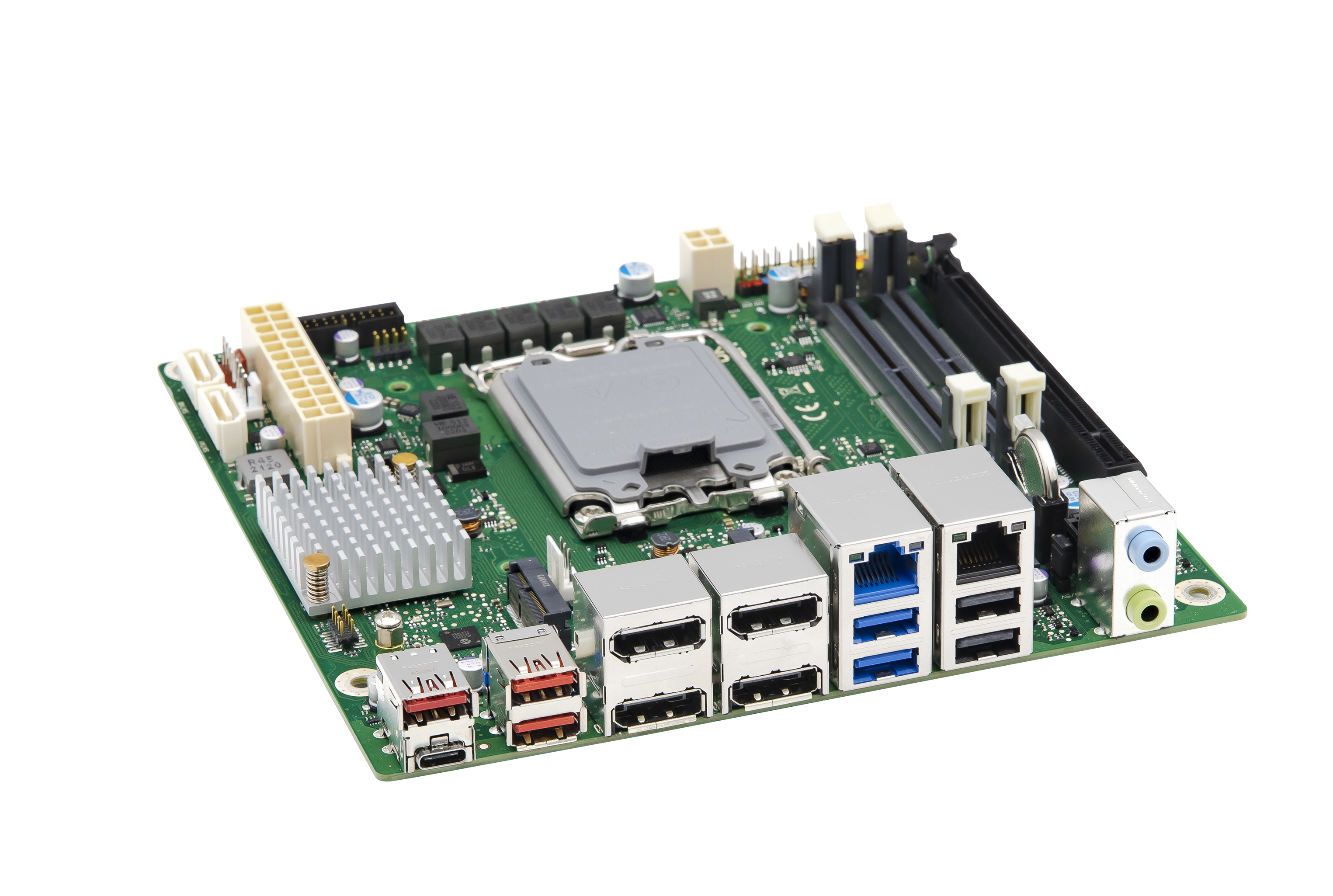

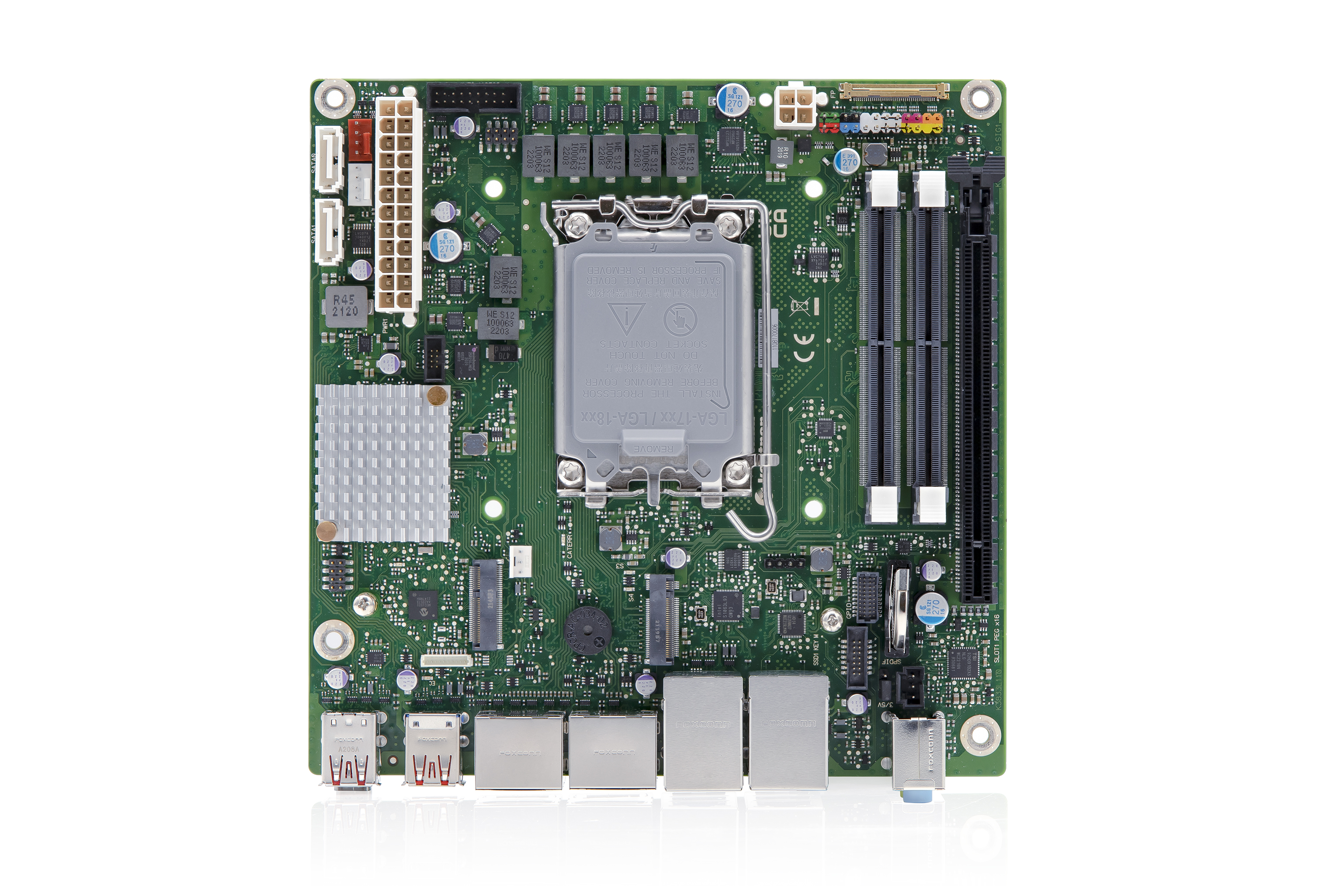

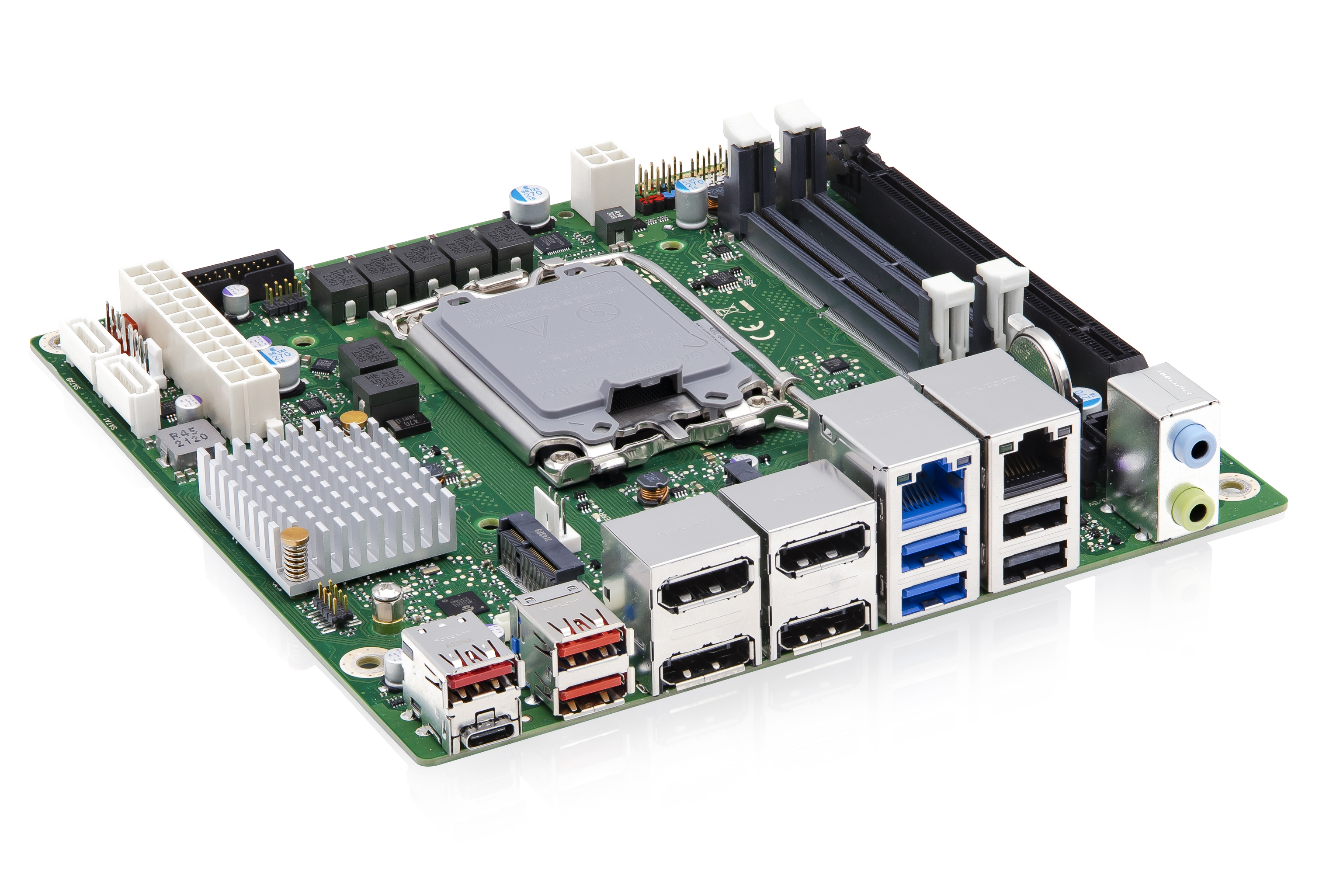

K3833-Q mITX New

Industrial Motherboard supporting Intel® Core™ Processors (12th/13th/14th Gen.)
Mouseover Zoom loading...
  • Latest DDR5 memory technology for best-in-class system performance
  • Intel® UHD Graphics 7xx driven by Xe Architecture; DPP- and eDP- support
  • Dual LAN 1GbE/2.5GbE incl. Teaming and TSN support
  • M.2 Key-M & Key-E; Powerful USB 3.2 Gen2
  • Multirail PSU
Download Datasheet Download Product Folder

The Industrial Motherboard K3833-Q mITX is equipped with the highly performant Intel® Q670E Chipset. It also offers a multitude of supporting processors such as the Intel® Core™ i9/i7/i5/i3 processors (12th/13th/14th Gen) and the Intel® Pentium®/Intel® Celeron® processor series. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C the K3833-Q mITX provides high functionality and fits perfect with special requirements of certain markets. It offers iAMT-based Out-of-Band Management features. Besides, K3833-Q provides TSN and Realtime support (TCC)
for specific industrial applications.

Benefits of Kontron motherboards:

  • Highest quality through German engineering and production
  • Strict lifecycle management and reliable product maintenance
  • Comprehensive feature and tool set
  • Excellent technical support
  • Beneficial total-cost-of-ownership


Download CPU Compatibility List


Processor Intel® Core™ i9 / i7 / i5 / i3 Processor Series (12th/13th/14th Gen.)
Intel® Pentium®/Intel® Celeron® processor series
Chipset Intel® Q670E Chipset
Main Memory 2x DDR5-5600 SODIMM Sockets up to 64 GByte, Dual Channel
Graphics Controller Intel® UHD Graphics 7xx (depends on installed processor)
Display 4x DisplayPort V1.4a up to 8k; 1x eDP V1.4b @4K
Audio Controller Tempo Semiconductor 92HD91B
Audio 5.1- channel, High Definition Audio Codec
Ethernet Intel® i219LM with 10/100/1000 MBit/s, iAMT features
Intel® i226LM with 10/100/1000/2500 MBit/s, TSN Support

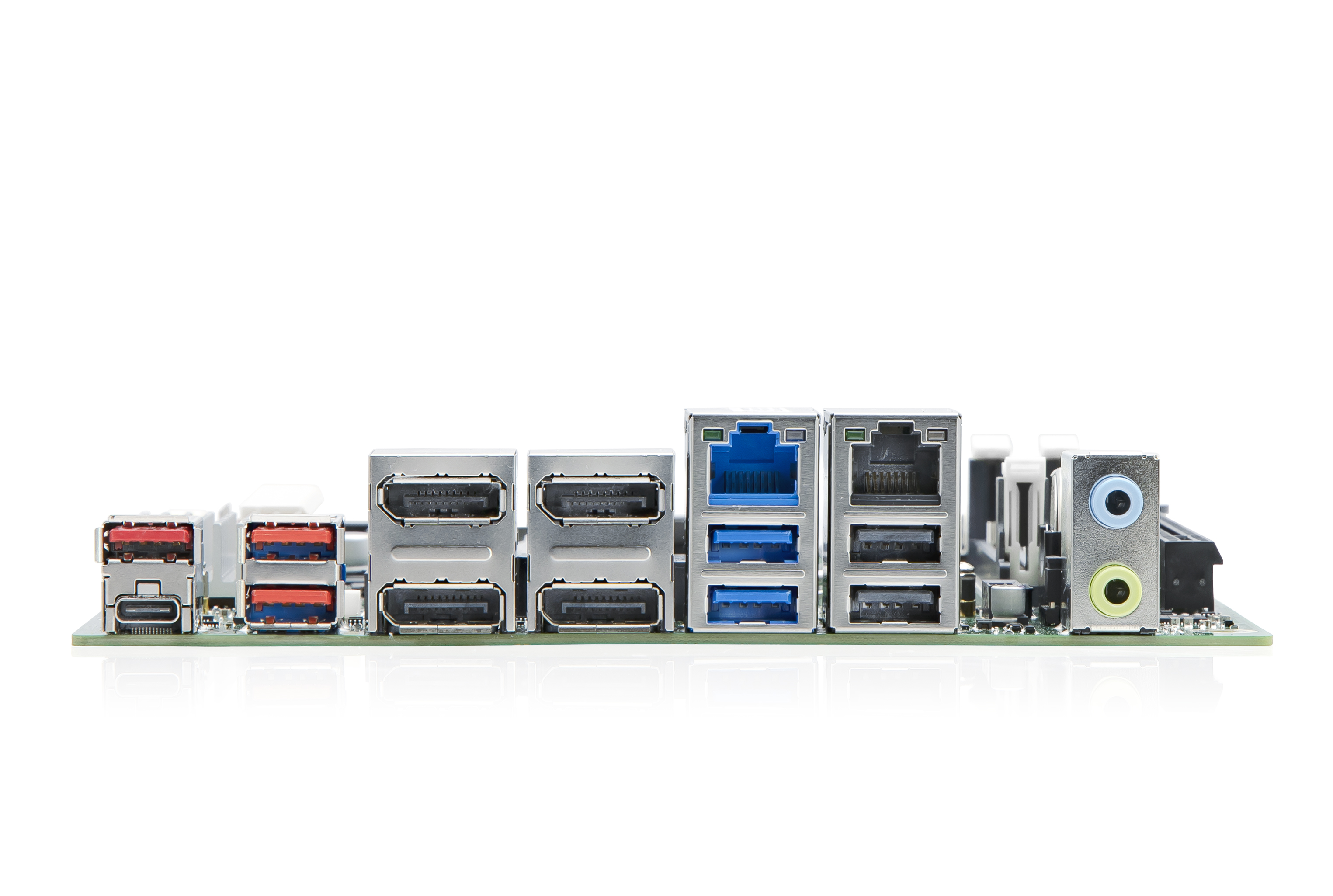

USB 3x USB 3.2 Gen 2 (rear I/O, Type-A)
1x USB 3.2 Gen 2 (rear I/O, Type-C with locking option)
2x USB 3.2 Gen1 (rear I/O, Type-A)
2x USB 2.0 (rear I/O, Type-A)
2x USB 3.2 Gen1 (by header)
Serial 1x RS232 (by header)
Available I/Os 1x 8-Bit GPIO (by header)
SATA 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1
Expansion 1x M.2 2242 (Key-M, PCIe/NVME SSD modules)
1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support)
PCIe x16: 1x 16 lanes, Gen5, Bifurcation Support
Power connector ATX (Multirail) plus 4-pin socket (12 V for CPU)
Input Voltage Multirail
Watchdog 3 level HW Watchdog (BIOS POST/BIOS Boot/OS)
Real Time Clock Integrated
Cooling 2x PWM fan (CPU/System)
Operating System Windows 10; Windows 10 IoT
Windows 11
Mechanical Dimensions Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm)
Operating Temperature 0°C-60°C
Humidity 5%-85%
Certifications cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA,
FCC-B verified
