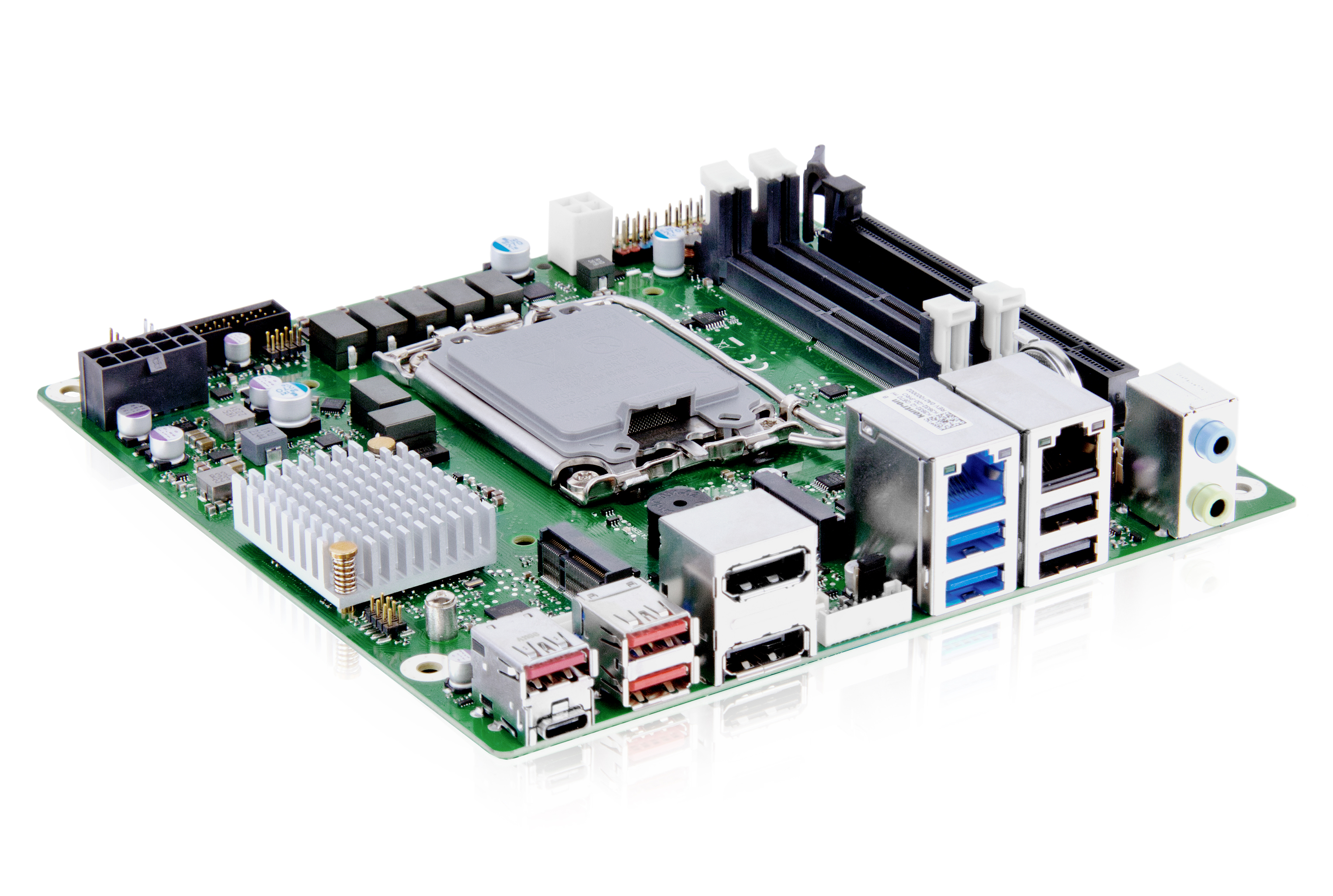

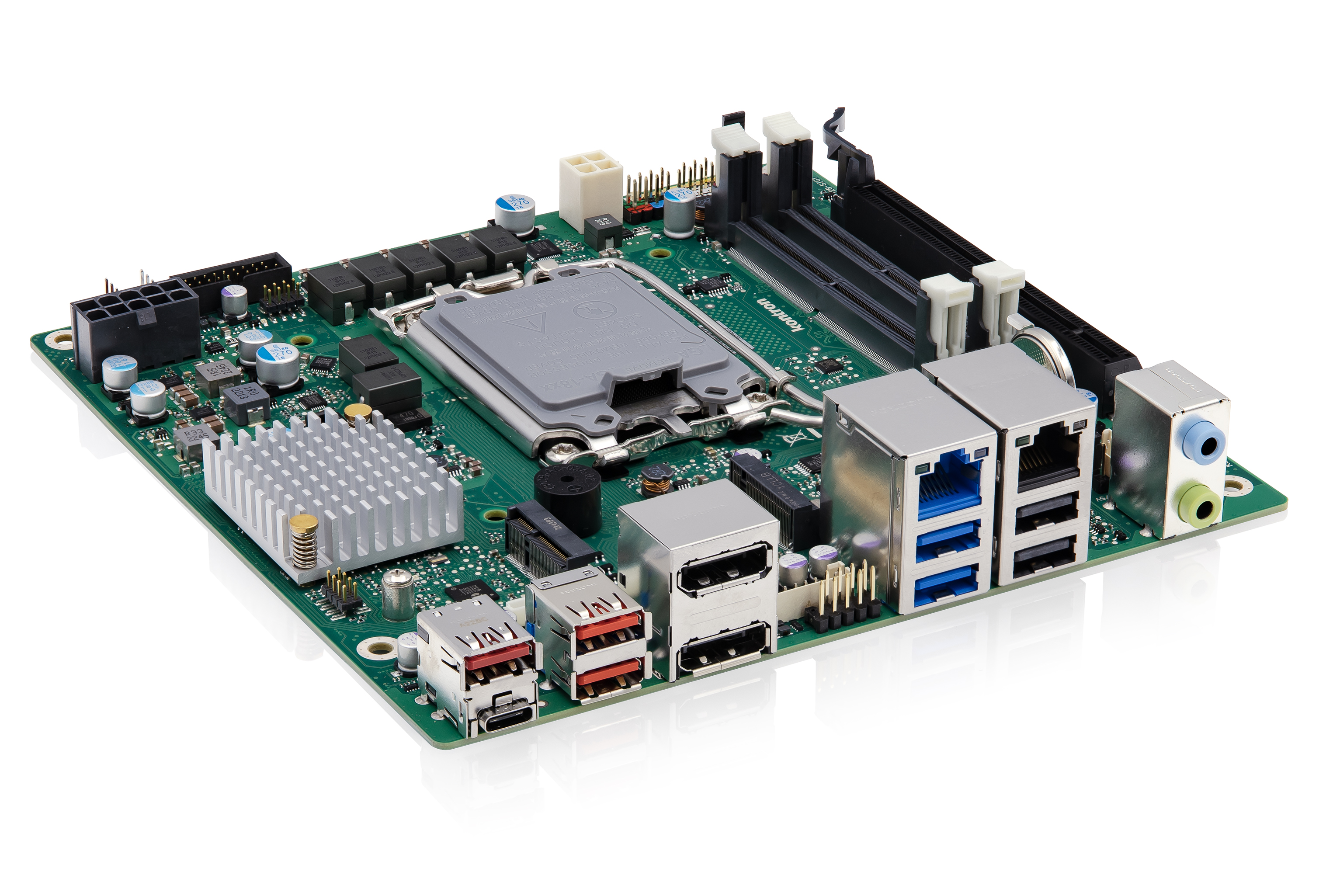

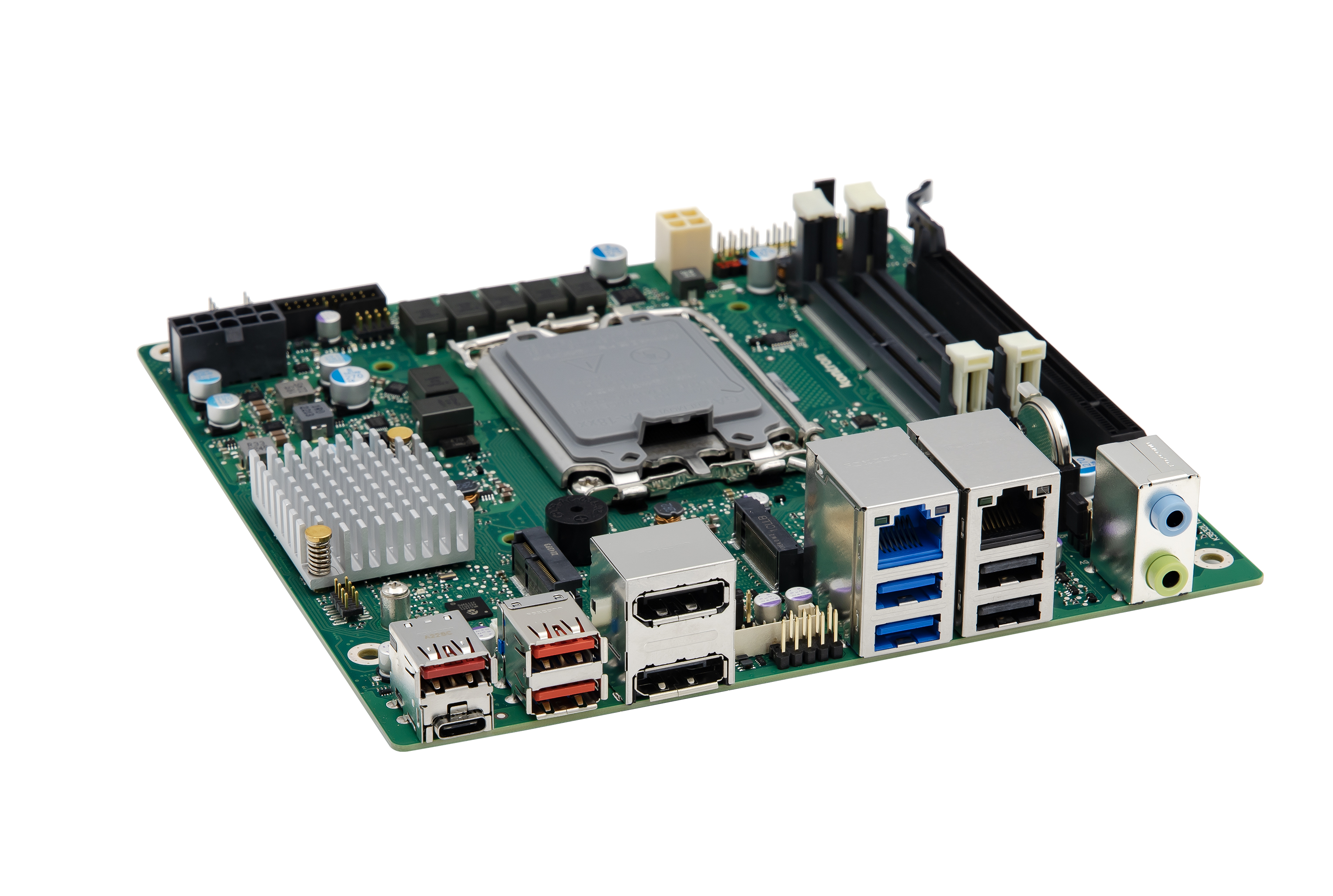

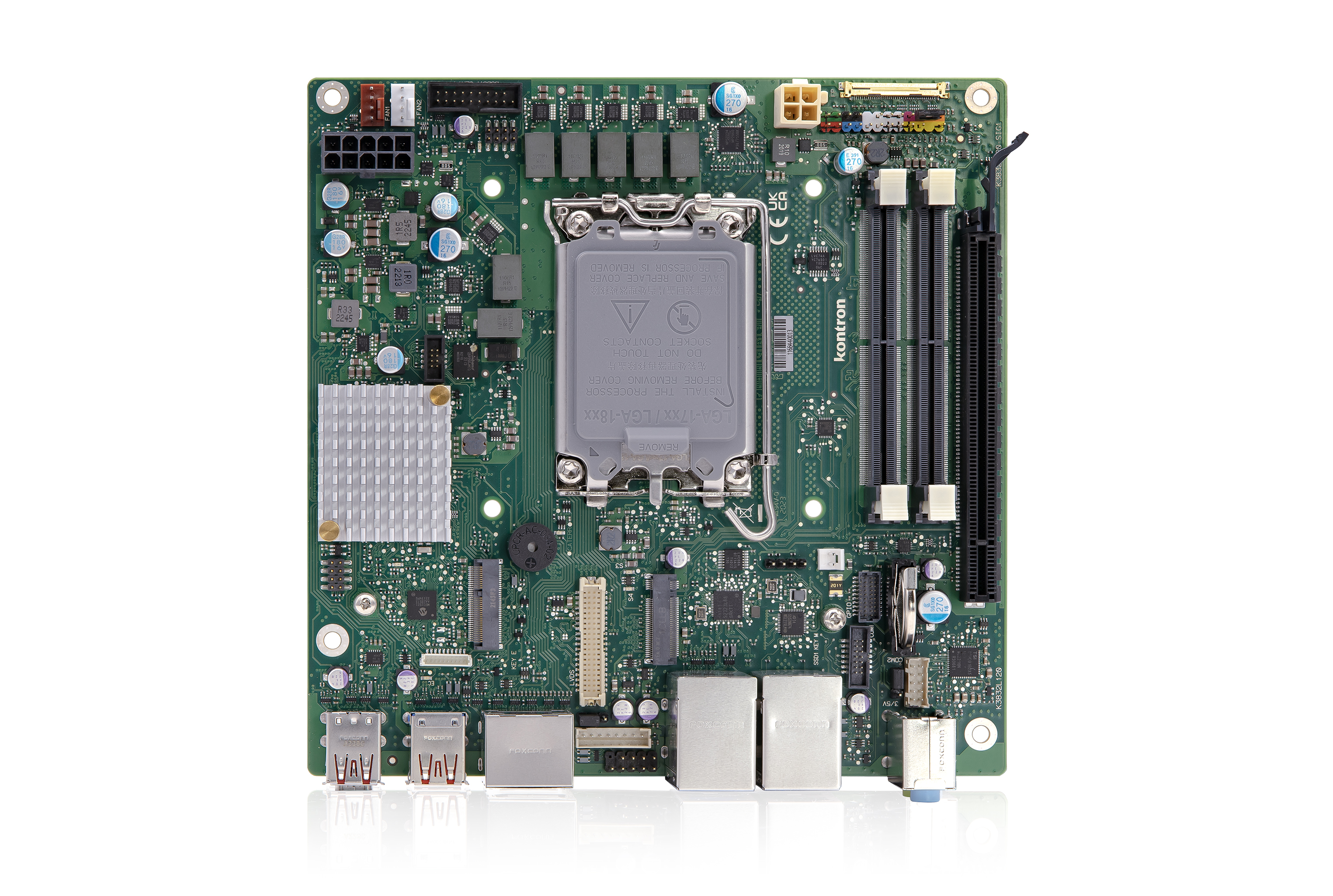

K3832-Q mITX

Industrial Motherboard supporting Intel® Core™ Processors (12th/13th/14th Gen.)
Mouseover Zoom loading...
Specifications
  • Latest DDR5 memory technology for best-in-class system performance
  • Intel® UHD Graphics 7xx driven by Xe Architecture; DPP-, eDP-, and LVDS- support
  • Dual LAN 1GbE/2.5GbE incl. Teaming and TSN support
  • M.2 Key-M & Key-E; Powerful USB 3.2 Gen2
  • Combined Single 12 V PSU or ATX12VO (Intel-compliant) PSU
Download Datasheet Download Product Folder Buy now

The Industrial Motherboard K3832-Q mITX is equipped with the highly performant Intel® Q670E Chipset. It also offers a multitude of supporting processors such as the Intel® Core™ i9/i7/i5/i3 processors (12th/13th/14th Gen) and the Intel® Pentium®/Intel® Celeron® processor series. The motherboard impresses with iAMT-based out-of-band management features, TSN and real-time support (TCC) for specific industrial applications, and support for the latest standards, such as PCI Express Gen5 and DDR5 memory technology. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C the K3832-Q mITX fits perfect with special requirements of certain markets.

Benefits of Kontron motherboards:

  • Highest quality through German engineering and production
  • Strict lifecycle management and reliable product maintenance
  • Comprehensive feature and tool set
  • Excellent technical support
  • Beneficial total-cost-of-ownership



Download CPU Compatibility List

Features

Processor Intel® Core™ i9 / i7 / i5 / i3 Processor Series (12th/13th/14th Gen.)
Intel® Pentium®/Intel® Celeron® processor series
Chipset Intel® Q670E Chipset
Main Memory 2x DDR5-5600 SODIMM Sockets up to 64 GByte, Dual Channel
Graphics Controller Intel® UHD Graphics 7xx (depends on installed processor)
Display 2x DisplayPort V1.4a up to 8k; 1x eDP V1.4b @4K;
1x Dual Channel (24Bit) LVDS @Full HD
Audio Controller Tempo Semiconductor 92HD91B
Audio High Definition Stereo Audio Codec
Ethernet Intel® i219LM with 10/100/1000 MBit/s, iAMT features
Intel® i226LM with 10/100/1000/2500 MBit/s, TSN Support

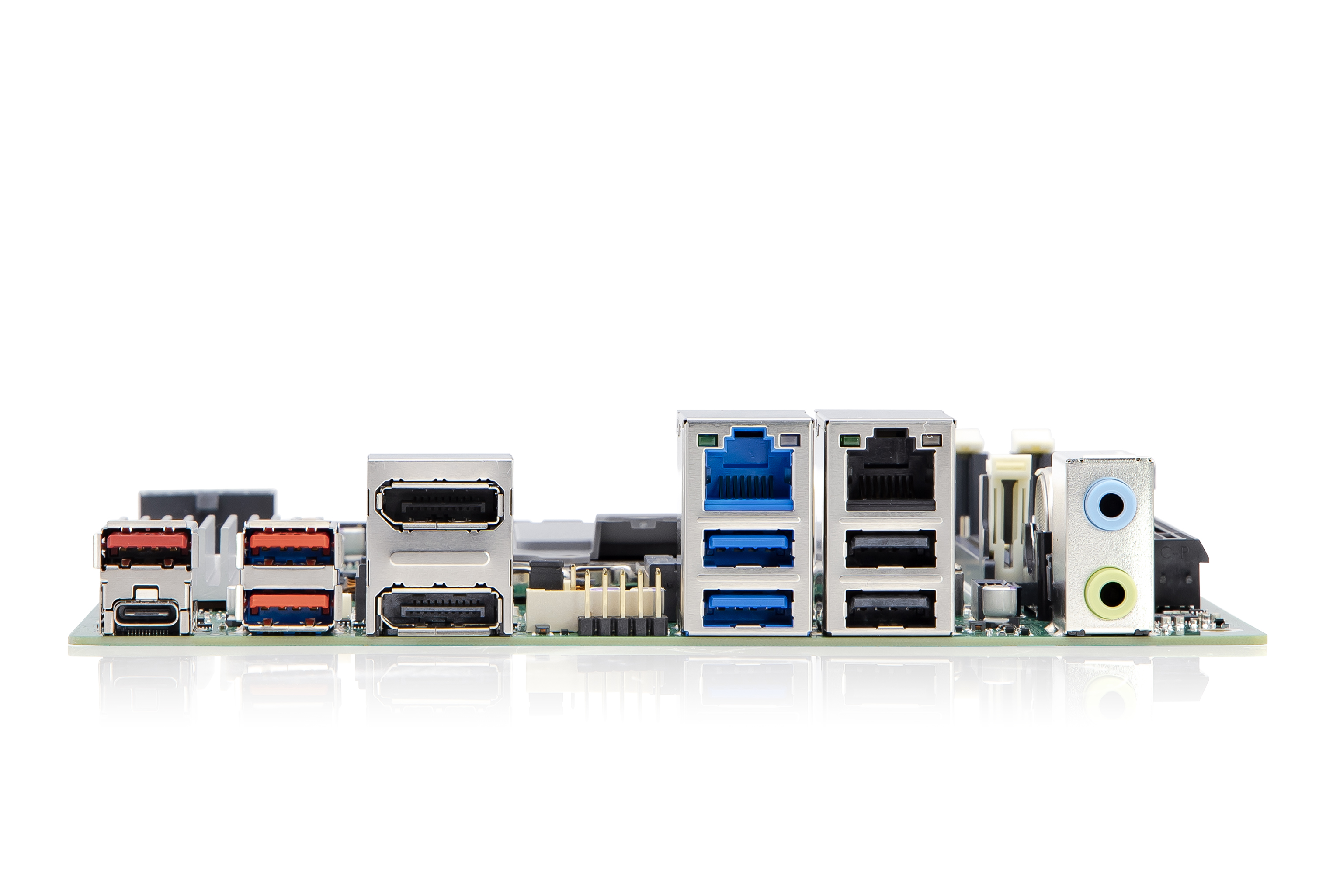

USB 3x USB 3.2 Gen 2 (rear I/O, Type-A)
1x USB 3.2 Gen 2 (rear I/O, Type-C with locking option)
2x USB 3.2 Gen1 (rear I/O, Type-A)
2x USB 2.0 (rear I/O, Type-A)
2x USB 3.2 Gen1 (by header)
Serial 2x RS232 (by header)
Available I/Os 1x 8-Bit GPIO (by header)
SATA -
Expansion 1x M.2 2242 (Key-M, PCIe/NVME SSD modules)
1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support)
PCIe x16: 1x 16 lanes, Gen5, Bifurcation Support
Power connector Dual supply option: Single 12 V PSU ("DC In") or ATX12VO (Intel-compliant) PSU
10-pin socket (Single DC 12 V or 12V1-DC/12VSB/PS-On/PWR_OK) plus 4-pin
socket (12 V CPU power connector)
Input Voltage Single 12V DC or ATX12VO
BIOS AMI Aptio 5.x (UEFI) BIOS
Watchdog 3 level HW Watchdog (BIOS POST/BIOS Boot/OS)
Real Time Clock Integrated
Cooling 2x PWM fan (CPU/System)
Operating System Windows 10; Windows 10 IoT
Windows 11
Linux-64
Mechanical Dimensions Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm)
Operating Temperature 0°C-60°C
Humidity 5%-85%
Certifications cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA,
FCC-B verified

Downloads

Driver Updates

BIOS Updates

Datasheets

Datasheet K3832-Q mITX
[ k3832-q-mitx_datasheet.pdf, 1.53 MB, Apr.15.2024 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

Modules and Motherboards WP [restrictions apply]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

COM Cable "long"
S26361-F5000-K010
COM Cable \ with fullsize slot bracket
Second COM Cable active
S26361-F5000-K011
Second COM Cable active short w/o bracket
Risercard
S26361-F5000-R006
Risercard 1 x PCIe x4
DP 20P M to HDMI Adapter
F5000-A007
DP 20P M to HDMI Adapter DP 20P M to HDMI Adapter, up to 4k @ 60 Hz
M.2 Dual SATA Module
F5000-M004
M.2 Dual SATA Module M.2 Dual SATA Module

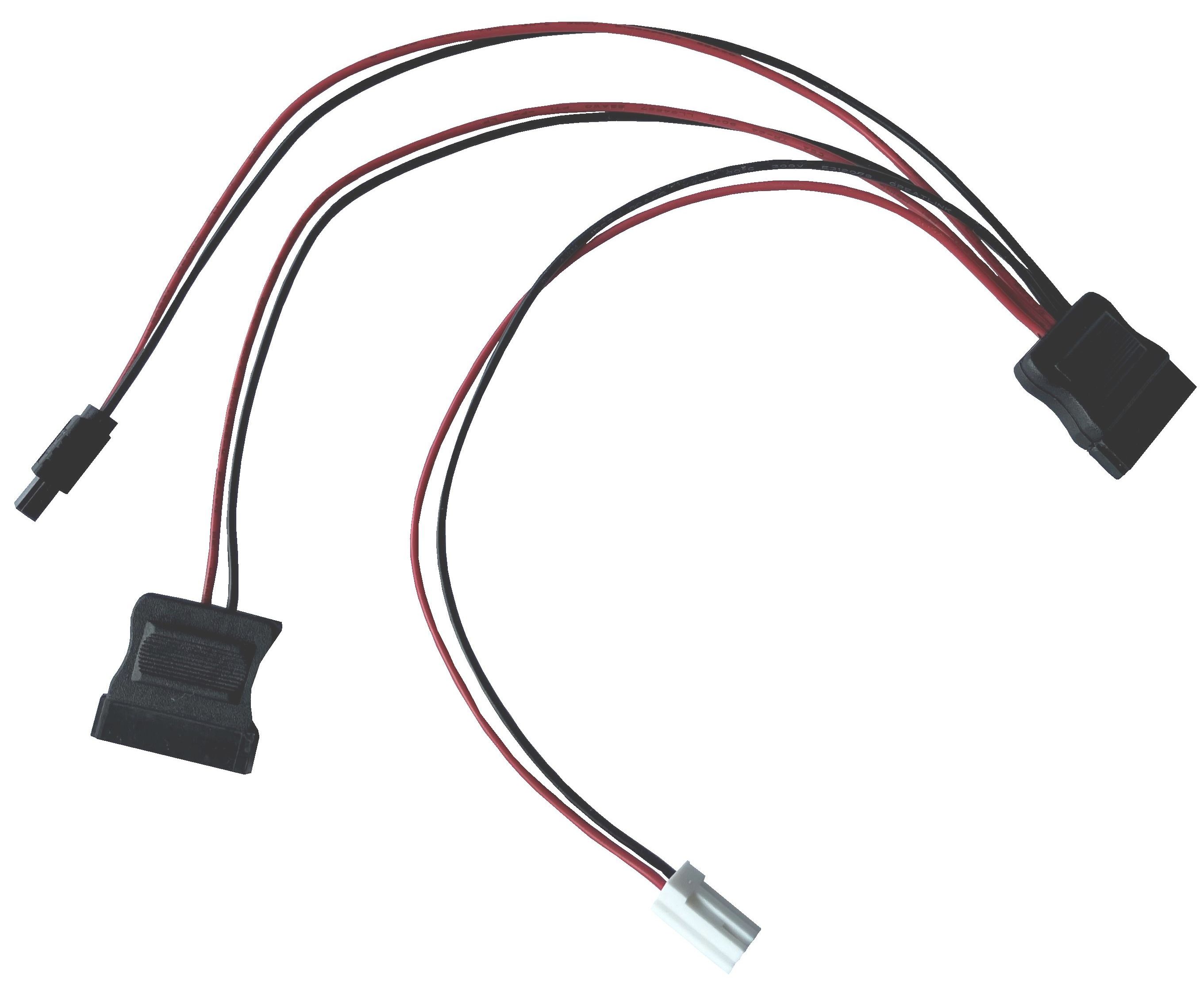

Drive Power Cable
F5000-K016
Drive Power Cable Drive Power Cable
