JRex-VE Datasheet 3.5 SBC with VIA Eden
223.88 KB | March 26, 2026
This product is legacy and no longer actively supported.

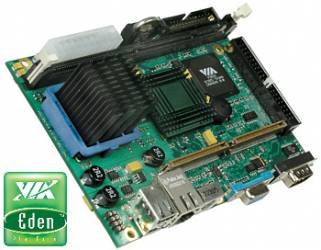

JRex-VE
VIA Eden 1000MHz , LAN, USB, CRT/LCD, SDRAM-DIMM, EIDE, FDC, ATX or 5V supply
- <font color="#3333ff"><b>VIA Eden 1000MHz processor, 66MHz FSB, FANLESS</b></font>
- VIA TwisterT chipset with <b>S3 Savage 4 graphic engine</b>
- <b>up to 32 MByte VRAM UMA for CRT/LCD (JILI)</b>
- Compact Flash Type I
- SDRAM-DIMM-socket for up to 1 GByte
end of extended lifetime program - EOL final
The boards performance with 1000 MHz VIA Eden CPU is enhanced by 66MHz FSB (Front Side Bus) and UDMA-100 EIDE.
Each JRex is a member of the 3.5" SBC family. JRex modules are characterized by the same surface pinouts and interfaces for Reset, ATX feature, 2xUSB, FAST LAN, Keyboard/Mouse-socket, Compact-Flash, VGA and COM1. This family feature allows to reuse chassis and maximizes design re-use.
A SDRAM-DIMM socket for up to 1 GByte allows the use of standard desktop memory and full ATX power supply is as well a standard feature.
These homogeneous features facilitate easy upgrades within the JRex product family. Connection of displays is simplified when using the onboard standard JILI-Interface (JUMPtec® Intelligent LVDS Interface). JILI automatically recognizes which display is connected and independently sets all video parameters. All JRex are plug-and-work enabled to further reduce time-to-market.
Downloads
Driver
VGA controller driver
4.48 MB | March 26, 2026
Ethernet driver archive for VIA VT 8231 with VIA VT 6103 PHY
879.84 KB | March 26, 2026
Kontron Windows® XP Embedded Solution Pack
0 B | April 14, 2026
is an add-on to Microsoft Windows XP Embedded and its primary tool Target Designer. The solution pack includes Video Drivers, Ethernet Drivers and the JIDA32 Library API.
JIDA Lib Version for VxWorks 5.5 (Tornado 2.2).
286.21 KB | March 26, 2026
VGA controller driver
929.27 KB | March 26, 2026
Audio driver package
3.48 MB | March 26, 2026
VIA 4 in 1 driver package
1.38 MB | March 26, 2026
Intel® Network Adapter Driver - Win98
1.49 MB | March 26, 2026
Windows® CE Driver Solution Pack 2.8
9.51 MB | March 26, 2026
Supports CE 6.0 (incl. R3), 5.0 and 4.2. Please, contact your local Kontron sales representative for further information and the required installation key.
Service
Kontron Services Brochure
476.99 KB | March 26, 2026
JRex-VE Testreport
954.23 KB | March 26, 2026
CRD1BQC3R114.zip
433.53 KB | March 26, 2026
JRex-VE Certificate
64.42 KB | March 26, 2026
Crisis Recovery Disk - Includes currently released BIOS flash tools and the latest released BIOS version. Please contact your local Kontron Support Team for special BIOS versions.
433.53 KB | March 26, 2026
