Windows® CE 5.0 Starterkits on JRex-CE,JRex-PM and EPIC/CE, EPIC /PM
210.47 KB | March 26, 2026
This product is legacy and no longer actively supported.

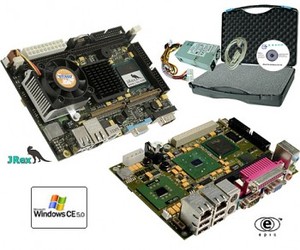

JRex-PM WinCE 5.0 Kit with Pentium® M on 3.5"
Complete Starterkit with JRex-PM (Pentium® M 1.6GHz, ATX) board including, DDR-RAM, CFC, Windows CE 5.0 licence, power supply and OS installed
- Microsoft® Windows® CE 5.0 licence installed and including all drivers
- With Intel® Pentium® M 1.6 GHZ and 855GME/ICH4 chipset
- Alternatively with Intel® ULV Celeron 400Mhz fanless with 815/ICH4 chipset
- Software ready to boot on mounted 128 MByte CompactFlash drive
- Including mounted 128 MByte DDR-RAM-memory
The embedded all inclusive package for your head start!
The JRex 3.5" Single Board Computers deliver all what it takes. Based on the Intel® Pentium® M Processor that is the most compact & complete embedded solution available.
The Windows® CE Starterkit is designed to give you a head start for your application. In the Starterkit you will find an JRex-PM 3.5" SBC with a fully licensed WinCE version preinstalled on the mounted CompactFlash Drive plus all the necessary components like mounted memory, power supply and a CD-ROM.
On the accompanying CD-ROM you will find all the necessary Starterkit documentation, WinCE SDK & BSP, as well as an image of the preinstalled WinCE. With this complete package you´ll get all the necessary components to immediately start the evaluation process. This will lead to quicker application development, which will shorten your overall time to market.
Please refer to the JRex datasheet for more details on these SBC.
Technical data
| Operating System | Windows® CE 5.0 Runtime Licence Pro |
|---|---|
| Applicable Motherboards | EPIC JRex 3.5” |
| CPU | Intel® Pentium® ULV Celeron® |
| Chipset | Intel® Pentium® M 855GME/ICH4 Intel® ULV Celeron® 815/ICH4 |
| Special Features | Software ready to boot on mounted CompactFlash drive Including mounted SDRAM/DDR-RAM-memory Including all cables and power supply - out of the box |
