Innbox E94 datasheet EN 151
381.46 KB | October 29, 2026

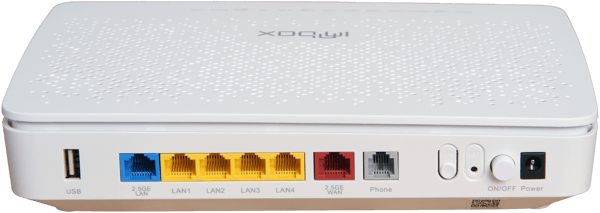

Innbox E94
Standardised Wi-Fi 6 with enhanced coverage, suitable for ETTH and dual-box FTTH architectures
- Use the same gateway in single-box Ethernet access or behind a separate ONT
- Deliver AX3600 Wi-Fi 6 with 4x4 MU-MIMO on both bands and claimed coverage up to 260 sqm
- Extend coverage with an embedded EasyMesh controller and compatible agents
- Support multiple UHD streams and advanced services across wired and wireless networks
- Use USB, voice and optional application functions to broaden the service offer
Product Information
Innbox E94 is a high-performance Ethernet gateway for operators that want one managed Wi-Fi 6 platform across ETTH and dual-box FTTH deployments. A 2.5GE WAN interface prevents the gateway from becoming the bottleneck as access speeds increase.
Dual-band AX3600 Wi-Fi, 2.5GE LAN and four GE ports support demanding households and multiple high-bandwidth services. EasyMesh control enables whole-home coverage and roaming with compatible agents. FXS voice, USB applications, LTE backup options, integrated speed testing and remote management help operators deliver and support more than basic internet access from one platform.
Technical data
| WAN | 1 x 2.5 Gigabit Ethernet 100/1000/2.5GBase-TX RJ-45; IEEE 802.3 |
|---|---|
| LAN and PoE | 4 x GE RJ-45; optional 1 x 2.5GE RJ-45; USB 2.0, optional USB 3.0; no PoE specified |
| Fibre | – |
| Bridging | IEEE 802.1D/802.1Q; traffic management; IEEE 802.1p and DSCP QoS; VLAN processing/tagging; IGMP v2/v3 snooping; MAC learning/aging; broadcast storm control |
| Voice | 1 x FXS RJ-11; G.711, optional G.722/G.729ab; SIPv2/RTP; caller ID; T.38 fax |
