New product

Innbox E104

Standardised Wi-Fi 7, suitable for ETTH and dual-box FTTH architectures

Deploy as the main gateway in ETTH or behind an ONT in dual-box FTTH
Use Wi-Fi 7 without tying the in-home gateway to one optical-access platform
Extend coverage through the embedded EasyMesh controller

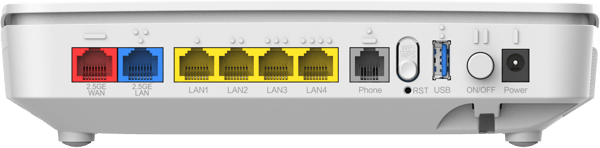

Connect premium devices using one 2.5GE and four GE LAN ports
Provide tactile markings aligned with accessibility requirements

Request product

Product Information

Innbox E104 gives operators a Wi-Fi 7 Ethernet gateway that can be used in both single-box ETTH and dual-box FTTH architectures. The separation between fibre termination and the home gateway preserves flexibility in ONT selection, placement and future in-home upgrades.

The platform combines a 2.5GE WAN, a 2.5GE LAN and four GE LAN ports with dual-band Wi-Fi 7 and EasyMesh control. This supports premium wired devices, multi-gigabit wireless connectivity and whole-home mesh expansion from one operator-managed gateway. An FXS port, USB interface and tactile markings broaden the service and accessibility proposition.

Technical support

Technical data

WAN	1 x 2.5 Gigabit Ethernet 100/1000/2.5GBase-TX RJ-45; IEEE 802.3
LAN and PoE	1 x 2.5GE RJ-45; 4 x GE RJ-45; 1 x USB 3.0; no PoE specified
Fibre	–
Bridging	IEEE 802.1D/802.1Q; traffic management; IEEE 802.1p and DSCP QoS; VLAN processing/tagging; IGMP v2/v3 snooping; MAC learning/aging; broadcast storm control
Voice	1 x FXS RJ-11; G.711, optional G.729ab; SIPv2/RTP; caller ID; T.38 fax
