HARAKAN-F Datasheet
958.9 KB | June 25, 2026
New product

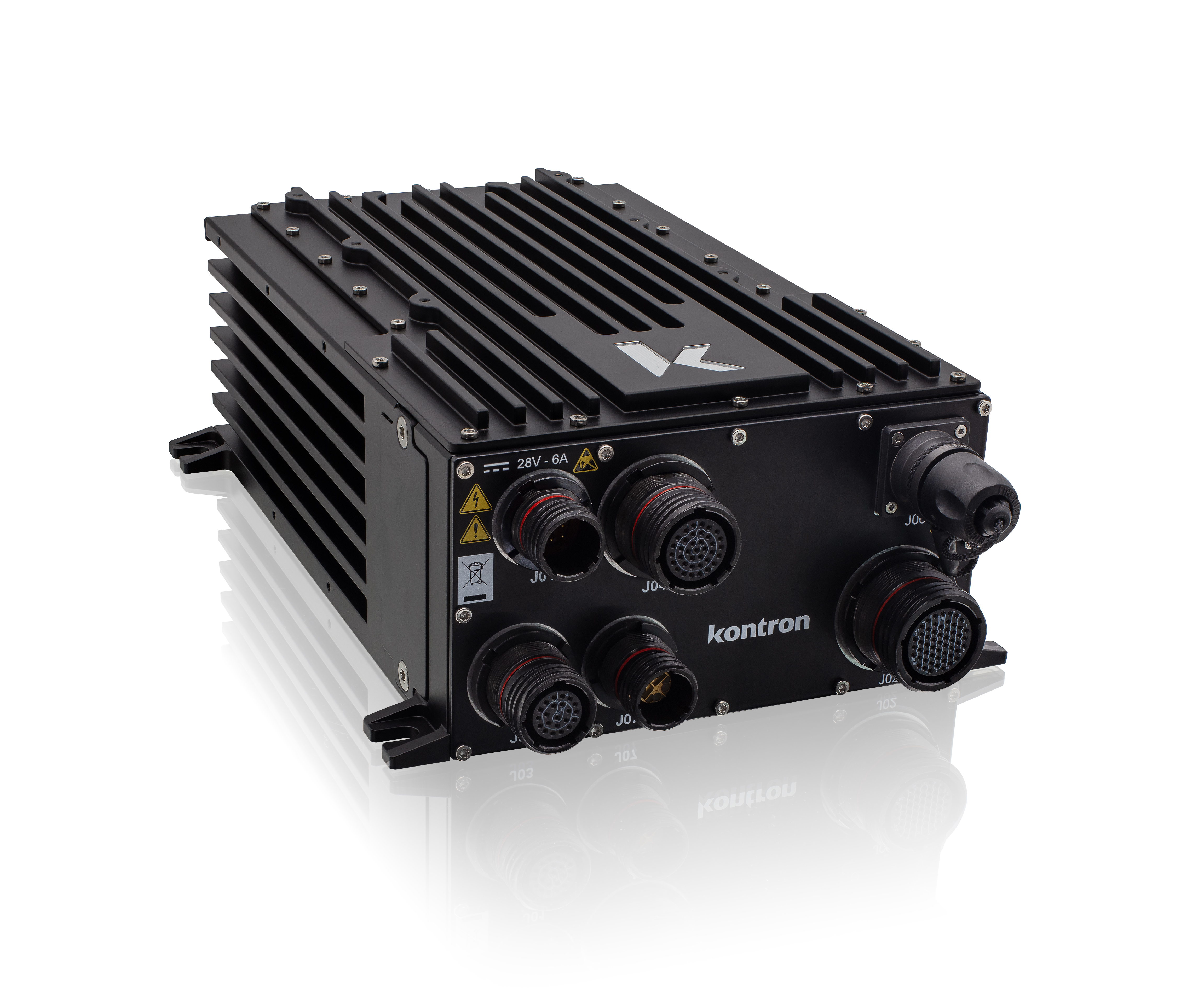

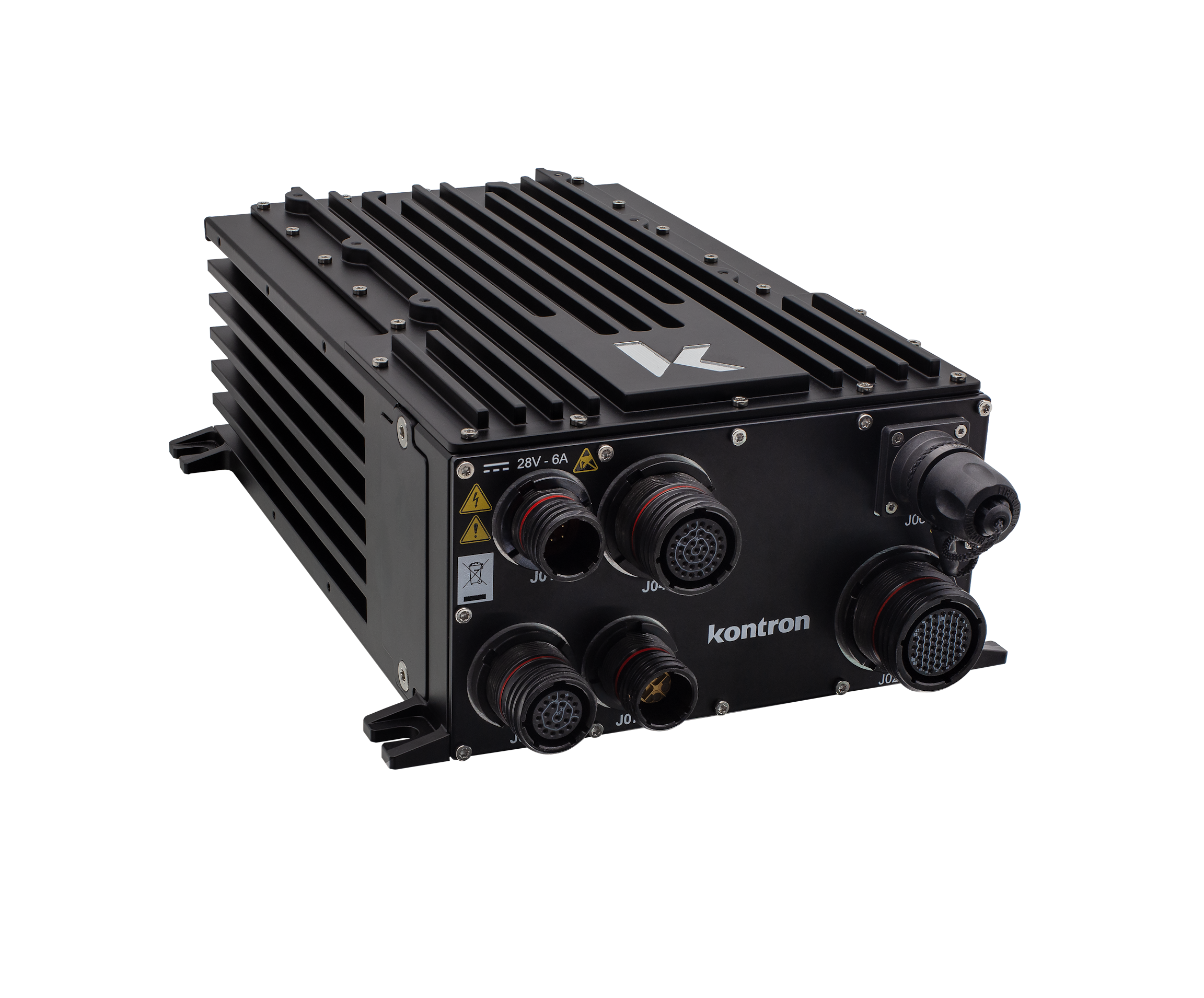

HARAKAN-F
VPX Rugged Compact Mission Computer
- SWaP-optimized embedded computer
- SOSA 3U VPX plug-in cards
- Latest silicon gen Intel® Core™ or Intel® Xeon® D CPUs
- Fanless conduction cooling, designed for harsh environments
- ITAR/BAFA free
Product Information
HARAKAN-F is a compact, fanless conduction-cooled mission computer providing high density processing and powerful GPGPU for AI computing. Its scalable VPX COTS architecture, aligned to Sensor Open Systems Architecture (SOSA) Technical Standard, allows to benefit from the latest technology available in the market with optimized cost and time-to-market.
A cybersecurity chain of trust is implemented through hardware and software secure boot, trusted boot and vulnerability watch services.
Typical applications for the HARAKAN-F system include mission computing, vetronics, software defined radio, video capture, AI vision processing, rugged firewall, network gateway and electronic warfare.
Designed and manufactured in Europe, HARAKAN-F is ITAR and BAFA free, and is available in production for a minimum of 10 years.
Technical data
| CPU | Intel® Core™ i7-1185GRE, 12-28W TDP, Quad-Core @1,8GHz Base frequency, configurable up to 2.8GHz or Intel® Xeon® D-1848TER 57W TDP, 15M Cache, up to 3.10 GHz |
|---|---|
| I/Os | 5x 10/100/1000Base-T; 2x 10G Base-SR; 1x USB3.0 / USB2.0; 3 x RS232 or 3x 422/485, configurable; 1x RS232 (Maintenance simplified serial port); 4x configurable GPIO; 1 or 2 DP++ depending on configuration |
| OS Support | Linux 64 bits (default), Windows 10 IoT (on-request) |
| Dimensions (W x H x D) | Fanless : 154 x 250,2 x 91 mm (6.06 x 9.85 x 3.58 inch); Air-cool: 157 x 324,85 x 92,5 mm (6.18 x 13,79 x 3.62 inch) |
| Weight | 4 to 5 kg depending on configuration (8.8 to 11 lbs) |
