Inspired by the stunning design of the FusionClient series, Kontron has developed an industrial grade display as an extension to our existing industrial computer portfolio. Combined with Kontron’s KBox and rackmount family, FusionView enables intuitive multi-touch access to real-time actionable data, making it the perfect fit for SCADA and Manufacturing Execution Systems (MES) Monitoring and other control applications.

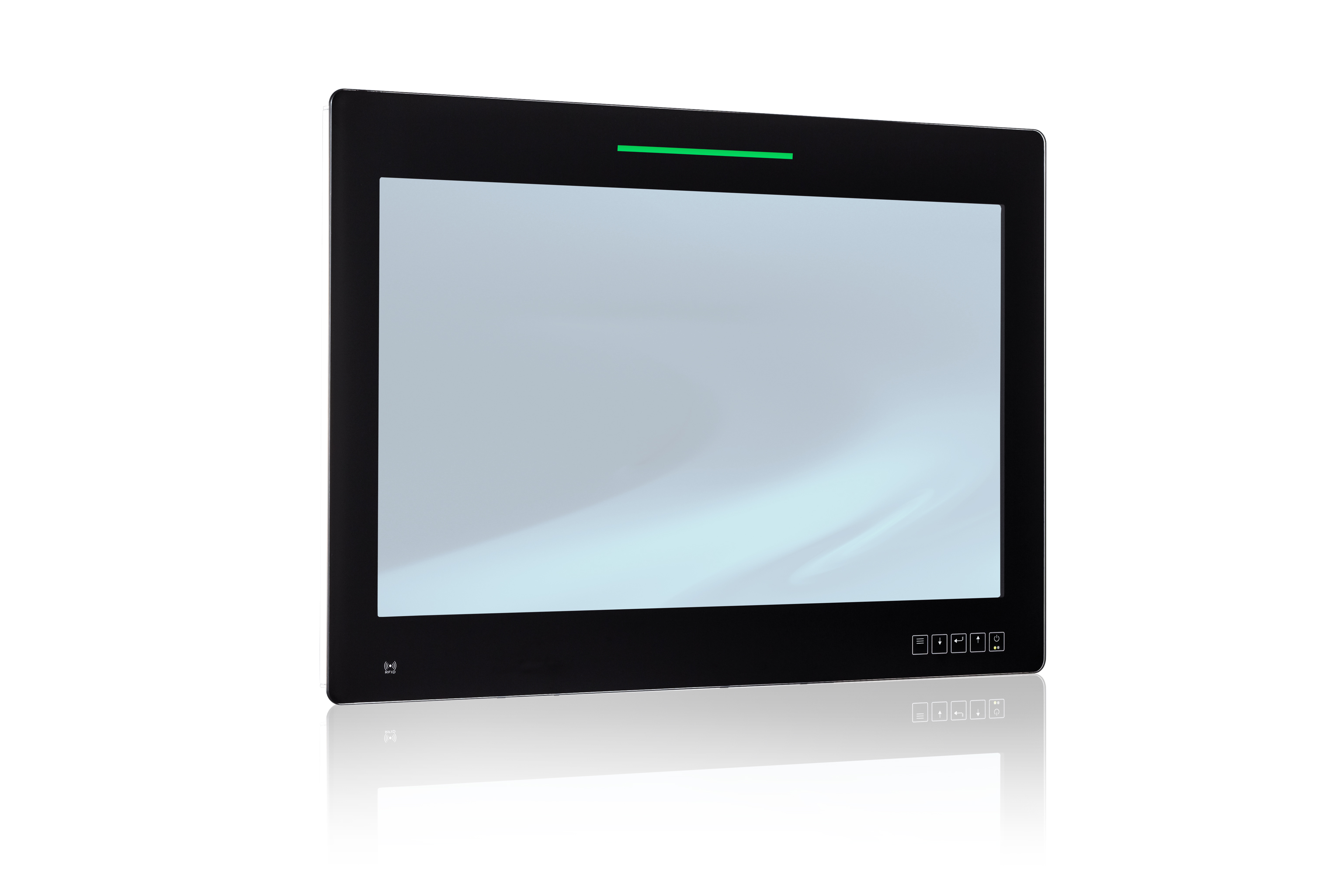

All Kontron FusionView models feature an easy-clean, antiglare and scratch-proof IP65 protected front glass. Based on the wide display format, the FusionView is available in four sizes (12.1’’, 15.6’’, 18.5’’ and 21.5’’), which can be operated in both landscape and portrait format. Display adjustments can be made either through OSD via capacitive buttons, or via software applications (‘Soft-OSD’).

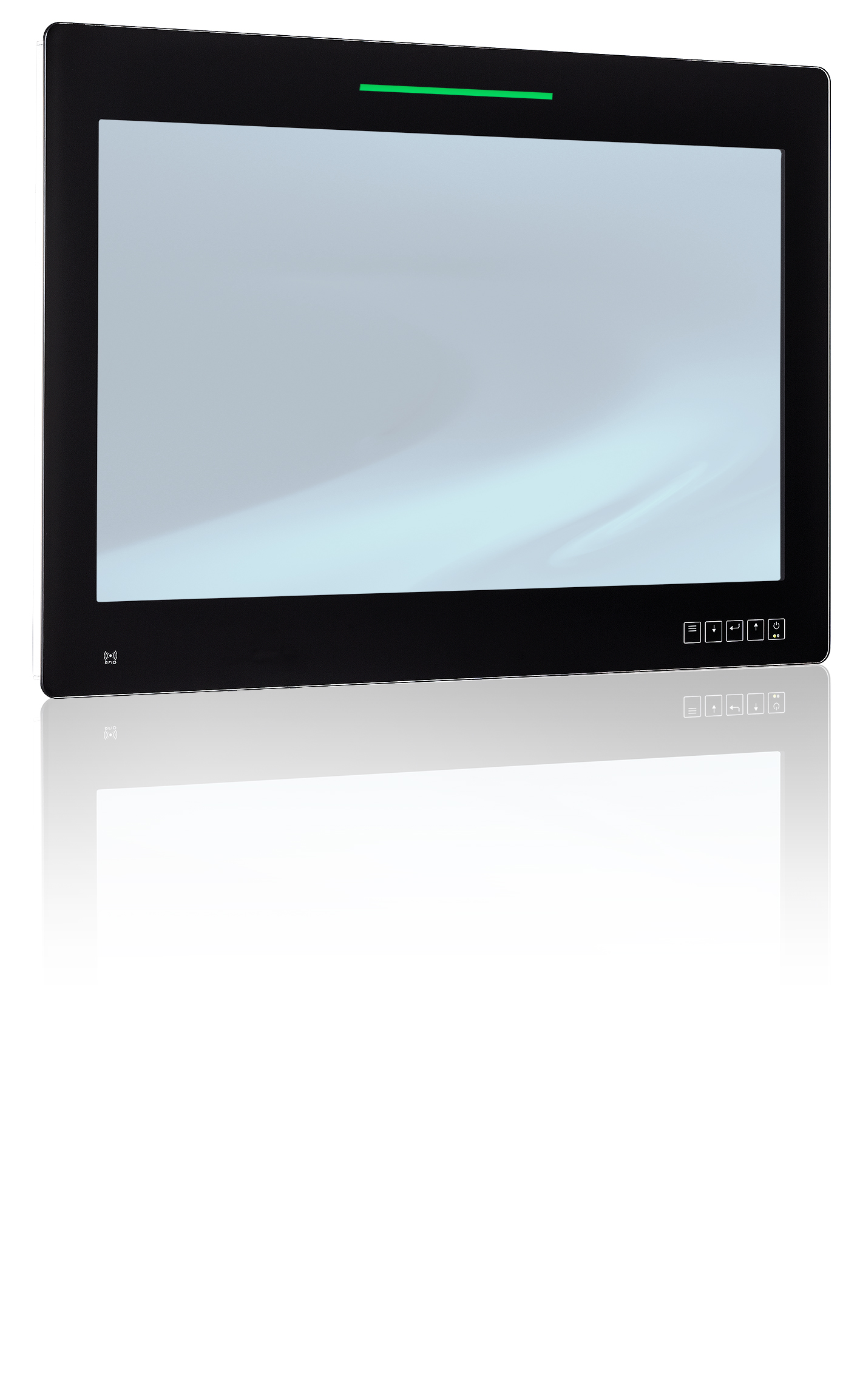

An RFID reader which is installed behind the glass makes it possible to customize different authorization and security levels; thus providing in-depth access control. The optional LED alarm bar ensures enhanced user experience and increased visibility of processes and production status.
Additionally, the Kontron FusionView series supports Kontron WideLink, a technology that implements data communication between a remote visualization unit and control computer through a standard CAT6a Ethernet cable at up to 100 meters distance from the control computer.
Display | 12.1” 15.6” 18.5” 21.5” |
Frontpanel | Projected capacitive touch (PCAP), multi-touch |
Mounting | Panel mount or VESA |
I/O Standard | DVI-I, DP, USB Type B (Slave) |
Wireless connectivity | RFID |
Power Supply | 24 VDC (± 25 %) |
Certifications | CE, designed for UL |
Altitude | Operating: 10000 ft (3.000 m) / Storage: 15000 ft (4.572 m) |
Protection Class | IP65 front, IP20 rear |
Operating System | Windows 7; Windows 10; Linux Embedded |
FusionView Datasheet
[ fusionview_20171211_datasheet.pdf, 676.44 KB, Dec.11.2017 ]
FusionView
Rev 1.1, 09 May 2018
[ fusionview_user_guide_rev_1-1_2018-05-09.pdf, 4.1 MB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
