This product is legacy and no longer actively supported.
FS-5968

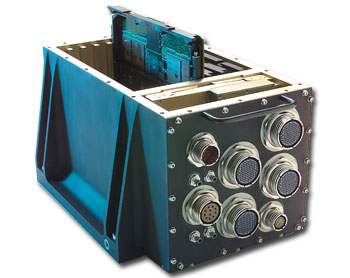

3/4 Short 8-slot ATR Conduction Cooled Chassis
- Cold plate version of a 3/4-short ATR chassis suitable for MIL-STD-5400 Class 1 environments
- Rugged dip brazed aluminum enclosure
- Provides 8-slots for conduction cooled circuit cards per IEEE 1101.2, 0.8” pitch
- Conduction cooled via cold plate mounting
- Over 325 general purpose I/O signal connections, I/O mapping easily configured with backplane wire wrap
Product Information
The Kontron FS-5968 is a 3/4-short ATR forced-air conduction cooled chassis designed for use in military applications. Specifically, the FS-5968 chassis meets the environmental requirements of MIL-E-5400 for Class 1 equipment designed to withstand extremes of temperature, vibration, shock, salt spray, sand and chemical exposure while maintaining a sealed environment.
