Industrial Grade Monitors in regular or wide format
Mouseover Zoom loading...

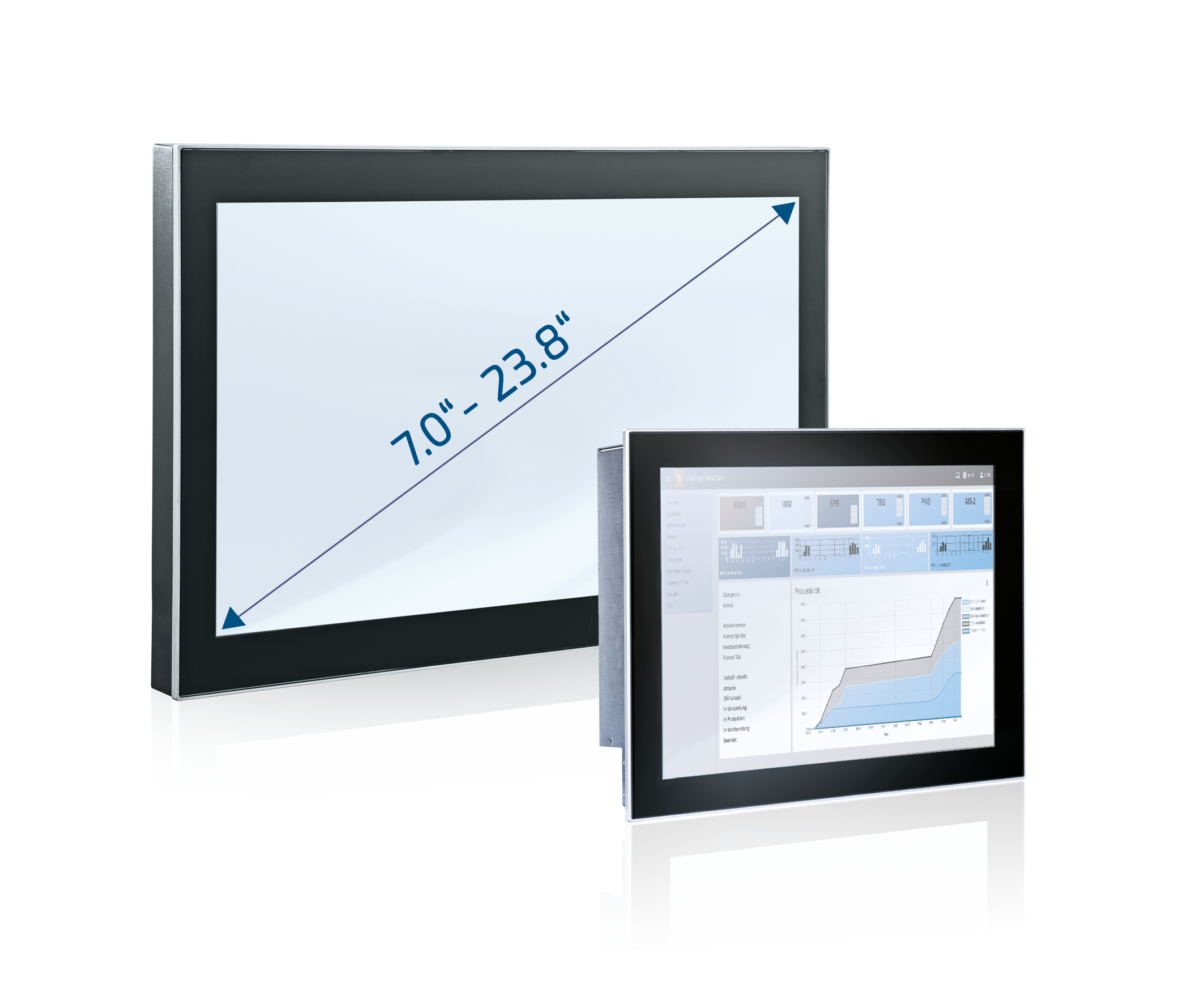

  • Display sizes in regular or wide format (10.1" - 23.8")
  • Front options: PCAP touch, resistive touch or protection glass
  • Industrial grade - robust, reliable, versatile and maintenance-free
  • Easy-clean, anti-glare and scratch-proof IP65 protected front glass
  • Flexible mounting options: Built-in version or full metal housing (stand-alone/VESA)
Download Datasheet

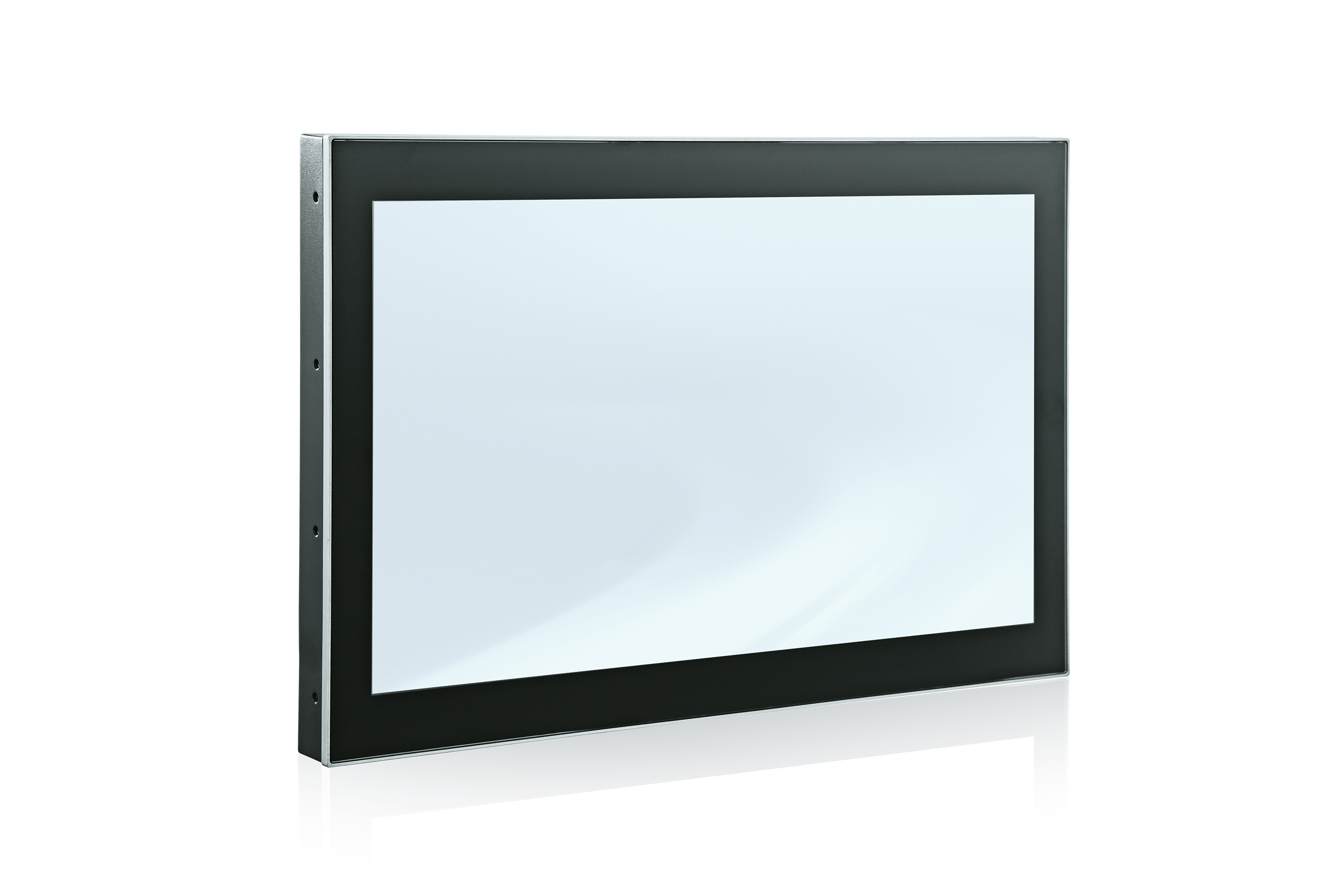

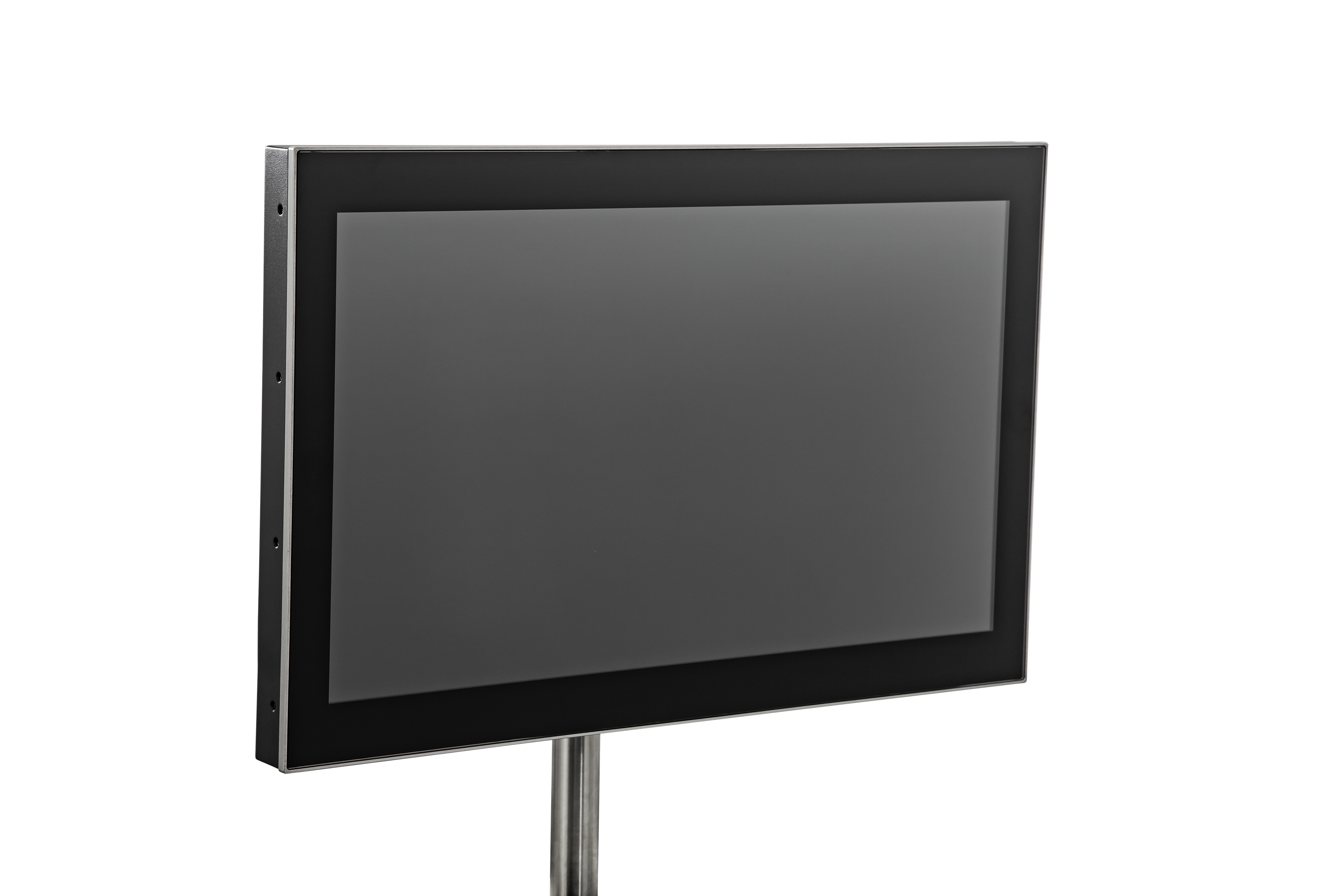

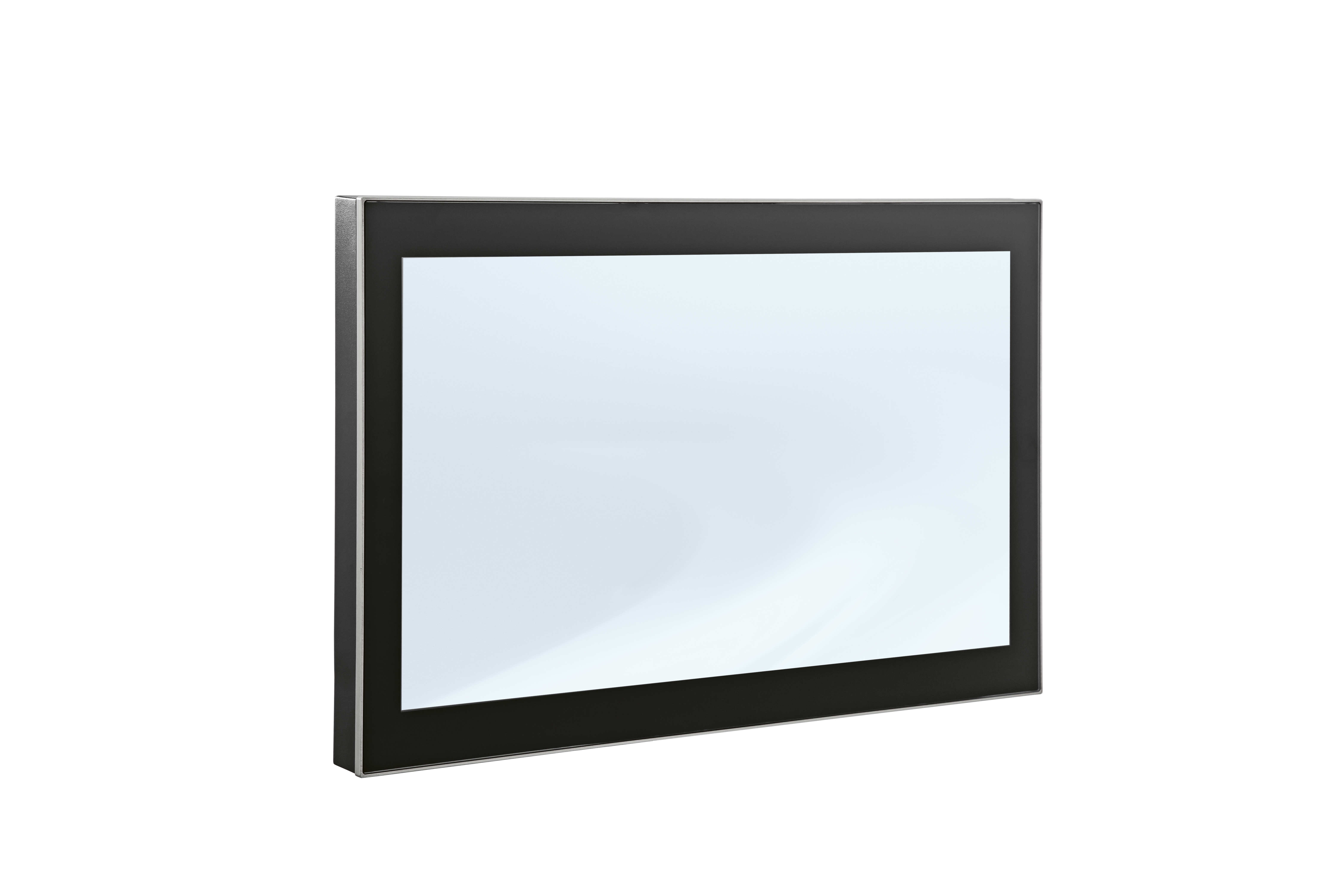

With its FlatView industrial monitor series, Kontron offers high flexibility with respect to the design. With a full metal housing it can be installed as a stand-alone solution with VESA 75/75 or 100/100, as well as a built-in solution.

All models feature an easy-clean, anti-glare and scratch-proof IP65 protected front glass. The front options offer a choice between either PCAP touch, resistive touch, or protection glass. The FlatView monitors are available from 10.1" to 23.8", which can be operated in both landscape and portrait format.

Combined with Kontron’s FlatClient, KBox or rackmount family, the FlatView enables intuitive multi-touch access to real-time actionable data, making it the perfect fit for SCADA and Manufacturing Execution Systems (MES), process visualization and other control applications. The thoroughly modular design can be easily customized for a broad variety of applications, thus making it suitable across all industries which require visualization and processing of data.


10.4” 800x600 4:3 400cd
12.1” 800x600 4:3 450cd
12.1” XGA 1024x768, XGA 4:3 600cd
15.0” 1024x768 4:3 400cd
15.6” 1366x768, HD 16:9 300cd
15.6” Full HD 1920x1080, Full HD 16:9 400cd
17.0” 1280x1024 5:4 350cd
18.5” 1366x768, HD 16:9 300cd
19.0” 1280x1024 5:4 350cd
21.5” 1920x1080, Full HD 16:9 300cd
23.8” 1920x1080, Full HD 16:9 250cd
Display Projected capacitive touch (PCAP) / Resistive touch (except 23.8”) / Protection glass
Frontpanel Projected capacitive touch (PCAP) / Resistive touch (except 23.8”) / Protection glass
Mounting Panel mount, VESA, stand-alone

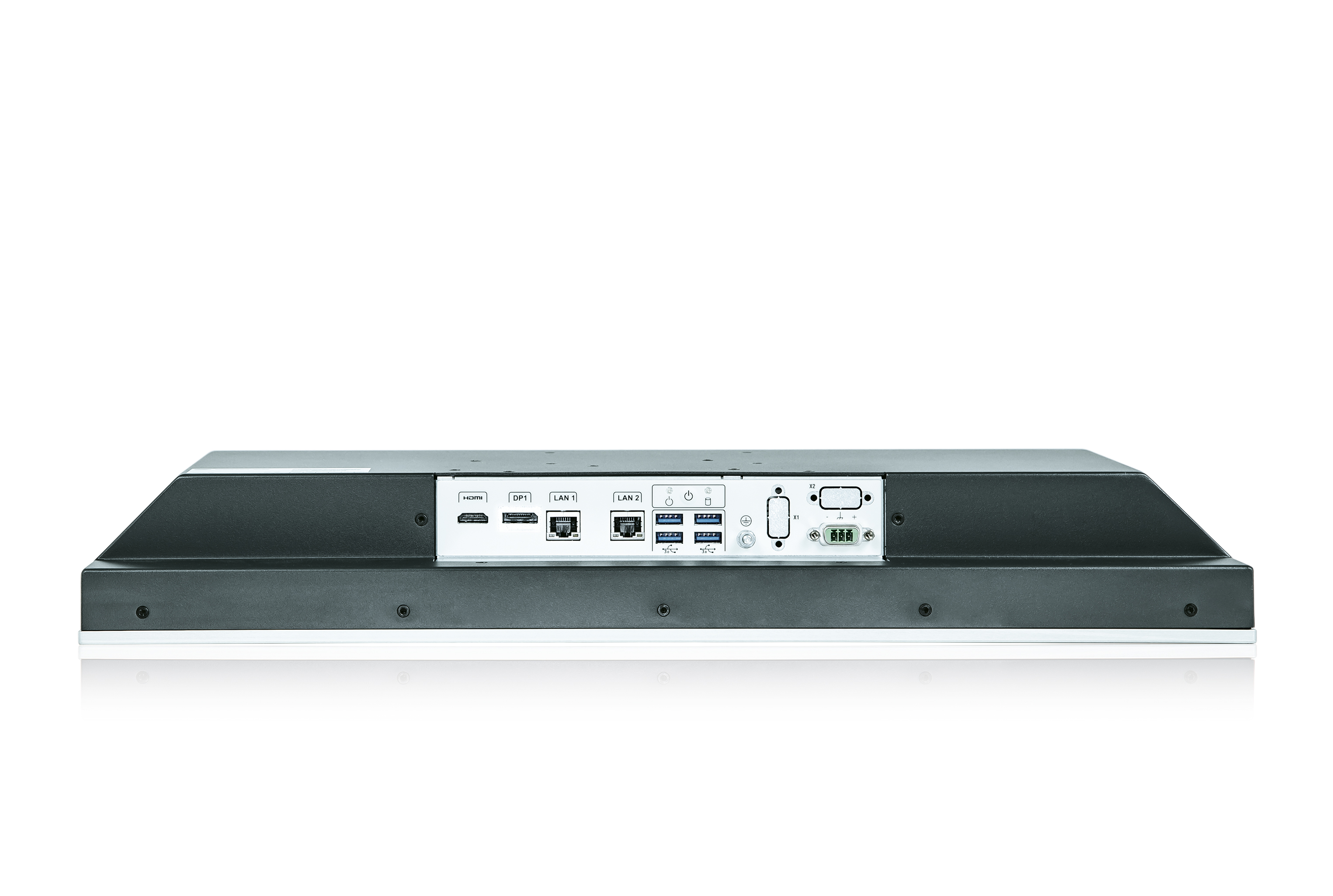

I/O Standard 1x DVI, 1x DP, 1x USB 2.0
Wireless connectivity RFID, WiFi
Power Supply 16-30 VDC
Altitude Up to 10.000 ft (3.000 m)
Operation Temperature 0 °C to +50 °C (UL listed 0 °C - 45 °C)
Cooling Fanless passive cooling



FlatView Datasheet
[ flatview_datasheet.pdf, 1.34 MB, Feb.15.2023 ]


FlatView, FlatView STS and FlatView RCK User Guide
Rev. 2.7, Sept. 07, 2022
[ flatview_flatview-sts_flatview-rck_user-guide_rev-2-7_2022_08_12.pdf, 9.45 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Tech Specs HMI
[ tech-specs_hmi.pdf, 1.44 MB, Nov.02.2023 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
