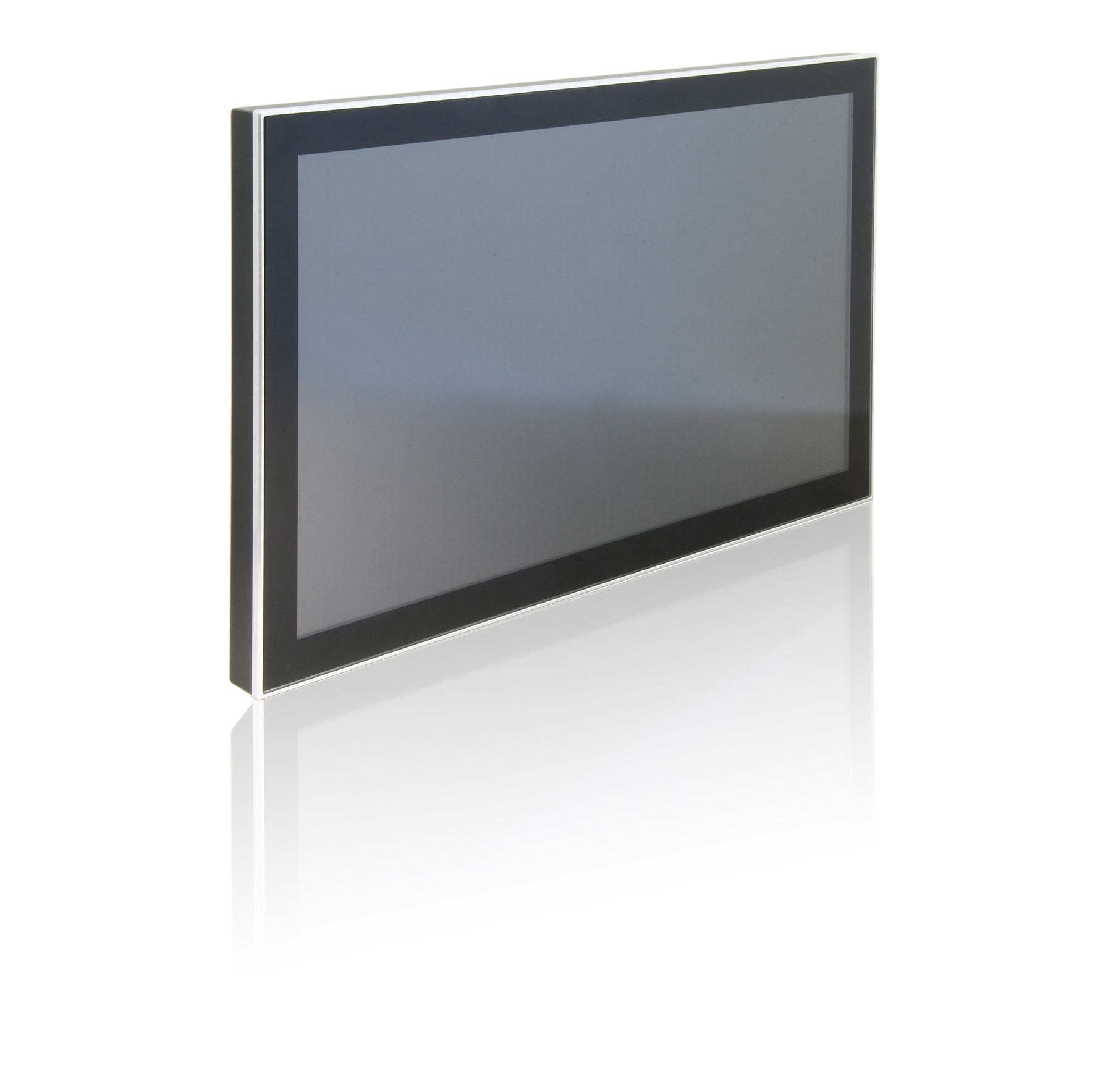

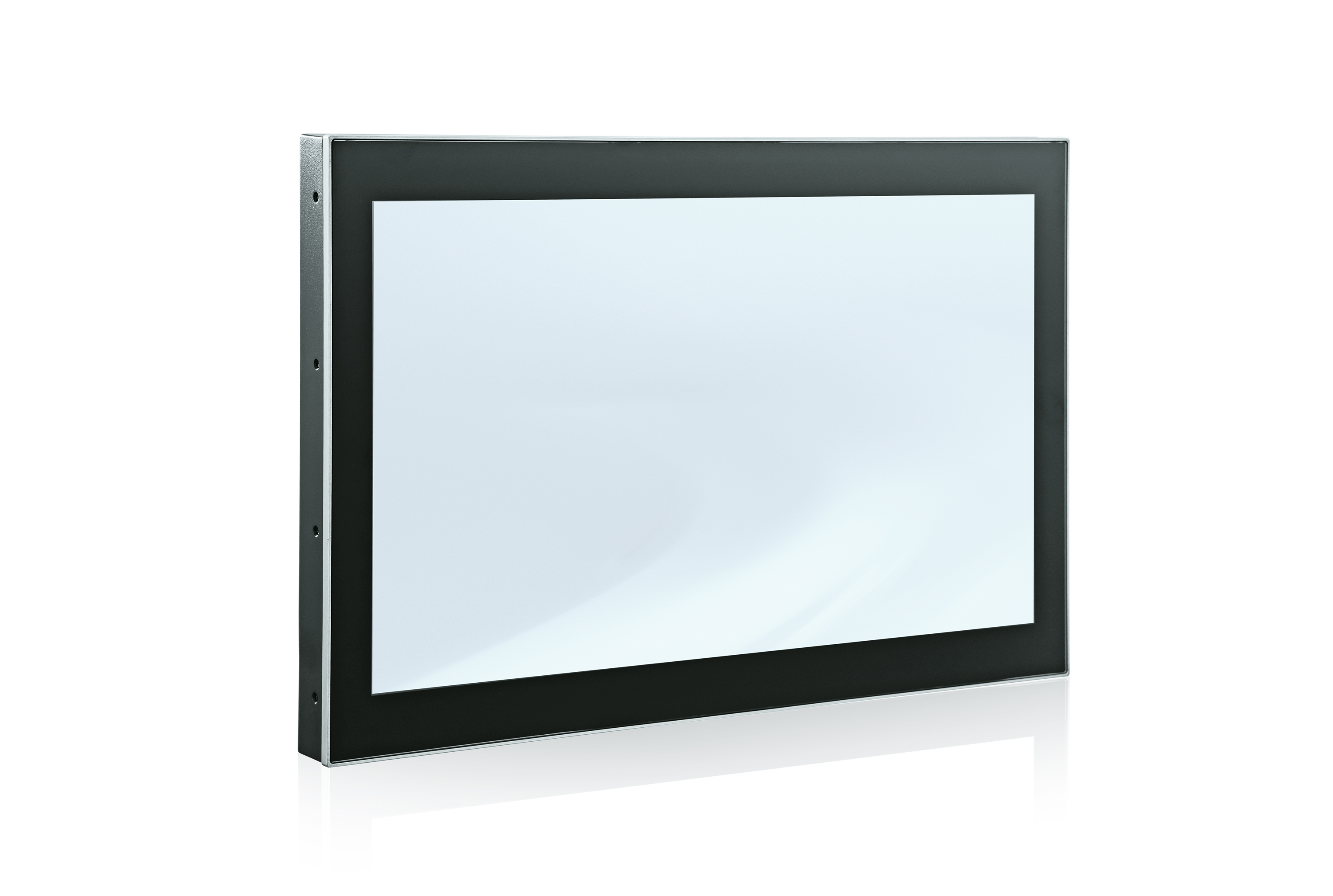

FlatView CTR This product is legacy

Industrial Grade Monitor for Control Rooms

Mouseover Zoom loading...

Specifications

Display sizes 18.5” and 21.5” with ultra narrow frame
ECO version (Intel Atom® Quad Core™) and PRO version (Intel® Core™ i5) available
Industrial grade – robust, reliable and light weight metal housing
Spray water and dust protected (IP54)
Remote Multi-Display Adjustment (LPC4)

Download Datasheet

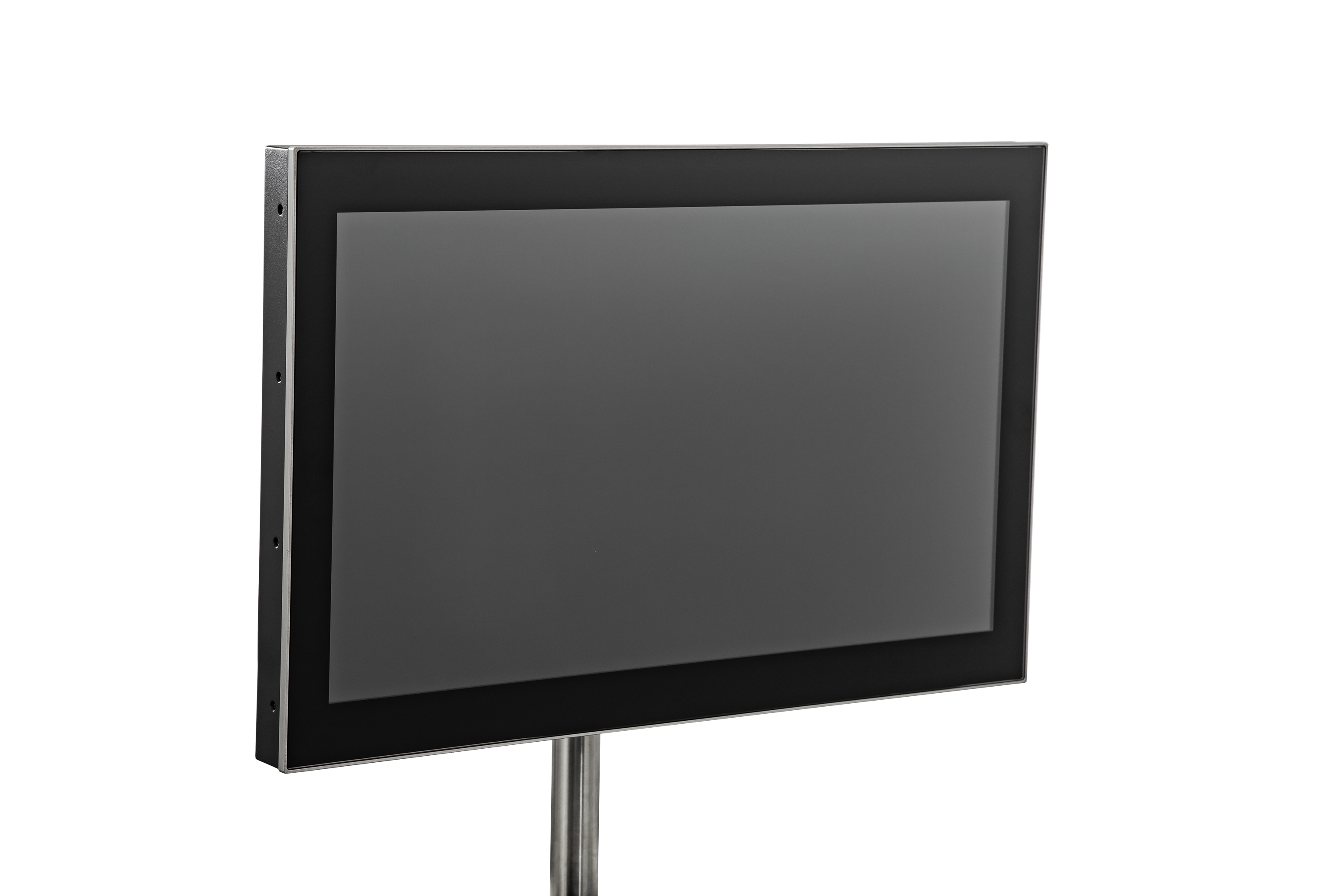

The Kontron FlatView CTR series for control room applications offers brilliant screens with an anti-glare surface for best readability. Everything is packed in a lightweight metal housing with an ultra thin frame so that installation on a monitor stand is very easy and convenient.

Additionally the FlatView CTR is protected against spray water and dust. This ensures reliable long term operation even in polluted environments.

The FlatView CTR comes along with a remote display adjustment interface: The so called LPC4 controller enables remote display adjustments through a standard Ethernet connection. Adjustments like brightness or contrast can be done from a remote PC and of course for single and for multiple FlatView CTR at the same time. Setups can be created and stored which is very convenient in applications with alternating users in one workplace.

Features

Display

18.5“, 21.5“ (others on request)

Resolution

1366 x 768 (HD) 1920 x 1080 (Full HD)

Brightness

300cd

Touch Screen

Protection glass / PCAP (both with anti-glare surface)

Mounting

VESA with narrow bezel

Interface

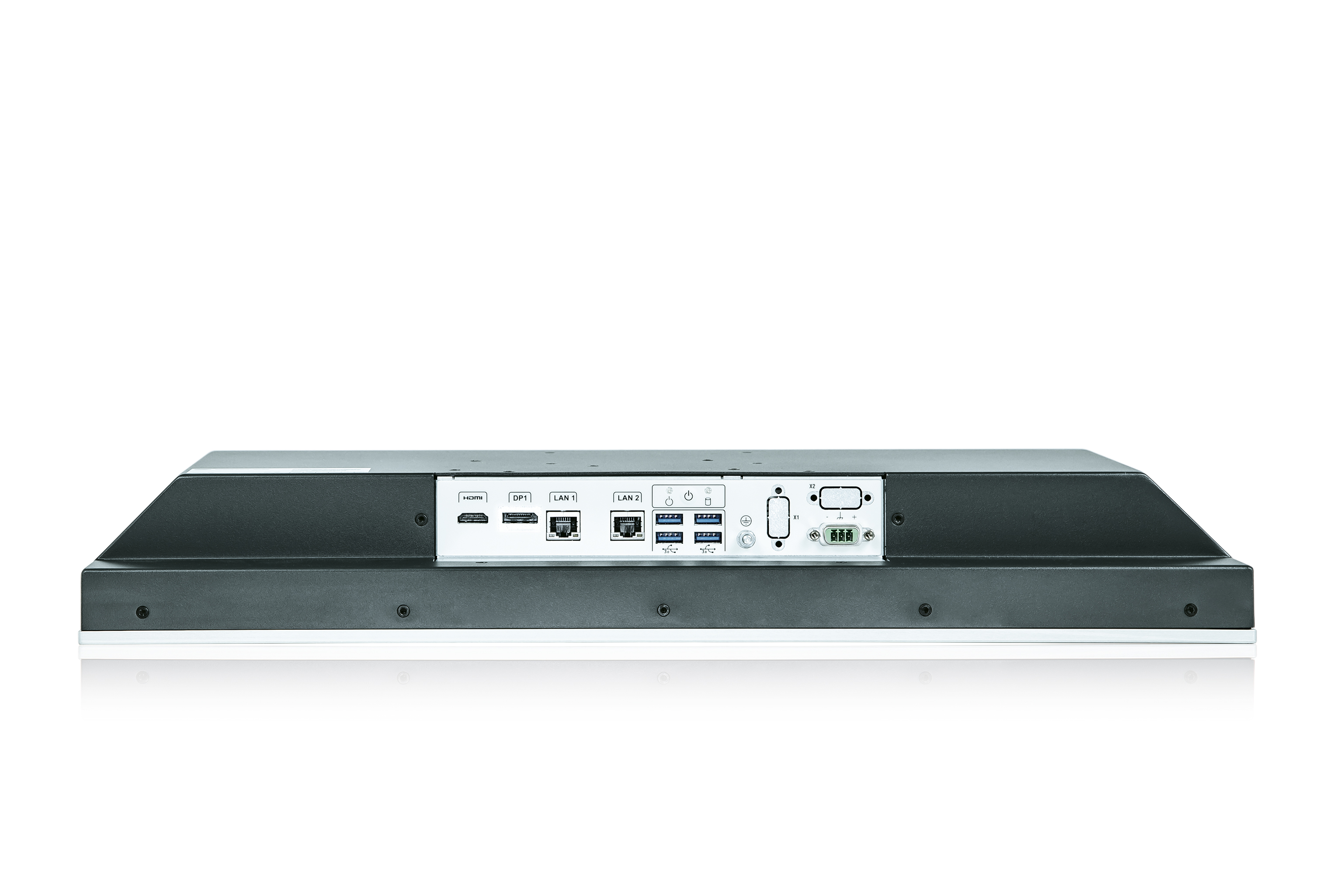

1x DVI-I, 1x DP 1.2, 1x ETH (LPC4), 1x USB 2.0

EMC	EN55022 class A

Certifications

CE and UL

Altitude

Up to 10.000 ft (3.000 m)

Operating System

0 °C to +50 °C

Protection Class

IP20 (up to IP54 on request)

Humidity

10 % - 90 % @ 39 °C, non condensing

Cooling

Fanless passive cooling

Weight

5,5 kg 7,4 kg
