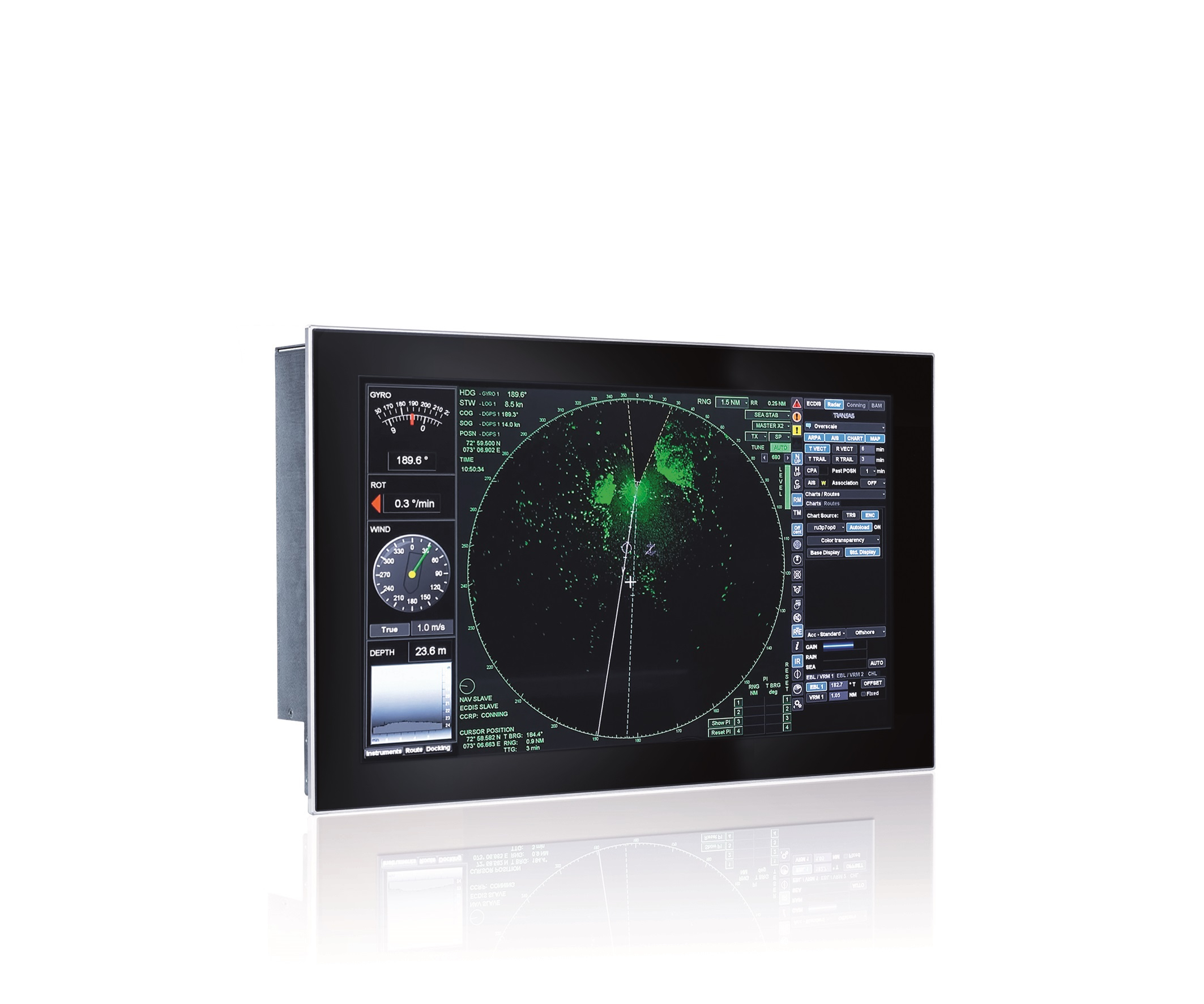

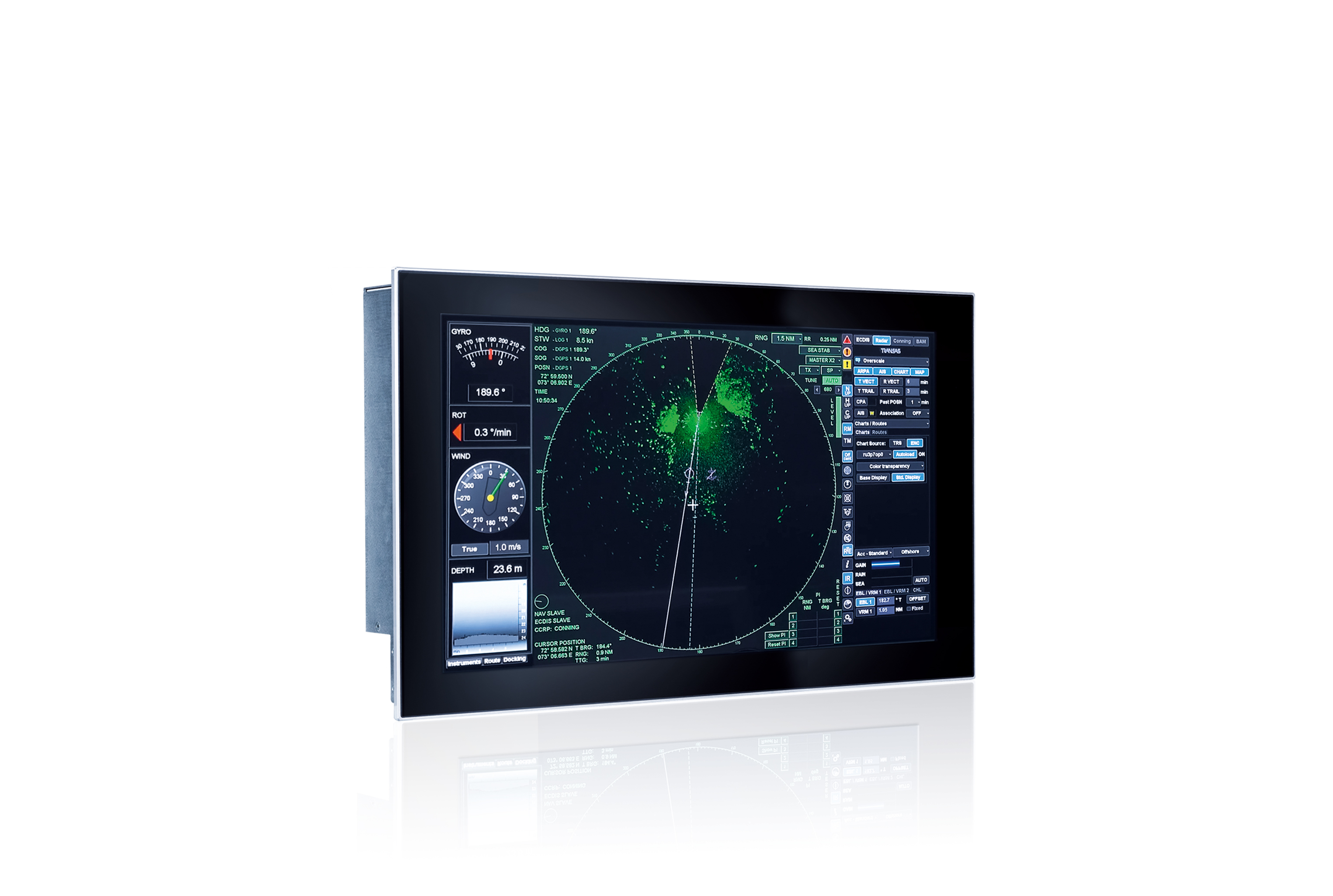

FlatClient MAR

Robust and flexibly configurable Panel PC for maritime applications
Mouseover Zoom loading...
Specifications
  • EN 60945 and DNVGL compliant (control room, accommodation, bridge)
  • Scalable performance from Intel Atom® to Intel® Core™ i5
  • Salt spray tested according to IEC 60068-2-52
Download Datasheet

The FlatClient MAR is DNVGL- and IEC60945/IACS E10-compliant and can therefore be used in national and international shipping, marine engineering structures and offshore wind farms. The new Panel PC is designed to withstand extreme environmental conditions such as temperature fluctuations, strong vibrations and jets of water. The display with tempered glass front and anti-glare and anti-fingerprint surface ensures best readability even under difficult lighting conditions.

The FlatClient MAR is designed for command bridge and control room applications with installation in control cabinets, consoles or control desks. The HMI is operated via a capacitive multi-touch screen and is equipped with different Intel® x86 processors that enable variable performance.

The FlatClient MAR series is available in six display sizes ranging from 10.1" to 21.5". Its glare-free and completely flush glass front, a maximum resolution of 1920×1080 and a brightness of up to 500 cd/m², as well as (remotely) controllable backlighting ensure excellent readability and clear visibility.

The front panel, which is shielded according to protection class IP65, is protected against dust and water jets and can be easily cleaned. The metal housing withstands the extreme environmental conditions in maritime applications and is tested according to IEC 60068-2-52 (salt water spray test). A sophisticated cooling concept and economical system components allow for completely fanless and maintenance-free operation.

Furthermore, the devices can be modified for a customer-specific branding.

Downloads

Datasheets

FlatClient_MAR_DS_20210225
[ flatclient-mar_datasheet.pdf, 1.61 MB, Oct.10.2023 ]

Manuals

FlatClient MAR
Rev. 1.5, Sept. 15, 2023
[ flatclient-mar_user-guide_rev-1-5_2023-09-06.pdf, 2.77 MB, Sep.15.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Quick Reference Guide

FlatClient MAR-Product_Overview
[ flatclient-mar-product_overview_2021-02-08.pdf, 918.16 KB, Feb.08.2021 ]

Tech Spec Sheet

Tech Specs HMI
[ tech-specs_hmi.pdf, 1.44 MB, Nov.02.2023 ]
